Sida 1/2
For additional self-service support options and community forums, please visit: www.StarTech.com/support
Revision: April 22, 2025
Quick-Start Guide
Product ID
4K50IC-EXTEND-HDMI
Transmitter
Receiver
Feature Function
1
RJ45 Port
• Connect the Transmitter and Receiver together, using an
Ethernet Cable (sold separately)
2
HDMI Input Port • Connect to an HDMI Source Device
3
USB-C Power Input • Connect the included Universal Power Adapter
4
RJ45 Port
• Connect the Transmitter and Receiver together, using a
CAT6/6a Ethernet Cable (sold separately)
5
HDMI Output Port • Connect to an HDMI Display
Package Contents
• HDMI Transmitter x 1
• HDMI Receiver x 1
• Mounting Bracket Kit x 1
• Universal Power Adapter (NA/EU/UK/ANZ) x 1
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specications, and declarations of conformance, please visit:
www.StarTech.com/4K50IC-EXTEND-HDMI
HDMI Extender over CAT6/6A - 4K 60Hz - 200ft (60m)
1 2
3
4 5
Quick-Start Guide
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com Ltd.
45 Artisans Crescent
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Road
Brackmills,
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp
The Netherlands
FR
Installation
(Optional) Mount the Transmitter and Receiver
Note: Before mounting the HDMI Extender make sure that the surface you are mounting to is strong enough to support the
weight of the HDMI Extender. It is recommended that you mount the HDMI Extender on a wall stud to provide the correct
support.
1. Determine the Mounting Surface for the HDMI Transmitter and Receiver
2. Place the Mounting Brackets on each side of the HDMI Transmitter. Align the Holes in the Mounting Brackets with the
Holes on the sides of the HDMI Transmitter.
3. Insert two Screws through each Mounting Bracket and into the HDMI Transmitter.
4. Tighten each Screw using a Phillips Head Screwdriver.
5. Repeat Steps 2 to 4 for the HDMI Receiver.
6. Mount the HDMI Transmitter and Receiver to the desired Mounting Surfaces using the appropriate Mounting
Hardware (e.g. Wood Screws).
Install the HDMI Extender
1. Position the Transmitter near the HDMI Source Device.
2. Connect an HDMI Cable (not included) from the HDMI Source Device to the HDMI Input Port on the Transmitter.
3. Position the HDMI Receiver near the HDMI Display Device.
4. Connect an HDMI Cable (not included) from the HDMI Output Port on the Receiver and to the HDMI Display Device.
5. Connect a CAT6/6a Cable (not included) from the RJ45 Port on the Transmitter to the RJ45 Port on the Receiver.
Note: The cabling cannot go through any networking equipment (e.g., router, switch, etc.).
6. Connect the included Universal Power Adapter to the USB-C Power Input on the Transmitter or Receiver and to an
Electrical Outlet.

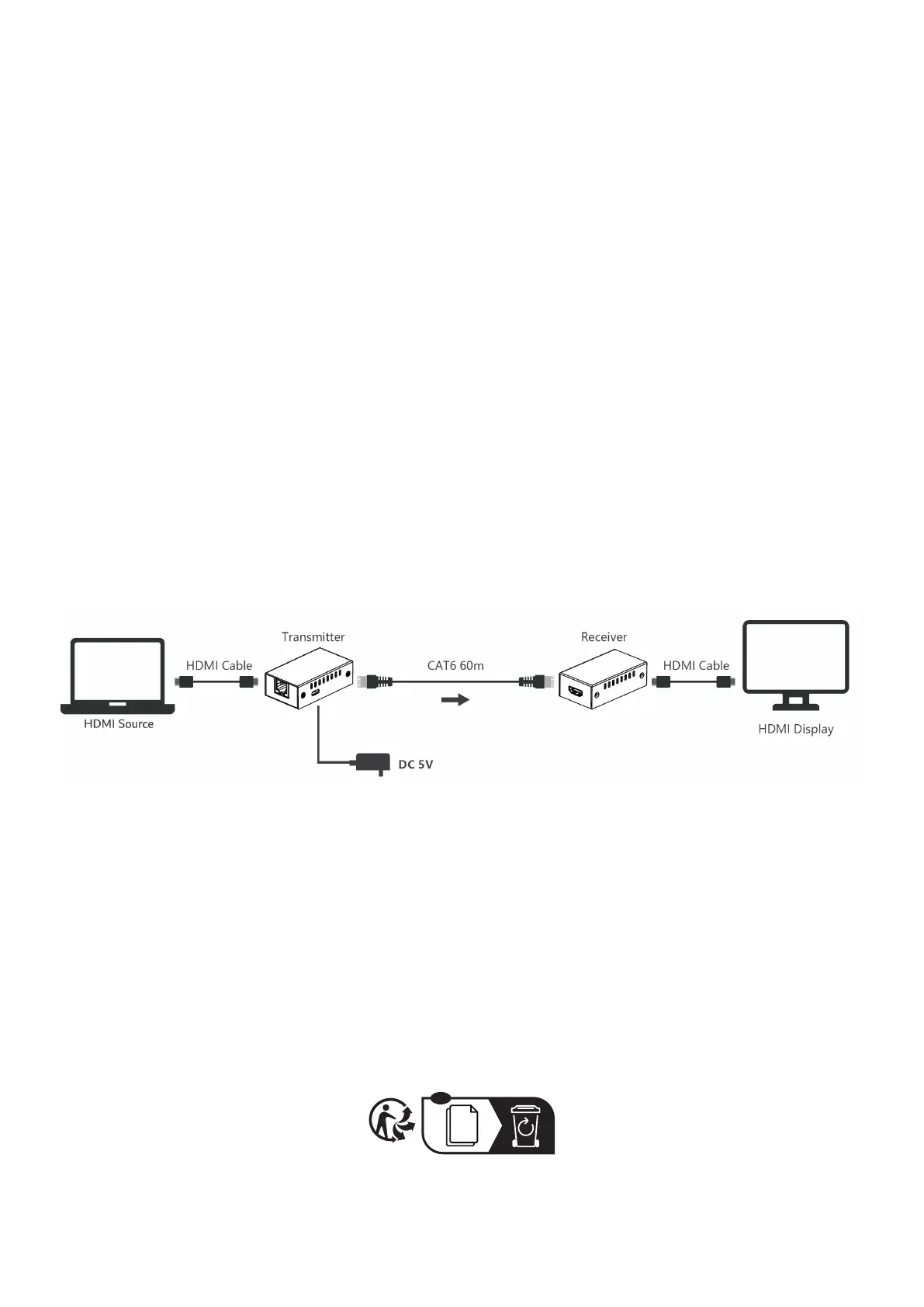

Connection Diagram
