Features

VGA - Male

• Supports common VGA video resolution.

Introduction

Package Contents

Before attempting to use this unit, please check the packaging and make sure

the following items are contained in the Packaging:

• 1 x Main Unit

• User Manual

This is a premium Rocstor VGA video converter, It converts VGA signal into complete

HDMI and allows PC users to enjoy their larger image on the display. The Converter is

also along with USB audio that allows you to enjoy high quality sound on HDTV.

USB port can supply power to this converter to save an extra power adapter.

HDMI - Female

Upstream:

Downstream:

Features

• Easy to Use: Install in seconds, no need of setting.

• Conversion: It can convert PC’s VGA video and USB 2CH audio into complete HDMI.

• Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.

• Supports 8bit per channel (24bit all channel) deep color.

• Support input resolution up to 1080P

Specication

How to Use

Signal Input / Output

Operating Frequency

Input Video Signal

Input DDC Signal5 volts p-p (TTL)

Output VideoHDMI

0.45-1.1 volts (p-p)

Warranty

Limited Warranty2 Year

Environmental

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

Regulatory Approvals

CerticationsFCC, CE

Power Requirement

Accessories

User ManualEnglish Version

Before installation, please make sure all the devices you wish to connect have been

turned o.

1- Connect the HDMI output of this product to the HDTV which has HDMI input (HDMI

Cables are optional).

2- Connect the VGA and USB port of this product to computer.

3- Power on the computer and TV.

4- Set the right resolution of PC to HDTV.

Note: Because the some resolution formats of VGA are not the same with HDTV’s, so

not all resolutions of VGA can output to HDTV. Please set these resolutions as listed in

the Specication as possible.

0°C to + 45°C - (32°F to + 113°F)

10% to 90 % RH (no condensation)

-10°C to + 70°C - (14°F to + 158°F)

10% to 90 % RH (no condensation)

Vertical Frequency Range 50/60Hz

Video Amplier Bandwidth 1.65Gpbs/165MHz

Size(W-H-D) 3.1”x0.47”x2.16” - 80x12x 55 mm

VGA line length 1 ft - 0.3m

USB line length 3.2 ft - 1m

External Power Supply NO

Power consumption (Max) 1.85W

Mechanical

®

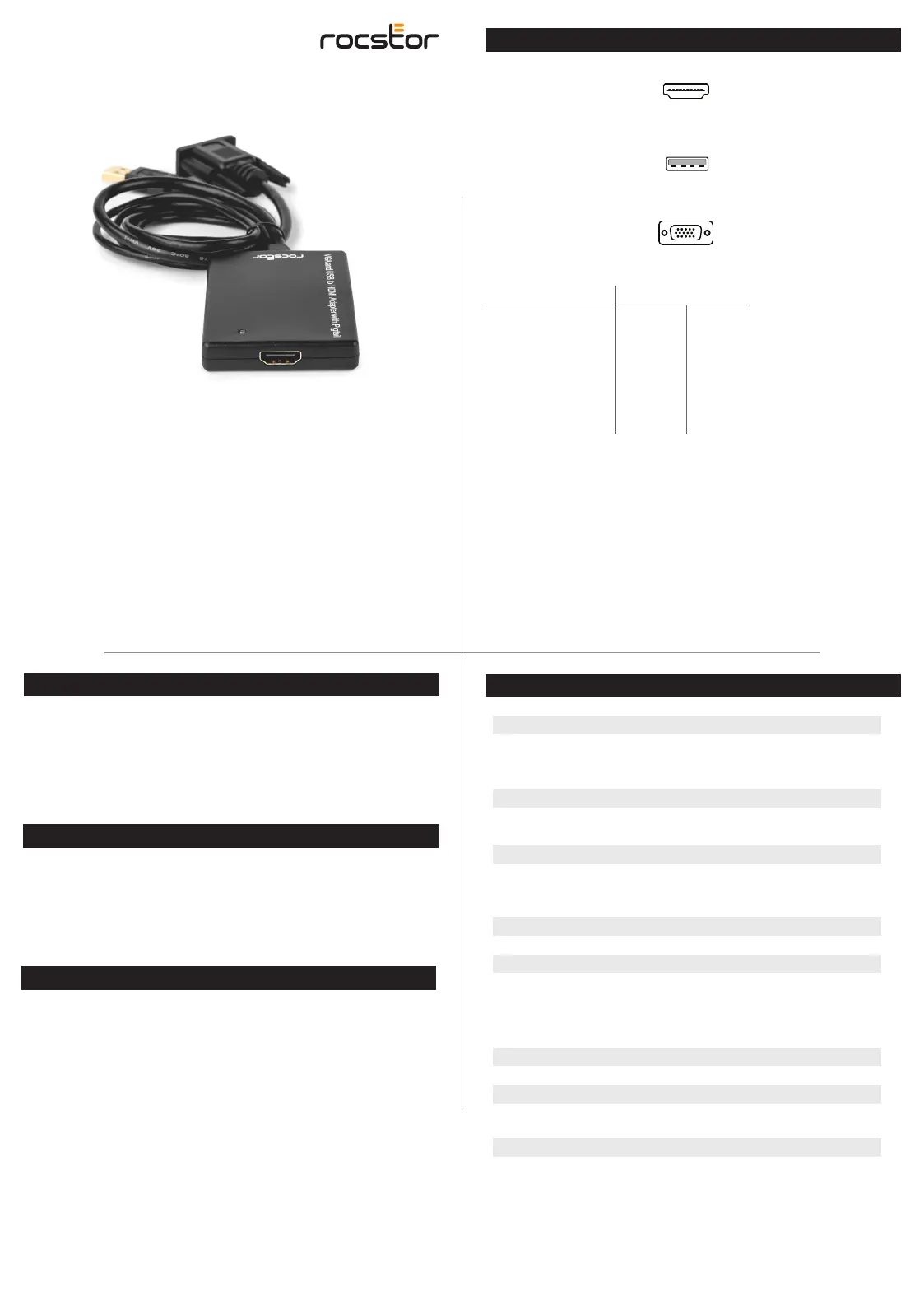

VGA to HDMI Video Adapter

with USB Audio & Power - Black

User Manual

Y10A218-B1

Congratulations

Thank you for purchasing this premium Rocstor product. For optimum performance and

safety, please read these instructions carefully before connecting, operating or using this

product. Please keep this manual for future reference.

800X600 1024X768

1152X864 1280X600

1280X720 1280X768

1280X800 1280X960

1280X1024 1360X768

1366X768 1400X1050

1440X900 1600X900

1600X1200 1680X1050

1920X1080

Common VGA Resolution

HDMI

USB-A - Male

• Suppoert Audio & Power
