1-0 Manual Contents

User Manual

DPFX-300-TR

Doc No. : OE-DP211025 / V1.3

One (1) Fiber DisplayPort 1.2

Optical Detachable Extender

Welcome!

Congratulations on your purchase of the one (1) fiber DisplayPort extender,

DPFX-300-TR. This manual contains information that will assist you in

installing and operating the product.

Product Description

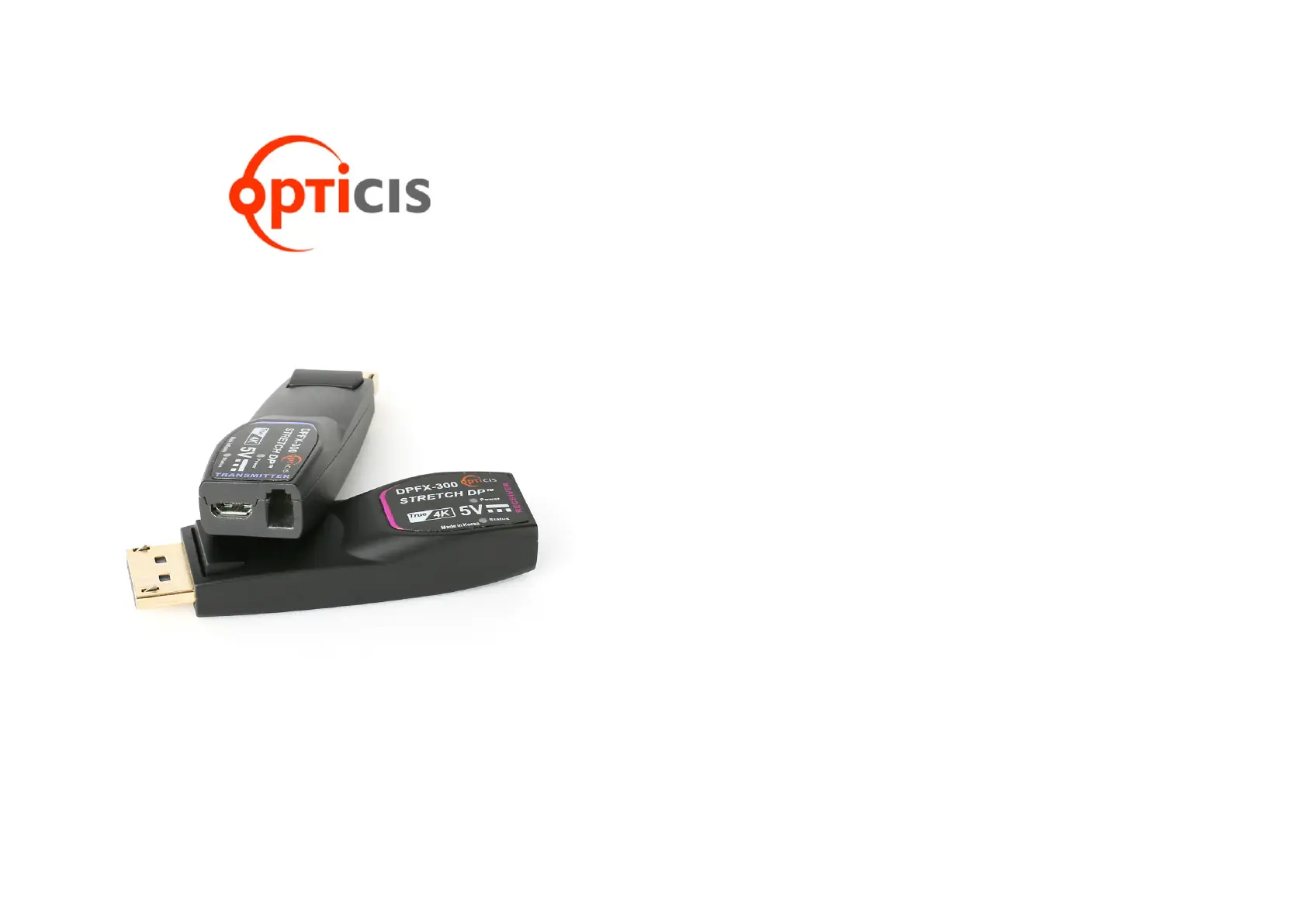

DisplayPort 1.2 one(1) fiber optical detachable extender, DPFX-300, extends

DisplayPort 1.2 signal up to 200m (656feet) and transmits 4K UHD

(4096x2160) at 60Hz over one(1) LC multi-mode fiber. Leading-edge

technology of Opticis allows long distance transmission of 4K signal without

any video/audio degradation.

DPFX-300-TR is designed compact enough to be fitted into various installation

environments. It gives slim, light, easy installation with

perfect electrical

isolation, but without electrical hazard and interference.

Between Transmitter (DPFX-300-Tx) and receiver (DPFX-300-Rx), pure fiber

connection by single LC fiber connector gives clean

, secure and easy

installation. Additional DPFX-300-TR can interoperate with DPFX-700 as a

pair.

DPFX-300-TR can be operated by USB power without external DC power

adapter with plugging micro USB (DPFX-300 module side) – USB

(source/display devices side) cable which is supplied in shipping group.

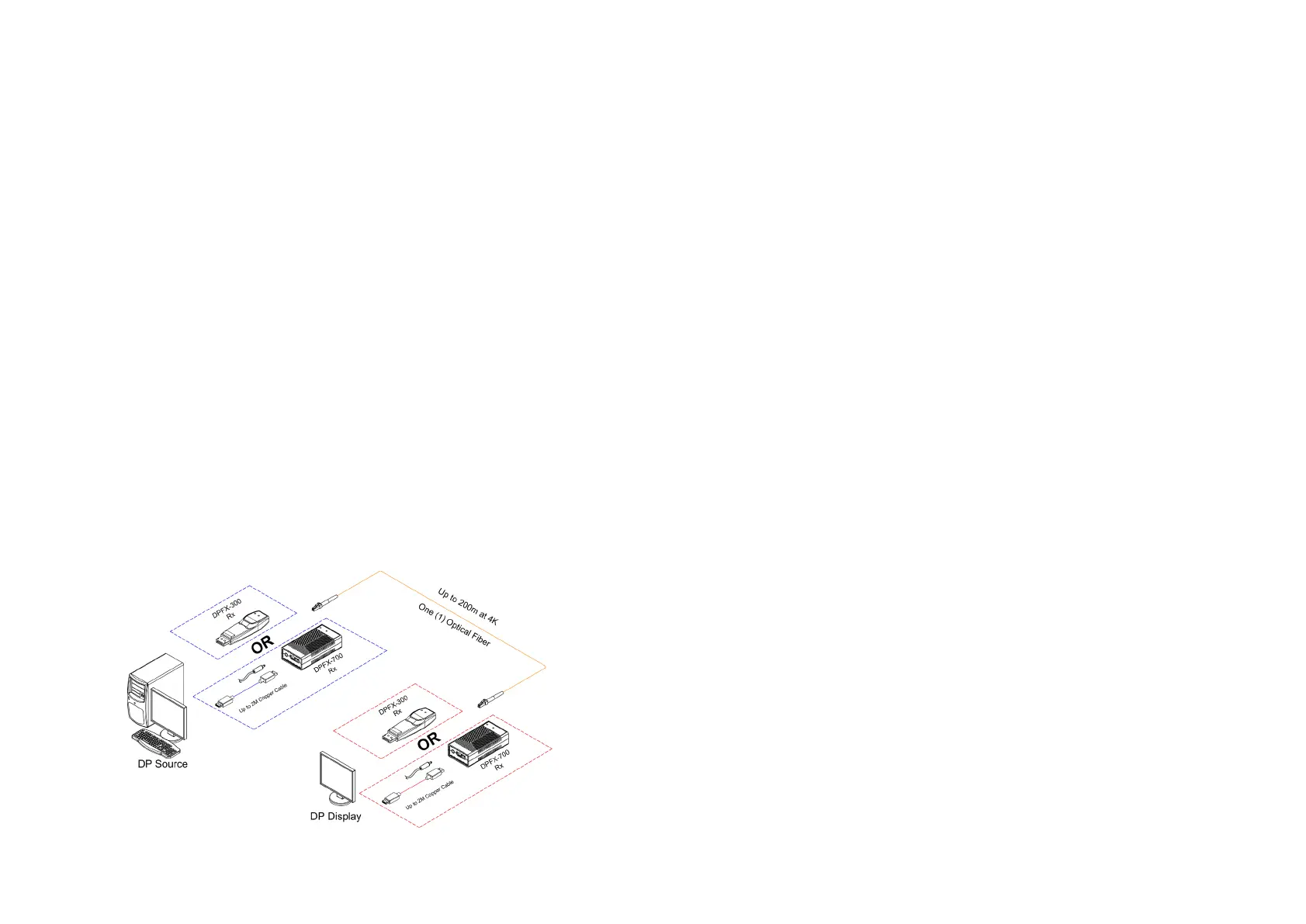

Figure 1 – Overall Connection of DPFX-300-TR

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ You must have a DisplayPort source and display. It should

support the maximum graphic resolution feature of displays to

be connected.

▪ No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your DisplayPort

systems or graphic cards.

▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to installation

with the optical link.

□ Software requirements

▪ No special restrictions, if you’ve already properly installed your

DisplayPort systems.

□ Power Technical Advisory

▪ Enclosed Power Adaptors and USB cables supply power to both

Transmitter and Receiver.

□ Connection Advisory

▪ It is highly recommended that DisplayPort source is directly

connected into DisplayPort display output via DPFX-300-TR

without connection to incompatible distributor, switcher

and selector.

The Shipping Group of DPFX-300-TR;

 One (1) Transmitter (Tx) and One (1) Receiver (Rx)

 One (1) 0.2m Male to Female DisplayPort copper cable

 Two (2) Micro USB to USB cables

 Two (2) 5V 1A power adapter

 User Manual

※

Default connection is direct connection to both source (Tx side) and

display (RX side)

※

If direct connection is impracticable, 0.2m DisplayPort copper cable

is strongly recommended to use on Tx(Display Source) side only

1-2 System Requirements for Setup

Produktspecifikationer

Varumärke:	Opticis
Kategori:	AV förlängare
Modell:	DPFX-300-TR
Bredd:	67 mm
Djup:	22 mm
Höjd:	14 mm
Maximal upplösning:	4096 x 2160 pixlar
Certifiering:	FCC, CE
USB-version:	2.0
Modell:	Sändare för AV-utrustning
USB-anslutning:	Micro-USB
Driftspänning:	5 V
Kabeltyper som stöds:	Fiber
AUX ut:	Ja
Produktens färg:	Svart
Antal USB-portar:	1
Antal per förpackning:	1 styck
Strömförbrukning (vanlig):	2 W
Temperatur vid drift:	0 - 50 ° C
Temperaturintervall (förvaring):	-30 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 85 %
USB-ström:	Ja
Anslutningsteknologi:	Kabel
Plug & Play-kompatibel:	Ja
Maximal överföringshastighet avstånd:	200 m
Fiberoptiska kontakten:	LC
Fiberlägets struktur:	Flerläge
Visningsportar in:	1
