1-0 Manual Contents

One (1) fiber Detachable

HDMI 2.0 Extender

User’s Manual for the

HDFX-500-TR

Doc No. : OE-HD190724 / V. 1.0

Welcome!

Congratulations on your purchase of the one (1) fibers HDMI 2.0 extender,

HDFX-500-TR. This manual contains information that will assist you in

installing and operating the product.

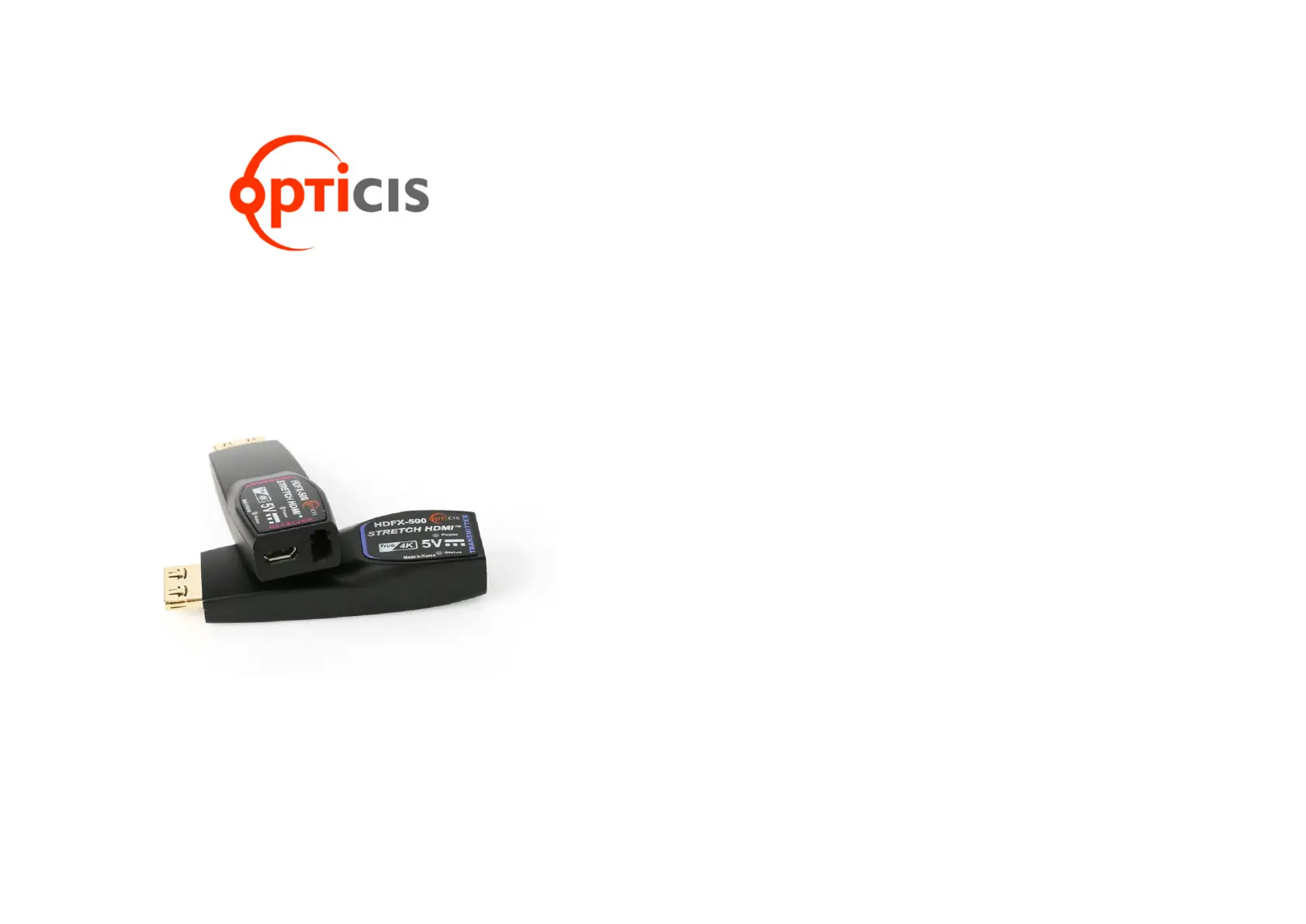

Product Description

HDMI 2.0 optical fiber detachable extender, HDFX-500-TR, extends HDMI

2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz

over one LC multi-mode fiber. Leading-edge technology of Opticis allows long

distance transmission of 4K signal without any video/audio degradation.

HDFX-500-TR is designed compact enough to be fitted into various installation

environments. It gives slim, light, easy installation with perfect electrical

isolation, but without electrical hazard and interference.

HDFX-500-TR adopted High-Retention HDMI connector, which allows for more

retention force than standard HDMI connector, prevents accidental

disconnection.

HDFX-500-TR is compliant with HDMI standards features like CEC, EDID and

HDCP 2.2 for better installation flexibility and compatibility. It also supports

HDR to deliver more realistic, and objective video signal.

HDFX-500-TR can be operated by either USB power or DDC 5V power from

HDMI source (Tx only). Auto Power-Switching feature makes it more reliable

on its power supply.

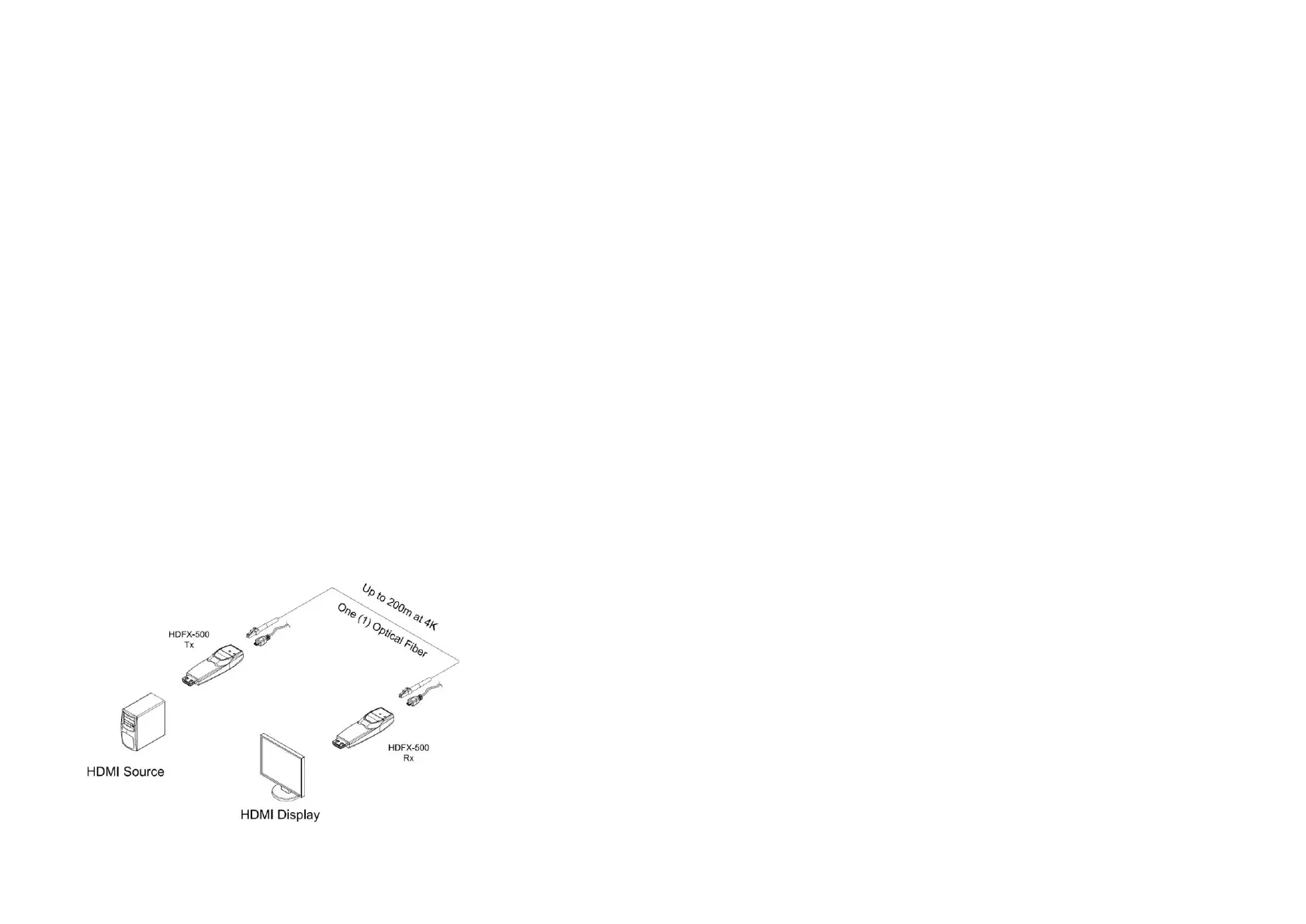

Figure 1 – Overall Connection of HDFX-500-TR

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ You have to have a HDMI source and display. It should support

the maximum graphic resolution feature of displays to be

connected.

▪ No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your HDMI systems

or graphic cards.

▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to installation

with the optical link.

□ Software requirements

▪ No special restrictions, if you’ve already properly installed your

HDMI systems.

□ Power Technical Advisory

▪ Enclosed Power Adaptors and USB cables supply power to both

Transmitter and Receiver.

□ Connection Advisory

▪ It is highly recommend that HDMI source is directly

connected into HDMI display output via HDFX-500-TR

without connection to incompatible distributor, switcher

and selector.

The Shipping Group of HDFX-500-TR;

 One (1) Transmitter (Tx) and One (1) Receiver (Rx)

 Two (2) Micro USB to USB cables

 Two (2) 5V 1A power adapter

 User’s Manual

 HDMI male to HDMI female Cable (0.2m) – Optional

1-2 System Requirements for Setup

Produktspecifikationer

Varumärke:	Opticis
Kategori:	AV förlängare
Modell:	HDFX-500-TR
Bredd:	67 mm
Djup:	22 mm
Höjd:	14 mm
LED-indikatorer:	Activity, Power
Maximal upplösning:	4096 x 2160 pixlar
HDCP:	Ja
USB-version:	2.0
HDMI-version:	2.0
Modell:	Sändare och mottagare för AV-utrustning
Färgdjup:	12 bit
USB-anslutning:	Micro-USB
Bandbredd:	18 Gbit/s
HDCP-version:	2.2
Antal HDMI-utgångar:	1
Driftspänning:	5 V
Kabeltyper som stöds:	Fiber, HDMI
Produktens färg:	Svart
Antal USB-portar:	1
Antal per förpackning:	1 styck
Strömförbrukning (vanlig):	2.5 W
Temperatur vid drift:	0 - 50 ° C
Temperaturintervall (förvaring):	-30 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 85 %
3D kompatibilitet:	Ja
USB-ström:	Ja
Anslutningsteknologi:	Kabel
Maximal överföringshastighet avstånd:	200 m
Fiberoptiska kontakten:	LC
Fiberlägets struktur:	Flerläge
HDMI-in:	1
HDCP- och EDID-förbikoppling:	Ja
Stöd för Consumer Electronics Control (CEC):	Ja
