2321 Cohen, Montreal, Quebec, Canada. H4R 2N7

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: info@muxlab.com URL: www.muxlab.com

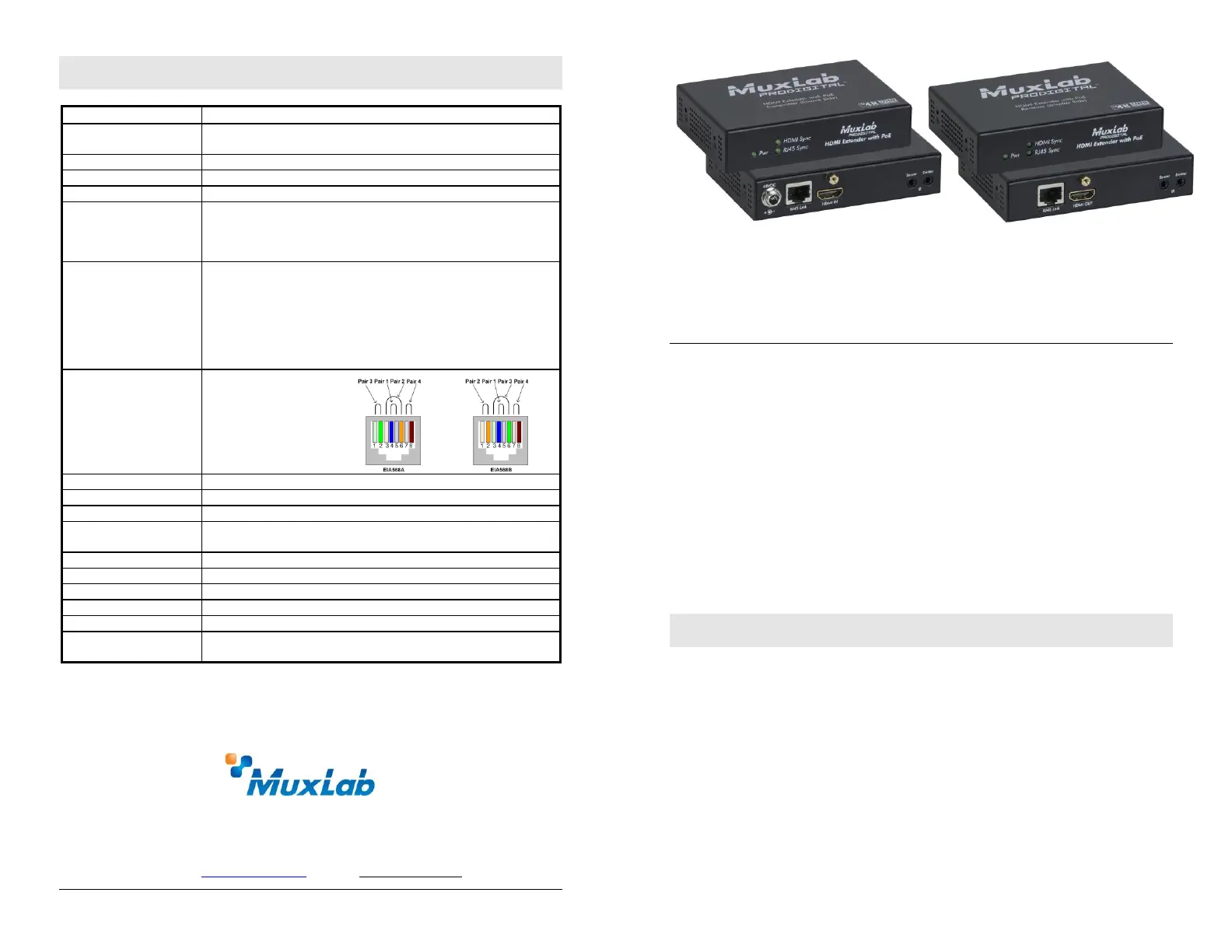

Specifications

Environment

HDMI 1.4a

Devices

DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops,

servers supporting HDMI.

Transmission

Transparent to the user

Bandwidth

340 MHz

Signals

HDMI 1.4a protocol

Connectors

Cables not included

One (1) HDMI receptacle.

One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.

Two (2) 3.5mm jacks for IR emitter and sensor.

One (1) 2.1mm locking power connector.

Maximum Distance

Based on a maximum

length of 6.6 ft (2 m) of

HDMI cable per end.

4K/30 (4:4:4): Cat 5e/6: 131ft (40m)

4K/60 (4:2:0): Cat 5e/6: 131ft (40m)

1080p: Cat 5e/6: 230ft (70m)

1080p Deep Color: Cat 5e/6: 230ft (70m)

Note: When installed in an electrically noisy environment, an STP

cable must be used. Also, cross-connection reduces the effective

distance depending on the grade of twisted cable used.

RJ45 Pin

Configuration

Reverse Polarity

Sensitive. Use EIA/TIA

568A or 586B straight-

through wiring.

RJ45 Link

Pin 1 (R) Pin 2 (T)

Pin 3 (R) Pin 6 (T)

Pin 4 (R) Pin 5 (T)

Pin 7 (R) Pin 8 (T)

Cable

One (1) Cat 5e/6 or better twisted pair cables required

Power Supply

One (1) 110-240V/48VDC 0.5A power supply

Power Consumption

Transmitter: 1.6 Watt Receiver: 3.2 Watt

Temperature

Operating: 0° to 40°C Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Enclosure

Metal

Dimensions

4.40” x 3.00” x 1.00” (11.2 x 7.6 x 2.5 cm)

Weight

1.4 lbs (0.6 kg)

Compliance

Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty

2 years

Order Information

500451-POE HDMI Extender Kit, PoE, HDBT, UHD-4K

500451-POE-RX HDMI Extender Receiver, PoE, HDBT, UHD-4K

HDMI Extender Kit, PoE, HDBT, UHD-4K

500451-PoE (Kit), 500451-PoE-RX (Receiver only)

Quick Installation Guide

Overview

The HDMI Extender Kit, PoE, HDBT, UHD-4K (500451-PoE) allows HDMI

equipment to be connected up to 131ft (40m) @ 4K/30 (4:4:4) or 4K/60 (4:2:0)

resolution, or up to 230ft (70m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded

twisted pair cables in a point-to-point configuration. The kit comes with one (1)

Transmitter and one (1) Receiver as well as an IR Emitter and IR Sensor for remote

control applications. The 500451-PoE-RX is the receiver portion of the kit and is used

in conjunction with MuxLab’s HDBaseT Matrix Switches. For installation instructions,

please refer to the Matrix Switch Installation Guide.

Applications

Applications include commercial and residential AV systems, classroom projector

systems, digital signage, boardroom systems, collaborative PC systems, and medical

information systems.

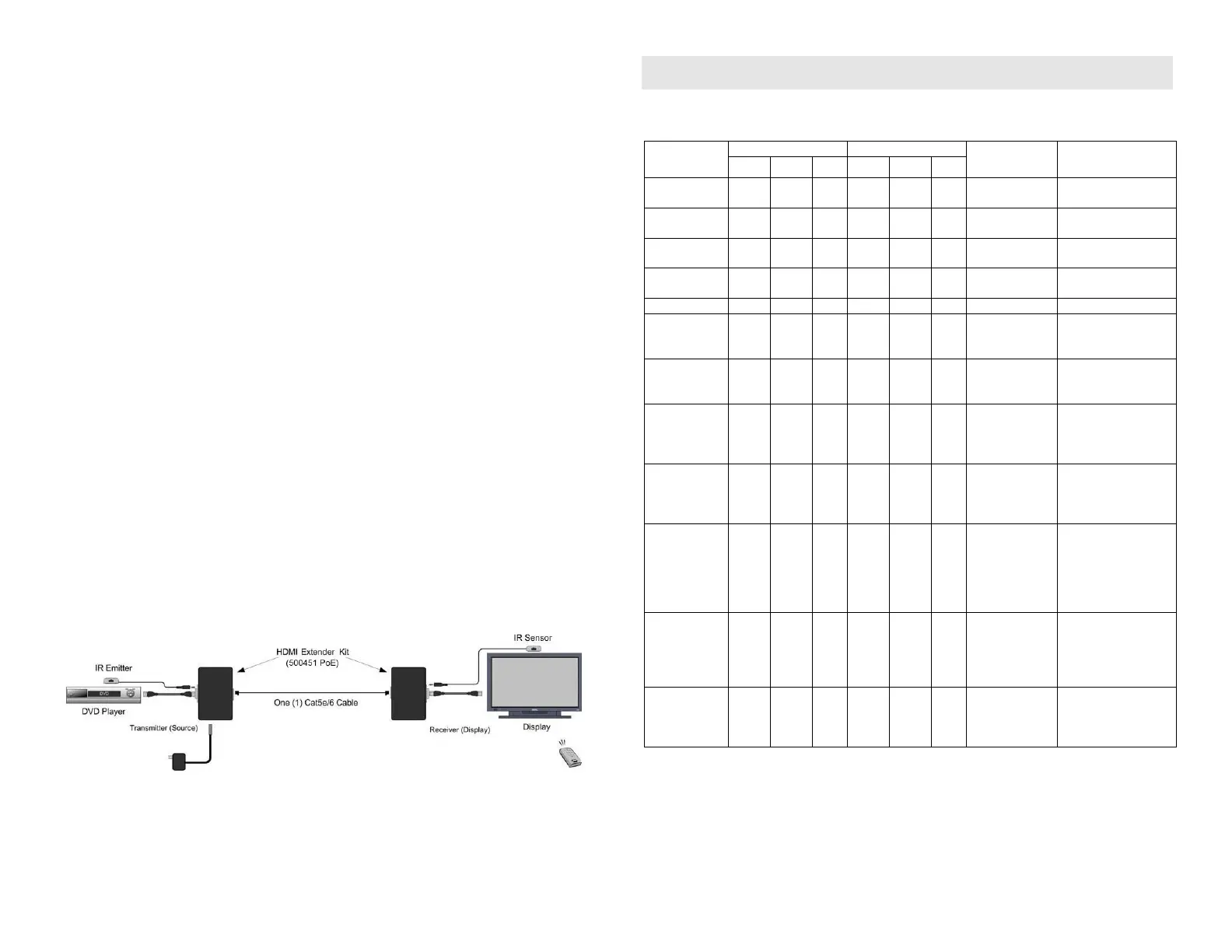

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the product

labels.

2. Verify that the distance between the HDMI Transmitter and Receiver is within

MuxLab specifications (see Specifications table).

3. To install the Transmitter:

3a. Connect the Transmitter to the HDMI video source with an HDMI compliant

cable.

3b. Connect one (1) Cat 5e/6 (or higher) grade UTP cable to the RJ45 LINK

connector on the Transmitter.

4. To install the Receiver:

4a. Connect the Receiver to the HDMI display equipment with an HDMI
