Installation Instructions

MODEL:

KDock-1

USB-C Hub Multiport Adapter

P/N:

2 9 0 0 - 3 0 1 3 5 5 QS

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information products a list Kramer distributors, visit on our and of our

Web site where updates to these installation instructions may be found.

We welcome your questions, comments, and feedback.

KDock-1 USB-C Hub Multiport Adapter

Introduction

Congratulations on purchasing your Kramer . KDock-1 USB-C Hub Multiport Adapter

KDock-1 USB-C Hub Multiport Adapter supports HDMI video output, 1 USB-A port, ™

and 1 USB-C port. It is specially designed to support mobile devices. it is an ideal

accessory for MacBook, laptops equipped with USB Type-C, mobile phones, and tablets.

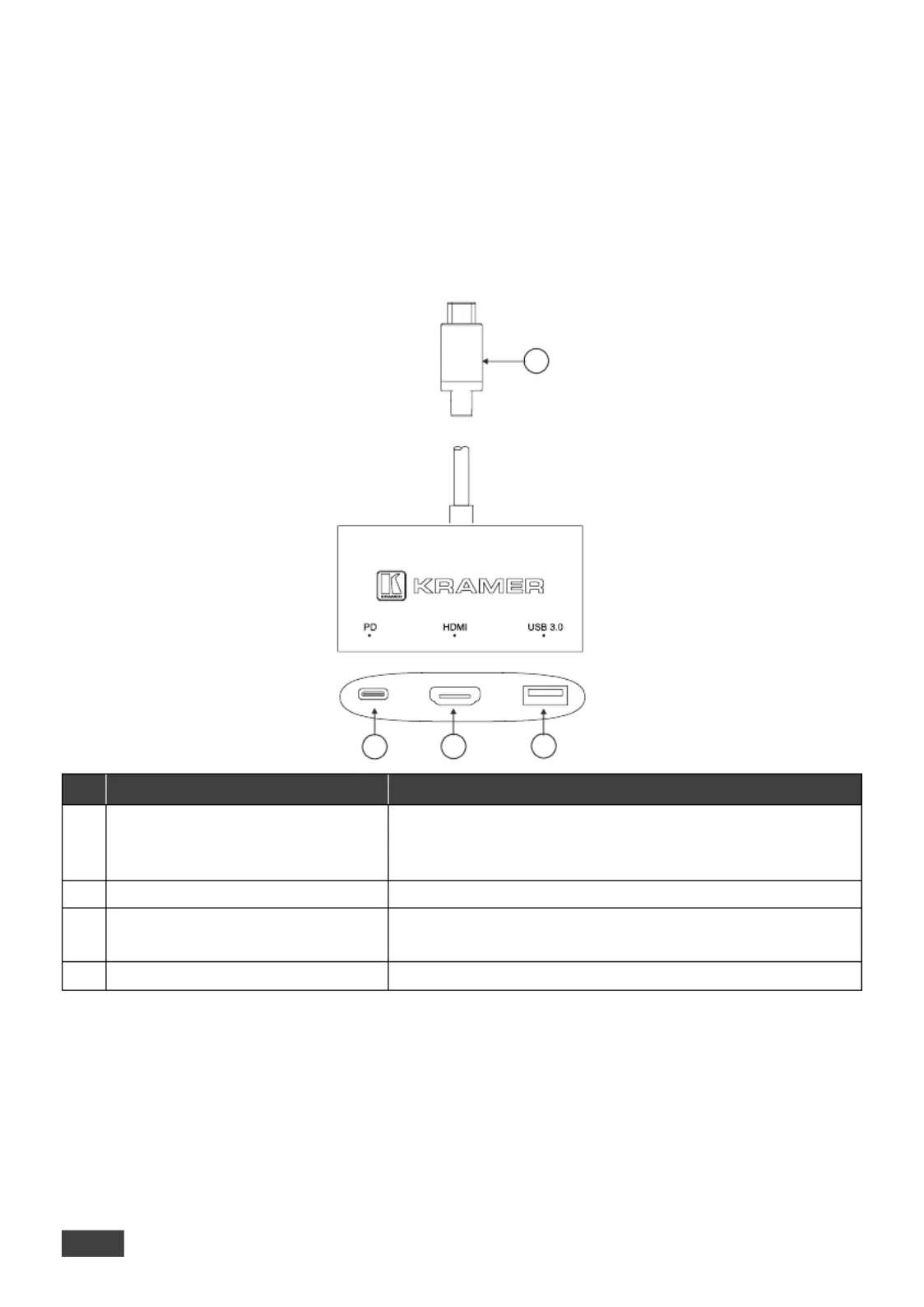

Get Know Your KDock-1 to

Feature

Function

USB-C Female

Power pass through W (5V/1A-20V/3A). 60

Insert a device with a type C (male) plug into the

type C port (to recharge it).

4K HDMI Connector

Connect to an HDMI acceptor.

1 USB-A 3.0/2.0 Connector

Connect with U disk, mouse, keyboard, or SSD.

Speed: 5.0Gbps (640MB/s).

USB-C Male

Connect to host (PC, phone, or tablet).

Installation Instructions

Technical Speciﬁcations

Inputs

1 USB

On a male USB-C connector.

Outputs

1 HDMI

On a female HDMI connector.

3840x2160P@30Hz.

Ports

2 USB

1 female USB-A 3.0 connector for USB link

extension.

• Backward compatible with USB 2.0 data

transmission up to 480Mbps(60MB/s).

• When connected with powered device, the

limited current is 1.9A from the USB 3.0

port.

• When unconnected with powered device,

the limited current is 1A from the USB 3.0

port.

• Charging: BC1.2 (5V 1.5A).

• Speed: 5.0Gbps (640MB/s).

1 female USB-C connector for charging.

Video

Max Bandwidth

10.2Gbps (3.4Gbps per graphic channel).

Max Resolution

3840x2160P@30Hz resolution.

Compliance

HDMI and HDCP 1.4.

Power

Consumption

60W.

Environmental

Conditions

Operating

Temperature

0° to +70°C (32° to 158°F).

Storage

Temperature

-10° to +55°C (14° to 131°F).

Humidity

5% to 90%, RHL non-condensing.

Regulatory

Compliance

Safety

CE.

Environmental

RoHs, FCC.

Enclosure

Type

Aluminum with built-in 16c 6.3" ﬂexible USB-m/ C

cable.

General

Net Dimensions

7.5cm x 3.8cm x 1.5cm (3.0" x 1.5" x 0.6").

Net Weight

40 09g (0. lbs) approx.

Speciﬁcations are subject to change without notice at www.kramerav.com

The terms HDMI, HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Produktspecifikationer

Varumärke:	Kramer
Kategori:	Annat datortillbehör
Modell:	KDock-1
Antal HDMI-portar:	1
HDCP:	Ja
Värdgränssnitt:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDCP-version:	1.4
Produktens färg:	Silver
Maximal digital upplösning:	3840 x 2160 pixlar
Inbyggd kortläsare:	Nej
USB-strömförsörjning upp till:	60 W
Temperatur vid drift:	0 - 70 ° C
Temperaturintervall (förvaring):	-10 - 55 ° C
Intervall för relativ operativ luftfuktighet:	5 - 90 %
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Nej
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	1
Harmonized System (HS)-kod:	84733020
Uttag för mikrofon/linje in:	Nej
USB-strömleverans:	Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar:	1
