P/N: 2900-301078 Rev 3 www.KramerAV.com

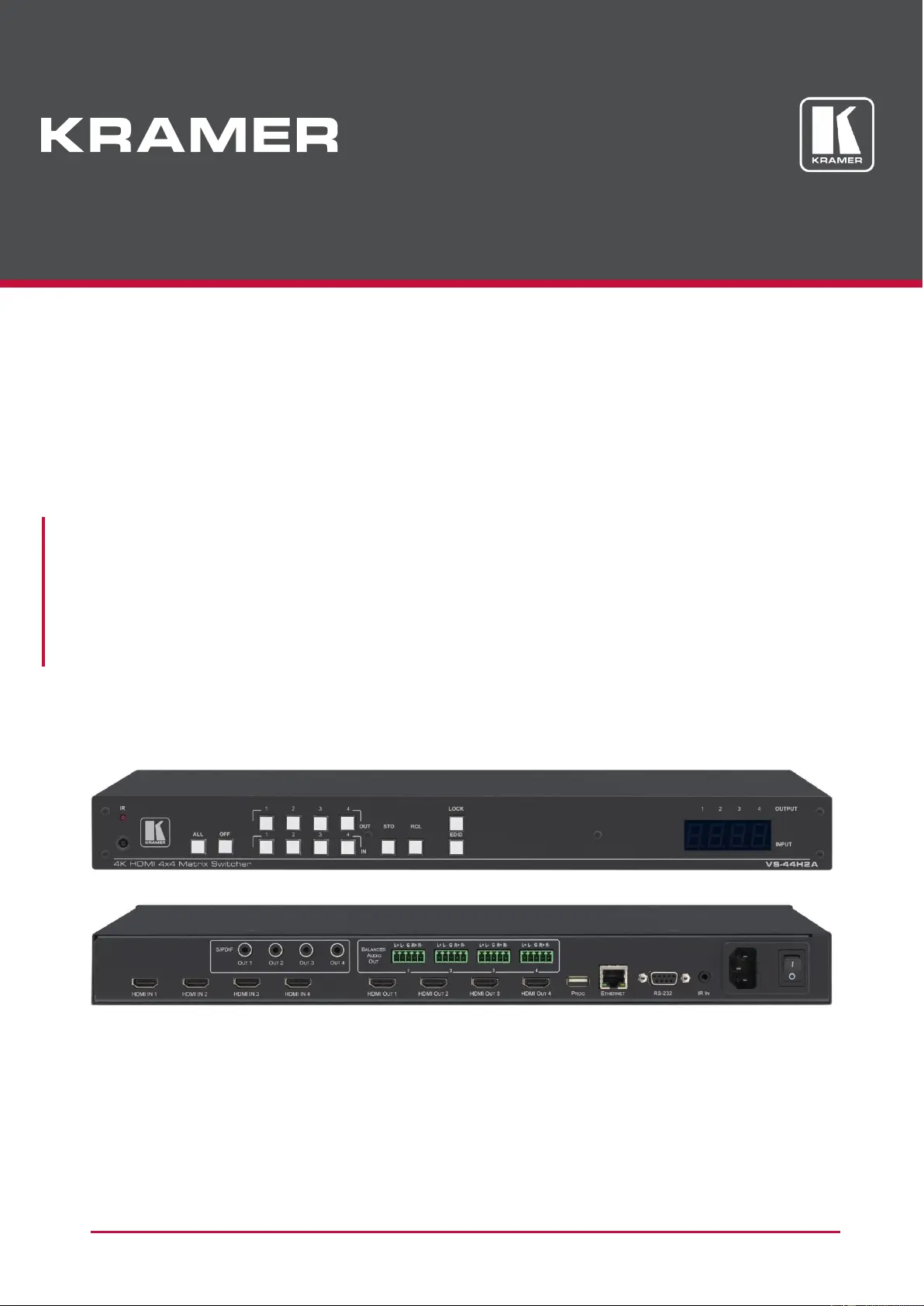

USER MANUAL

MODEL:

VS-44H2A

4K HDMI 4x4 Matrix Switcher


VS-44H2A – Contents
i

Contents
Introduction  1
Getting Started  1
Overview  2
Typical Applications  3
Controlling your VS-44H2A  3
Defining VS-44H2A 4K HDMI 4x4 Matrix Switcher  4
Mounting VS-44H2A  6
Connecting VS-44H2A  7
Connecting to VS-44H2A via RS-232  8
Connecting VS-44H2A via ETHERNET Port  8
Operating VS-44H2A via Front Panel Buttons  11
Powering On VS-44H2A  11
Understanding Illuminated Buttons and LEDs  11
Locking/Unlocking Control Panel Buttons  12
Routing an AV Output to an Input  12
Routing All Outputs to a Single Input  13
Muting an Output  13
Muting All Outputs  13
Storing and Recalling a Routing Setup  14
Copying an EDID  14
Firmware Upgrade  16
Using Embedded Web pages  17
Browsing Web Pages  18
Switching and Setting Ports  19
Changing Device Settings and Upgrading Firmware  26
Managing EDID  27
Managing Web page Security  30
Setting Timeout  31
Displaying OSD Information  32
Setting Step-In Devices  33
Viewing About Page  34
Technical Specifications  35
Default Communication Parameters  35
Default Parameters  36
Protocol 3000  37
Understanding Protocol 3000  37
Protocol 3000 Commands  38
Result and Error Codes  44

Kramer Electronics Ltd.

VS-44H2A – Introduction

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world

of unique, creative, and affordable solutions to the vast range of problems that confront the

video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we

have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for

possible future shipment.

• Review the contents of this user manual.

Go to www.kramerav.com/downloads/VS-44H2A to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

Achieving Best Performance

• Use only good quality connection cables (we recommend Kramer high-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (often associated with low quality cables).

• Do not secure the cables in tight bundles or roll the slack into tight coils.

• Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

• Position your Kramer VS-44H2A away from moisture, excessive sunlight and dust.

Safety Instructions

Caution:

• This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

• For products with relay terminals and GPI\O ports, please refer to the permitted rating

for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.

• Disconnect the power and unplug the unit from the wall before installing.

• Do not open the unit. High voltages can cause electrical shock! Servicing by qualified

personnel only.

• To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which located on the bottom of the unit.

Produktspecifikationer

Varumärke:	Kramer
Kategori:	Växla
Modell:	VS-44H2A
Produkttyp:	AV-matrisväxel
Inbyggd display:	Nej
Vikt:	2000 g
Bredd:	436.4 mm
Djup:	237.2 mm
Höjd:	43.6 mm
Förpackningens bredd:	525 mm
Certifiering:	CE, WEEE
HDCP:	Ja
RS-232 port:	1
HDMI-version:	2.0
USB-anslutning:	Mini-USB
Rackmontering:	Ja
HDCP-version:	2.2
Antal HDMI-utgångar:	4
Rackkapacitet:	1U
Antal USB-portar:	1
Låddjup:	330 mm
Vikt inkl. förpackning:	2900 g
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Hållbarhetscertifiering:	RoHS
AC-inspänning:	100-240 V
Material, hölje:	Gjuten aluminium
Växelström Frekvens:	50 - 60 hz
På / av-knapp:	Ja
Harmonized System (HS)-kod:	85299097
Höljefärg:	Svart
Fjärrstyrd (IR) ingång:	1
Antal HDMI-ingångar:	4
