Sida 1/4

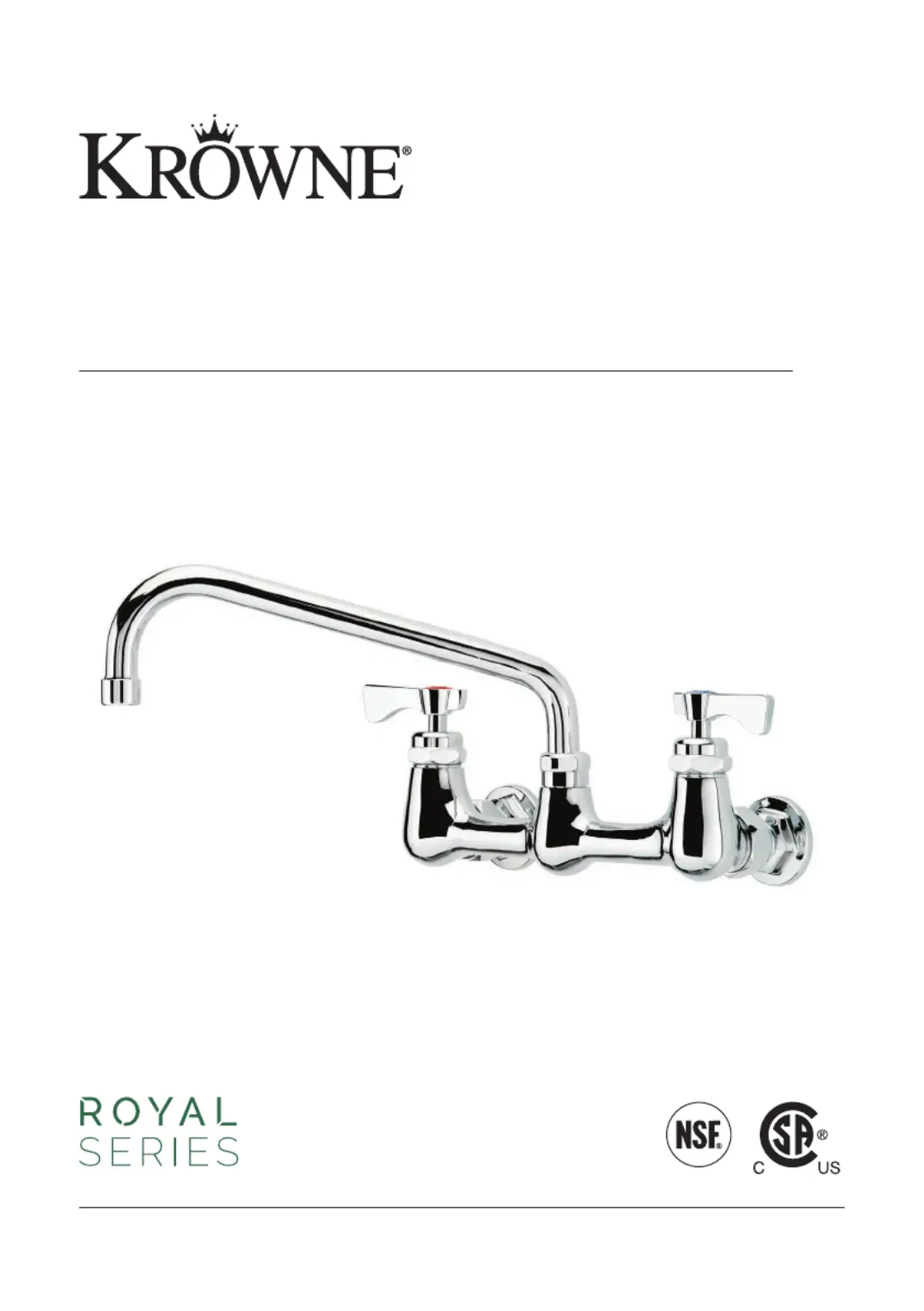

8” Center Wall Mount Faucet
Installation Manual
14-8 Faucets
Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com
Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com
14-8 Faucets Installation Manual
WARNING: Plumbing connections should be made by qualified personnel
who will observe all applicable plumbing, sanitary and safety codes.
Installation Instructions
1. Turn off water supply at main source before proceeding with installation.
2. Remove the two 1/2” threaded nipples from the wall mount kit inside the box. (A)
3. Apply thread sealant tape or pipe joint compound to one side of each of the two threaded
nipples (you will apply to the other side after step #4 is completed).
4. Install the sealant-applied side of the threaded nipples into the two 1/2” female threaded
coupling anges and tighten properly. Note that the coupling anges have eccentric (B)
centers, meaning if the holes in the mounting surface are not exactly 8” on center, you can
slightly adjust the center distance.
5. From the front of the sink, insert the threaded nipples into the faucet holes in the sink. Make
sure the coupling anges are turned so the brass nipples are at the 12 o’clock position. This
is necessary to make sure the faucet is level.
6. Apply thread sealant tape or pipe joint compound to the other side of each of the two
threaded nipples .(A)
7. From the back of the sink, place the black rubber washer, rosette, and lock nut from the
included mounting kit onto the threaded nipples and tighten with a wrench.
8. From the front of the sink, insert the rubber washers into the coupling anges . (D) (B)
9. Install the faucet body onto the coupling anges and tighten properly with a wrench. If (E)
the faucet does not t on the coupling anges, they will need to be rotated to t the faucet as
per step 4 above.
10. From the front of the sink, install the spout and tighten properly. (F)
11. From the back of the sink, install the water supply lines and tighten properly.
Sink/Mounting
Surface
Black Rubber Washer
Rosette
Lock Nut
Note: For easy installation, we highly recommend using our E-Z Install Flexible Water Lines
(Model 21-443L). They include 1/2” NPT close elbows with swivel compression ttings on the
faucet side and 3/8” compression ttings on the water supply side. No thread sealant tape or
soldering required.
AE
D
F
B
Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com
14-8 Faucets Installation Manual
ns
Parts Guide
Accessories
No. Model Description
1 21-420L 6” Swing Spout
1 21-421L 8” Swing Spout
1 21-422L 10” Swing Spout
1 21-423L 12” Swing Spout
1 21-424L 14” Swing Spout
No. Model Description
1 21-425L 16” Swing Spout
1 21-428L 6"W Gooseneck Spout
1 21-429L 8-1/2”W Gooseneck Spout
1 21-431L 6”W Double Bend Spout
1 21-432L 8-1/2”W Double Bend Spout
No. Model Description
2 21-308L Cold 1/4 Turn Ceramic Cartridge Valve
3 21-309L Hot 1/4 Turn Ceramic Cartridge Valve
4 21-333L Cold 1/4 Turn Ceramic Cartridge Valve, Less Handle
5 21-334L Hot 1/4 Turn Ceramic Cartridge Valve, Less Handle
6 21-306 Lever Handle Kit (includes hot & cold handles)
7 21-401L Coupling Flanges (includes 2/ea)
8 21-194L Wall Mounting Kit (includes 2/ea: nipples, lock nut, rosette, washer)
Model Description
21-311 Wrist Blade Handle Kit (includes hot & cold handles)
21-443L E-Z Install Flexible Water Line Kit
25-150 Thread Sealant Tape
1
8
7
2
3
4
5
6
