INSTALLATION SHEET

PD72208

Ceiling LED Pendant

START FROM HERE

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20211013

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

1. Remove fixture from its original package

2. Separate mounting plate from canopy by (1c)(2a)

removing canopy screws (2b)

3. Attach mounting plate to electrical junction box (1c)(1a)

using junction box screws provided in hardware (1e)

package

4. Determine hanging height of fixture by securing rods (2d)

to canopy with washers and nuts and fixture body(2a) (3b)

(3a) after feeding fixture wires (LED+ and LED-) through

rods

5. Make proper electrical connections between LED and

DC driver, LED- Negative, LED+ Positive using quick

connector provided (See Illustation 1 and refer to

diagram on driver)

6. Make proper electrical connections ( to “L”, blackhot

white to “N”, to with wire nuts neutralground“GND”)

(1b) provided in hardware package and then place

driver inside canopy (4a)(2a)

7. Attach canopy to mounting plate with canopy (2a)(1c)

screws (2b)

8. Tilt heads to desired position(4b)

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required

• 120V input

DC

Driver

N

L

G

-

+

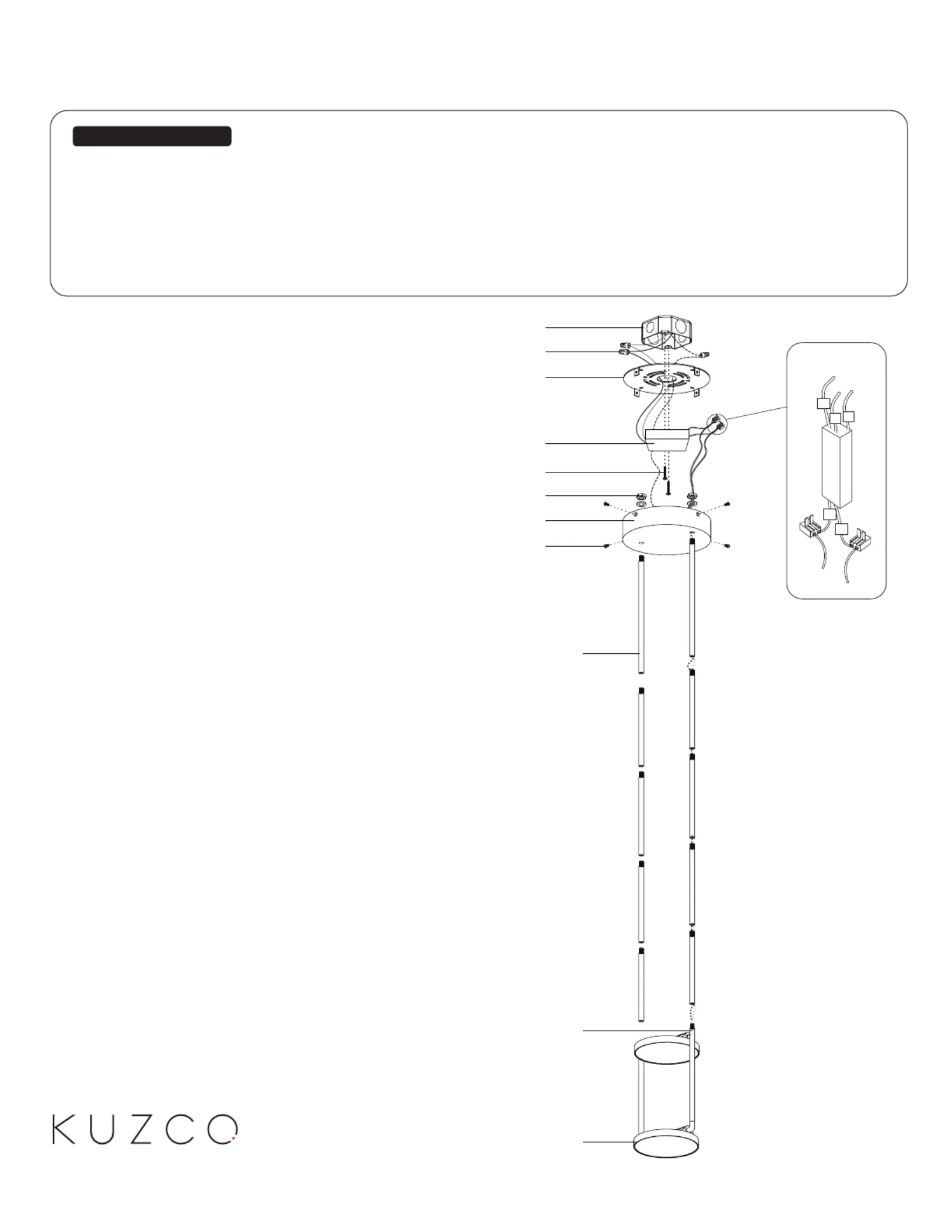

Illustration 1

Low Voltage

2d.

3a.

4b.

1a.

1b.

4a.

1c.

1e.

2a.

2b.

3b.
