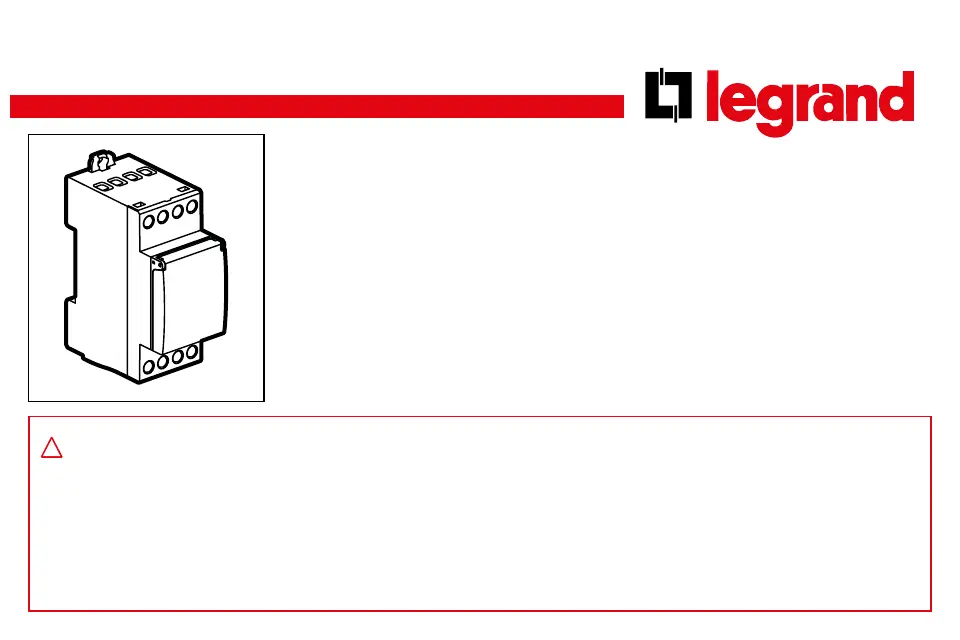

Astronomical time switch
AlphaRex
3
D21 Astro with control input
4 126 54 / 55 / 56 - 047 64 / 65 / 66
®
!
Safety notes
This product should be installed in line with installation rules, preferably by a qualified electrician. Incorrect installation and
use can lead to risk of electric shock or fire. Before carrying out the installation read the instructions and take account of
the product’s specific mounting location. Do not open up, dismantle, alter or modify the device except where specifical-
ly required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained
and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement
and guarantees. Use only Legrand brand accessories.
The device contains a LiMnO
2
primary cell. When the product reaches the end of its life, this cell must be correctly removed and
disposed of in accordance with national legislation and the requirements of environmental protection.
292568/03

Technical data
4 126 54 4 126 55 4 126 56
047 64 047 65 047 66
Supply voltage: 230V 50/60Hz 120V 50/60Hz 24V 50/60Hz
Power consumption: ca. 1 W
Relay outputs: 1 changeover contact 16A 250V~µ cos ϕ = 1
Accuracy: ~ 0,1 s /day
single-strand multi-strand
Wire cross-sections: 1,5...4 mm
2
1,5...2,5 mm
2
Programs: 56 programs
Local coordinates:
Resolution 1°/ 1‘ in EXPERT-Mode
Control-cable length:
max. 50 m
Control signal:
230V AC/ca. 2mA, 120V AC/ca. 2mA, 24V AC/ca. 2mA
Control-pulse duration:
100…200 ms
Delaytime:
0 min … 23h 59min 59s
Battery reserve:
5 years
Storage temperature:
- 20°C to +60°C
Operating temperature:
-20°C to +55°C

General information
• Start-up: after applying the supply voltage, the time switch
starts automatically with the last selected function. The relay
position is set by the current program.
• Battery backup
- Backlighting not active
- Data key READ/WRITE only via the menu
Select menu, back to main menu,
Hold down > 1s = operating display
Confirm selection or load parameters
Select menu options or set paramete
