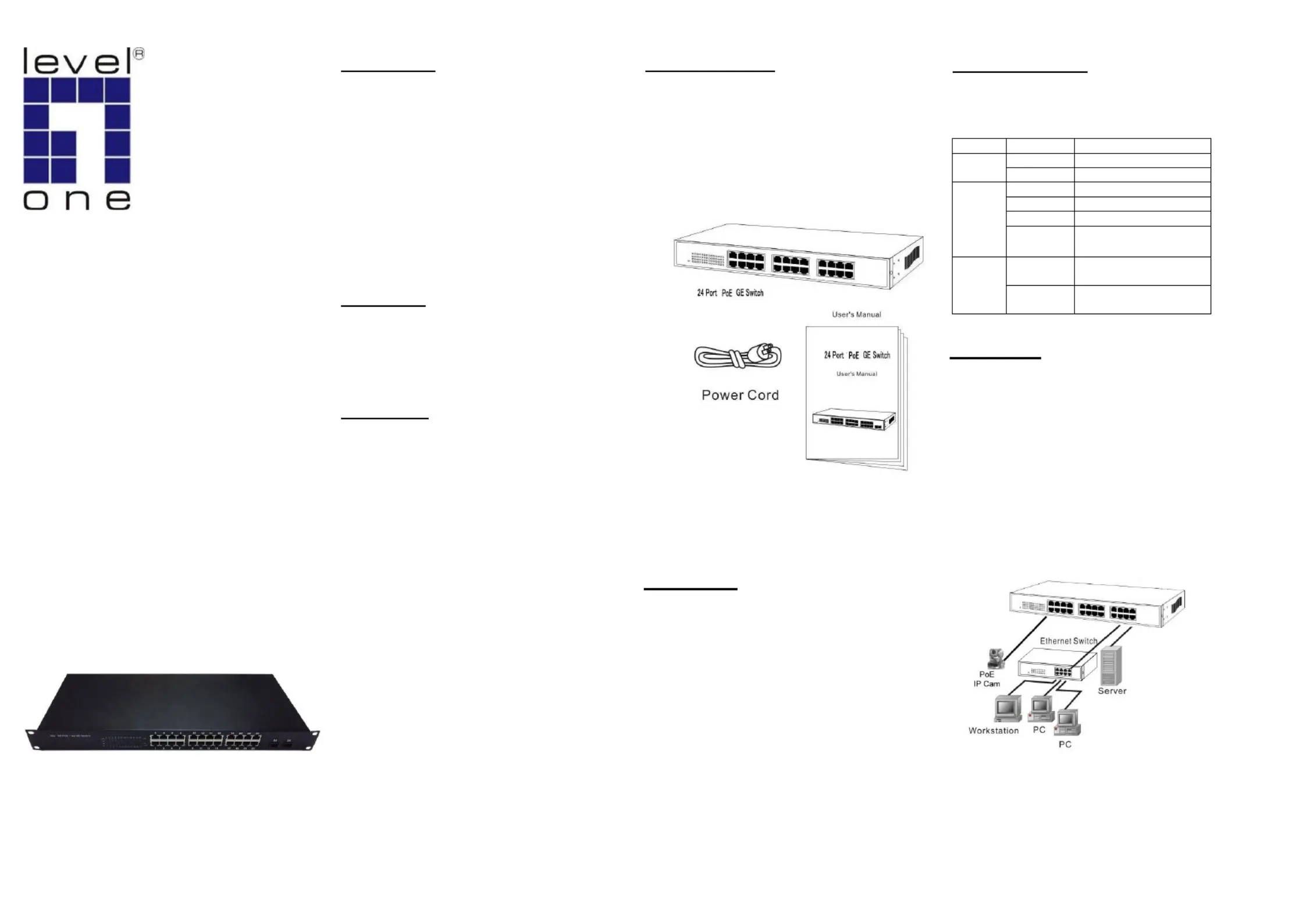

Sida 1/2

GEP-2622 Series

26-Port Gigabit PoE Switch,

2 x SFP, 24 PoE Outputs,

802.3af/at PoE

User’s Manual

FCC Warning

This device has been tested and found to

comply with limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates

and radiates radio frequency energy and, if

not installed and used in accordance with the

user’s manual, it may cause interference in

which case users will be required to correct

interference at their own expenses.

CE Warning

This is a Class A product. In a domestic

environment, this product may cause radio

interference in which case the user may be

required to take adequate measures.

Introduction

This switch provides /100/1000M UTP 24 10

and 2 100/1000M SFP ports. was designed It

for easy installation and high performance in

an environment where trafc is on the network

and the number of users increases

continuously.

It consists of PSE/PoE ports. That can 24

solve the limitation of the power outlet

location and oer the system designer a

exible solution to locate the network device

everywhe re.

The rack-mount size was specically

designed for medium to large workgroups.

The Switch can be installed where space is

limited; moreover it provides smooth network

migration and easy upgrade to network

capacity. The 19” size can be rack-mount on

19” cabinet.

Package Contents

Before you start to install th switch, please is

verify your package that contains the following

items:

 One PoE Giga Ethernet Switch

 One Power Cord

 One User’s Manual

Note: If any of these items is found missing or

damaged, please contact your local supplier

for replacement.

Key Features

 Port 10/100/1000M Nway 24

(Auto-negotiation) Switch with 2 Ports SFP

 PSE/PoE function ports 24

 Supporting the power Max. W for each 30

PSE/PoE port

 -mount size 19” rack

 Auto-learning of networking congurations

 Auto-detect full/half-duplex modes for any

port

 Dedicated full-duplex 2Gbps bandwidth

 Store- -Forward switching methods and

 IEEE 802.3x ow control for full-duplex and

back-pressure ow control for half-duplex

 Non-blocking & Non- - -line blocking head of

full wire speed forwarding

 Auto-MDI/MDI-X function for any port

 Smart plug & play

Front Panel (LEDs)

LED Indicators of Port PoE 24

10/100/1000M Switch 2 Port SFP

LED

Status

Description

Power

Power is on.

O

Power is off.

L AN

Green On

Connect in 1000Mbps.

Yellow On

Connect in 10/100Mbps

O

No connection.

Flashing

Data is transmitting or

receiving

PoE

Yellow On

Port is linked to Power

Device

O

No Power Device is

connected

Connections

Switch/Hub to this Port Giga 24 PoE

Ethernet Switch and 2 Port SFP

This switch provides automatic crossover

detection functionality for any port. It is

simple and friendly to up-link to another

switch without crossover cable.

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	brytare
Modell:	GEP-2622W150
Vikt:	2900 g
Bredd:	200 mm
Djup:	44 mm
Höjd:	440 mm
Förpackningens bredd:	260 mm
LED-indikatorer:	LAN, PoE, Power, Uplink
Ursprungsland:	Taiwan
Uteffekt:	30 W
Rackmontering:	Ja
Säkerhet:	FCC Class A, CE
Medeltid mellan fel (MTBF):	43300 h
Paketbuffertminne:	4.1 MB
Full duplex:	Ja
Kabeltyper som stöds:	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
Produktens färg:	Svart
bruksanvisning:	Ja
Förpackningstyp:	Låda
Låddjup:	95 mm
Vikt inkl. förpackning:	3500 g
Ytterförpackningens bruttovikt:	18000 g
Ytterförpackningens höjd:	555 mm
Produkter per ytterförpackning:	5 styck
Ytterförpackningens längd:	280 mm
Ytterförpackningens bredd:	510 mm
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Strömförbrukning (vanlig):	150 W
Temperatur vid drift:	-5 - 55 ° C
Temperaturintervall (förvaring):	-20 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Utgångsspänning:	56 V
AC-inspänning:	100 - 240 V
Växelström Frekvens:	50 - 60 hz
Rackmonteringssats:	Ja
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Harmonized System (HS)-kod:	85176990
Adresstabellstorlek:	8000 poster
Jumboramar:	10000
Jumbo Frames stöd:	Ja
Switch kapacitet:	52 Gbit/s
10G stöd:	Nej
Flödeskontroll:	Ja
Antal grundläggande RJ-45 Ethernet-portar:	24
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Switch typ:	Ohanterad
Antal SFP-modulplatser:	2
Autonegotiation:	Ja
Power over Ethernet (PoE)-portar kvantitet:	24
Auto MDI / MDI-X:	Ja
Fötter i gummi:	Ja
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX, 1000BASE-TX
Paketförmedlingshastighet (1 Gbps):	1488000 pps
Stöd för automatisk inlärning av MAC-adresser:	Ja
Stöd för automatiskt åldrande av MAC-adresser:	Ja
Paketförmedlingshastighet (10 Mbps):	14880 pps
Paketförmedlingshastighet (100 Mbps):	148800 pps
