LevelOne

User Manual

POC-4000

8-Bay High power PoE Chassis

1. Introductions

POC-4000 is a rugged and durable 8-Bay high-power PSE chassis that houses up to 8

POI-4000-Z PoE injectors. All injectors are securely fastened in the 19” 4U chassis for

easy management and deployment.

POI-4000-Z is a high-power PoE injector suited for any IEEE 802.3af PoE device.

The maximum power output is 40W which is a significant boost to the 15.4W of standard

PoE. This provides an ideal solution for large PoE network devices like PTZ IP Cams,

IP Cams that require power for built-in IR LEDs, or 802.11n WiFi APs.

Building a large PoE network from a single location has never been easier as

POC-4000 supports centralized management for all PoE devices. Installation is

simple and easy and you will the PoE network deployed faster than ever with this

complete plug and play solution.

2. Features

 Accommodate up to 8 bays for high-power PoE-PSE POC-4000

 Standard compack 19” 4U chassis for space saving

 Plug & play features for easy system expansions

 Two DC electric fans for thermal ventilation

 250V 5A Fuse Protection

Packing Contents

Inside the package carton you should find:

(1) One POC-4000 19” Chassis

(2) One AC Power Cord

(3) One User Manual

4. Technical Specifications

Input

Voltage:

100-240VAC 50/60Hz

Plug

Output:

24VDC / 5.2A x 4

DC Fans:

24VDC

Fuse:

250V 5A socket

embedded

Dimensions:

483mm(L)x153mm(H)x120mm(D)

Net Weight:

3.1Kg without

POC-4000

7.5Kg with 8 x

POI-4000-Z

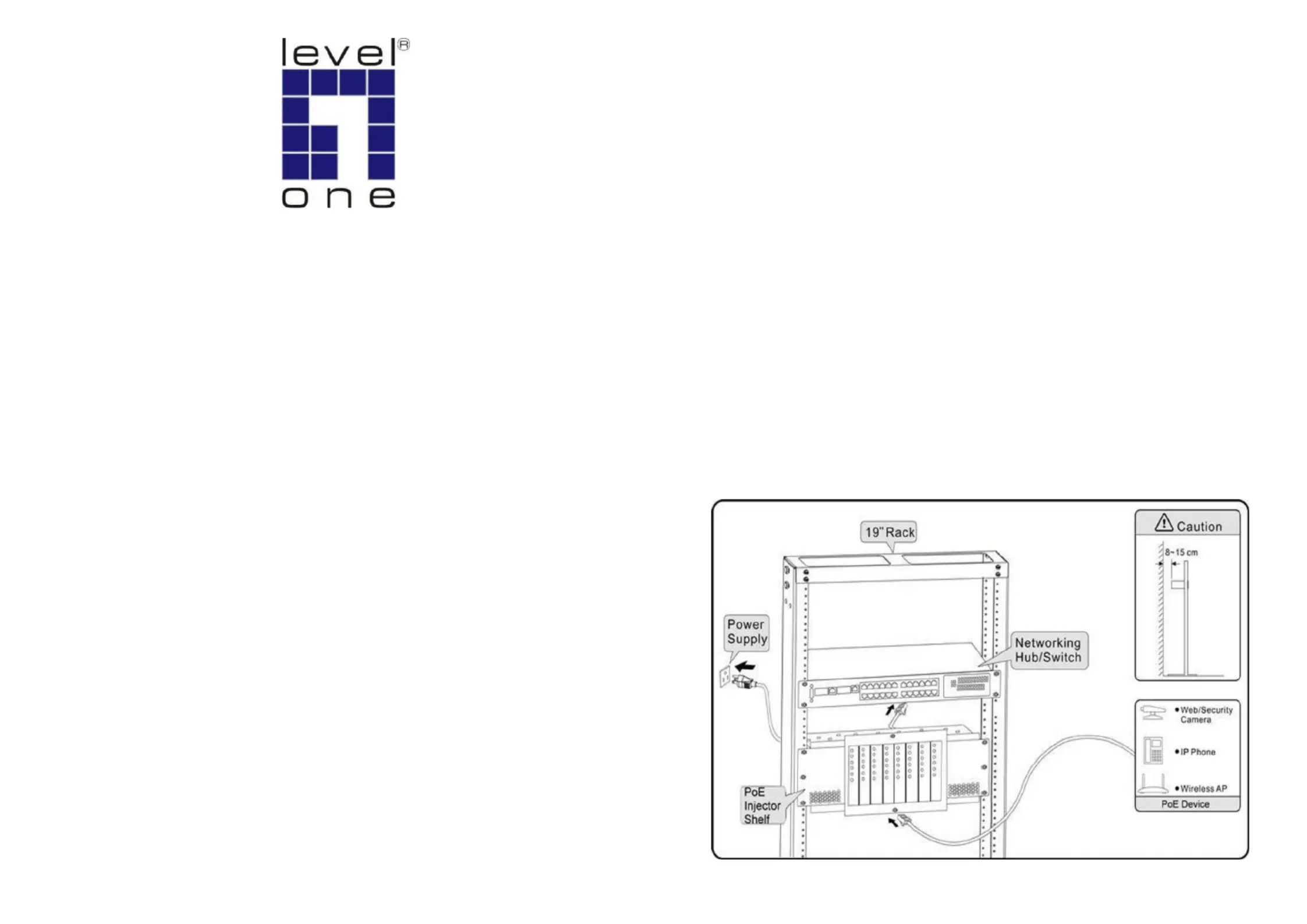

5. Connection Diagrams

POC-4000

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	ej kategoriserat
Modell:	POC-4000
Vikt:	3100 g
Bredd:	483 mm
Djup:	120 mm
Höjd:	153 mm
Storlek:	19 "
Produktens färg:	Gjuten aluminium
AC-inspänning:	100-240 V
Växelström Frekvens:	50 - 60 hz
Antal fläktar:	2 fläkt/-ar
