Sida 1/8
For pressure sewer applications, verify a Redundant Check Valve Assembly (curb stop and check valve) is installed between the pump
discharge and the street main, as close to the public right-of-way as possible, on all installations to protect from system pressures.
IMPORTANT: All Liberty Pumps systems are supplied with their own separate
Installation/Operation/Maintenance manuals. Ensure receipt of these
manuals, and that they are read and understood prior to installation. For
questions, call Liberty Pumps customer service at 1-800-543-2550.
Installer: Manual must remain with owner or
system operator/maintainer.
Record information:
System:
Model(s):
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Serial(s):
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
Control Panel:
Mfg Date:
Install Date:

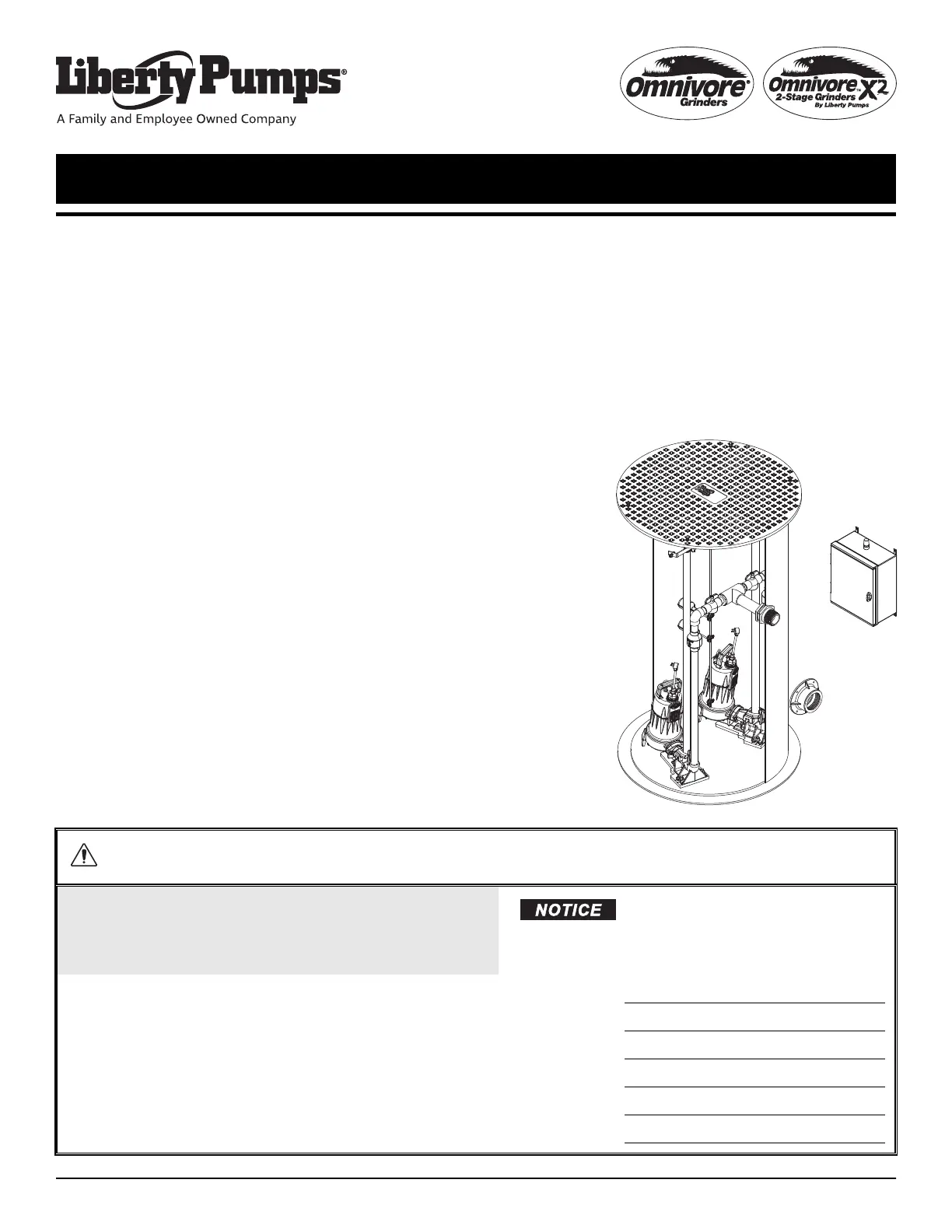

Installation Manual
7353000L
Copyright © Liberty Pumps, Inc. 2024
All rights reserved.
Duplex Grinder Systems
D3648, D3660, D3672, D3684, D3696, and D36120-Series
• 36” Diameter Fiberglass Basin
• Available in 48”, 60”, 72”, 84”, 96” and 120” Heights
Features
• LSG Grinder Pump (2 hp, 208/230V)
•-or-
•LSGX Grinder Pump (2 hp, 208–230V)
• Pre-mounted Float System
– QuickTree® Float System on heights to 84”
• GR20 Guide Rail System
• NEMA 4X Duplex Control Panel
• NEMA 4X Junction Box
2 | EN Copyright © Liberty Pumps, Inc. 2024
All rights reserved. 7353000L
Contents
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 | EN
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 | EN
Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Basin Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 | EN
Operation, Maintenance, Troubleshooting. . . . . . . . . 8 | EN
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 | EN
Safety Guidelines
Safety Precautions
Accidental contact with electrically live parts, items, fluid, or
water can cause serious injury or death.
Always disconnect pump(s) from power source(s) before
handling or making any adjustments to either the pump(s),
the pump system, or the control panel.
All installation and maintenance of pumps, controls,
protection devices, and general wiring shall be done by
qualified personnel.
All electrical and safety practices shall be in accordance with
the National Electrical Code
®
, the Occupational Safety and
Health Administration, or applicable local codes and
ordinances.
Do not remove cord and strain relief, and do not connect
conduit to pump.
Pump shall be properly grounded using its supplied
grounding conductor. Do not bypass grounding wires or
remove ground prong from attachment plugs. Failure to
properly ground the pump system can cause all metal
portions of the pump and its surroundings to become
energized.
Do not handle or unplug the pump with wet hands, when
standing on damp surface, or in water unless wearing
Personal Protective Equipment.
Always wear dielectric rubber boots and other applicable
Personal Protective Equipment (PPE) when water is on the
floor and an energized pump system must be serviced, as
submerged electrical connections can energize the water. Do
not enter the water if the water level is higher than the PPE
protection or if the PPE is not watertight.
Do not lift or carry a pump or a float assembly by its power
cord. This will damage the power cord, and could expose the
electrically live wires inside the power cord.
The electrical power supply shall be located within the length
limitations of the pump power cord, and for below grade
installations it shall be at least 4 ft (1.22 m) above floor level.
Do not use this product in applications where human contact
with the pumped fluid is common (such as swimming pools,
fountains, marine areas, etc.).
Protect the power and control cords from the environment.
Unprotected power and control (switch) cords can allow water
to wick through ends into pump or switch housings, causing
surroundings to become energized.
Single-phase 208/230V pumps shall only be operated without
the float switch by using the circuit breaker or panel
disconnect.
Some ordinary location pumps may have internal capacitors
that could cause shock. Avoid contact with plug ends after
removing from energy source.
Do not use an extension cord to power the product. Extension
cords can overload both the product and extension cord
supply wires. Overloaded wires will get very hot and can catch
on fire.
This product requires a separate, properly fused and
grounded branch circuit, sized for the voltage and amperage
requirements of the pump, as noted on the nameplate.
Overloaded branch circuit wires will get very hot and can
catch on fire. When used, electrical outlets shall be simplex of
the appropriate rating.
Do not use this product with or near flammable or explosive
fluids such as gasoline, fuel oil, kerosene, etc. If rotating
elements inside pump strike any foreign object, sparks may
occur. Sparks could ignite flammable liquids.
This safety alert symbol is used in the manual
and on the pump to alert of potential risk for
serious injury or death.
This safety alert symbol identifies risk of
electric shock. It is accompanied with an
instruction intended to minimize potential risk
of electric shock.
This safety alert symbol identifies risk of fire.
It is accompanied with an instruction intended
to minimize potential risk of fire.
This safety alert symbol identifies risk of
serious injury or death. It is accompanied
with an instruction intended to minimize
potential risk of injury or death.
Warns of hazards which, if not avoided, will
result in serious injury or death.
Warns of hazards which, if not avoided, could
result in serious injury or death.
Warns of hazards which, if not avoided, could
result in minor or moderate injury.
Signals an important instruction related to the
pump. Failure to follow these instructions
could result in pump failure or property
damage.
Read every supplied manual before using
pump system. Follow all the safety instructions
in manual(s) and on the pump. Failure to do so
could result in serious injury or death.
RISK OF ELECTRIC SHOCK
RISK OF FIRE
