Sida 1/2
7000 Apple Tree Avenue Bergen, NY 14416
Phone 800-543-2550 Fax 585-494-1839
www.LibertyPumps.com
After installation, test pump operation by slowly pouring water into the air conditioner
drain pan. Repeat until the pump runs 2–3 times.
Check for any water leaks, kinked or pinched lines, or siphoning action.
Clicking noises heard at initial start-up are normal and are usually only heard for the first
few operations.
Allow a one minute rest after each cycle to prevent triggering the thermal protector.
TEST OPERATION

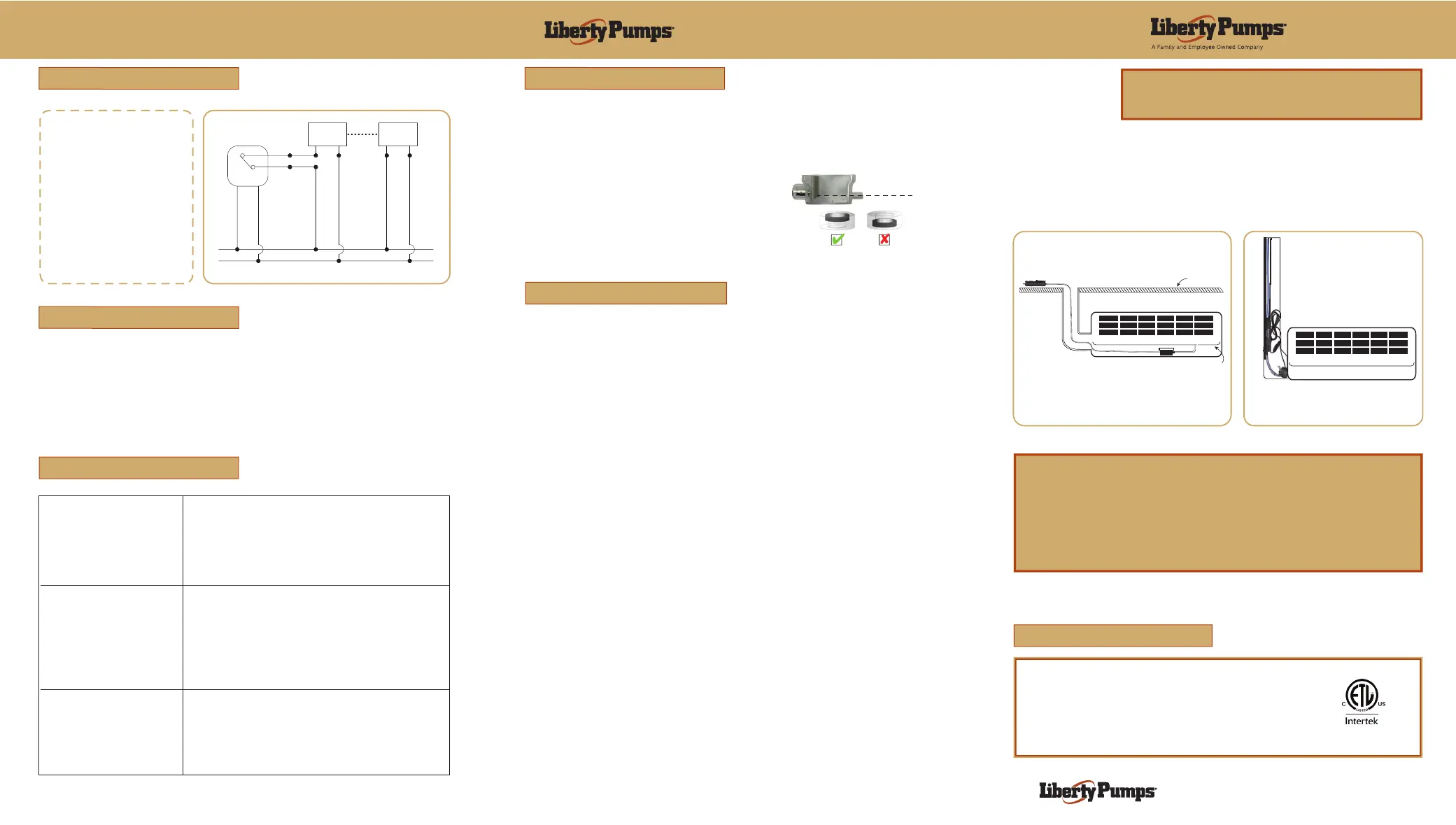

WIRING
Ensure power to the pump is disconnected before performing any service or maintenance.
1) Clean the reservoir every six months, preferably at the beginning and end of the air
conditioning season.
a) Open the reservoir cover using the opening latch.
b) Clean the reservoir, float and metal filter using a
water solution containing 5% bleach.
c) Replace the float in the initial position (magnet facing UP).
d) Reinstall the reservoir cover.
2) Perform a TEST OPERATION.
MAINTENANCE
metal filter
– 5 –
Unit does not run.
Unit makes loud noises even
after the first dry-running
phase.
Unit runs but does not
pump liquid out properly.
Check the highest point of the discharge hose does
not exceed the maximum delivery head of the pump.
Check hoses are not clogged or kinked.
Check the flow rate of the pump is sufficient for the
condensation volume of air conditioner.
Check if pump has contact with any hard surfaces. If
it does, anti-vibration materials should be positioned
between the pump and all hard surface.
Check hoses are not clogged or kinked.
Check there is no siphoning action.
Check outlet hose is not blocked.
Check the power supply.
Check the air conditioner to see if condensation is
actually being produced.
Check hoses are not clogged or kinked.
Check metal filter is not clogged.
TROUBLESHOOTING
Liberty Pumps Wholesale Products Limited Warranty
Liberty Pumps, Inc. warrants that Liberty Pumps wholesale products are free from all factory
defects in material and workmanship for a period of three (3) years from the date of purchase
(excluding* batteries and “Commercial Series” models). The date of purchase shall be
determined by a dated sales receipt noting the model and serial number of the pump. The
dated sales receipt must accompany the returned pump if the date of return is more than
three years from the date of manufacture noted on the pump nameplate.
The manufacturer's sole obligation under this Warranty shall be limited to the repair or
replacement of any parts found by the manufacturer to be defective, provided the part or
assembly is returned freight prepaid to the manufacturer or its authorized service center, and
provided that none of the following warranty-voiding characteristics are evident:
The manufacturer shall not be liable under this Warranty if the product has not been properly
installed, operated, or maintained per manufacturer instructions; if it has been disassembled,
modified, abused, or tampered with; if the electrical cord has been cut, damaged, or spliced; if
the pump discharge has been reduced in size; if the pump has been used in water
temperatures above the advertised rating; if the pump has been used in water containing sand,
lime, cement, gravel, or other abrasives; if the product has been used to pump chemicals,
grease, or hydrocarbons; if a non-submersible motor has been subjected to moisture; or if the
label bearing the model and serial number has been removed.
Liberty Pumps, Inc. shall not be liable for any loss, damage, or expenses resulting from
installation or use of its products, or for indirect, incidental, and consequential damages,
including costs of removal, reinstallation or transportation.
There is no other express warranty. All implied warranties, including those of
merchantability and fitness for a particular purpose, are limited to three years from the date
of purchase. This Warranty contains the exclusive remedy of the purchaser, and, where
permitted, liability for consequential or incidental damages under any and all warranties are
excluded.
*Liberty Pumps, Inc. warrants StormCell® batteries for 1 year from date of purchase, and
warrants that pumps of its Commercial Series are free from all factory defects in material and
workmanship for a period of 18 months from the date of installation or 24 months from the
date of manufacture, whichever occurs first, and provided that such products are used in
compliance with their intended applications as set forth in the technical specifications and
manuals.
LIMITED WARRANTY
LCU-MS Series
Mini-Split Condensate Pump
USER GUIDE
7000 Apple Tree Avenue
Bergen, NY 14416
Phone 800-543-2550
Fax 585-494-1839
www.LibertyPumps.com
For Air Conditioners up to 7 kW
MADE IN KOREA
Read this user guide carefully before attempting to install, operate, or
service the LCU-MS Series pump. Know the pump application, limitations,
and potential hazards. Protect yourself and others by observing all safety
information. Failure to comply with these instructions could result in
personal injury and/or property damage. Retain this user guide for future
reference. Installation, connections, and service shall be done by qualified
personnel only.
LCU-MS2
(LCU-MS + DUCTS)
LCU-MS
CEILING
DRAIN PAN
2035000B
CONFORMS TO ANSI/UL STD. 778
CERTIFIED TO CAN/CSA STD. C22.2 NO.108
4007096
PRODUCT INFORMATION
Keep this manual handy for future reference
Retain dated sales receipt for warranty
Pump Model #: _____________________________________________
Pump Serial #: ______________________________________________
Install Date: _________________________________________________
NC
COM
L
N
L
N
N
L
N
L
1
2
3
4
KEY
1 Pump Unit
2 Indoor A/C Unit
3 Interconnecting Cable
4 Outdoor A/C Unit
(L) Live (hot): Brown
(N) Neutral (common): Blue
(NC) Normally Closed: Black
(COM) Common: White
1. Carefully unpack the unit and check for damage. Make sure all parts are included. The
units are thoroughly tested before packing to insure safe delivery and operation. If there is
any sign of damage due to shipment, return it to the place of purchase for repair or
replacement.
2. Select proper mounting location for the reservoir and the pump.
3. Connect the inlet hose [
11] to the drain hose of the air conditioner. Connect the other end
of the inlet hose [
11] to the reservoir inlet port [7].
4. Connect the vent hose [
14] to the vent hole [9] on the reservoir cover.
Note: The vent and vent hose must not get clogged.
5. Mount the reservoir [
2] at the selected location using the double-sided adhesive pad [15].
Note: Reservoir [
2] must be level and mounted horizontally.
6. Connect the reservoir outlet port [
8] and the pump inlet port [6] with the connection hose
[
13].
7. Attach the double-sided adhesive pad [
15] to the bottom of the pump. Mount the pump [1]
at the established location. If needed, use the cable ties [
15] to secure the pump [1].
Note: Attach the double-sided adhesive pad [
15] between the pump [1] and any hard
surface to reduce vibration noise.
8. Connect the overflow alarm cable (COM and NC) into the cooling signal wire of the air
conditioner indoor unit to stop operation of the air conditioning unit in the event the of
blockage or pump failure.
Note: All wiring shall be done by qualified personnel who have assessed the set-up of the
individual air conditioning unit.
9. Connect the discharge hose [
13] to the pump outlet port [5] and extend the discharge hose
to an appropriate drain.
Note: Make sure connection hoses are not clogged, kinked, or twisted. Use anti-kink
spring on tubing as needed [
12].
10. Verify the power source voltage matches the pump’s voltage requirement. Connect the
pump power supply cable [
3] to a constant source of power (not a fan or other device that
runs intermittently).
Note: Do NOT connect or link the air conditioner’s power cable directly to the power
supply cable of the pump [
3].
11. When preceding steps are complete, verify the unit and connections by performing a TEST
OPERATION [next page].
INSTALLATION
WATER LEVEL SENSOR
Cover
Open
Tab
Level Tolerance
(±2 mm)
10 mm / 0.39 in
Pump OFF
15 mm / 0.59 in
Pump ON
20 mm / 0.79 in
Alarm ON
Float
Vent
Reservoir
Cover
Magnet Always
Facing UP
Bottom of Reservoir
– 2 – – 3 – – 4 –

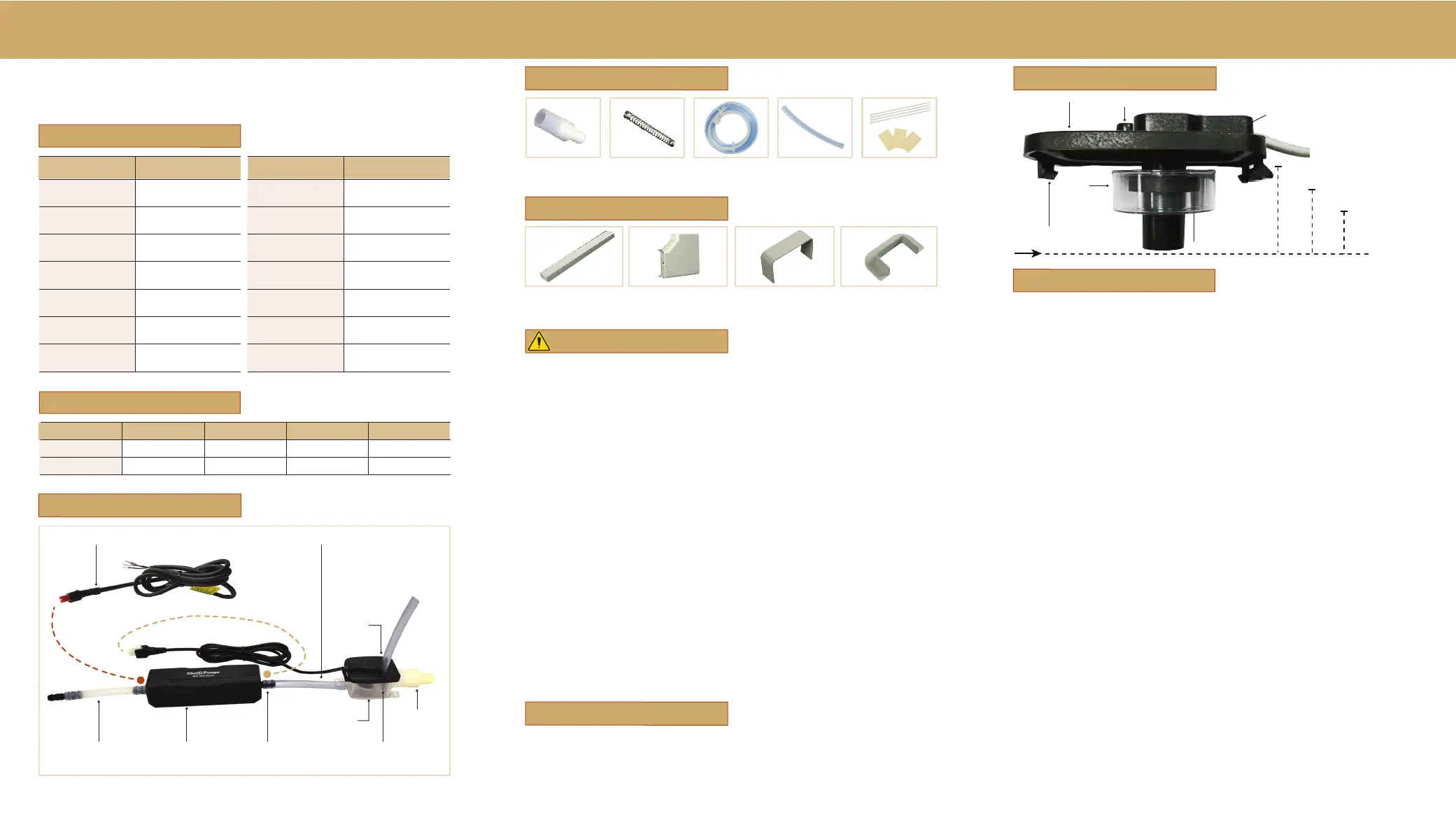

COMPONENT IDENTIFICATION
[5] Pump Outlet Port
[9] Vent
Hole
[1] Pump
[4] Communication Cable
[3] Power Supply & Overflow Alarm Cable
[6] Pump Inlet Port
[7] Reservoir
Inlet Port
[8] Reservoir
Outlet Port
[10] Float with Magnet
[2] Reservoir
COMPONENTS
[13] Reservoir
Connection/
Discharge Hose
[12] Anti-kink
Spring
[11]
Inlet Hose
[14] Vent Hose
[15] Cable Ties &
Double-sided
Adhesive Pad
Straight Duct
Elbow Duct
Duct Socket
Duct End
Ducts for LCU-MS2
■ Do not use to pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. Do
not use in flammable and/or explosive atmospheres.
■ Do not handle or unplug pump with wet hands, when standing on a wet/damp surface, or in
water.
■ Pump shall be properly grounded, using its supplied grounding conductor. Do not bypass
grounding wires or remove ground prong from attachment plugs. Failure to properly ground the
pump system can cause all metal portions of the pump and its surroundings to become
energized.
■
This pump has not been investigated for use in swimming pool or marine areas.
■ Connect pump to power supply as specified on pump nameplate.
■ For cord replacement: power cord must be of the same length and type as originally installed on
the Liberty Pumps product. Use of incorrect cord may lead to exceeding the electrical rating of the
cord and could result in death, serious injury, or other significant failure.
■ Allow means to disconnect wiring.
■ In any installation where property damage and/or personal injury might result from an inoperative
or leaking pump, a backup system and/or alarm should be used.
■ Accidental contact with electrically live parts, items, or water can cause serious injury or death.
■ Always disconnect pump from power source before handling or making any adjustments.
■ All electrical and safety practices shall be followed for the NEC, OSHA, or applicable local codes
and ordinances.
■ Do not allow children to play with the pump.
■ Do not submerge pump or allow pump to be exposed to water. Pump is intended for dry, indoor
locations only.
■ All installation and service of pumps shall be done by qualified personnel.
■ Do not run pump dry.
■ Do not modify the pump/pump system in any way.
■ This product contains chemicals known to the State of California to cause cancer and birth
defects, or other reproductive harm. www.p65warnings.ca.gov.
WARNINGS
NOTES
■ Do not use pumps with fluid over 40°C (104°F).
■ Do not twist or kink the inlet or discharge hoses.
■
Enclosure Type 2
■
Thermally protected
Gallon/Hour
Liter/Hour
Head
16.0
4.23
0 m [0 ft]
2.38
9.0
4 m [13 ft]
1.59
6.0
6 m [20 ft]
1.06
4
8 m [26 ft]
FLOW RATES
ITEM
SPECIFICATION
ITEM
SPECIFICATION
For Use With
Air Conditioner
(max 7 kW)
Fluid [Fresh Water]
1–40°C
33.8–104°F
Operating Time
(Non-continuous)
Refer to Product Label
5 min ON
1 min OFF
Power Supply
Safety Switch
Contacts
Max 3A 110 VAC
3A 240 VAC
Pump On, Dry Run
<1 min
Max Suction Head
2 m
6.6 ft
Pump Size
(LxWxH)
mm: 167.2 x 73.6 x 43
in: 6.6 x 2.9 x 1.7
Max Flow Rate
@ Zero Head
16 l/hr
4.23 gal/hr
Reservoir Capacity
35 ml
1.2 oz
Max Discharge Head
8 m
26.2 ft
Reservoir Size
(LxWxH)
mm: 76.7 x 43.2 x 40.3
in: 3 x 1.7 x 1.6
Electrical Output
9W
Thermal Protection
100°C
212°F
► Specifications subject to change without notice.
SPECIFICATIONS
Liberty Pumps LCU-MS Series is an automatic condensate removal system designed to remove
water from a ductless mini-split air conditioner evaporative coil when gravity-feed drainage is
not possible or practical.
Produktspecifikationer
| Varumärke: | Liberty Pumps |
| Kategori: | pump |
| Modell: | LCU-MS |
Behöver du hjälp?
Om du behöver hjälp med Liberty Pumps LCU-MS ställ en fråga nedan och andra användare kommer att svara dig
pump Liberty Pumps Manualer
25 September 2025
25 September 2025
21 September 2025
21 September 2025
20 September 2025
22 Augusti 2025
22 Augusti 2025
22 Augusti 2025
22 Augusti 2025
pump Manualer
- Brightwell
- Grundfos
- T.I.P.
- Danfoss
- Hozelock
- Nedis
- Fieldmann
- Könner & Söhnen
- Ferroli
- Daikin
- Blumfeldt
- Yamazen
- Ribimex
- Comet
- BBB
Nyaste pump Manualer
25 September 2025
24 September 2025
21 September 2025
19 September 2025
19 September 2025
15 September 2025
13 September 2025
13 September 2025
13 September 2025
12 September 2025
