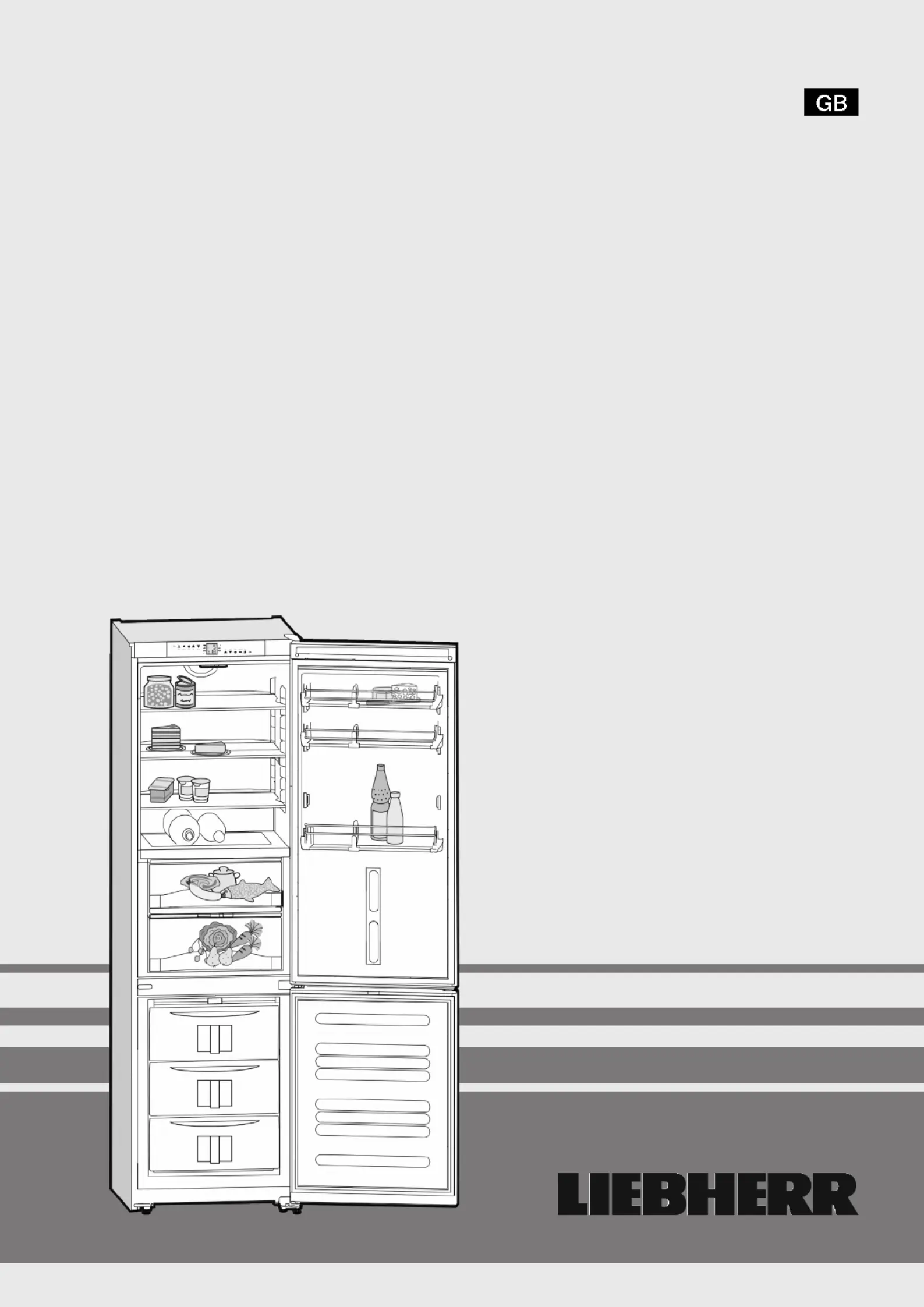

Operating and installation instructions

Combined fridge-freezer with BioFresh compartment

120914

7085658 - 01

CBNPes/ef ... 6

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Range of appliance use............................................ 2

1.3 Conformity................................................................ 3

1.4 External dimensions of the appliance....................... 3

1.5 Saving energy.......................................................... 3

1.6 HomeDialog............................................................. 3

2 General safety information................................... 4

3 Controls and displays........................................... 5

3.1 Operating and control elements............................... 5

3.2 Temperature display................................................. 5

4 Putting into operation............................................ 5

4.1 Transporting the appliance....................................... 5

4.2 Installing the appliance............................................. 5

4.3 Changing over the door hinges................................ 6

4.4 Insertion into a row of kitchen units........................... 8

4.5 Disposing of packaging............................................ 8

4.6 Connecting the appliance......................................... 8

4.7 Switching on the appliance....................................... 8

5 Control.................................................................... 8

5.1 Brightness of the temperature display...................... 8

5.2 Child proofing........................................................... 9

5.3 Door alarm................................................................ 9

5.4 Temperature alarm................................................... 9

5.5 Refrigerator compartment........................................ 9

5.6 BioFresh compartment............................................. 11

5.7 Freezer compartment............................................... 12

6 Maintenance........................................................... 13

6.1 Defrosting with NoFrost............................................ 13

6.2 Cleaning the appliance............................................. 14

6.3 Customer service..................................................... 14

7 Malfunctions........................................................... 14

8 Decommissioning.................................................. 15

8.1 Switching off the appliance....................................... 15

8.2 Taking the appliance out of service.......................... 16

9 Disposing of the appliance................................... 16

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that

we have to reserve the right to make design, equipment and

technical modifications.

To get to know all the benefits of your new appliance, please

read the information contained in these instructions carefully.

The instructions apply to several models. Differences may

occur. Text relating only to specific appliances is marked with

an asterisk (*).

Instructions for action are marked with a , the results of

action are marked with a

1 Appliance at a glance

1.1 Description of appliance and equip-

ment

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation.

Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

Fig. 1

(1) Bedien- und Kontrollele-

mente

(10) Bottle holder

(2) (11)Interior light BioFresh compartment,,

DrySafe

(3) (12)Fan BioFresh compartment,

regulable, HydroSafe

(4) (13)Glass shelf, relocatable Type plate

(5) (14)Rack for tinned food Freezer compartment

(6) Rack for tinned food,

relocatable

(15) Cold storage accumula-

tors

(7) Sectioned glass shelf,

relocatable

(16) VarioSpace

(8) Separating plate with

bottle shelf

(17) Information system

(9) (18)Bottle rack, relocatable Adjustable-height feet,

transport grips at front,

transport castors at back

1.2 Range of appliance use

Intended use

The appliance is suitable solely for cooling food

in a domestic environment or similar. This

includes use in, for example

in staff kitchenettes, bed and breakfast estab-

lishments,

Appliance at a glance

2 * Depending on model and options

by guests in country cottages, hotels, motels

and other accommodation,

for catering and similar services in the whole-

sale trade.

Use the appliance solely in a domestic type of

environment. All other applications are inadmis-

sible.

Foreseeable misuse

The following applications are expressly

prohibited:

Storage and cooling of medicines, blood

plasma, laboratory compounds or similar

materials and products subject to the Medical

Devices Directive 2007/47/EC

Use in potentially explosive areas

Improper use of the appliance can lead to

damage to or spoilage of the stored goods.

Climate rating definitions

The appliance is set to operate within specific

ambient temperature limits according to its

climate rating. The correct climate rating for

your appliance is indicated on the type plate.

Note

Compliance with the ambient temperatures

indicated is required, otherwise the cooling

performance is reduced.

Climate

rating

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit is tested for leakage. The appliance

complies with the relevant safety regulations and EC Directives

2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.

The BioFresh compartment satisfies the requirements of a chill

compartment to EN ISO 15502.

Note for test institutions:

Tests are to be carried out according to the applicable

standards and guidelines.

Preparation and testing of the appliances must be carried

out taking the and themanufacturer's loading plans

notes in the operating manual into account.

1.4 External dimensions of the appli-

ance

Fig. 2

Model Appliance height H (mm)

CBNPes/ef 37.. 2011

For appliances supplied with wall spacers, the measurement

increases by 35 mm (see 4.2) .

1.5 Saving energy

Always ensure good ventilation. Do not cover ventilation

openings or grille.

Always keep fan louvres clear.

Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object.

The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) .

Keep the time the appliance is open to a minimum.

The lower the temperature setting, the higher the power

consumption.

Store food logically. (see Appliance at a glance).

Ensure that all food is well packed and covered for storage.

This will prevent frost from forming.

Remove food as needed in order that it does not warm too

much.

First cool warm food to room temperature before storing it .

Defrost frozen food in the refrigerator.

Use the vacation function for longer vacation periods

(see 5.5.4) .

Accumulated dust increases the energy

consumption:

Once a year, dust the refrigerating unit

together with the metal grille of the heat

exchanger at the back of the appliance.

1.6 HomeDialog

Depending on model and options, the Home-

Dialog system can be used to network a number

of Liebherr appliances (situated, for example, in

the basement) with a main appliance (sited, for

example, in the kitchen) and control them via the

latter. You will find more information on the

benefits, requirements and principle of operation

on the internet at www. liebherr.com.

Appliance at a glance

* Depending on model and options 3

Produktspecifikationer

Varumärke:	Liebherr
Kategori:	kylskåp
Modell:	CBNPef 3756 Premium BioFresh NoFrost
Inbyggd display:	Ja
Bredd:	600 mm
Djup:	630 mm
Höjd:	2011 mm
Årlig energiförbrukning:	169 kWh
Energiförbrukning:	0.463 kWh/24h
Energieffektivitetsklass (gammal):	A+++
Fryskapacitet:	16 kg/24h
Frysläge:	Bottom-placerade
antal stjärnor:	4*
Temperaturlarm:	Ja
Flaskställ:	Ja
Antal kompressorer:	1
Automatisk avfrostning (frys):	Ja
Justerbara fötter:	Ja
Kylsystem:	Ventilerad
Produktens färg:	Silver
Skärmtyp:	LCD
Kontrolltyp:	Röra
Lagringstid vid strömavbrott:	25 h
Lamptyp:	LED
Material, hölje:	Stål
Antal hyllor i frysen:	4
Apparatens placering:	Fristående
Isbricka:	Ja
Gångjärnssida:	Höger
Hyllor material:	Härdat glas
Total kapacitet netto:	293 l
Ljudnivå Lc IEC:	41 dB
Klimatkategori:	SN-T
Innerbelysning, kyl:	Ja
Frostfri (kyl):	Ja
Automatisk avfrostning (kyl):	Ja
Äggfack:	Ja
Superkylningsfunktion:	Ja
Dörröppningslarm:	Ja
Ansluten effekt:	- W
Frys - Antal hyllor:	3
Fryskapacitet netto.:	88 l
Fryskapacitet brutto:	111 l
Total kapacitet, brutto:	341 l
Kylkapacitet brutto:	230 l
Kylkapacitet netto:	205 l
Färska zon fack:	Ja
Färskzon-fack nettokapacitet:	67 l
Färskzon-fack bruttokapacitet:	72 l
