Sida 1/3

Part no.:

| DESCRIPTION

38331

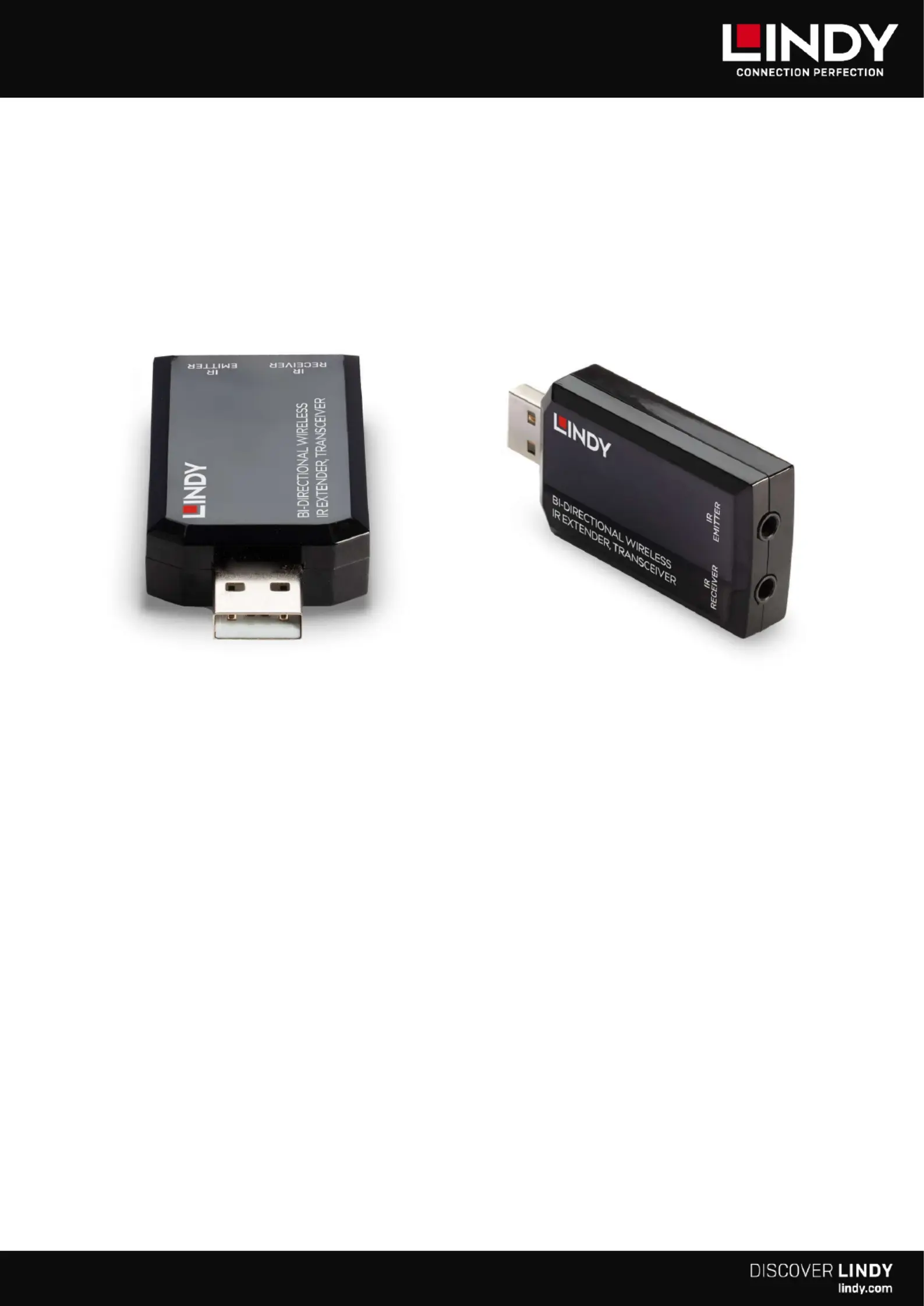

Bi-directional Wireless IR Extender, Transceiver

Extends bi-directional IR signals up to 150m

Transceivers can be easily installed in one to one, one to many, and many to many conﬁgurations (sold individually)

10 independent RF channels ensure multiple transceivers can be used in smaller environments without interference

Low power requirement allows for a hassle-free installation

2 year warranty

The Lindy 150m Bi-Directional IR signal extender is a high quality, reliable solution for transmitting infrared signals from IR remote

controls up to 150m in open spaces. This allows the control of AV equipment in home, oﬃce, and retail spaces from convenient

locations, through walls and ceilings, with no need for costly cable infrastructure.

Each transceiver’s low power requirement through the USB interface and small form factor ensures simple and discreet

professional installations.

The transceiver features a rotary dial used to select a vacant radio frequency channel to avoid interference from other IR devices,

or create multiple conﬁgurations in the same space. This feature also allows one to one, one to many and many to many bi-

directional systems to be set up with ease.

Compatibility with Alexa, Google Home & Logitech Harmony allows for integration with other home automation products, meaning

users can use speech to send instructions to compatible AV devices and create a complete smart-home experience.

•

| TECHNICAL DATA SHEET



Please Note: one unit is included.

Actual distances will vary depending on the construction of the building and any walls or ﬂoors that stand between the transceiver

units.

Speciﬁcations

AV Interface: IR

Interface Standard: -

Supported Bandwidth: -

Maximum Distance: 150m (492.12ft)

Maximum Resolution: -

HDCP Support: -

EDID Pass Through: -

Supported Audio: -

Separate Audio Ports: -

IR Support: 20~60KHz

CEC Support: -

Serial Interface: -

Transmission Protocol: 866MHz RF

Transmission Medium: FSK Wireless

Laser Class (only for Fibre): -

Wavelength (only for Fibre): -

Chipset: AMICCOM A7129

Special Features: Bi-directional 1 - 1 and 1 - Many Extension

Connectors

Transmitter Input: -

Transmitter Output: -

Receiver Input: -

Receiver Output: -

Bi-directional Ports: 3.5mm IR (Female)

Power: USB Powered

Physical Properties

Dimensions (approx.) WxDxH: 30x13x63mm (1.18x0.51x2.48in)

Housing Material: Plastic

Net Weight: 0.07kg (0.15lb)

Operating Temperature: -40°C - 85°C (-40°F - 185°F)

Storage Temperature: -55°C - 125°C (-67°F - 257°F)

Humidity: 10-85% RH (non-condensing)

Power Requirements: 5V 0.5A

Colour: Black

Miscellaneous

Packaging Type: Carton Box

Packaging Dimensions: 236x255x10mm (9.29x10.04x0.39in)

Gross Weight: 0.09kg (0.2lb)

Warranty (Years): 2

Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

Bi-directional Wireless IR Transceiver

•

| TECHNICAL DATA SHEET



IR Emitter Cable, 1.5m

IR Receiver Cable, 1.5m

USB Type A Male to Female Cable, 0.3m

Lindy Manual

Purchasing Information

No.: 38331

EAN: 4002888383318

•

| TECHNICAL DATA SHEET



Produktspecifikationer

Varumärke:	Lindy
Kategori:	AV extender
Modell:	38331
Vikt:	13 g
Bredd:	30 mm
Djup:	13 mm
Höjd:	63 mm
Förpackningens bredd:	236 mm
Maximal upplösning:	- pixlar
Material:	Plast
Modell:	Sändare och sändtagare för AV-utrustning
Driftspänning:	3.3 V
3,5 mm in:	Ja
Infrarött (IR) frekvensområde:	20 - 60 kHz
Kabellängd:	1.5 m
Produktens färg:	Svart
Vikt inkl. förpackning:	75 g
Antal per förpackning:	1 styck
Temperatur vid drift:	-40 - 85 ° C
Temperaturintervall (förvaring):	-50 - 125 ° C
Intervall för relativ operativ luftfuktighet:	10 - 85 %
Hållbarhetscertifiering:	CE, REACH, RoHS
Kabel inkluderad:	IR
Anslutningsteknologi:	Kabel
Strömkälla av typen:	USB
Kretsar:	AMICCOM A7129
Maximal överföringshastighet avstånd:	150 m
Antal anslutningar:	2
