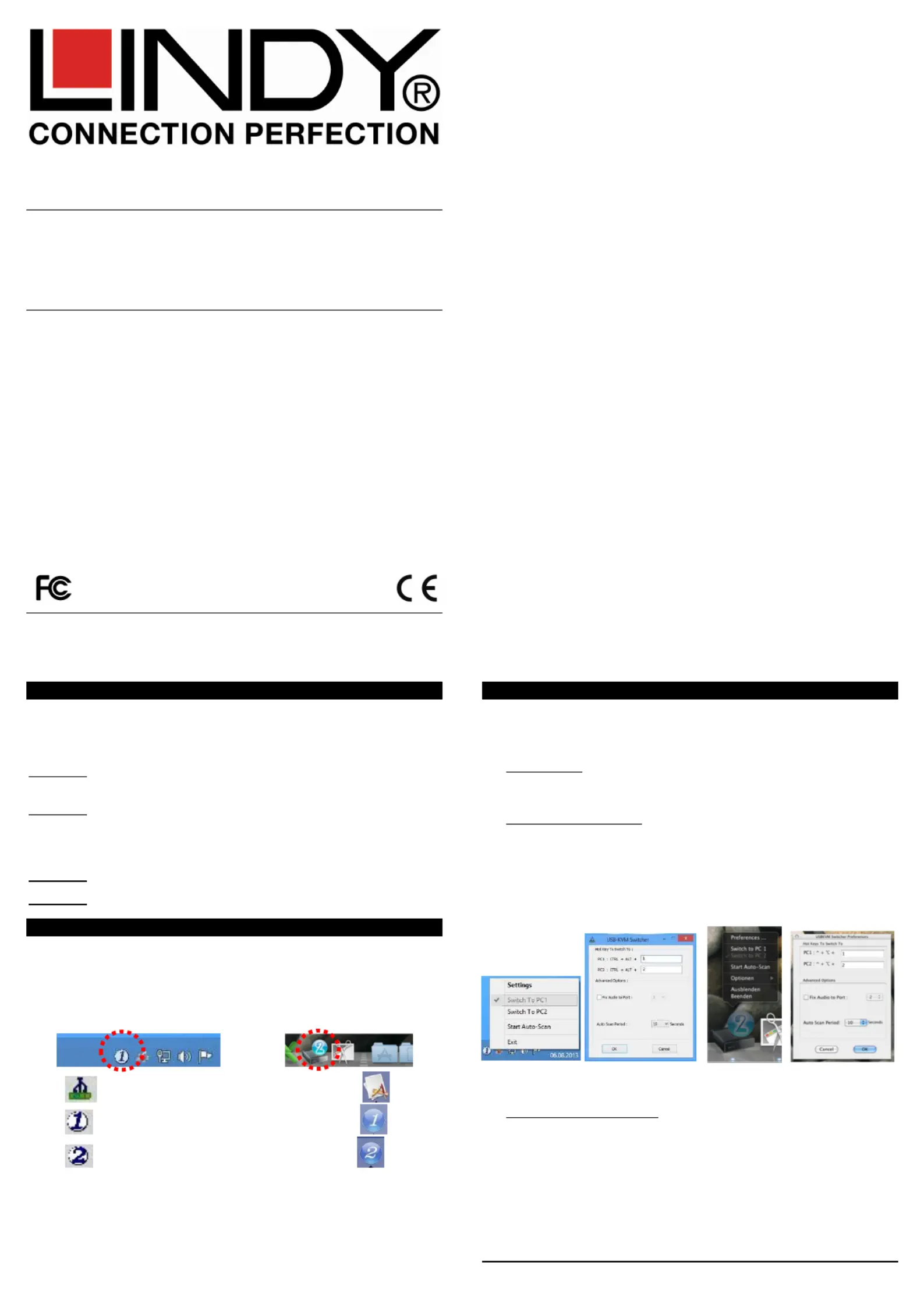

KVM Switch Compact USB 2.0 Audio
Installation Guide English
Installationsanleitung Deutsch
Manuel Utilisateur Français
Manuale d’uso Italiano
© LINDY – 2nd EDITION (September 2013)
No.
4234
0
–
HDMI
No. 42341 – DVI-D
No. 42342 – VGA
No. 42343 – DisplayPort
www.LINDY.com
For Home and Oce Use
Tested to Comply with
FCC Standards
Specication English
•USB 2.0 compliant, supports USB 2.0 hubs and device sharing
•Port switching via button, software and keyboard hotkey switching
•2 System Cables connected to the switch
No. 42340 – Interfaces: HDMI, USB 2.0, Audio out & Microphone
HDMI up to 1920x1080, HDCP & 3D compliant, with HDMI Audio
No. 42341 – Interfaces: DVI, USB 2.0, Audio out & Microphone
DVI-D Single Link: up to 1920x1200, HDCP compliant – not for connec-
tion to HDMI ports of graphic cards or PC/notebook, HDMI and Deep
Colour are not supported!
No. 42342 – Interfaces: VGA, USB 2.0, Audio out & Microphone
No. 42343 – Interfaces: DisplayPort, USB 2.0, Audio out & Microphone
Installation English
1. Install the software (CD) on a PC “Software Installation for Windows”.
To install on Mac OS, copy the file (*.pkg format) to the local hard
disk and install it from there.
2. This will install the software on your computer and create some new
icons in the Windows taskbar or in the Mac Dock. They will look like
one of the icons shown below.
3.
No live connection or KVM switch detected
Port 1computer is displayed and selected
Port 2 computer is displayed and selected
4. Connect your keyboard, mouse, monitor and audio devices to the
KVM switch.
5. If required, you may use a USB hub to connect more than 2 USB
devices, to do this please use a self powered USB hub.
6. Connect the system cables directly to your computers. Extension or
adapter cables may NOT be supported at high video resolutions.
Operation & Port Switching English
There are three methods to toggle between the computers. After switching
please allow the computer a few seconds to load all USB drivers before
you can use the system.
1. Switch Button
The Switch Button is a wired remote control. Press the button to toggle
between the two computers.
2. KVM Switching Software (Windows & Mac OS)
For KVM Switching Software please refer to installation section.
Right clicking the icon opens the port switching menu.
Double clicking the icon opens the conguration menu. Using this
menu you may bind the audio ports to one computer and you may en-
able the beeper.
Windows OS Mac OS
Switching Menu Conguration Menu Switching Menu Conguration Menu
3. Keyboard Hotkey Switching (Windows & Mac OS)
Each keystroke hotkey sequence must be pressed within two seconds.
It is not possible to switch to a port with no active computer attached.
For Windows, the following key sequence for switching is preset:
“Scroll Lock + Scroll Lock”. Additional hotkeys like "CTRL ALT + *" can
be congured via the Conguration menu as described above.
For Mac, please dene the hotkeys via the Conguration menu as de-
scribed above.
Produktspecifikationer
| Varumärke: | Lindy |
| Kategori: | Växla |
| Modell: | 42340 |
| Inbyggd display: | Nej |
| Vikt: | 460 g |
| Bredd: | 90 mm |
| Djup: | 70 mm |
| Höjd: | 25 mm |
| LED-indikatorer: | Ja |
| Maximal upplösning: | 1920 x 1080 pixlar |
| Antal HDMI-portar: | 1 |
| Hörlursutgångar: | 1 |
| Certifiering: | CE, FCC |
| Rackmontering: | Nej |
| Antal mikrofoningångar: | 1 |
| Antal datorer: | 2 |
| Ljudanslutningar: | Ja |
| Kabellängd: | 0.9 m |
| Produktens färg: | Svart |
| bruksanvisning: | Ja |
| Mac-operativsystem som stöds: | Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Video porttyp: | HDMI |
| Linux operativsystem som stöds: | Ja |
| Harmonized System (HS)-kod: | 85176200 |
| Tangentbord anslutningstyp: | USB |
| Mus porttyp: | USB |
