Sida 1/8
READ ME FIRST
QUICK INSTALL GUIDE
AV Series 26-Port Gigabit
Managed Switch
AMS-2600
Includes:
AMS-2600 26-Port Gigabit Managed Switch
Rack Mount Kit
Rubber Feet
Power Cable
SETUP AND CONFIGURATION
1
Physical Installation
The AMS-2600 can be rack-mounted or used as a desktop switch. Install the
AMS-2600 in a stable/safe place to avoid any possible damage. Avoid place-
ment in direct sunlight. Do not place heavy articles on the AMS-2600 and verify
the ground connection of the outlet is functioning properly.
Desktop/Shelf Installation
For desktop/shelf installation, attach the four rubber feet to the corner inden-
tations on the bottom of the AMS-2600, then place the switch horizontally
on a solid, level platform.
Rack Installation
Use the included L brackets for convenient installation in a 19-inch server or
audio/video rack. Use four screws to attach the L-shaped brackets on both
sides of the AMS-2600 as shown below, then install the switch horizontally in
the rack. Use your desired hardware to ax the switch brackets to the rack.

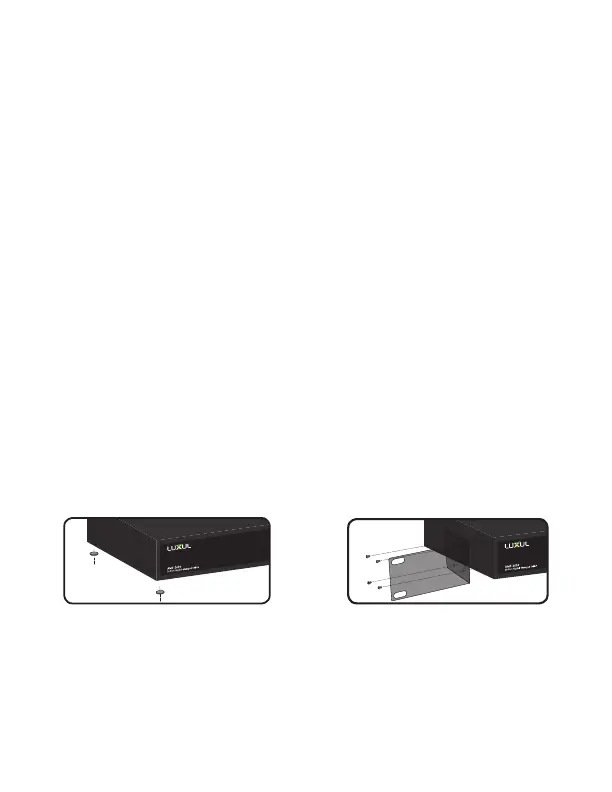

Attach Feet for Desktop Installation Install Brackets for Rack-Mounting
2
Connecting Ethernet and Power
Ethernet and Power Connections
Use any RJ-45 to connect the AMS-2600 to an Ethernet-enabled device,
including servers, routers or other switches. No crossover cable is necessary.
The AMS-2600 supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/
full-duplex mode and 1000 Mbps full-duplex mode.
nNote: Luxul recommends at least Cat-5e unshielded twisted pair
(CAT5e UTP) cabling. To ensure best performance and stable data
transmission at 1000 Mbps, use Category-6 unshielded twisted pair
(CAT6 UTP).
Use the included power cable to connect the AMS-2600 to a surge protect-
ed outlet. The AC input socket and a power switch are on the rear panel.
The built-in power supply supports 100~240VAC at 50/60Hz.
cCAUTION: Use only the correct power cord for your environment.
Any voltage other than standard 100/240 will result in
damage to the AMS-2600.
