Sida 1/8

Fo ld Fo ld Fo ld

READ ME FIRST

QUICK INSTALL GUIDE

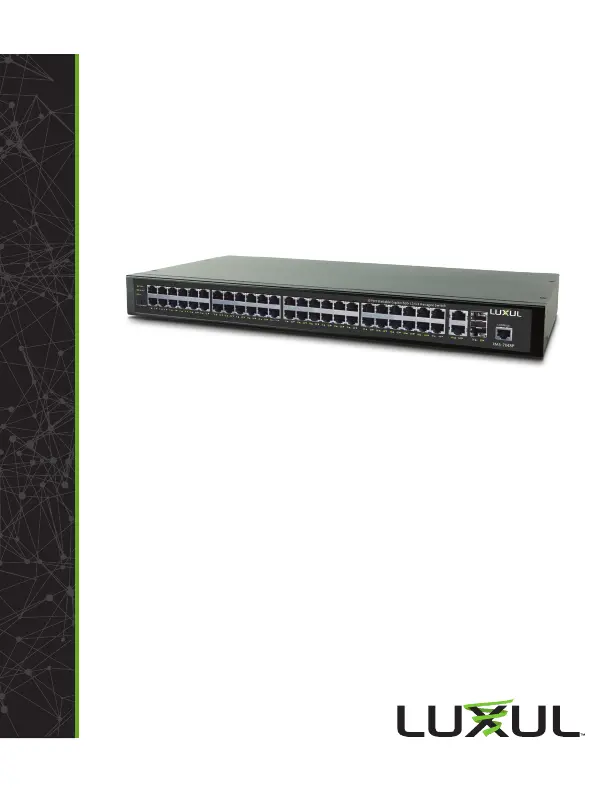

52-Port Stackable Gigabit PoE+

L2/L3 Managed Switch

XMS-7048P

Includes:



52-Port PoE Switch



Rack Mount Kit



Rubber Feet



Power Cord



Console Cable

INSTALLATION AND SETUP

Physical Installation

The XMS-7048P can easily be installed in a standard 19” rack. Two mounting ears

are included for installing and stabilizing the switch. When attaching the mounting

ears and installing the switch in a rack, please refer to the following illustration:

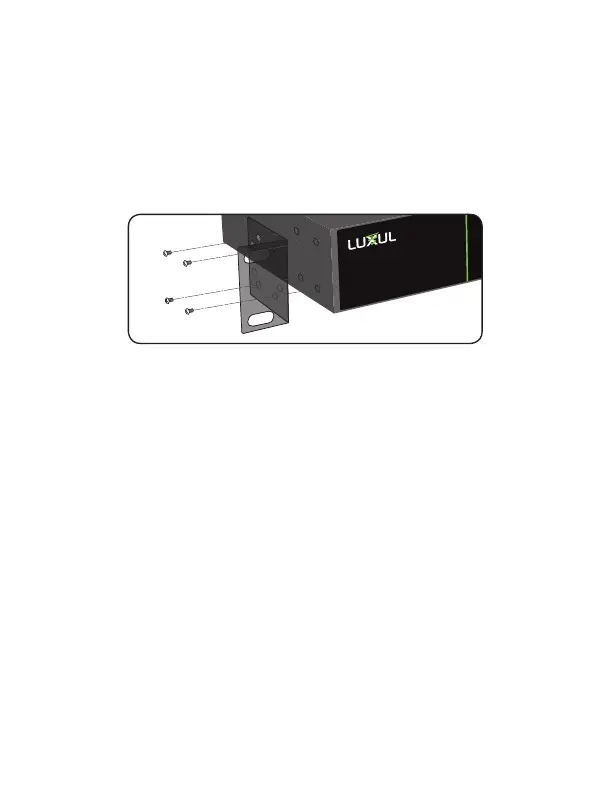

Rack-Mounting the XMS-7048P



Using the included screws, attach the mounting ears to each side

of the switch.



Mount the switch in the rack with the LEDs facing outwards. Be sure the

switch is level and properly secured in the rack.

Desktop Setup

For use as a desktop device, position and apply the included rubber feet to the

bottom of the XMS-7048P.

Connecting Ethernet and Power

Ethernet and Power Connections

Use one of the 50 Ethernet ports to connect the XMS-7048P to any Ethernet-

enabled device, including servers, routers or other switches.

No crossover cable is necessary.

The XMS-7048P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/

full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-48 are PoE+ and

are enabled by default. Ports 49 and 50 are Gigabit Ethernet only (non PoE).

Use the included power cable to connect the XMS-7048P to a surge-

protected outlet. The AC input socket is on the rear panel. The built-in

power supply supports 100~240VAC at 50/60Hz.

The rear panel also features a redundant power supply (RPS) connector. To

utlize this feature, you’ll need an external power supply and an appropriate

RPS cable to connect the XMS-7048P to the external power supply.

Network Cabling

Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)

cabling. To ensure best performance and stable data transmission at 1000

Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).

c CAUTION: Multiple Uplink channels can create loops, resulting in

network failure. Ensure only one Uplink channel exists

between switches or between the XMS-7048P and a router.

n NOTE: When powering up, the port LEDs may take a moment to

initialize. This is normal as the XMS-7048P initialization and

startup process completes.

n NOTE: The XMS-7048P has an internal 740W power supply. Do not

exceed 25.5W each or 740W combined consumption of all

external PoE devices.

Sales

P: 801-822-5450

E: sales@luxul.com

Technical Support

P: 801-822-5450 Option 3

E: support@luxul.com

LUX-QIG-XMS-7048P-v6 02131809

No part of this document may be modiﬁed or adapted in any way, for any purposes without permission

in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves

the right to make changes to any product to improve reliability, function, or design. No license is granted,

either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied

license only exists for equipment, circuits and subsystems contained in this or any Luxul product.

Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other

trademarks and registered trademarks are property of their respective holders.

Produktspecifikationer

Varumärke:	Luxul
Kategori:	Växla
Modell:	XMS-7048P
Vikt:	5540 g
Bredd:	375 mm
Djup:	442 mm
Höjd:	44.5 mm
LED-indikatorer:	Activity, Link, Power, System
Snabbstartsguide:	Ja
Strömförbrukning (max):	1008 W
Certifiering:	FCC, CE, RoHS
Rackmontering:	Ja
Strömförsörjning ingår:	Ja
Antal VLAN:	4094
Full duplex:	Ja
Produktens färg:	Svart
Förpackningstyp:	Låda
Formfaktor:	1U
Datahastighet för Ethernet-LAN:	10,100,1000,10000,12000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Total Power over Ethernet (PoE)-budget:	740 W
Temperatur vid drift:	0 - 40 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
VLAN-stöd:	Ja
AC-inspänning:	100 - 240 V
Kabel inkluderad:	AC
Växelström Frekvens:	50 - 60 hz
Rackmonteringssats:	Ja
Kommunikationsstandarder:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Multicast-stöd:	Ja
Adresstabellstorlek:	- poster
Switch kapacitet:	- Gbit/s
Broadcast Storm-kontroll:	Ja
10G stöd:	Nej
Antal grundläggande RJ-45 Ethernet-portar:	52
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Antal Power over Ethernet plus (PoE +)-portar:	52
Staplingsbar:	Ja
Switch typ:	hanterad
Switch-lager:	L2/L3
Strömanslutning:	AC-ingångskontakt
Antal Gigabit Ethernet (koppar)-portar:	52
Fiberoptiska kontakten:	SFP+
Fiberportar kvantitet:	2
Stöd för redundant strömförsörjning (RPS):	Ja
Typ av PoE (Power over Ethernet) som stöds:	PoE+
Fysisk stackning (enheter):	16
