READ ME FIRST

FoldFoldFold

QUICK INSTALL GUIDE

High Power Wireless 300N

Outdoor Access Point

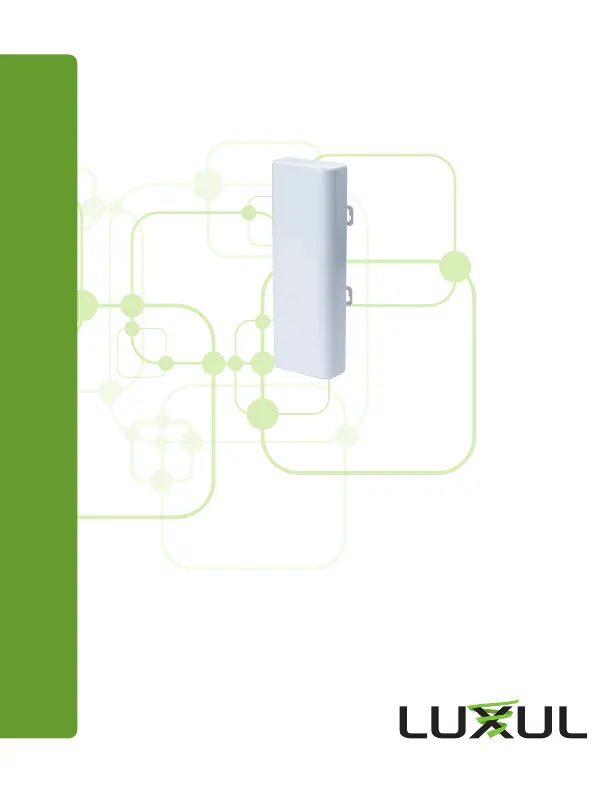

XAP-1240

Includes:



One: XAP-1240 Wireless Access Point



One: PoE Injector and Power Cord



One: Ethernet Cable



Two: Cable Ties

READ ME FIRST - AP COMPATIBILITY

ThisXAP-1240iscompatiblewiththeLuxulXWC-1000WirelessControllerfor

fast,easyconfigurationanddeploymentofwirelessnetworkswithmultipleAPs.

nNote:Ifyou’llbeusingthisAPwithaWirelessController,referto

theQuickInstallGuideincludedwiththeWirelessControllerfor

setupinstructions.

Ifyou’reusingseparately-purchasedLuxulAPsorinstallingthisAPalong

withaWirelessControllerinanexistingLuxuldeployment,youmay

needtomanuallyupgradefirmwareforsomeofthoseAPsbeforeinstalling

theWirelessController.

LuxulAPsrunningfirmwareversion5orlater(liketheonein

thispackage)areWirelessController-compatibleandcan

beusedwiththeControlleras-is.WhenpurchasingLuxul

APsforusewiththeWirelessController,lookforanorange

“Version5Firmware”stickerontheboxtoavoidthemanual

upgradeprocess.

nNote:Visithttp://luxul.com/ap-upgradeforhelpupgradingyourAP’s

firmwaretoversion5ornewer.

AP SETUP AND CONFIGURATION

1

Physical Installation

TheXAP-1240accesspointisdesignedforsimpleandefficientinstallation.

Fourkeyholesallowforeasywall-mounting,orformountingtoapole,usethe

includedcableties(zipties)tosecuretheAPtothepole.Looselysecuretwo

cableties,onethrougheachmountingflangeslot,thentightenthecableties.

X

Single Access Point Placement:Becausethesignalgeneratedbythe

XAP-1240isdirectional,theunitshouldbelocatedattheperimeter

ofthedesiredcoveragearea,withthelargeflatsurfaceaimedtoward

thecenter.

XAP-1240SingleAPCoveragePattern

X

Multiple Access Point Placement:Youmayneedtoexperimentwith

APplacementtooptimizetheroamingexperience.PlaceAPstoensure

adequatecoverage,butnotsofarapartthatthereisnosignaloverlap.

AdjacentAPsshouldoverlapenoughthattheclientdevicehasagood

connectiontotheAPtowhichitiscurrentlyattached,butalsoseesthe

next-nearestAP.Ideally,roamingclientsshouldseesignalstrengthof

twooverlappingAPsintherangeof-60to-70dBmatthemidway

pointbetweentwoAPs.TolearnmoreaboutAPplacement,visit

luxul.com/ap-placement.

Ideally, roaming clients should see

signal strength of two overlapping

APs in the range of -60 to -70 dBm at

the midway point between two APs

XAP-1240MultipleAPCoverageandOverlap

nNote:ConsiderusingEkahauHeatMappertoassistwiththisprocess,

availablefromwww.ekahau.com.Luxulalsooffersaninformative

“How-To”videoonHeatMapperatluxul.com/how-to-videos.

LEGAL AND REGULATORY INFORMATION

Nopartofthispublication,oranyotherpublicationmaybemodifiedoradapt-

edinanyway,foranypurposeswithoutpermissioninwritingfromLuxul.The

materialinthismanualissubjecttochangewithoutnotice.Luxulreservesthe

righttomakechangestoanyproducttoimprovereliability,function,ordesign.

Nolicenseisgranted,eitherexpresslyorbyimplicationorotherwiseunderany

Luxulintellectualpropertyrights.Animpliedlicenseonlyexistsforequipment,

circuitsandsubsystemscontainedinthisoranyLuxulproduct.

FCC Compliance

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjectto

thefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinter-

ference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.

FCCID:W59XAP1230

IC:8584A-XAP1230

FCC Statement—Wireless FCC 2.4GHz 802.11bgn

Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora

ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.

Hereby,Luxul,14203MinutemanDrive,Suite201,Draper,Utah,84020,

declaresthatthisLuxulXAP-1240isincompliancewiththeessential

requirementsandotherrelevantprovisionsofDirective1995/5/EC.

Foracopyofthisreportsendaselfaddressedstampedenvelope

to:LuxulCE,14203MinutemanDrive,Suite201,Draper,Utah,84020.

IndustryCanada(RSS-GenIssue4)

CANICES-3(B)/NMB-3(B)

Sales

P:801-822-5450

E:s[email protected]om

Technical Support

P:801-822-5450Option3

E:suppor[email protected]om
