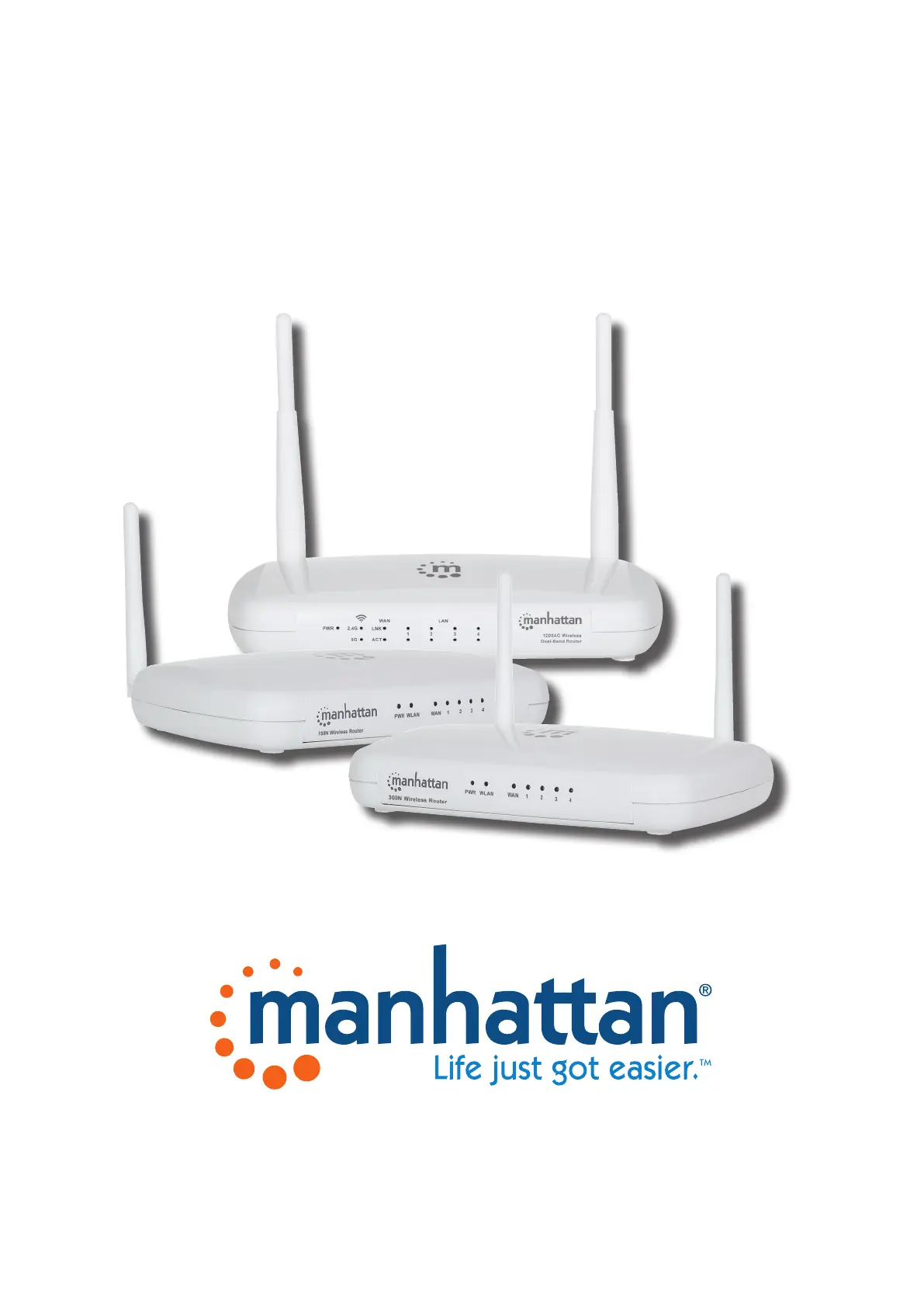

WIRELESS
ROUTER
USER MANUAL
MODELS 525459, 525466,
525480
MH-525459/525466/525480-UM-0713-01
150N Model 505459
300N Model 505466
1200AC Model 505480
2
Thank you for purchasing this Manhattan® Wireless Router: Model 525459 (150N
4-Port), Model 525466 (300N 4-Port) or Model 525480 (1200AC 4-Port).
The latest in wireless networking, these Wireless Routers serve multiple purposes —
an access point for your wireless network, a four-port router for hard-wiring Ethernet
devices — and bring it all together so that the devices can access a high-speed
Internet connection.
Detailed instructions in this user manual make installation reasonably quick and
simple so you’ll soon be enjoying the benets of these and more popular features:
• Network link speed of up to 150 Mbps for Model 525459, 300 Mbps for Model
525466 and 867 Mbps for Model 525480 (at 5 GHz)
• Supports WMM function to meet the multimedia data bandwidth requirement
• Supports Wi-Fi Protected Setup (WPS)
• Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
• Auto MDI/MDI-X support
• DHCP server assigns IP addresses for all LAN users
• DHCP server supports static lease management
• Supports virtual server, port forwarding and DMZ (demilitarized zone)
• Supports DDNS (dynamic DNS)
• Supports UPnP (Universal Plug and Play)
• Integrated anti-DOS rewall
• QoS (Quality of Service) bandwidth management
• VPN Passthrough
• Easy installation through Web-based user interface
• Three-Year Warranty
Package Contents
• Wireless 150N 4-Port Router, Wireless 300N 4-Port Router or Wireless 1200AC
Router
• Quick install guide, plus user manual on CD
• Power adapter
• Ethernet Cat5 RJ45 cable: 1.0 m (3 ft.)
NOTE: Some screen images have been modied to t the format of this manual.
Hardware sections 1.1 and 1.2 feature images of the 150N Router: Displays and
components for the 300N Router are similar.
For specications, refer to each model’s datasheet at manhattan-products.com.
3
TABLE OF CONTENTS
TABLE OF CONTENTS
section page section page
1 HARDWARE ........................................... 5
1.1 Front Panel Display .......................... 5
1.2 Back Panel Display 5 ..........................
2 SYSTEM & NETWORK SETUP 6 .............
2.1 Connecting the Router .....................6
2.2 Obtaining an IP Address .................. 6
2.2.1 Windows XP Setup ....................7
2.2.2 Windows Vista/7 Setup ..............9
2.2.3 Router IP Address Lookup ....... 10
2.3 Quick Setup ................................... 13
2.3.1 Cable Modem .......................... 14
2.3.2 Fixed IP xDSL (Static IP) ......... 15
2.3.3 PPPoE xDSL ...........................16
2.3.4 PPPTP xDSL ........................... 16
2.3.5 L2TP xDSL .............................. 18
2.3.6 Telstra BigPond ....................... 18
2.4 Basic Setup .................................... 19
2.4.1 Time Zone / Auto-Synch ..........20
2.4.2 Changing Mngmt. Password ....20
2.4.3 Remote Management .............. 21
2.5 WAN Setup ....................................22
2.5.1 Dynamic IP ..............................23
2.5.2 Static IP ...................................23
2.5.3 PPPoE ..................................... 24
2.5.4 PPPTP .....................................24
2.5.5 L2TP ........................................25
2.5.6 Telstra BigPond ....................... 26
2.5.7 DNS .........................................26
2.5.8 DDNS ......................................27
2.6 LAN Conguration .........................28
2.6.1 LAN IP ..................................... 28
2.6.2 DHCP Server ........................... 29
2.7 WLAN Conguration ...................... 30
2.7.1 Basic Wireless Settings ........... 31
2.7.2 Advanced Wireless Settings .... 32
2.7.3 Wireless Security .....................33
2.7.4 Wireless Access Control .......... 37
2.7.5 WPS ........................................38
2.7.6 Security Tips ............................39
3 ADVANCED FUNCTIONS .................... 41
3.1 QoS ................................................ 41
3.1.1 Basic QoS Settings .................. 41
3.1.2 Adding a new QoS Rule .......... 42
3.2 NAT ................................................ 43
3.2.1 Port Forwarding .......................44
3.2.2 Virtual Server ...........................45
3.2.3 Port Mapping ...........................46
3.2.4 UPnP ....................................... 47
3.2.5 ALG ......................................... 47
3.3 Firewall ...........................................48
3.3.1 Access Control ........................48
3.3.2 Add PC ....................................50
3.3.3 URL Blocking ........................... 51
3.3.4 DoS Attack Prevention.............52
3.3.5 DMZ .........................................53
4 ADDITIONAL FUNCTIONS .................. 55
4.1 Status .............................................55
4.1.1 Internet Connections ............... 55
4.1.2 Device Status ..........................56
4.1.3 System Log ..............................56
4.1.4 Security Log ............................56
4.1.5 Active DHCP Client .................57
4.1.6 Statistics ..................................57
4.2 Tools ..............................................57
4.2.1 Conguration Tools ..................57
4.2.2 Firmware Upgrade ................... 58
4.2.3 Reset .......................................59
5 TROUBLESHOOTING .......................... 60
6 GLOSSARY .......................................... 62
