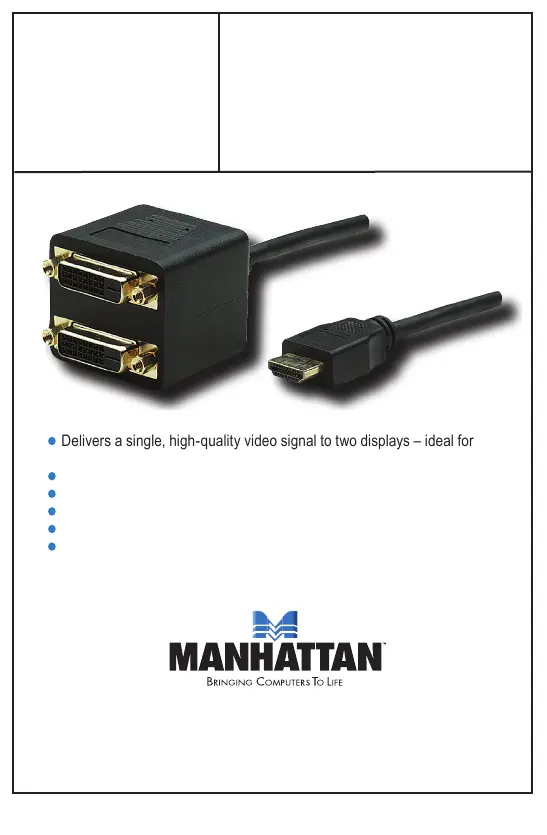

Thank you for purchasing one of a variety
of MANHATTAN® Video Splitter Cables,
each designed to provide quick and easy
2-to-1 connections for crystal-clear video
transmissions. Each cable in this series
supports high-resolution images for dual-
display presentations delivered by a single
source. (See the connector conguration
chart with specs on the back of this guide.)
MH-VIDSPL-miniQIG-1008-01
Copyright © MANHATTAN
All products mentioned are trademarks or registered trademarks of their respective owners.
MANHATTAN® offers a complete line of PC Components, Peripherals, Cables and
Accessories. Ask your local computer dealer for more information or visit us online at
www.manhattan-products.com
• Delivers a single, high-quality video signal to two displays – ideal for
presentations, retail displays and training applications
• Gold-plated connectors with thumbscrews provide maximum connectivity
• Integrated 2-in-1 output design eliminates Y-cable tangles and clutter
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Lifetime Warranty
Shown:
Model 307765
CommoN SpeCiFiCatioNS
With-
Cable standing Insulation Conductive
Model # Contacts Connectors Voltage Resistance Resistance Length Weight
307765 VGA 15-pin male; VGA 15-pin female 28 AWG 1 2 1 300 V DC 20 MOhms 3 Ohms 0.3 m (1 ft.) 158.7 g (5.6 oz.)
307772 1 2 DVI 24+1-pin male; 24+1-pin female 30 AWG 1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 150.2 g (5.3 oz.)
307796 DVI 24+5-pin male; DVI 24+5-pin female; 30 AWG 1 1 1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 164.5 g (5.8 oz.)
1 VGA 15-pin female
307802 DVI 24+5-pin male; VGA 15-pin female 30 AWG 1 2 1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 144.5 g (5.1 oz.)
307826 DVI 24+1-pin male; DVI 24+1-pin female 30 AWG 1 1 2 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 141.7 g (5.0 oz.)
1 HDMI 19-pin female
307833 HDMI 19-pin male; HDMI 19-pin female 30 AWG 1 2 2 300 V DC 50 MOhms 2 Ohms 0.3 m (1 ft.) 107.7 g (3.8 oz.)
307857 HDMI 19-pin male; DVI-D 24+1-pin female 30 AWG 1 2 2 300 V DC 50 MOhms 2 Ohms 0.3 m (1 ft.) 107.7 g (3.8 oz.)
307864 HDMI 19-pin male; DVI 24+1-pin female 30 AWG 1 1 2 300 V DC 50 MOhms 2 Ohms 0.3 m (1 ft.) 116.2 g (4.1 oz.)
1 HDMI 19-pin female
307871 1 1 DVI-I 24+5-pin male; VGA 15-pin female 30 AWG 1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 144.5 g (5.1 oz.)
1 RCA female, RGB
307994 VGA 15-pin male; VGA 15-pin female 28 AWG 1 1 1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 150.2 g (5.3 oz.)
1 RCA female, RGB
308175 1 1 VGA 15-pin male; VGA 15-pin female 30 AWG 1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 164.5 g (5.8 oz.)
1 DVI-I 24+5-pin female
308182 1 2 DVI-D 24+1-pin male; VGA 15-pin female 30 AWG 2 300 V DC 50 MOhms 2 Ohms 0.3 m (1 ft.) 133.2 g (4.7 oz.)
308199 1 2 DVI-I 24+5-pin male; DVI-I 24+5-pin female 30 AWG
1 500 V DC 50 MOhms 1 Ohm 0.3 m (1 ft.) 150.2 g (5.3 oz.)
308205 mini-DVI-D 32-pin male; 30 AWG 12 300 V DC 5 MOhms 10 Ohms 0.3 m (1 ft.) 110.5 g (3.9 oz.)
1 DVI-D 24+5-pin female; HDMI 19-pin female
Certications
1
UL
2
UL, HDMI 1.2
Contacts
• Gold-plated
• Molded PVC boot
• Shielded
Cable
• Mylar and aluminum
shielding
• Thermal plastic casing
CoNNeCtor CoNFiGUratioNS
Source Device:
DVD player, notebook/
desktop PC, etc. Display A
Display B
Video
Splitter
Cable
