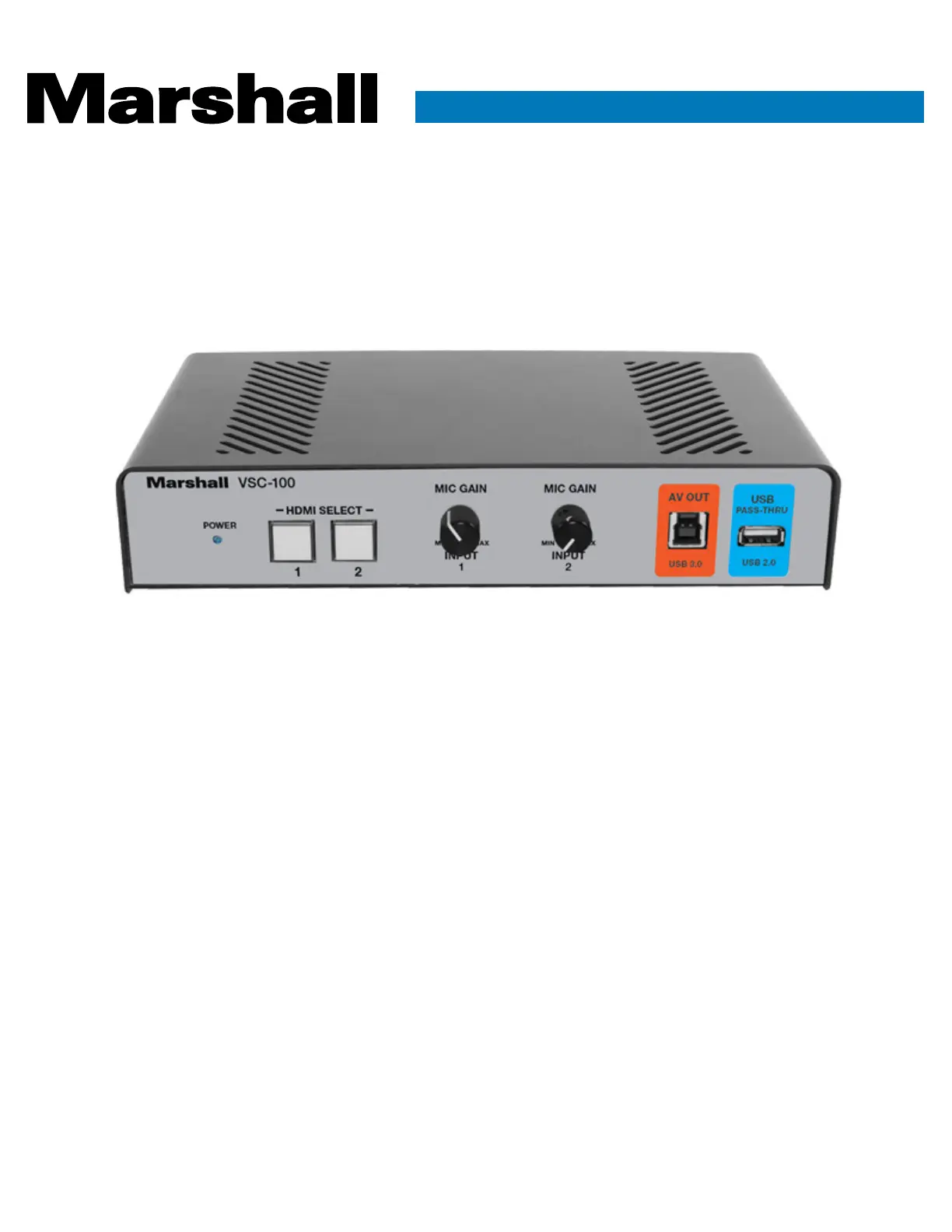

Broadcast A/V Division
User Manual
V S C -10 0
HDMI to USB 3.0 AV Consolidator Bridge
VSC-100 Manual
www.marshall-usa.com1 2
Table of Contents
8. Operations - Rear Panel Switches
4. System Requirements
2. Features
10. Specifications
11. Block Diagram
Warranty
6. Rear Panel Features
1. Introduction
9. Operations - Front Panel Gain Controls
12. Tips and Fixes
13. Remote Control App
5. Front Panel Features
3. Package Contents
7. Quick Start
06
02
02
08
09
END
04
02
07
10
12
03
02
05
1. Introduction
2. Features
3. Package Contents
4. System Requirements
The Marshall VSC-100 AV Consolidator Bridge is a professional integration tool for effortlessly
combining HDMI video with high quality microphones for use with modern PC-based systems.
A single USB connection is all that is required for UCC applications, conferencing, video production,
and recording. UVC protocol support allows the application to control video format, frame rate, and
other settings independent of the original source format. In addition, HDMI audio can be extracted
and routed to headphones or amplified speakers.
Select either one of two HDMI video sources with the push of a button. Active loop-through outputs
keep sources available for other purposes such as feeding monitors, recorders, etc. External audio
may be routed to the USB output or both the USB and HDMI outputs.
The VSC-100 becomes fully functional within seconds after it is powered.
NOTE: The analog audio input is designed as a REPLACEMENT for existing HDMI embedded
audio If there is no audio in the incoming HDMI stream (such as HDMI converted from DVI) the
analog audio input will be silent.
The input sampler receives it’s clock information from the HDMI audio stream.
Also, the USB audio output is sampled at 44.1 KHz only, there is no rate conversion from 48KHz
sampled sources.
• (2) HDMI 2.0 Inputs with active loop-through dual output
• Independent audio gain controls for dual audio input sources
• USB 3.0 computer interface with UVC control and scaling
• Plug-and-Play. Driver installation not required for most applications
• Compatible with popular applications such as: Zoom, Skype, OBS Studio and many more.
• (1) VSC-100 Unit
• (1) USB 3.0 Type A-to-B Cable
• (1) 12-volt universal power supply (120 – 240volts, 50/60 Hz)
• Host computer with recent operating system, preferably Windows 10 or Mac OS X
• Available USB 3.0 port (supports up to 1080p60 to host computer) or,
• Available USB 2.0 port (supports up to 720p60 to host computer)
