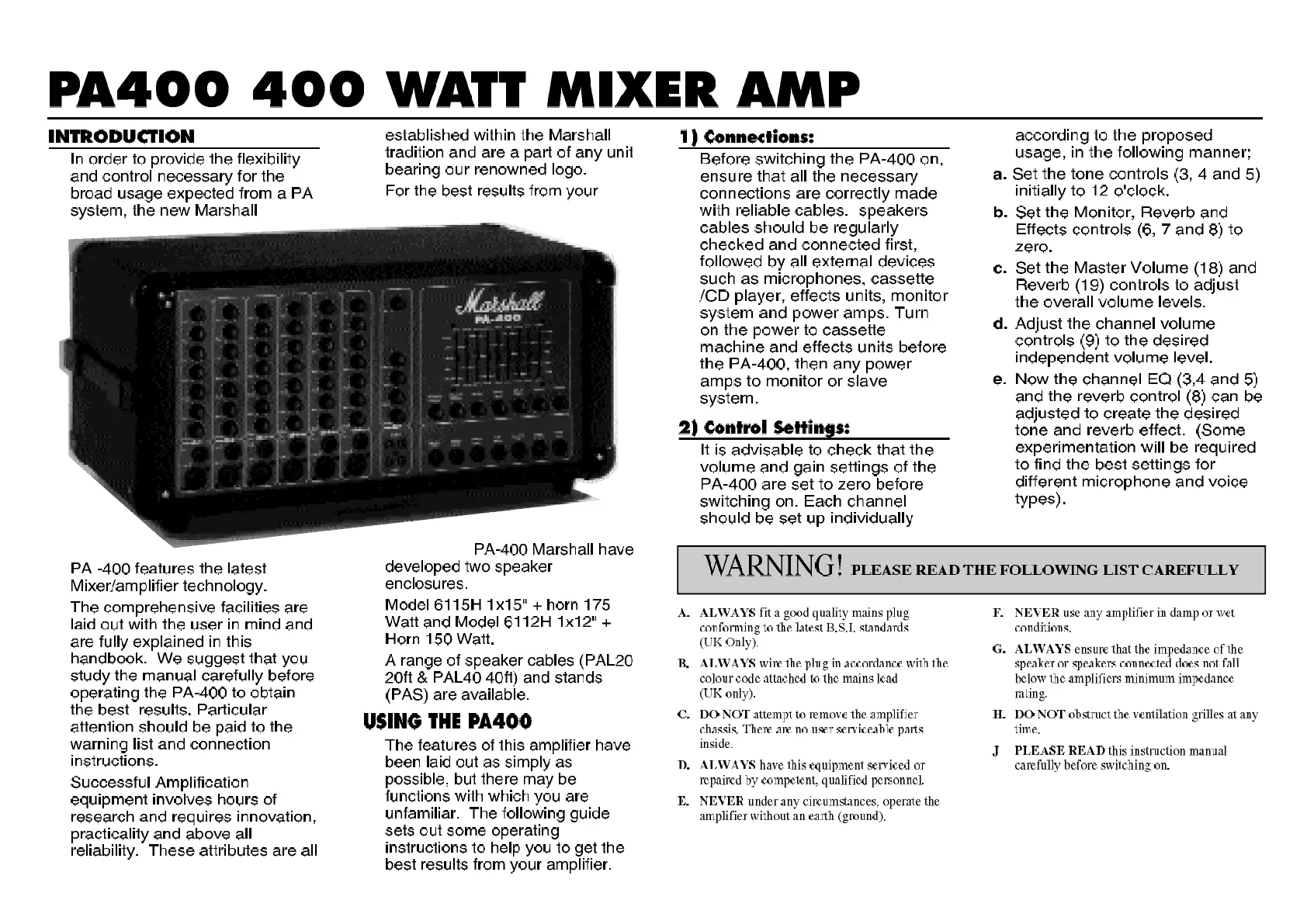

PA400 FRONT PANEL

PA400 Front Panel

Functions.

Channels 1-6

1. Low impedance XLR input - For the

connection of low impedance

microphones.

2. High impedance Jack input - For the

connection of high impedance

microphones. Also suitable for acoustic

instruments with transducer type

pick-ups.

3-5. Bass, Middle and Treble EQ controls-

A wide range of tonal adjustment can be

selected using combinations of these

controls.

6. Monitor level - Provides the volume level

adjustment from the channel to the

monitor section.

7. Effects Level - Provides level adjustment

of the signal from the channel to effects

units linked through the master effects

loop.

8. Reverb Level - Allows the level of the

built in reverb to be adjusted on the

channel.

9. Volume control - This allows the

individual volume level of the channel to

be adjusted.

Channel 7 (tape channel).

10. Tape inputs - Phono (RCA) sockets to

accept the signal from tape or CD

players.

11. Tape outputs - Phono (RCA) sockets to

provide connection out to cassette or

other recording equipment.

12. Recording level control - Provides level

control of the output to external recording

equipment.

13- 14. Bass and Treble EQ controls - A

wide range of tonal adjustment can be

selected using combinations of these

controls.

15. Monitor control - Controls the level of

the tape signal to the monitor output.

16. Volume control - Provides level control

of the tape channel output.

Master Section.

17. 9 Band Graphic Equalizer - Provides

master EQ control across the audio

spectrum. This feature is particularly

useful for "shaping" the sound to achieve

peak performance in rooms of different

size and texture. Adjustment of -12 to

+12 dB is provided at 63Hz, 125Hz, 250

Hz, 500 Hz, 1 K Hz, 2 K Hz, 4 K Hz, 8 K

Hz and 16 K Hz. The slider tips are

loaded with an LED to provide the

display of graphic "shapes", even on

darkened stages.

18. Master Volume control - Controls the

overall volume level of the amplifier.

19. Master Reverb control - Provides the

overall level control of the reverb.

20. Effects Return control - Controls the

level of the signal returning to the

PA-400 from external effects processors

which would be linked through effects

loop sockets (26 & 27).

21. Effects Send control - Controls the level

of the signal from the PA-400 to the input

of external effects processors.

22.

Monitor output control - Controls the

level of the output from monitor socket

(25) to drive a separate monitor power amp.

23. Effects to Monitor control - Provides

level adjustment of the effects return into

the monitor mix.

24. Reverb to Monitor control - Provides

level adjustment of the reverb into the

monitor mix.

25. Monitor output - Jack socket for

connection to power amplifier driving the

monitor system.

26. Effects Send - Jack socket for connection

to the input of external effects processors.

27. Effects Return - Jack socket which

accepts the signal from the output of

external effects processors.

28.

Footswitch socket - For connection of a

two way (FS02) switch for reverb on/off

and effects loop in/out. If a single

footswitch is used, the reverb only will be

switched.

29. Pre-amp output - Provides a signal

directly out from the pre-amp (also mutes

the power amp) allows external

processing of signal which can then be

returned to Power Amp in socket (30).

30. Power Amp input - Provides a direct

input to the power amp stage of the

PA-400. Also acts as the effects return for

series connected processors linked via

socket (29).

31. Slave output - Sends out an overall

signal from the mixer section, suitable for

driving extra power amps, if the system

needs to be extended.

15 17

1920

2324

25 26 27 28 29 30 31
