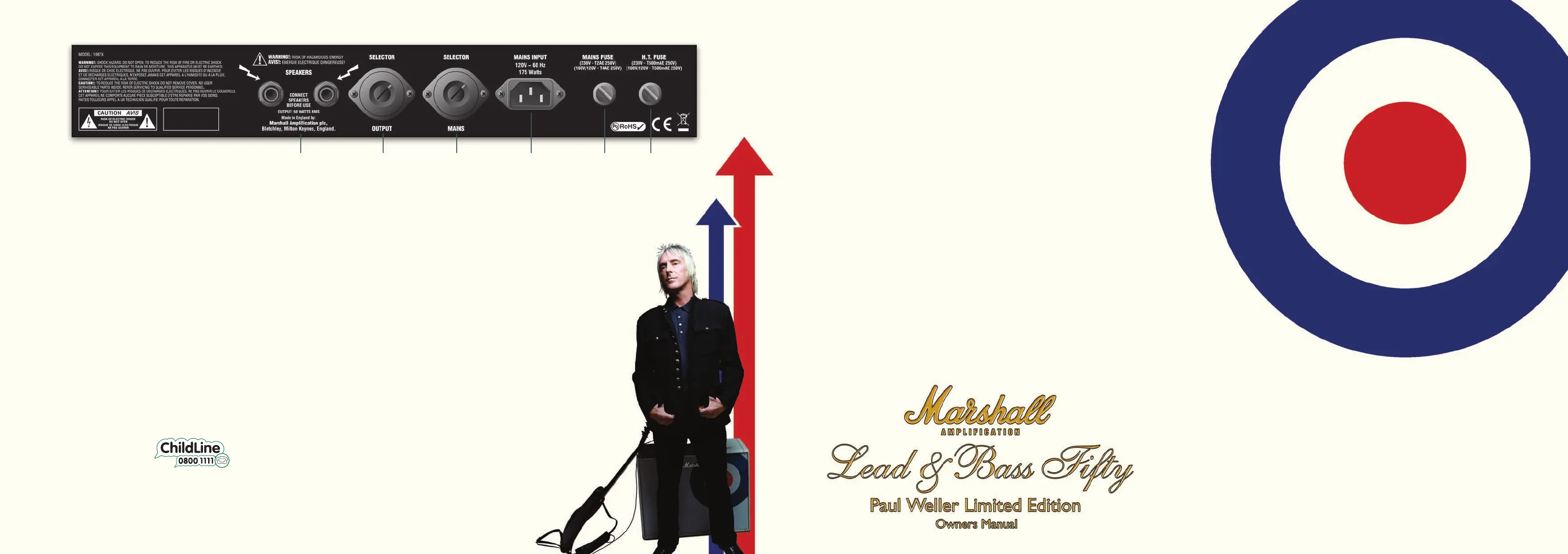

1.LOUDSPEAKEROUTPUTS
WARNING!Neverusetheamplifierwithoutaload
attached!
Therearetwoparallelloudspeakeroutputjacks
providedforconnectiontotheinternalspeakersor
extensioncabinet.Pleasealwaysensurethatthe
amplifier'soutputimpedanceselectorissetcorrectly
(seeitem2)andALWAYSensureyouusegoodquality
speaker(unshielded)cables.NEVERuseguitar(shielded)
cables.
Alwaysuseanon-screenedMarshallapprovedspeaker
leadwhenconnectinganextensioncabinettothese
units.
2.OUTPUTIMPEDANCESELECTOR
Matchestheamplifier’soutputtotheload(speaker)
impedance.
Your1987X-PWshouldbecompletelypowereddown
beforetheOutputImpedanceSelectoristurned.
AsisthecasewithanyMarshallall-valveamplifieritis
imperativethat:a)theamplifierisconnectedtoaload
whilstinoperationandb)theimpedanceselectedon
theamplifiermatchesthetotalimpedanceofthe
extensionspeakercabinet(s)beingused.Thetwo
internalspeakersare16Ohmseach.Thesearewiredin
parallelgivinganoverallimpedanceof8Ohms;
thereforetheoutputselectorshouldbesetto8Ohms.
Ifanadditional8Ohmextensionspeakercabinetisused
inconjunctionwiththeinternalspeakerstheoutput
selectorshouldbesetto4Ohms.
Note:Noadditionalextensionspeakercabinetwith
impedancelowerthan8Ohmsshouldbeusedin
conjunctionwiththeinternalspeakers.
Failuretocomplywithanyofthepointsraisedinthis
sectionwillresultindamagetotheamplifier.
3.MAINSSELECTOR
Matchestheamplifier’smainstransformertothe
incomingmainsvoltage.
Your1987X-PWshouldalwaysbecompletelypowered
downbeforethemainsselectoristurned.
WARNING!ALWAYSensurethatthisrotaryselector
issettothecorrectmainsvoltageapplicableforthe
countrywherethe1987X-PWisbeingused.Ifyoudo
notknow,consultyourauthorizedMarshalldealer.
Adjustingtheselectorfrom230Vto120/100Vorvice-
versawillrequirethemainsfuse(item5)tobechanged
tothecorrectvalueasdetailedontherearpanel.
4.MAINSINPUT
Yourampisprovidedwithadetachablemains(power)
lead,whichisconnectedhere.Thespecificmainsinput
voltageratingthatyouramplifierhasbeenbuiltforis
indicatedonthebackpanel.Beforeconnectingforthe
firsttime,pleaseensurethatyouramplifieriscompatible
withyourelectricitysupply.Ifyouhaveanydoubt,please
getadvicefromaqualifiedtechnician.YourMarshall
dealerwillhelpyouinthisrespect.
5.MAINSFUSE
Thecorrectvalueofmainsfuseisspecifiedonthe
rearpaneloftheamplifier.NEVERattemptto
bypassthefuseorfitoneoftheincorrectvalue.
6.H.T.FUSE
ThecorrectvalueofthisH.T.fuseisspecifiedon
therearpaneloftheamplifier.NEVERattemptto
bypassthefuseorfitoneoftheincorrectvalue.
Note:Thisequipmenthasbeentestedand
foundtocomplywiththerequirementsofthe
EMCdirective(EnvironmentsE1,E2andE3EN
55103-1/2)andtheLowVoltagedirectiveintheE.U.
EUROPEONLY-Note:ThePeakInrush
currentforthe1987X-PWis26amps.
TechnicalSpecification
PowerOutput-50WRMS
Size-740mmx610mmx265mm
Weight-30.2kg
Whilsttheinformationcontainedhereiniscorrectatthetimeofpublication,duetoourpolicyofconstantimprovement
anddevelopment,MarshallAmplificationplcreservetherighttoalterspecificationswithoutpriornotice.
BOOK-00092-00/12/08
MarshallAmplificationplc
DenbighRoad,Bletchley,MiltonKeynes,MK11DQ,England.
Tel:+44(0)1908375411Fax:+44(0)1908376118
www.marshallamps.com
123456
RegisteredCharityNumbers:
216401&SC037717
Withevery1987X-PWsoldMarshallwillmakeasizabledonationtotheChildlinecharity.Providinghelp
andsupporttothosechildrenwhoneedit,Childlineisavitalserviceandonethatreliesheavilyonprivate
donationstooperate.ItiswithgreatpleasurethatbothMarshallandPaulWeller,throughthecreationof
the1987X-PW,haveagreedtosupportacharitythathassuchapositiveeffectonthosewhoturntoit.
©
