Specifications (continued)

Maintenance

■

Screen Cleaning

Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-

fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels.

Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the

surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply excessive pressure to the

screen to avoid damaging the LCD.

■

Faceplate Dusting

Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface,

attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.

Warranty

Marshall Electronics warranties to the first consumer that this V-LCD15SB-AFHD-DT LCD monitor will, under normal use,

be free from defects in workmanship and materials, when received in its original container, for a period of one year from

the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the

warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to

honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not

apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or

construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the

periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel

failure if deemed unobtrusive to effective use of the monitor by our technicians. No sales personnel of the seller or any

other person is authorized to make any warranties other than those described above, or to extend the duration of any

warranties on behalf of Marshall Electronics, beyond the time period described above. Due to constant effort to improve

products and product features, specifications may change without notice.

Updated: 11/26/09

Marshall Electronics

, Inc.

1910 East Maple Ave.

El Segundo, CA 90245

Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688

www.LCDRacks.com • sales@lcdracks.com

Marshall Electronics

V-LCD15SB-AFHD-DT

SD/HD SunBrite LCD Monitor

Operating Instructions

Contents

Product Overview.....................................................................................................................................................3

Features ....................................................................................................................................................................3

Installation and Initial Setup ...................................................................................................................................4

Unpacking..............................................................................................................................................................4

Installation..............................................................................................................................................................4

Connections and Power-On...................................................................................................................................4

Front Panel Features ...............................................................................................................................................5

Power Button ........................................................................................................................................................5

Input Select Buttons...............................................................................................................................................5

On-Screen Menu Navigation Buttons ....................................................................................................................5

User-Definable Function Buttons...........................................................................................................................5

Image Adjustment Knobs.......................................................................................................................................5

Tally Lights.............................................................................................................................................................5

Rear Panel Features.................................................................................................................................................6

Power Input............................................................................................................................................................6

Signal Input/Output................................................................................................................................................6

Tally Interface ........................................................................................................................................................6

Mounting Holes......................................................................................................................................................6

Compatible Input Formats.......................................................................................................................................7

On-Screen Menu.......................................................................................................................................................8

STRUCTURE OVERVIEW ....................................................................................................................................8

MAIN MENU AND NAVIGATION ..........................................................................................................................8

MARKER SETUP SUBMENU ...............................................................................................................................9

16:9 Markers......................................................................................................................................................9

4:3 Markers......................................................................................................................................................10

Marker Background .........................................................................................................................................10

Center Marker..................................................................................................................................................10

VIDEO CONFIGURATION SUBMENU ...............................................................................................................11

Color Temperature Presets .............................................................................................................................11

Adjusting Color Bias ........................................................................................................................................11

Adjusting Color Gain........................................................................................................................................11

Monochrome Mode..........................................................................................................................................12

Blue Only Mode...............................................................................................................................................12

Pixel-to-Pixel™ Mode......................................................................................................................................12

Aspect Ratio Setting........................................................................................................................................13

Scanning Modes..............................................................................................................................................13

Delay Modes....................................................................................................................................................13

SYSTEM CONFIGURATION SUBMENU............................................................................................................14

Internal SMPTE Color Bars .............................................................................................................................14

User-Definable Function Buttons ....................................................................................................................14

Status Display..................................................................................................................................................14

Saving and Loading User Configuration Presets ............................................................................................14

Specifications.........................................................................................................................................................15

Maintenance............................................................................................................................................................16

Warranty..................................................................................................................................................................16

Specifications

■

PANEL

Screen Size 15.0” Diagonal

Display Area (h x v) 304.128 x 228.096 mm

Aspect Ratio 4:3 Native (4:3/16:9 Modes)

Pixels 1024 x RGB x 768

Color Depth 16,777,216 Colors

Viewing Angle (h x v) 160° x 140°

Brightness 600 cd/m

Contrast Ratio 600:1

Dot Pitch (h x v) 0.099 x 0.297 mm

Pixel Pitch (h x v) 0.297 x 0.297 mm

Pixel Response 18 ms (rise + fall)

■

VIDEO INPUT/OUTPUT

Video Input / Output

Supports SMPTE 170M, NTSC/PAL

Color burst/sub-carrier required

S-Video (Y/C) Input / Output

Supports SMPTE 170M, NTSC/PAL

Input / Output

Supports SMPTE 260M, 274M, 296M

HD-SDI Input / Output

Supports ITU-R BT.656, SMPTE 259M. 292M

VGA Input

Supports RGBHV, RsGsBs, RGsB, RGB CS,

DVI Input

Supports Digital Signals Only (DVI-D)

HDCP Supported

■

CONNECTORS

Video Input

Video 1 x BNC Female (75 Ω)

S-Video (Y/C) 1 x 4-Pin Mini-DIN

3 x BNC Female (75 Ω)

HD-SDI 1 x BNC Female (75 Ω)

VGA 1 x HD-15 Female

DVI 1 x DVI-I 29-Pin Female

Video Output (Active Loop-Through)

Video 1 x BNC Female (75 Ω)

S-Video (Y/C) 1 x 4-Pin Mini-DIN

3 x BNC Female (75 Ω)

SDI 1 x BNC Female (75 Ω)

Power Input

2-Pin Conxall Twist-Lock Female

Tally Interface

HD-15 Female

■

TALLY

3 LEDs (Green, Red, Yellow). Activation requires contact

closure of pin to ground on the HD-15 connector:

Pin No. Signal

1 Green

2 Red

3 Yellow

4 Ground

5 Ground

6 N/C

7 N/C

8 N/C

9 Ground

10 Ground

11 N/C

12 N/C

13 N/C

14 Ground

15 Ground

■

ELECTRICAL

Power Consumption 3A @ 12VDC (36 W)

Voltage Requirement 12 VDC

V-PS12-5V-1 Power Supply:

Input 100V-240V, 50/60Hz

Output 12VDC, 5A

■

MECHANICAL

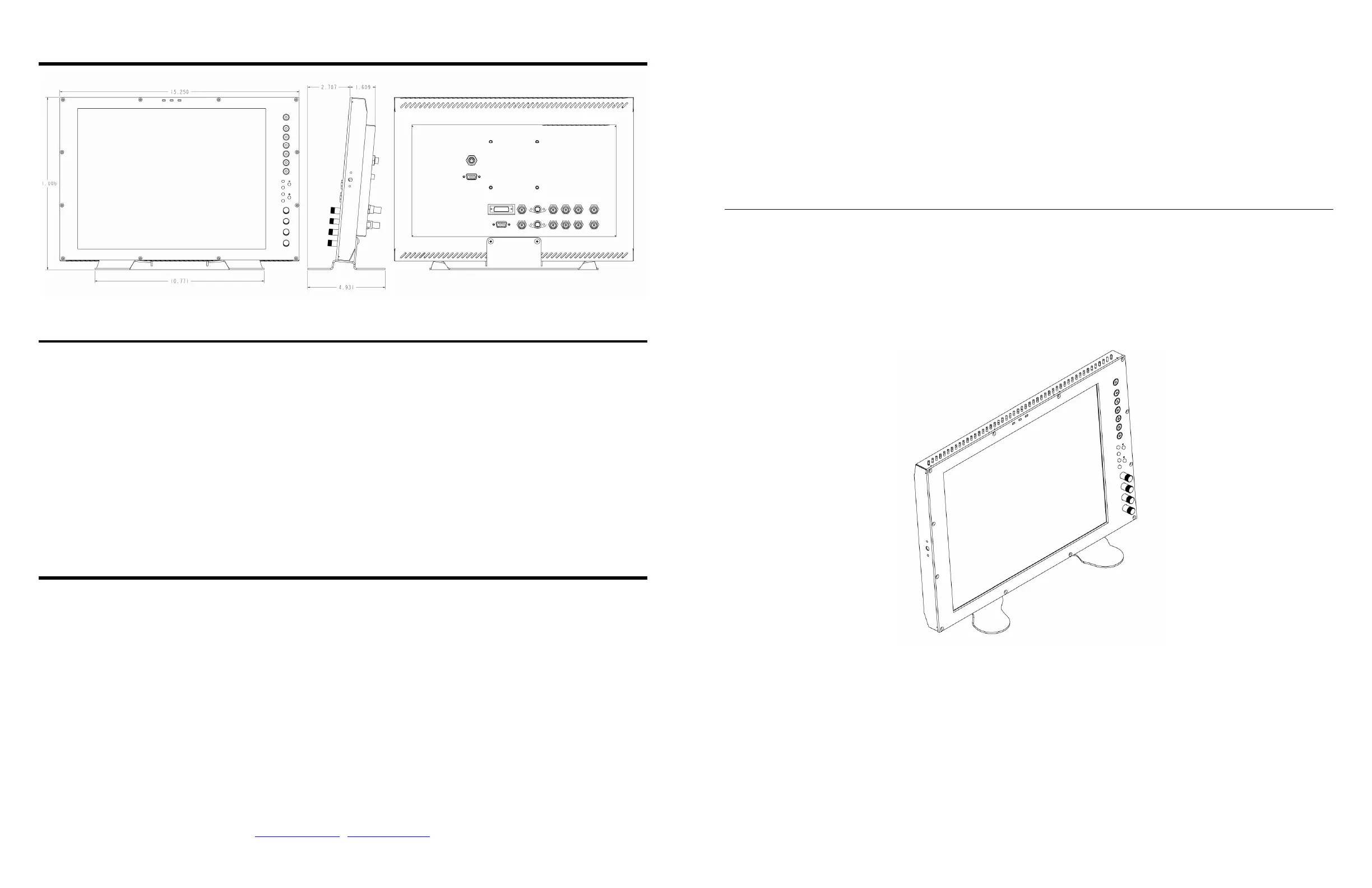

Dimensions (w x h x d): 15.25” x 10.45” x 1.77”

Height with Stand: 11.01”

Rack Height: 6 RU

Additional Mounting: VESA 75 mm

Weight (Monitor Only): 8.1 lbs

Operating Temperature 32°F to 120°F (0°C to 50°C)

Storage Temperature -4°F to120°F (-20°C to 50°C)

Compliance ₠, FCC-Class A, ANSI-63.4

(Certificates on file)

RoHs Do not dispose. Return to

Manufacturer or Authorized

Recycle Facility.

Produktspecifikationer

Varumärke:	Marshall
Kategori:	bildskärm
Modell:	V-LCD15SB-AFHD-DT
Strömförsörjning:	12 V DC, 3 A
Skärm diagonal:	15 "
Upplösning:	1280 x 1024 pixlar
Pekskärm:	Nej
Antal färger:	16,78 miljoner färger
DVI-port:	Ja
Grafikupplösningar som stöds:	1024 x 768 (XGA), 640 x 480 (VGA)
Bildförhållande:	4:3
Produktens färg:	Svart
bruksanvisning:	Ja
Bredd (utan stativ):	387.5 mm
Höjd (utan stativ):	266.7 mm
Vikt (utan stativ):	3674 g
Bredd (med stativ):	387.5 mm
Höjd (med stativ):	279.65 mm
Analogt signalformatsystem:	NTSC, PAL
Inbyggd kortläsare:	Nej
Djup (utan stativ):	38.1 mm
Kompositvideo ut:	1
3D kompatibilitet:	Nej
Displaytyp:	LCD
Strömförbrukning i vänteläge:	- W
Kontrastförhållande (medel):	600:1
Native bildförhållande:	4:3
Bluetooth:	Nej
Produktvikt (oz):	Nej
Svarstid (medel):	- ms
Ljusstyrka (normal):	600 cd/m²
Kvalitet på VGA (D-Sub) porten:	1
Antal DVI-D anslutningar:	1
Inbyggd TV mottagare:	Nej
Gränsssnitt för panelmontering:	- mm
Antal S-Video-ingångar:	1
Ingående kompositvideo:	1
Bildpunktavstånd:	0.099 x 0.297 mm
Bildstorlek horisontalt:	303.53 mm
Bildstorlek vertikalt:	228.09 mm
