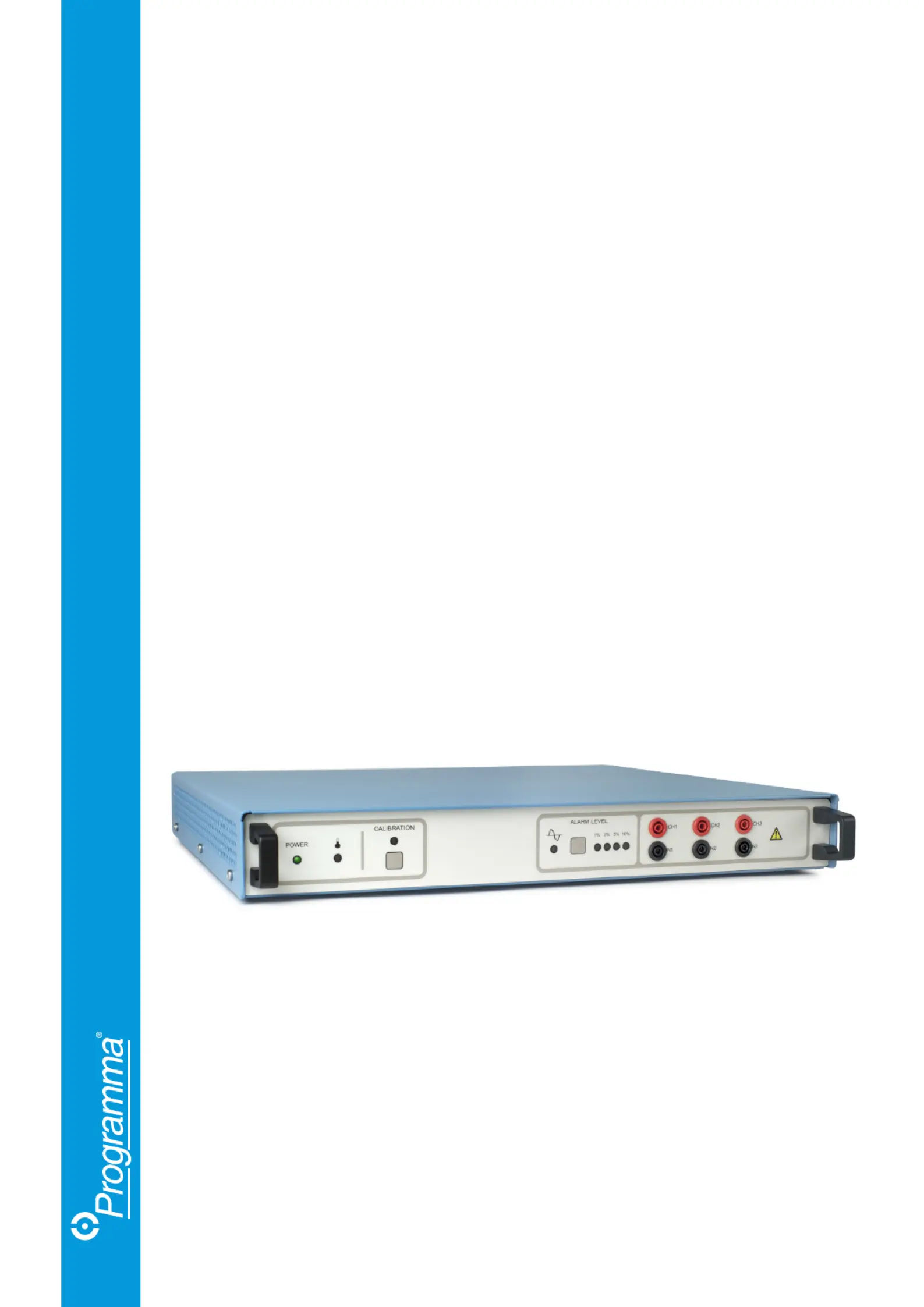

CA30
Current Amplifier
User's manual
2
C A 3 0
P r o g r a m m a E l e c t r i c A B
Z P - C I 0 1 E
Programma Electric AB
Eldarvägen 4
Box 2970
SE-187 29 TÄBY
Sweden
T +46 8 510 195 00
F +46 8 510 195 95
info@programma.se
www.programma.se
NOTICE OF COPYRIGHT & PROPRIETARY RIGHTS
© 2008, Programma Electric AB. All rights reserved.
The contents of this manual are the property of Programma Electric AB. No part of this work may be reproduced or transmitted in any form
or by any means, except as permitted in written license agreement with Programma Electric AB. Programma Electric AB has made every
reasonable attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject
to change without notice, and does not represent a commitment on the part of Programma Electric AB. Any attached hardware schematics
and technical descriptions, or software listings that disclose source code, are for informational purposes only. Reproduction in whole or in
part to create working hardware or software for other than Programma Electric AB products is strictly prohibited, except as permitted by
written license agreement with Programma Electric AB.
TRADEMARK NOTICES
Megger® and Programma® are trademarks registered in the U.S. and other countries.
All other brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.
Programma Electric AB is certified according to ISO 9001 and 14001.
Contents
1 General ................................................. 3
Registration and warranties ..........................3
Service and Support ............................... 3
2 Safety .................................................... 4
Symbols on the instrument ...........................4
Safety instructions ........................................4
Temperature limit function ..................... 5
3 Panels .................................................... 6
Front panel ............................................ 6
Rear panel ............................................. 6
4 Operation .............................................. 7
Hook-up & preparations......................... 7
CA30 – FREJA ..............................................7
Generation ...................................................8
Applications ........................................... 8
Connection to the test object .......................8
5 Calibration ............................................. 9
Scaling and time delay ..................................9
Offset ...........................................................9
Calibration Data .................................. 10
6 Specifications ....................................... 11
3
C A 3 0
P r o g r a m m a E l e c t r i c A B
Z P - C I 0 1 E
1
General
The CA30 is a 3-channel current amplifier with a
switched mode power supply capable of delivering up
to 3 x 35 A.
The DC-coupled design makes it suitable for acyclic
generation.
In use together with Freja 300 the CA30 can increase
the current output from Freja to 3 x 35 A or to 1 x
100 A, but also increase the output voltage at lower
current, for example when testing electromechanical
relays.
The CA30 is a differential amplifier with floating
inputs. The differential amplifier design makes it
possible to use CA30 even if there is a small voltage
difference in the ground system between input and
output.
Registration and warran-
ties
Please, fill out the Warranty registration and send it to
Programma Electric AB. This will help us supporting
you.
Service and Support
For technical assistance please contact your local
representative or direct your request to Programma in
Sweden.
