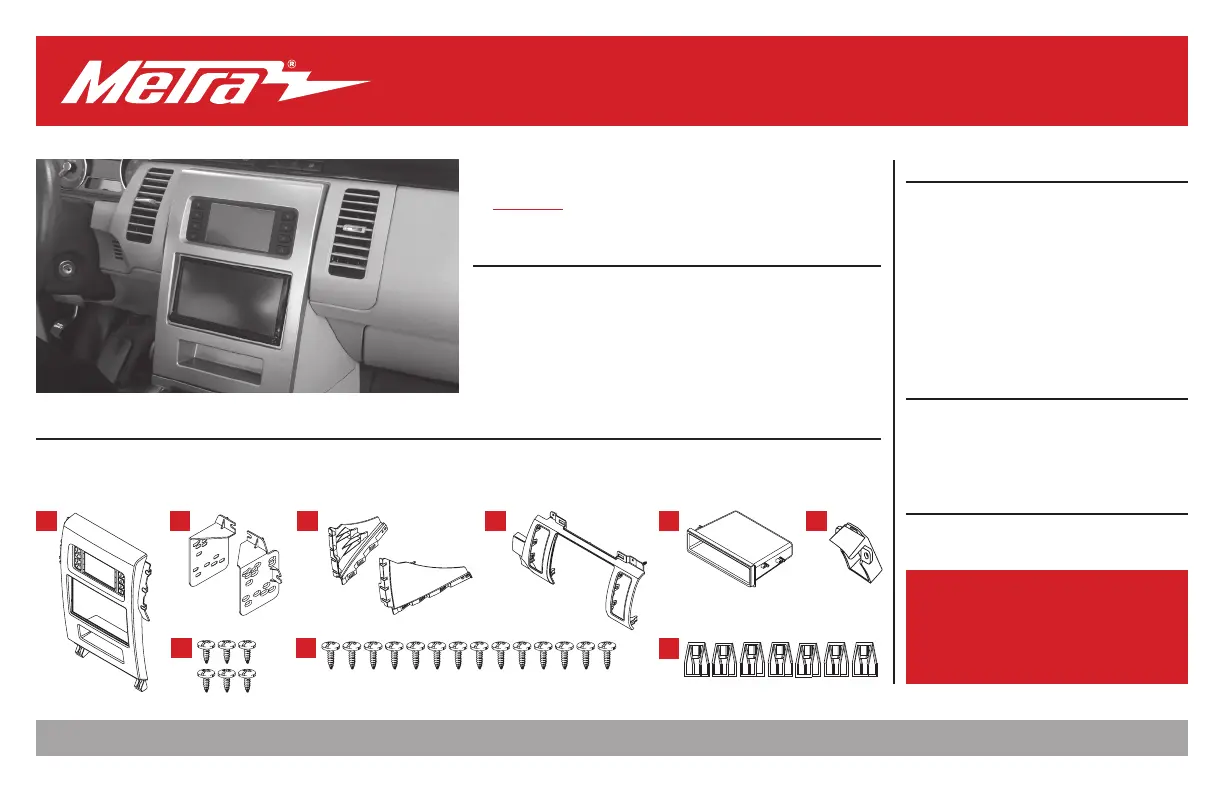

INSTALLATION INSTRUCTIONS

99-5842

Patent # 10,579,232

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and personalization features

• Center panel painted silver with tan or black trim

• Included interface for audio, climate and steering wheel functions

• INST99-5842B - Painted matte black

• INST99-5842T - Painted tan

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Left and Right bottom trim panels • D) Upper vent panel • E) Pocket

• F) Thermister housing • G) (6) #8 x 3/8” Phillips pan-head screws • H) (14) #8 x 1/2” Phillips pan-head screws • I) (7) Panel clips • J) Harness (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench

TABLE OF CONTENTS

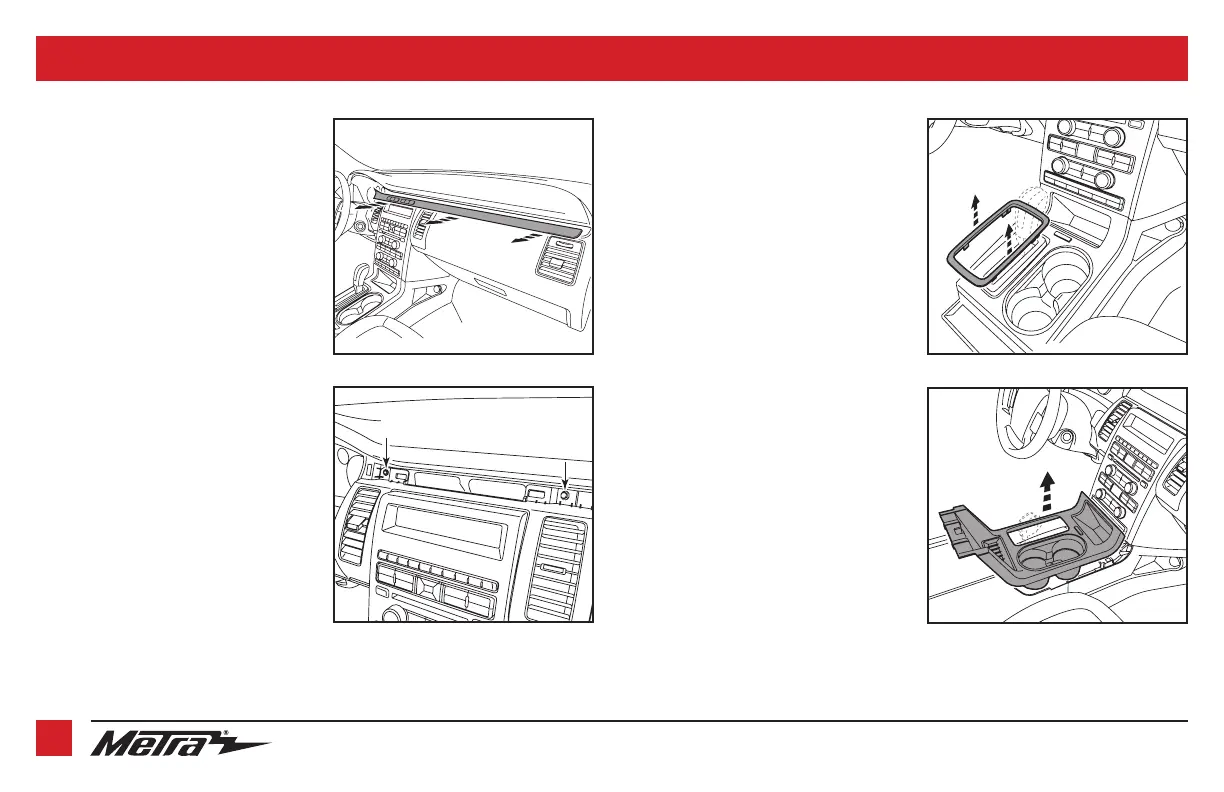

Dash Disassembly ...............................................2-3

Kit Preparation .......................................................4

Kit Assembly

–ISO DIN radio provision with pocket ..................5

–ISO DDIN radio provision .....................................5

Axxess interface installation ............................6-14

Final assembly .......................................................9

WIRING & ANTENNA CONNECTIONS
