CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

I N S TA L L A T I O N I N S T R U C T I O N S

99-8267

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

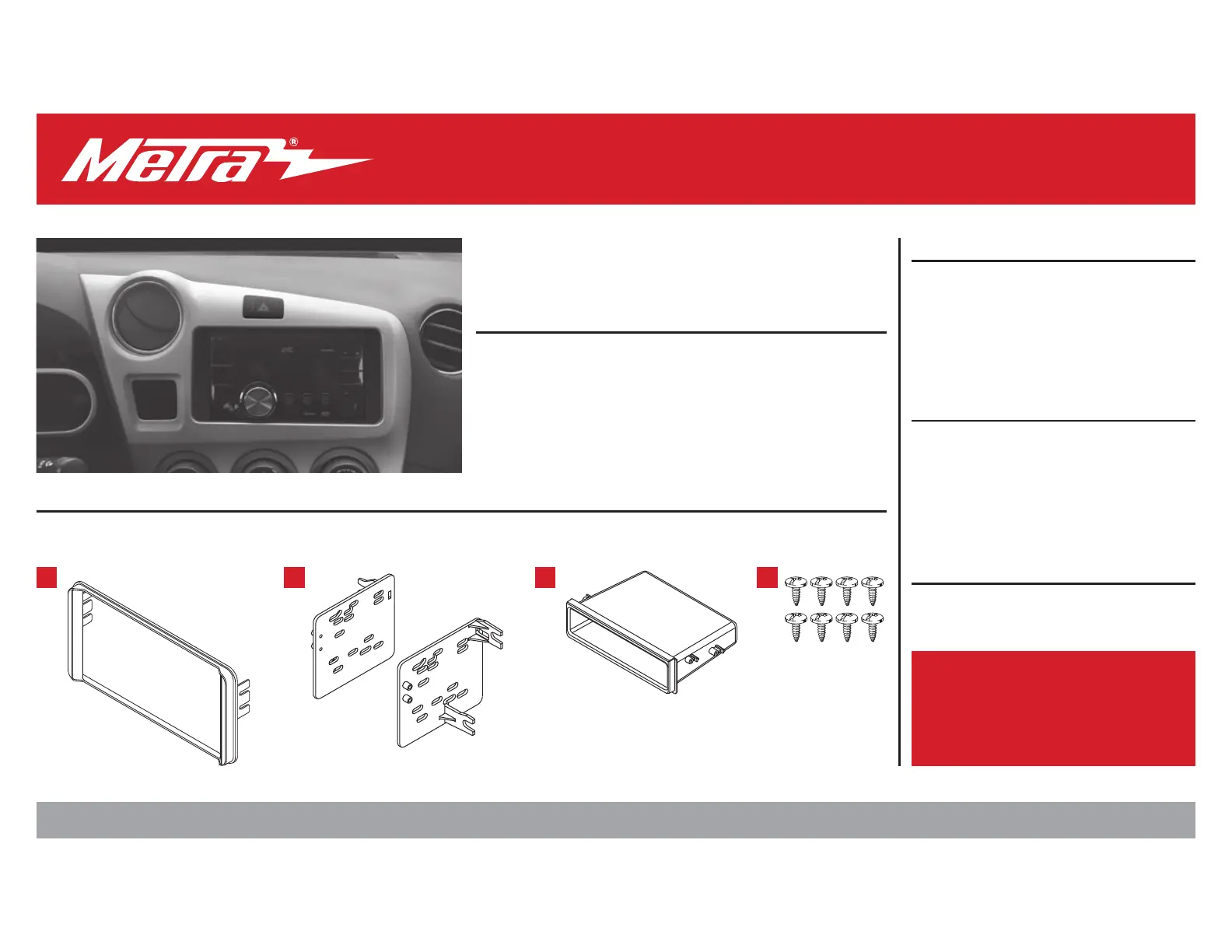

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8” Phillips screws

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 10mm Socket wrench

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision .....................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1761

Antenna Adapter: L Trim: Not required

S Trim: 40-LX11

Steering Wheel Control Interface: ASWC-1

A B C

Toyota Matrix 2013

1.800.221.0932

MetraOnline.com

1. Unclip and remove the panel from

around the radio. (Figure A)

2. Remove four 10mm bolts and remove

factory radio. (Figure B)

Continue to Kit Assembly

DASH DISASSEMBLY

PASSENGER

SECURIT Y

A/C

(Figure A)

(Figure B)

REV. 2/13/2018 INST99-8267 3

KIT ASSEMBLY

(Figure B)

(Figure A)

(Figure B)

(Figure C)

ISO DIN radio provision with pocket

1. Attach the

radio brackets

to the

radio

trim panel

using the (4) #8 x 3/8” Phillips

screws provided. (Figure A)

2. Attach the

pocket

to the

radio brackets

using the (4) #8 x 3/8” Phillips screws

provided. (Figure B)

3. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

4. Slide the radio into the bracket/pocket

assembly and then secure it using the

screws supplied with the radio. (Figure C)

5. Locate the factory wiring harness and

connector in the dash and complete all

necessary connections to the radio. Metra

recommends using the proper mating

adapter from Metra and/or Axxess.

Test the radio for proper operation.

6. Secure the completed assembly into

the dash using the factory screws.

7. Reassemble the dash in reverse order

of disassembly.

ISO DDIN radio provision

1. Attach the

radio brackets

to the

radio

trim panel

using the (4) #8 x 3/8” Phillips

screws provided. (Figure A)

2. Slide the radio into the bracket assembly

and then secure it using the screws

supplied with the radio. (Figure B)

3. Locate the factory wiring harness and

connector in the dash and complete all

necessary connections to the radio. Metra

recommends using the proper mating

adapter from Metra and/or Axxess.

Test the radio for proper operation.

4. Secure the completed assembly into

the dash using the factory screws.

5. Reassemble the dash in reverse order

of disassembly.
