INSTALLATION INSTRUCTIONS
99-8911HG
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
ISO DIN radio provision with pocket
Painted gloss black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) #8 x 3/8” Phillips screws (4) • E) Panel clips (4)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1761
Antenna adapter: 40-LX11
Steering wheel control interface: ASWC-1
A B C D E
Subaru Ascent 2019-up
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
1.800.221.0932
|
MetraOnline.com
2
(Figure A) (Figure A)
(Figure B) (Figure B)
(Figure C) (Figure C)

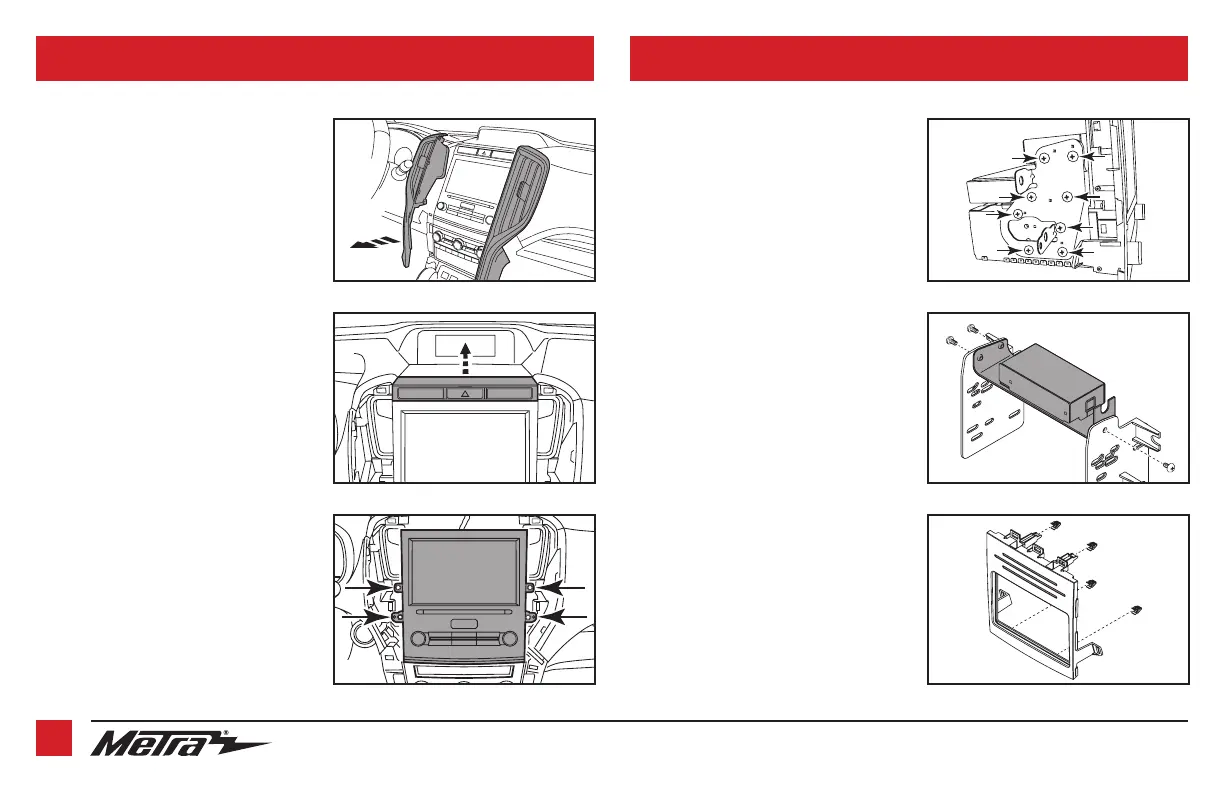

DASH DISASSEMBLY KIT PREPARATION
1. Unclip and remove the a/c vent panels
to the left and right of the radio.
(Figure A)
2. Unclip the hazard switch panel, then set
it on top the dash. (Figure B)
3. Remove (4) 10mm screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure C)
Continue to Kit Preparation
From the factory radio brackets:
1. Loosen (8) Phillips screws securing the
radio. (Figure A)
2. Remove (4) Phillips screws securing the
lower electronic module then remove.
(Figure A)
3. Remove (3) screws securing the upper
electronic module then remove.
(Figure A)
4. Relocate the lower electronic module
in the radio cavity, down low. It should
fit snugly, but if not, secure with zip
ties. Connect the wiring harness in the
vehicle back to the module.
5. Secure the upper electronic module
to the radio brackets using the factory
screws. (Figure B)
6. Attach (4) panel clips to the radio trim
panel. (Figure C)
Continue to Kit Assembly
Step 1
Left side shown
Step 2
Step 3
