INSTALLATION INSTRUCTIONS
99-7387HG
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Kia Soul
(without NAV, with Display radio
†
)
2017-2019
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
† Display radio is an Android Auto / Apple CarPlay radio
KIT COMPONENTS
• A) Radio/climate trim panel with climate display • B) Radio brackets • C) Pocket • D) Heated seat blank plugs • E) (4) #8 x 3/8” Phillips screws
• F) (6) Panel clips • G) Wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly...................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket...................3
–ISO DDIN radio provision......................................3
Wiring Instructions ............................................4-11
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring harness: Included with kit
Antenna adapter: Included with kit
Steering wheel control interface: ASWC-1 included with kit
12v to 6v camera step-down: AX-CAM6V Included with kit
A B C D E
F
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes climate display for fan speed, mode, and temp, which was
displayed on the factory radio
• Includes an ASWC-1, AX-CAM6V, antenna adapter, and wiring harness
for a complete installation
• Painted high gloss black
1.800.221.0932
|
MetraOnline.com
2

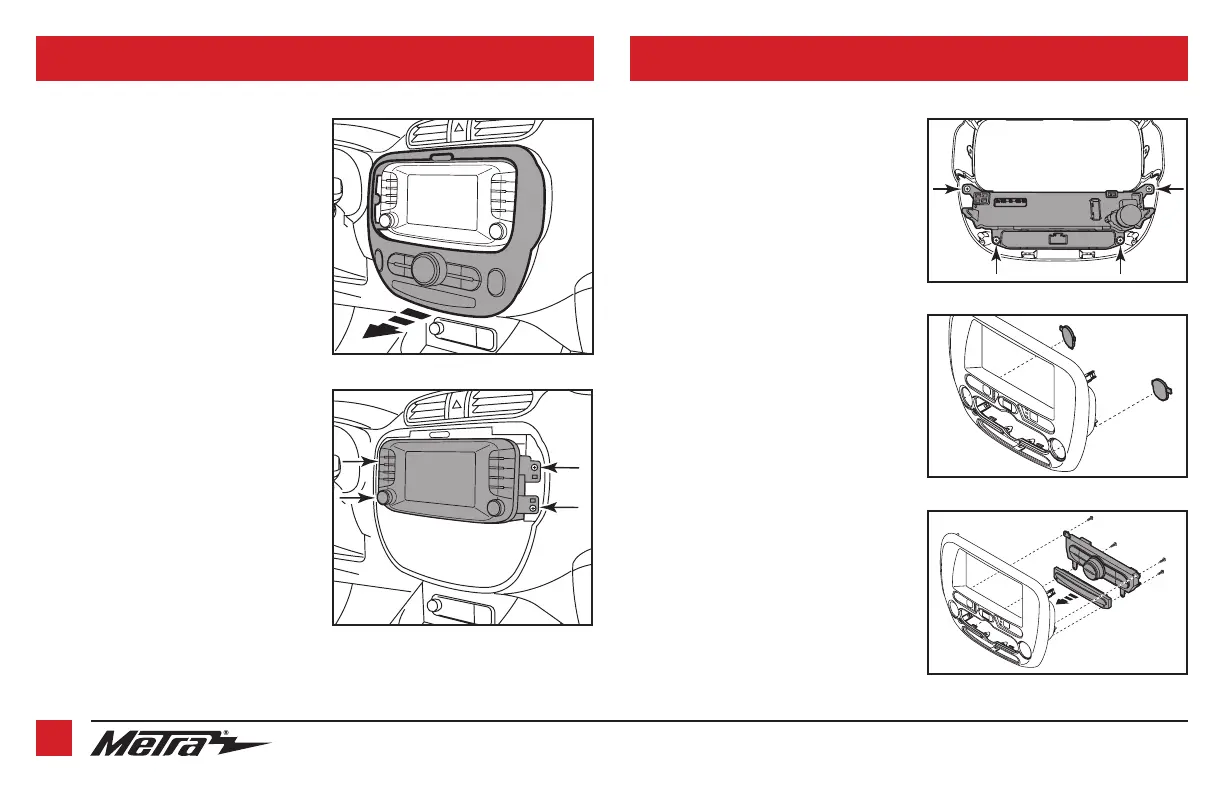

DASH DISASSEMBLY KIT PREPARATION
1. Unclip the climate panel surrounding the
radio and set to the side. (Figure A)
2. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure B)
Continue to Kit Preparation
(Figure B)
(Figure A)
From the factory climate panel:
1. Remove (4) Phillips screws securing
the climate controls and passenger
airbag switch panel, then remove the
components. (Figure A)
To the 99-7387HG radio/climate trim panel
with climate display:
2. If the vehicle is not equipped with
heated seats, snap in the heated seat
blank plugs. (Figure B)
3. Secure the climate controls and
passenger airbag switch panel using the
factory screws. (Figure C)
Continue to Kit Assembly
(Figure A)
(Figure B)
(Figure C)
