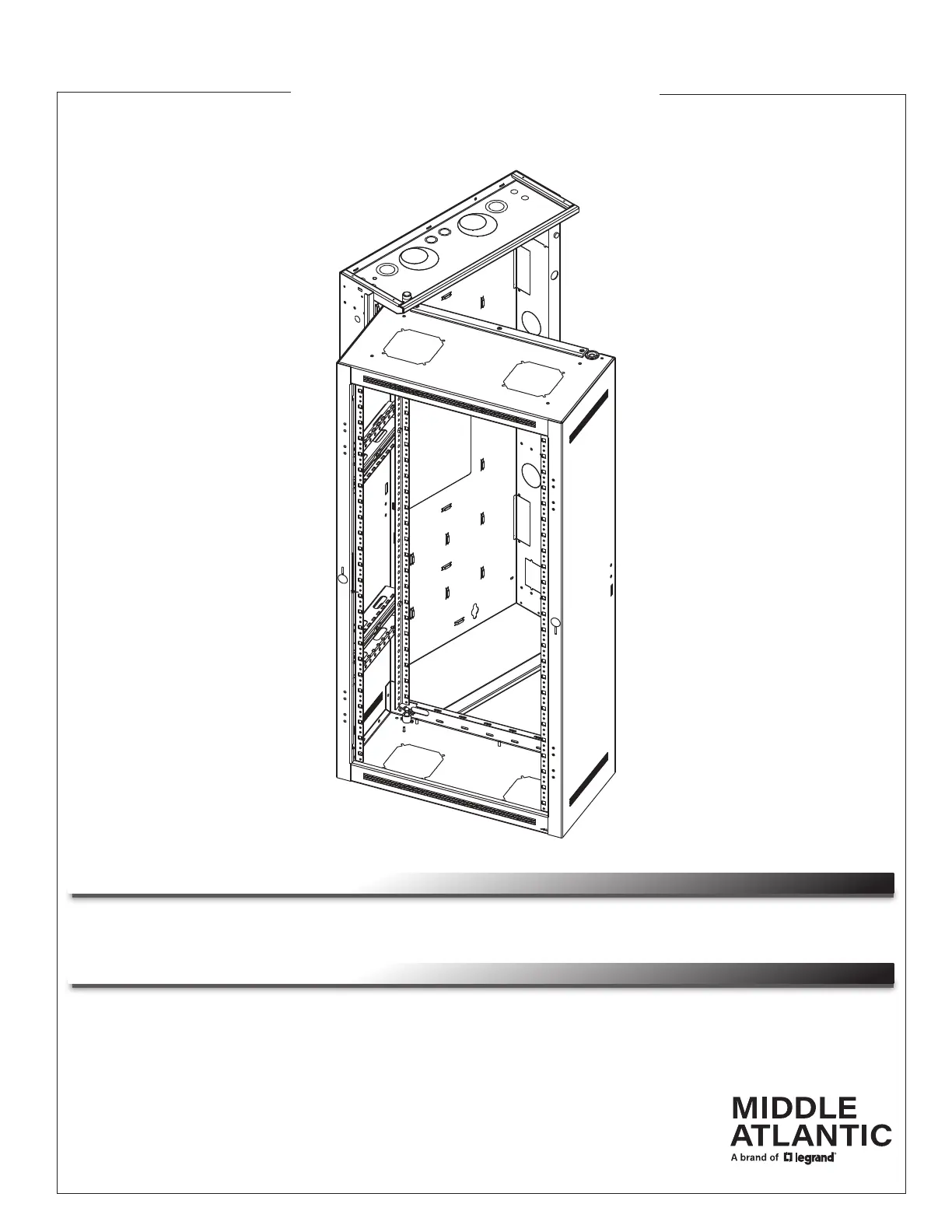

DWR SERIES

SECTIONAL WALL MOUNT RACK

Instruction Sheet

Thank you for purchasing the DWR Series Sectional Wall Rack. Please read these instructions

thoroughly before installing and assembling this product.

• Lever Lock™ compatible in center section and backpan for small device mounting and cable

management.

• Forward compatible for 5x faster tool-free system integration.

• Tool-free quick-mount system for easy mounting of the center section to the

backpan.

• Pivots 90º off the wall for access to rear connections.

• Zero clearance latch (optional) allows side-by-side mounting or interior

corner mounting.

THANK YOU

PRODUCT FEATURES

100-00030 Rev C

SEISMIC COMPLIANCE: An engineered system is vital to achieve seismic rating requirements. A licensed professional engineer

must approve the type of fasteners for the wall where the rack will be mounted. Braced according to specifications set forth by licensed

architects and engineers, the Middle Atlantic Products rack/enclosure you purchased is capable of sustaining a phenomenal lateral

load. Refer to the seismic data published on seismic letter on the Middle Atlantic Product website.

Page 2

IMPORTANT SAFETY INSTRUCTIONS - EN

DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

WARNING: A warning alerts you to a situation that could result in serious personal injury or death.

CAUTION: A caution alerts you to a situation that may result in minor personal injury or damage to the product and/or property.

NOTE: A note is used to highlight procedures pertaining to the installation, operation, or maintenance of the product.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Clean only with dry cloth.

• Only use attachments/accessories specified by the manufacturer.

WARNING: Failure to read, understand and follow the following information can result in serious personal injury, damage to the

equipment or voiding of the warranty.

CAUTION

To avoid an unstable condition, place heavier components at the bottom of the enclosure. When more than one component

is placed in the enclosure, begin at the bottom of the enclosure and place equipment at the lowest available point, evenly distribute

weight (horizontally) within the enclosure.

Component weight should be distributed as follows:

• 1/2 of the total component weight (at a minimum) placed in the bottom third of the cabinet.

• 1/4 of the total component weight (at a maximum) placed in the middle third of the cabinet.

• 1/4 of the total component weight (at a maximum) placed in the top third of the cabinet.

CAUTION: Do not attempt to unload or move the enclosures alone. Make sure to have sufficient amount of personnel and equip-

ment to safely move this product.

CAUTION: Ensure that the floor has a structural load capacity that will support the weight of the cabinet fully loaded with

equipment.

CAUTION: All installation and assembly steps must be performed by qualified personnel.

CAUTION: Power cord, for fans or other accessories, need to be secured to ensure that they are routed away from pinch points

and moving parts.

CAUTION

The following parts are not effectively bonded to the protective earth terminal: Rack rails, lace bars, Lever Lock™, shelves,

baffle, blanking panels, and cable management. If any part needs to be bonded to the protective earth terminal it shall be done in

accordance with Article 250 of the National Electrical Code.

CAUTION

To reduce the risk of personal injury and conform to the UL listing these mounting instructions must be followed and proper

weight capacity must be observed (see table below). As a general rule, heavier equipment should be placed towards the bottom of the

rack.

CAUTION

Individual components mounted inside of the wall mount rack must have their own fire enclosure.

AVERTISSEMENT: Ne pas lire, comprendre et suivre les informations suivantes peut entraîner des blessures graves, des

dommages à l'équipement ou de la nullité de la garantie.

DANGER TENSION DANGEREUSE: Le symbole de la pointe de flèche, dans un triangle équilatéral, est destiné à alerter l'utilisateur sur la

présence de tension dangereuse non isolée dans l'enceinte du produit qui peut être d'une ampleur suffisante pour constituer un risque d'électrocu-

tion.

AVERTISSEMENT: Un avertissement vous avertit d'une situation pouvant entraîner des blessures graves ou la mort.

ATTENTION: Une attention vous avertit d'une situation pouvant entraîner des blessures mineures ou des dommages au produit et/ou à la

REMARQUE: Une remarque est utilisée pour mettre en évidence les procédures relatives à l'installation, au fonctionnement ou à l'entretien du

produit.

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ - FR

• Lire ces instructions.

• Conservez ces instructions.

• Respectez tous les avertissements.

• Suivez toutes les instructions.

• Nettoyer uniquement avec un chiffon sec.

• N'utilisez que des accessoires spécifiés par le fabricant.

Produktspecifikationer

Varumärke:	Middle Atlantic
Kategori:	ej kategoriserat
Modell:	DWR-18-17
Bredd:	594.4 mm
Djup:	439.4 mm
Höjd:	979.5 mm
Ramtyp:	Stängd
Certifiering:	ASCE: 7-10, Greenguard, CSA, UL Listing No: E313734
Material:	Stål
Modell:	Väggmonterad rack
Rackkapacitet:	18U
Inre djup:	381 mm
Maxvikt:	113 kg
Produktens färg:	Svart
Vikt inkl. förpackning:	43390 g
Hållbarhetscertifiering:	RoHS
Harmonized System (HS)-kod:	85381000
Innerhöjd:	800 mm
