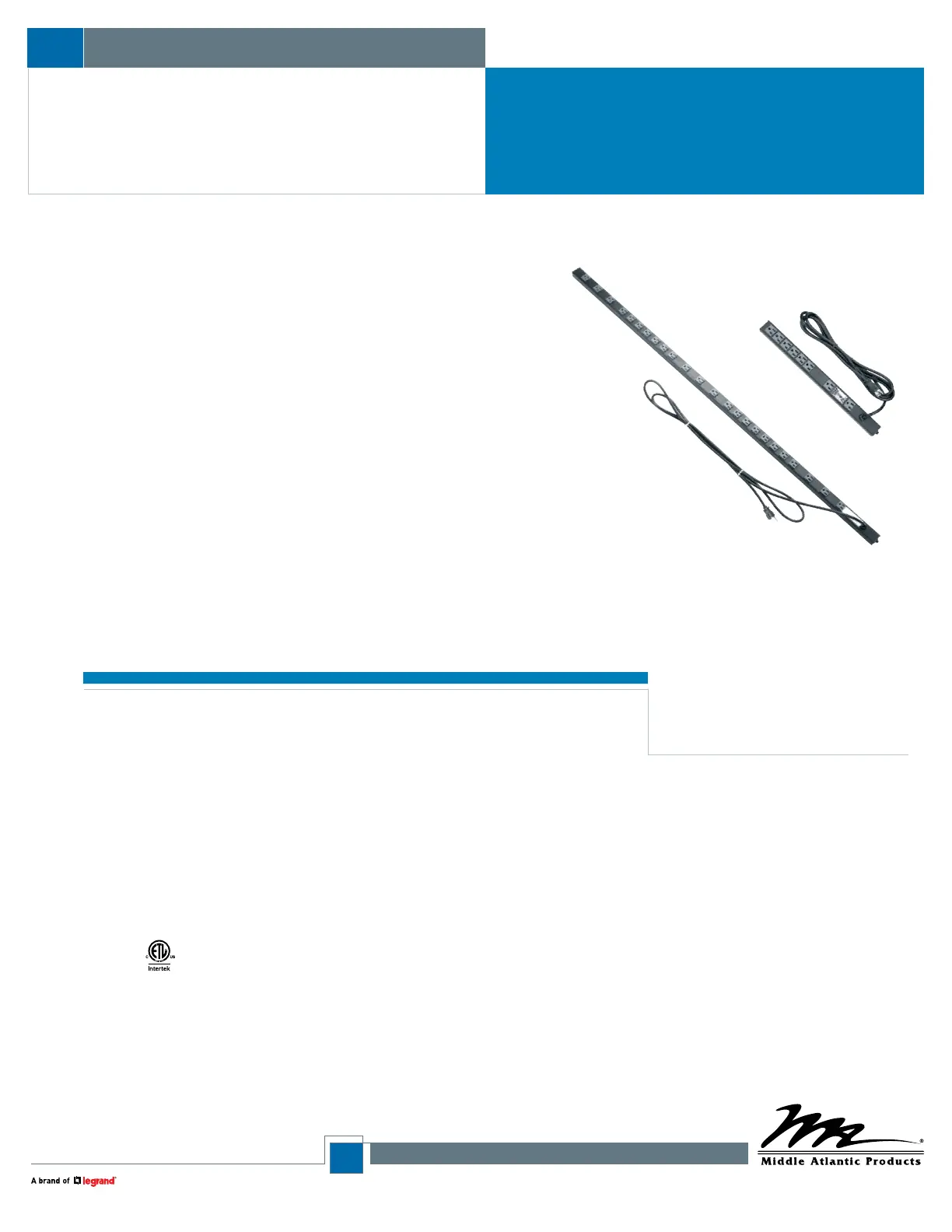

PD Series
slim power strips
high density power strips feature a slim,
low-profile design and staggered outlets
to accommodate plug-in power supplies
features:
• UL Listed and CSA certified (PD-2420SC-NS UL Listed only)
• (1) 15 or 20 amp circuit depending on model
• Includes SignalSAFE™ power cord terminated with NEMA 5-15P
or NEMA 5-20P plug depending on model
• Up to 24 outlets depending on model
• Outlets spaced to accommodate plug-in power supplies
• Circuit breaker or MOV surge & EMI filter & breaker protected,
depending on model
• Mounting hardware included
• Slim low-profile design requires less space
• Gray outlets easy to see in rear of enclosures
• Lightweight anodized al
uminum chassis
* For additional Vertical Power Strips, please see A&E Spec # 96-938
High density slim power strip shall be Middle Atlantic Products model # PD-__-__ with __ outlets
and __ amps (refer to chart). Slim power strip shall be__” long x 1.25” deep x 1.6” wide and shall
have gray __ NEMA ___ outlets (refer to chart) in unique spacing pattern that allows up to __
plug-in power supplies (refer to chart). Slim power strip includes __ amp circuit breaker protection
and mounting hardware (refer to ch
art). Terminated with ___ (refer to chart) SignalSAFE™ power
cord with NEMA ___ plug (refer to chart). Grounding and bonding stud shall be 1/4 - 20 threaded.
Slim power strip shall be ETL listed to UL standards 1149 and 1363 in US and to CAN/CSA standard
C22.2 #8 and C22.2 #21 in Canada. Slim power strip shall be manufactured by an ISO 9001
registered company. Slim power strip shall be warrantied to be free from defects in material or
workmanship under normal use and conditions for a period of 3 years.
Customizable specification clips available at middleatlantic.com
specifications:
options:
• Model # PB-XS, rackmounting bracket shall mount
any 8 outlet power strip (PD-815SC, PD-815SC-NS)
between rackrail of any EIA compliant 19” rack.
Includes cable management tie points
• Model # PB-5A mounting brackets shall accommodate
the mounting of vertical power strips to rackrail of any
rack
• Model # PB-DWR mounting bracket shall accommodate
the mounting of vertical power strips to rear rackrail of
Middle Atlantic Products DWR & SR series wall racks
PD-2415SC-NS
PD-815SC-NS
middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
2
Part #
A
Overall Length
B
Outlet
Spacing
C
Outlet
Spacing
# of Plug In
Power Supplies
Accomodated
# Of
Outlets
Outlet
Type
Cord Length/
Termation Circuit
Surge
Protection
Overcurrent
Protection
PD-715SC-NS 13.60 [345] 1.18 [30] N/A 1 7 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker
PD-815SC 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker
PD-815SC-20 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 20’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker
PD-815SC-NS 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker
PD-815SC-PBSH* 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker
PD-2415SC 60.60 [1539] 1.77 [45] 2.84 [72] 11 24 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker
PD-2415SC-NS 60.60 [1539] 1.77 [45] 2.84 [72] 11 24 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker
PD-2420SC-NS 60.60 [1539] 1.77 [45] 2.84 [72] 11 24 5-15R (22), 5-20R (2) 10’ cord w/NEMA 5-20 plug 20 AMP (1) none circuit breaker
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

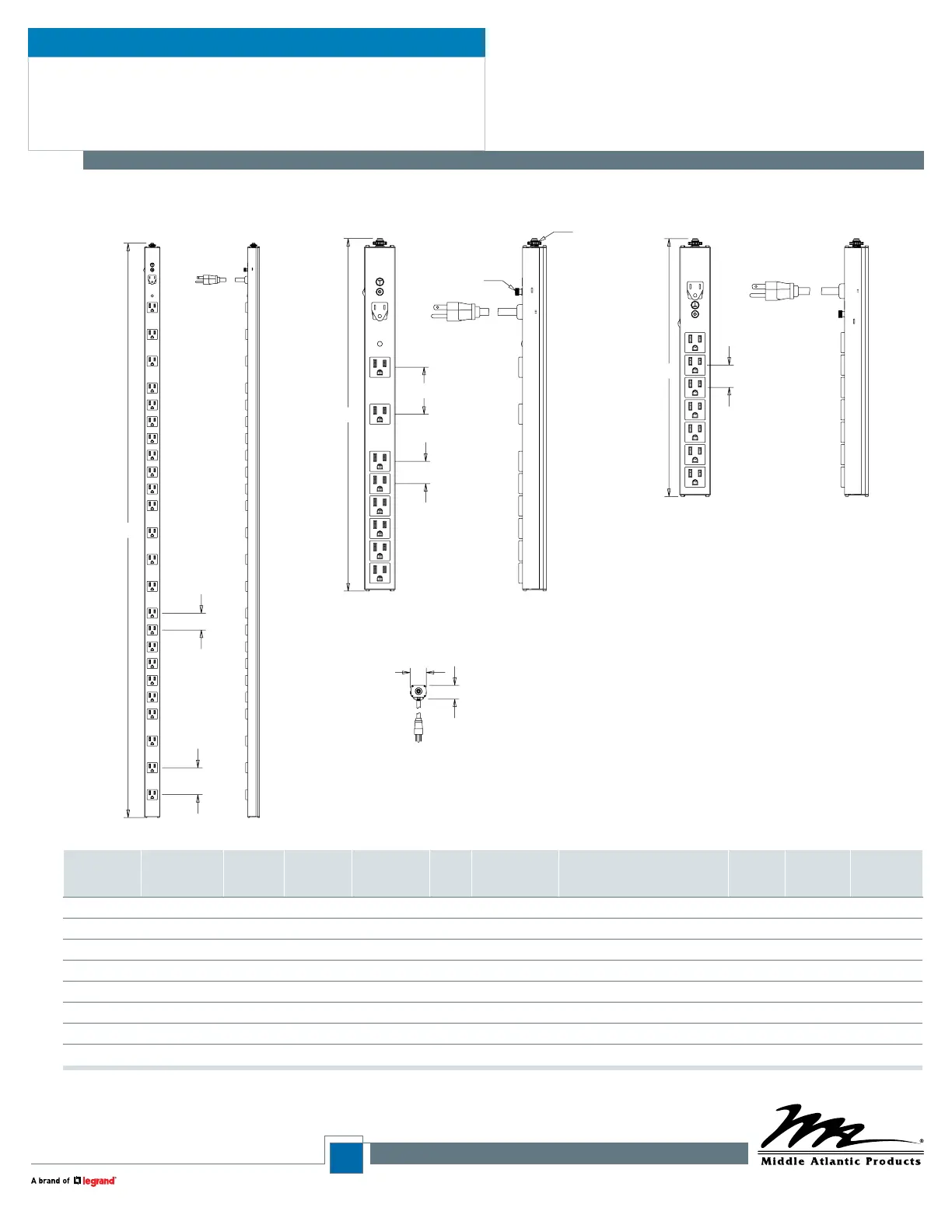

PD Series Slim
basic dimensions
Note:
PD Slim Series Includes Signalsafe™ Power Cord Technology
C
B
B
C
A
A
1.46 [37]
1.71 [43]
B
A
PD -715 SC-NSPD-815SC-X XPD-24XXSC-XX
ground
stud
circuit
breaker
*PD-815SC-PBSH mounts on UXV Series fully vented utility shelves, RC and CAP Series clamping rackshelves, VRS - Vertical Rackmount Shelves, KD Series
ready-to-assemble rackshelves, RSH Series custom face rackmounts
