I N S TA L L G U I D E
C O N T E N T S
S P EC I A L P REC A U T I O N S
L I L- M A X C O M P O N E N T S
G E N E R A L I N S TA L L I N ST R U C T I O N S
B U R I E D I N S TA L L AT I O N S
L I L- M A X
S P EC I A L P RE C AU T I O N S
1. HI GH T EM PER ATURE K IT CH EN WATER
2. HY DR OS TATI C SL AB S ( OR PRES SU RE SL ABS )
3. HI GH WATER TABL E IN STA LL ATIONS

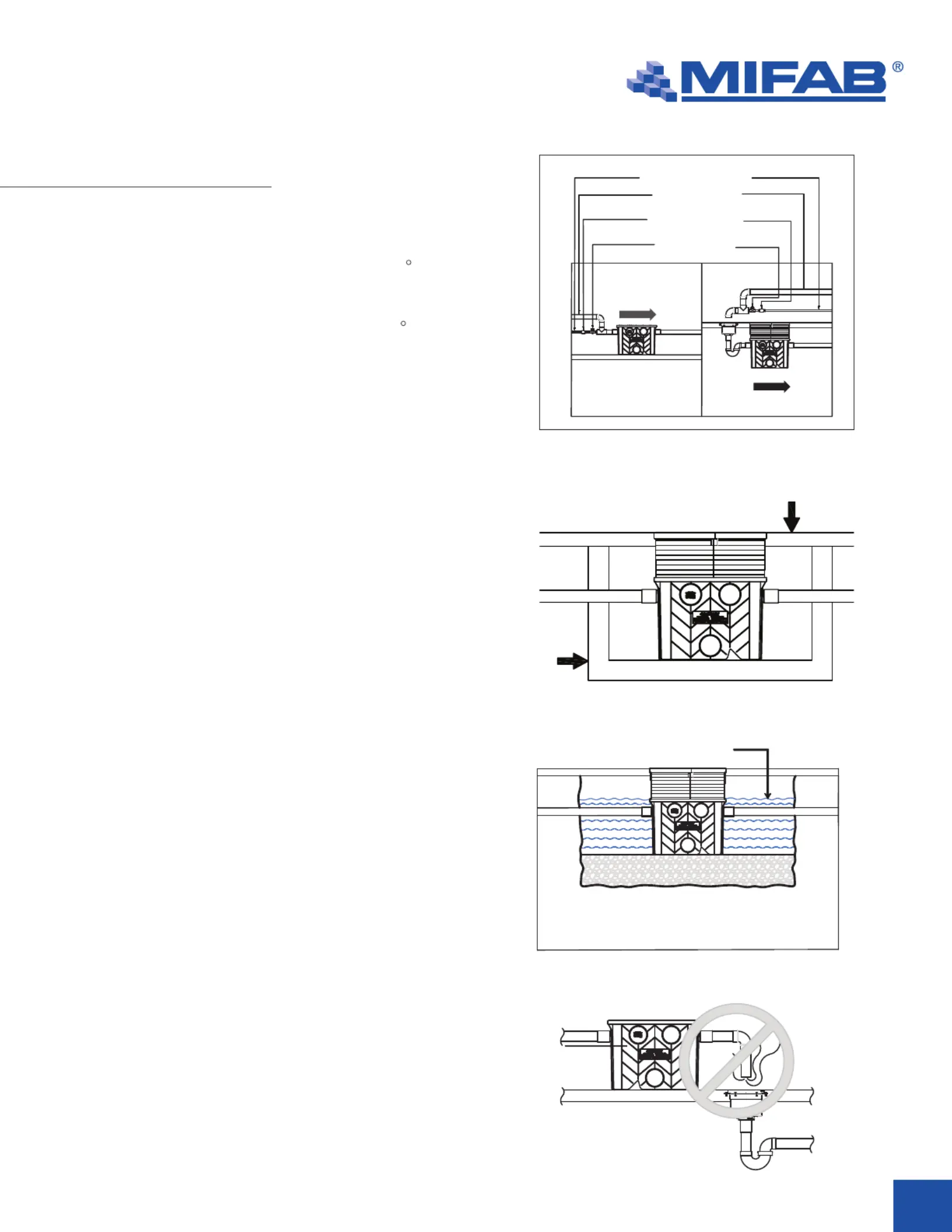

If there is water entering the interceptor at over 150 F,
a drain water tempering valve and approved backflow
prevention assembly must be installed. Generally, state
and local plumbing codes prohibit water above 150 F
from being discharged into the sewer.
Interceptor must be enclosed in a water concrete vault
when installed under a hydrostatic slab (slab designed
to withstand upward lift- typically caused by hydrostatic
pressure).
Interceptor and riser cannot withstand excessive water
table height - see max water table height. If possible,
interceptor and riser should be installed in a
water-tight concrete vault or backfill with concrete or
flowable fill (pour wet concrete and flowable backfill in
stages to avoid crushing the interceptor).
1
TEMPERING VALVE)
APPROVED BACKFLOW
PREVENTION ASSEMBLY
HIGH TEMPERATURE
EFFLUENT( >150DEG F)
COLD WATER SUPPLY LINE
DIRECTLY CONNECTED
INDIRECTLY CONNECTED
FLOW
FLOW
DTV (DRAIN WATER
MAX WATER TABLE HEIGHT
FOR DIRECT BURIAL
4. OD OR A LE RT
Do not install air gap on outlet side of interceptor.
WATERTIGHT
CONCRETE
VAULT
CONCRETE SLAB SUBJECT TO
HYDROSTATIC PRESSURE
S P EC I A L P RE C AU T I O N S
5 . F U L LY S U PP O R T B A S E O F U N I T

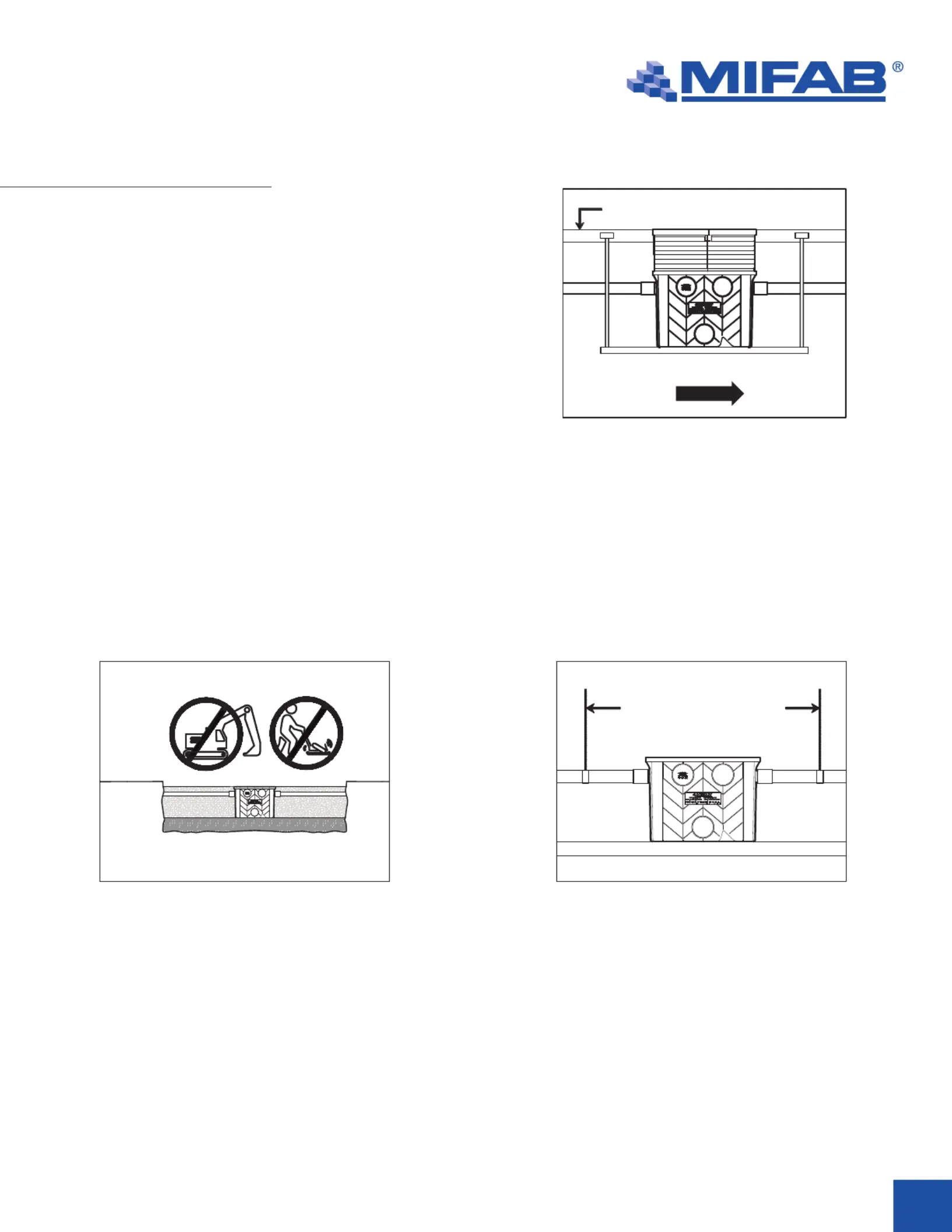

Interceptor must be installed on solid level surface with
contact made on the entire footprint of the unit base.
For suspended installations, a trapeze must be used to
support the wet weight of the unit. The whole unit must
be supported at all times - do not suspend unit using
metal U-channel to create a trapeze.
2
C O N C R E T E F L O O R
FL OW
6 . S U P P O R T I N L E T A N D O U T L E T P I P I N G
The inlet and outlet piping connections require no hub pipe couplings. (See MIFAB
®
's Quick Hub Series of no hub
couplings). Keep outlet piping as straight as possible. MIFAB recommends installation of 4" (102 mm) cleanouts on
both the inlet and outlet of 4" LIL-MAX
®
interceptors in accordance with all applicable laws, regulations and codes.
Use only "sweep" connections. Do not reduce the pipe sizing on the outlet piping. Do not install a “P” trap on the
outlet connection of system. (Note: The system already has an internal gas trap).
P I P E S U PP O R T S
DO NOT COMPACT BACKFILL MECHANICALLY.
COMPACT BY HAND ONLY
