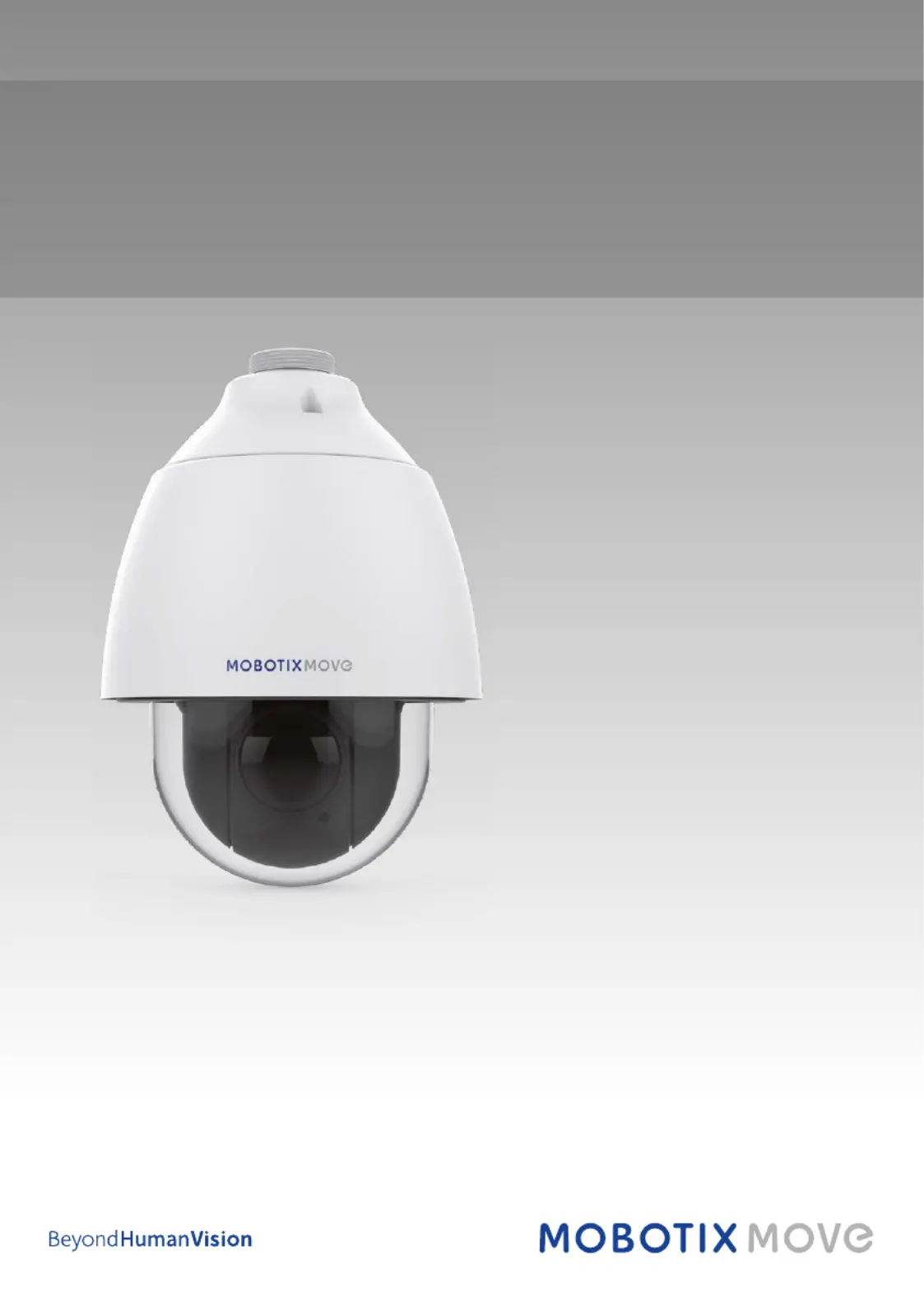

SpeedDome

MOBOTIX MOVE SD-330

Quick Install

SpeedDome SD-330

This guide is for quick installing and connecting the MOBOTIX MOVE SD-330 Network PTZ Camera. You can find

detailed information on the installation and connections in the Camera Manual (PDF, available on www.mobotix.com >

Support > Download Center > Documentation > Manuals).

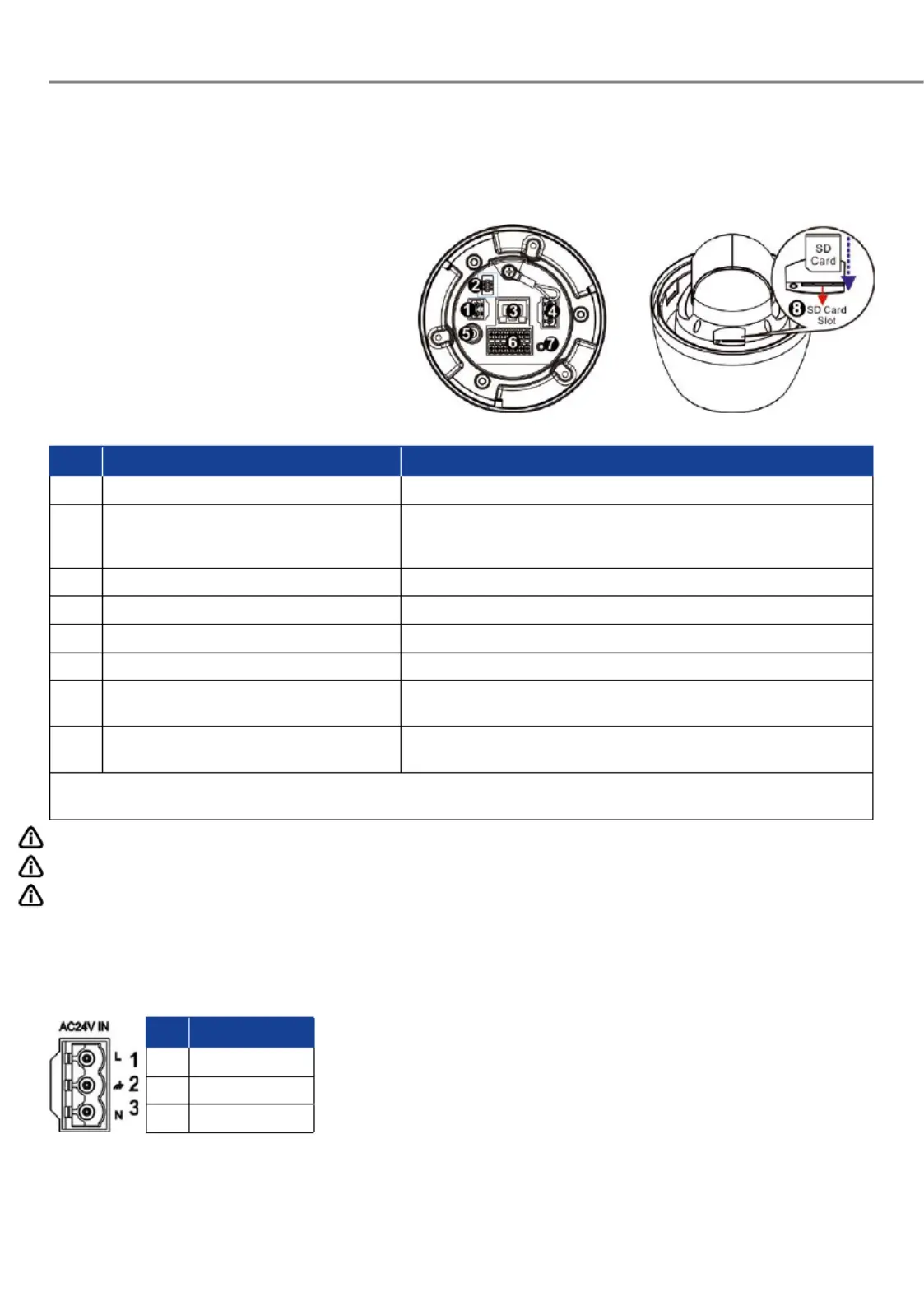

Camera’s Connectors

No. Connector Definition

1 Power Connector (DC12V) DC12V power connection

2 Console Connector This connector is used to burn firmware into the camera when the

camera is returned for repair/maintenance. Please contact the camera

manufacturer for further information.

3 RJ-45 Port For network and PoE+ connections

4 Power Connector (AC24V) AC24V power connection

5 BNC* For analog video output (available only with max. 2 activated streams)

6 Audio/Alarm I/O & RS485 Connector** Audio/Alarm I/O & RS485 connection

7 Reset Button Press the button with a proper tool for at least 20 seconds to restore the

system.

8 SD Card Slot Insert the SD card into the card slot to store videos and snapshots. Do

not remove the SD card when the camera is powered on.

*Please contact the manufacturer for the compatible BNC cable.

**Do NOT connect external power supply to the alarm I/O connector of the camera.

NOTE:   To purchase power adaptor, please contact the camera manufacturer for further information.

NOTE:   DC12V power jack and AC24V power connector cannot be used at the same time in case of unexpected damage.

NOTE:   It is not recommended to record with the SD card for 24/7 continuously, as it may not be able to support long

term continuous data read/write. Please contact the manufacturer of the SD card for information regarding

the reliability and the life expectancy.

Power Connection

To power up the camera, connect the DC12V or AC24V power adaptor to the

power connector of the camera and the power outlet. Refer to the diagram

and pin definition below for AC24V power connection.

Alternatively, users can use an Ethernet cable and connect it to the RJ-45

port of the camera and a PoE+ switch (Class 4).

Pin Definition

1AC24V L

2GND

3AC24V N

Zero Downtime Power Switching (ZDT)

When users connect DC12V power jack and the RJ-45 port at the same time, the power input comes from the DC12V

connector. If the DC12V power source fails, the camera will switch power input seamlessly to the RJ-45 port until

the DC12V power source is restored.

Ethernet Cable Connection

Connect one end of the Ethernet cable to the RJ-45 connector of the camera, and plug the other end of the cable

to the network switch or PC.

NOTE:   In some cases, Ethernet crossover cable might be needed when connecting the camera directly to the PC.

NOTE:   Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check the

LAN connection.

Green Link Light indicates good network connection.Orange Activity Light flashes for network

activity indication.

NOTE:   The ITE is to be connected only to PoE networks without oute plant or equivalent description.

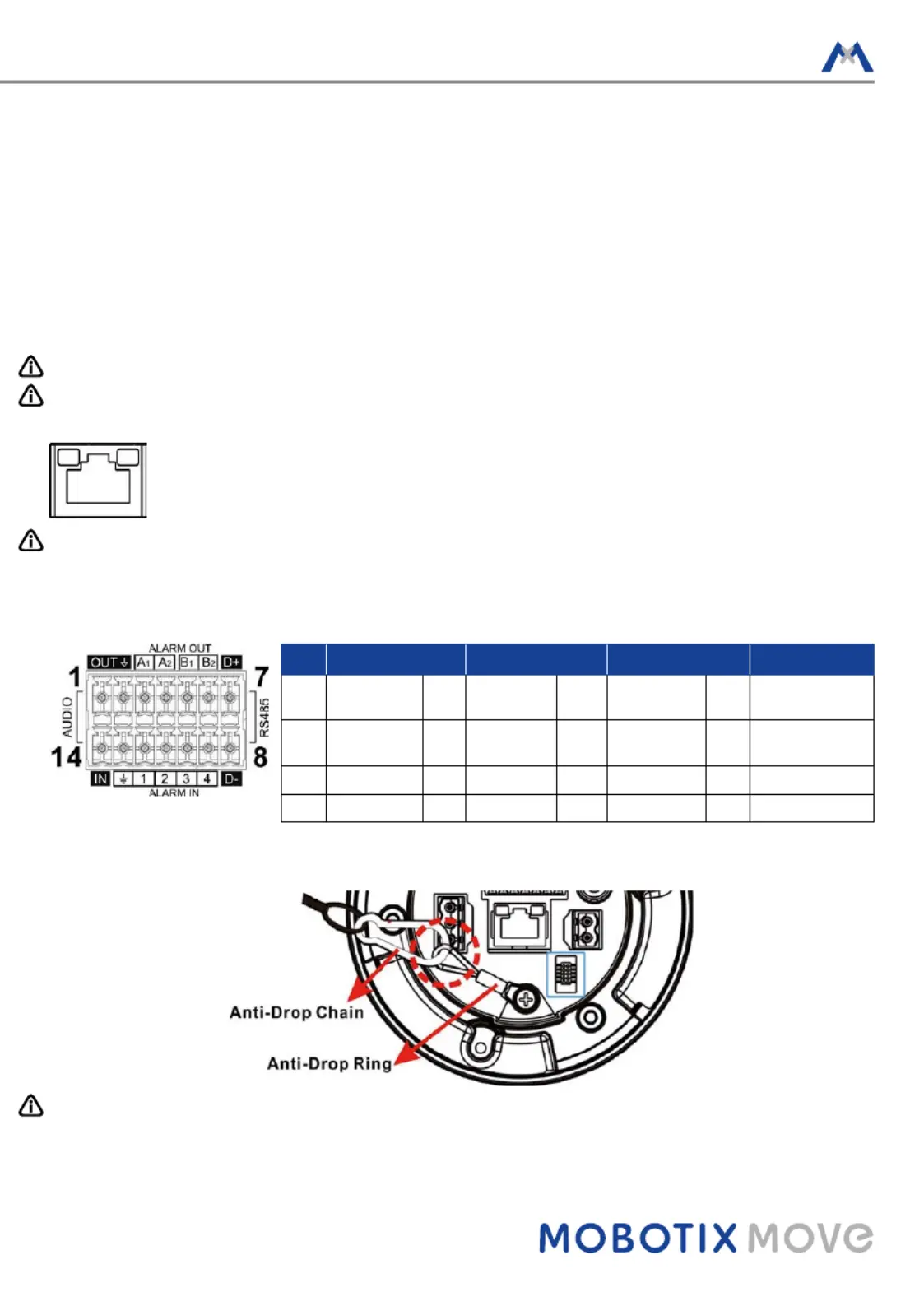

Audio/AIarm I/O & RS485 Connection

Please refer to the diagram and pin definition tables below for audio/alarm I/O & RS485 connection.

Pin Definition Pin Definition Pin Definition Pin Definition

1 5Audio Out Alarm Out

9 13Alarm In 4 GND (Alarm I/O

and RS485)

2GND (Audio

I/O)

6Alarm Out

10 14Alarm In 3 Audio In

3 7 11Alarm Out A1 RS485 D+ Alarm In 2

4 8 12Alarm Out A2 RS485 D- Alarm In 1

Camera Installation Notice

NOTE:   For safety concern, it is recommended to hook up the camera with the anti-drop chain of the pendant

when installing the camera. For more information about pendant and anti-drop chain, please contact the

camera manufacturer.

Produktspecifikationer

Varumärke:	Mobotix
Kategori:	övervakningskamera
Modell:	Move SD-330
Vikt:	2900 g
Bredd:	210 mm
Djup:	210 mm
Höjd:	279 mm
Wi-Fi:	Nej
Maximal upplösning:	2065 x 1553 pixlar
Antal kameror:	1
Inbyggd hårddisk:	Nej
Fast brännvidd:	1.6 mm
Zoomkapacitet:	Ja
Optisk sensorstorlek:	1/2.8 "
Bildsensortyp:	CMOS
Digital zoom:	10 x
Optisk zoom:	30 x
Modell:	IP-säkerhetskamera
Ljudutgångskanaler:	1 kanaler
Antal linser:	1
Antal effektiva pixlar (H x V):	2065 x 1553 pixlar
Dynamiskt omfång:	120 dB
Automatiskt panoreringsläge:	Ja
Lutningsvinkel:	-20 - 100 °
Produktens färg:	Vit
Slutartid:	1/30 s
LED typ:	IR
Formfaktor:	Kupol-formad
brett dynamiskt omfång (WDR):	Ja
Typ av ethernet-gränssnitt:	Snabb Ethernet
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	-55 - 55 ° C
Temperaturintervall (förvaring):	-20 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
AC-inspänning:	24 V
Internationellt skydd (IP) kod:	IP66
Material, hölje:	Metal, Plastic
Placeringar som kan användas:	inomhus
Anslutningsteknologi:	Kabel
Dag / nattläge:	Ja
Monteringssätt:	Tak
Minimibelysning:	0.03 lx
Brännviddsintervall:	4.3 - 129 mm
Mörkerseende:	Ja
Totalt megapixel:	3 MP
Komprimeringsformat:	H.264, H.265, M-JPEG
Bildfrekvens:	30 fps
Bildkvalitetsinställningar:	Contrast, DNR, Sharpness
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	ERP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, SMBv2
Likströmsingång:	Ja
Strömkälla av typen:	AC, DC
DC-utgång volt:	12
Bluetooth:	Nej
PTZ-styrning:	Ja
Synfältsvinkel (FOV):	62 °
Larm ingång / utgång:	Ja
Infrarött (IR) gränsfilter:	Ja
Plintport:	Ja
Lutningshastighet:	60 °/sek
Audio ingångskanaler:	1 kanaler
Kamerans pixelstorlek:	2.5 um
IK klass:	IK10
PTZ-lägen:	Auto pan, Preset point, Preset sequence
