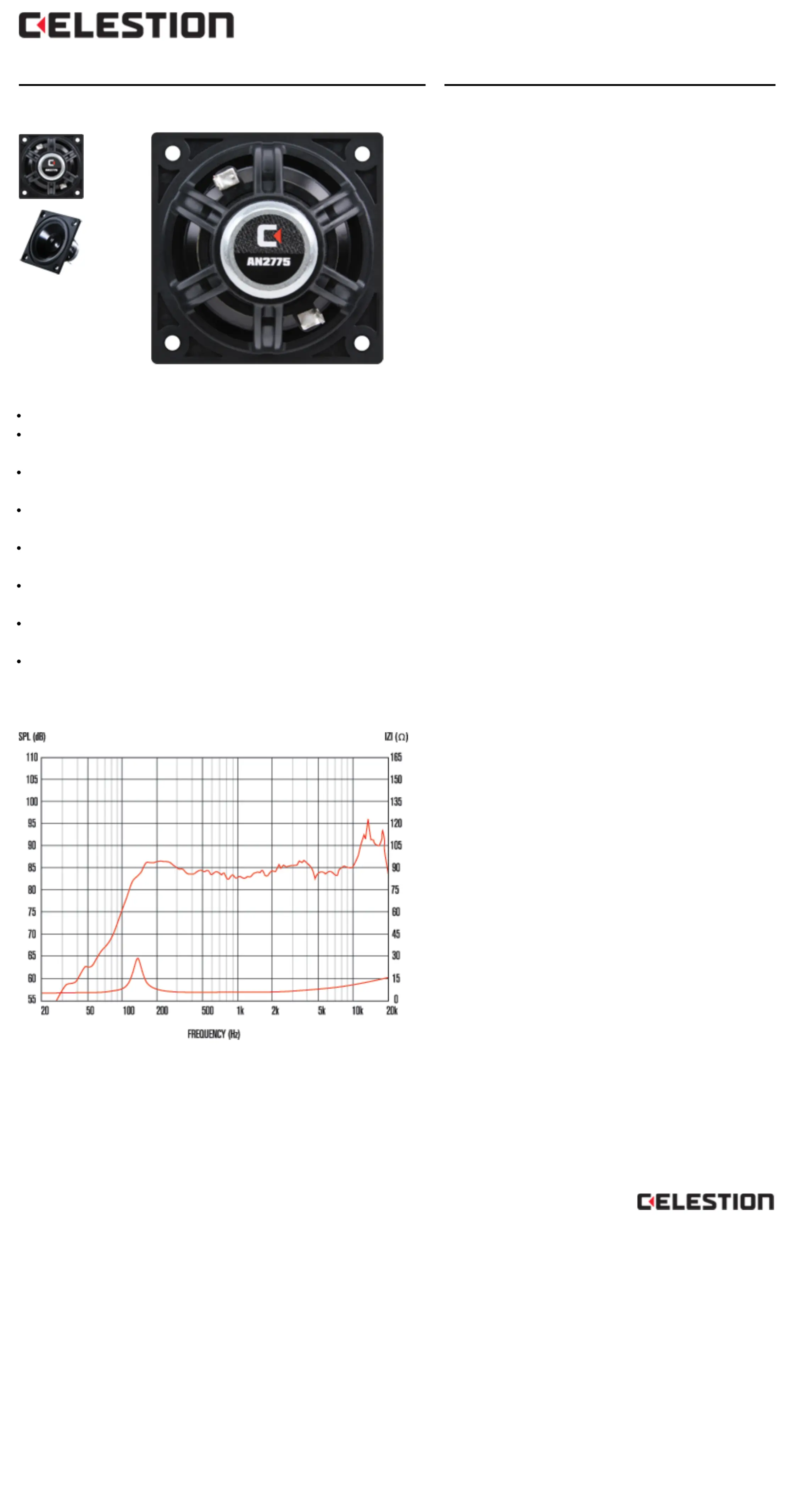

Compact Array

AN2775

Features

Compact and lightweight, full-range neodymium loudspeakers

Advanced Finite Element Analysis techniques used for acoustic, mechanical

and electromagnetic modelling

Ideal for applications such as portable line arrays where actively

controlled wavefront (beam steering) is used

Delivers wider dispersion to higher frequencies than many equivalent

compact, full-range drivers on the market

Chassis purpose-designed for maximum free air movement, with square

mounting frame to facilitate close coupling of multiple units

Sti and light aluminium cone remains rigid to higher frequencies,

delivering a smoother response in the critical listening band

Half roll elastomer surround provides damping for unwanted resonances and

sustained centring control at extremes of excursion

Designed to be weather resistant for outdoor applications

8 Ω Frequency Response

1.Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power

calculated on minimum impedance. Loudspeaker tested in free air.

2.Measured on axis at 1W, 1m in 2 anechoic environment.

3.Xmax derived from: (voice coil winding width-gap depth)/2.

General Specications

Nominal diameter70mm/2.75in

Power rating

1

20Wrms

Nominal impedance8 Ω

Sensitivity

2

84dB

Frequency range160Hz-20kHz

Voice coil diameter20mm/0.75in

Chassis typeGlass reinforced ABS

Magnet typeNeodymium

Coil materialRound Copper

Former materialPolyimide

Cone materialAluminium

Surround materialElastomer

Xmax

3

1.5mm/0.06in

Gap depth3mm/0.12in

Voice coil winding width6mm/0.24in

Voice coil materialRound Copper

Voice coil former materialPolyimide

Bandwidth190Hz-20kHz

Small Signal Parameters

Sd28.27cm2/4.38in2

D60mm/2.36in

Fs150Hz

Mms1.83g/0.06oz

Qms12.21

Qes1.67

Qts1.47

Re5.20 Ω

Vas0.58lt/0.020ft3

BI2.43Tm

Cms0.51mm/N

Mounting Information

Overall depth45mm/1.8in

Overall size71.3 x 71.3mm/2.8in x 2.8in

Cut-out diameter66.1mm/2.6in

Fitting4 x M4 holes

Mounting PCD rangeØ82mm/3.2in

Unit weight100g/3.53oz
