Instructions for Super Pro Magnum Feeder

Thank you for your purchase of the Super Pro Magnum Feeder. Please read this sheet

before

operating the unit. If you should have any questions about this product or any other

Moultrie

product, please contact us using the information on the back of this sheet.

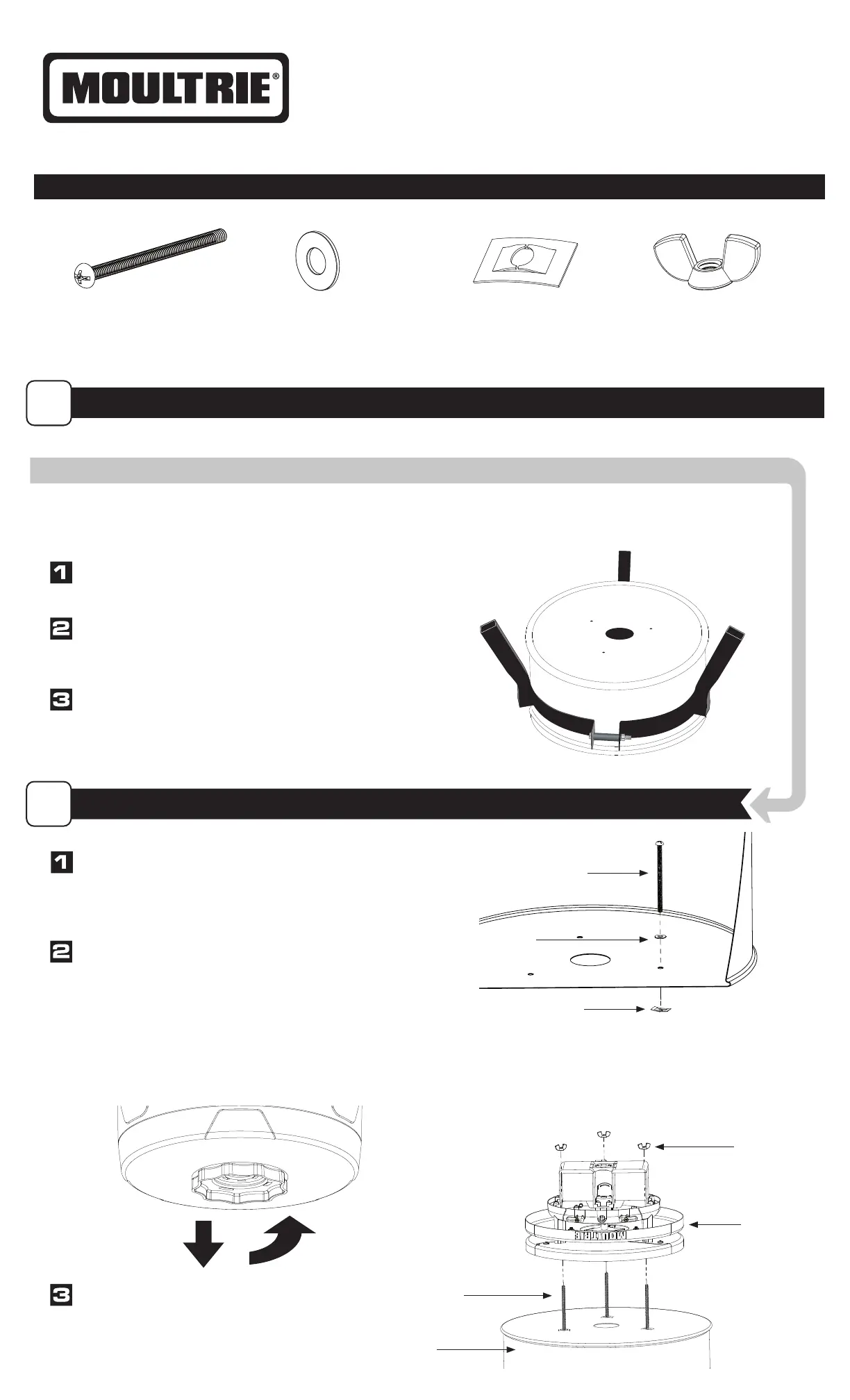

DRILLING YOUR DRUM OR BARREL

MOUNTING THE FEEDER

Turn drum over, measure and mark the center of the bottom.

Mark where holes of kit are on the bottom of the drum.

Drill three 5/16” Feeder Leg Holes.

Using a Hole Saw, drill a 2.25” hole in the center of the

bottom of your drum.

From the inside of the drum, put at washers on the 1/4-20 x 4”

Combination Drive Screws then slide through the holes in the

bottom of the barrel and screw the push nuts onto the bolts on

the outside of the barrel.

Slide feeder over three Bolts that are sticking rmly through

the bottom of the drum. Attach Feeder Kit to the Drum

using the three provided Wing Nuts.

Super Pro Magnum Kit will mount to the bottom of any drum or barrel

NOTE: If you purchased a Moultrie barrel, go to Step B

Combination Drive Screw

Qty. 3

(¼”-20 x 4”)

Flat Washer

Qty. 3

(¼”)

Push Nut

Qty. 3

(¼”)

Wing Nut

Qty. 3

(¼”)

HARDWARE INCLUDED:

Push Nut

Combination

Drive Screw

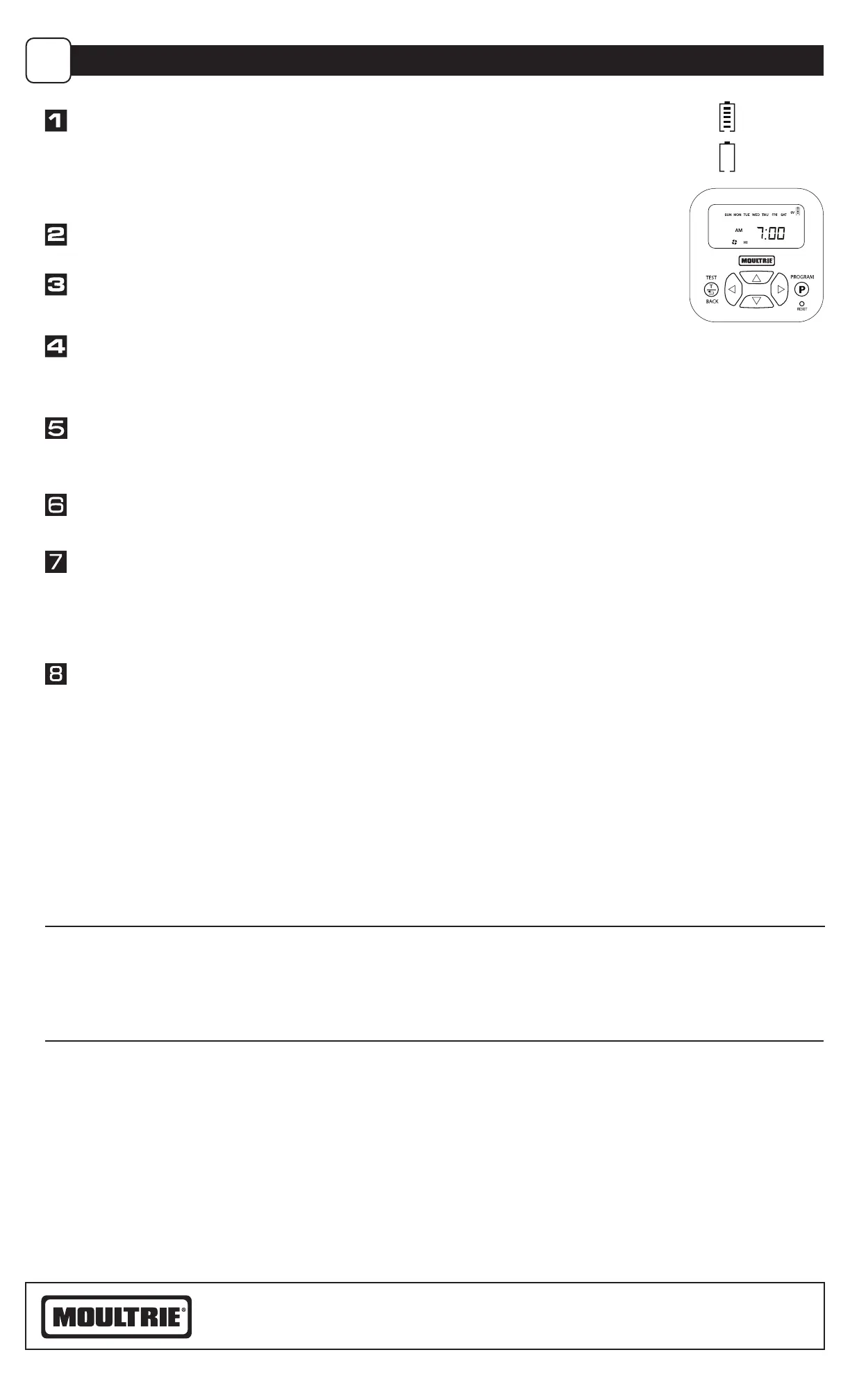

Turn grooved handle counterclockwise one click . This will release

the battery cover from the feeder kit. Battery cover can be pulled

o straight downward and set aside.

NOTE: Grooved handle

should stay assembled with battery cover.

DO NOT FORCE THE GROOVED HANDLE COUNTERCLOCKWISE

AN ADDITIONAL CLICK.

This will disassemble the grooved handle

from the battery cover and can cause wear on the parts that

retain this assembly.

Bolts

Super Pro Magnum

Feeder Kit

Wing Nuts

Drum

Flat Washer
