5x1 HDMI / HDBT Multimedia Presentation Switch
500435
© MuxLab Inc. 2015 500435
Overview:
The 5x1 HDMI / HDBT Presentation switch is a
compact scaler switcher with5 video inputs (3
HDMI, 2 VGA) and 6 audio inputs (3 HDMI
audio & 2 VGA with audio switched following
the video; 1 MIC audio input). The VGA input
supports VGA, Component Video (YPbPr) and
Composite Video.
The 5x1 HDMI / HDBT Presentation switch
scales & switches any video signal to HDMI
output and HDBaseT output for a transmission
over up to 70 m of Cat5e/6 with PoC support.
With 1 IR Sensor, 5 IR Emitters and 1 RS232
port, bidirectional IR & RS232 signals can be
transmitted simultaneously between the 5x1
HDMI / HDBT Presentation switch and the
HDMI Extender PoC/PoE Receiver.
Applications: computer realm, monitoring,
conference room and conference centres,
corporate boardrooms, hotels and hospitality
rooms, big screen displaying, television
education, command & control centres and
smart homes.
Features:
Supports video source auto-switching function
Bi-directional IR & RS232 control
Supports HDMI, VGA, Composite Video, and
Component Video (YPbPr)
Output resolutions selectable (1920x1200,
1920x1080, 1600x1200, 1360x768, 1280x800,
1280x720, 1024x768)
Supports CEC, with commands to enable/disable
this function
Compliant with HDCP
Supports online software upgrading
MIC port supports balance/unbalance signal,
suppress the external noise effectively
48V phantom power to support condenser
microphone
3-level MIC input, supports condenser
microphone, dynamic microphone and wireless
microphone
Controllable via button, IR & RS232
Powerful OSD function

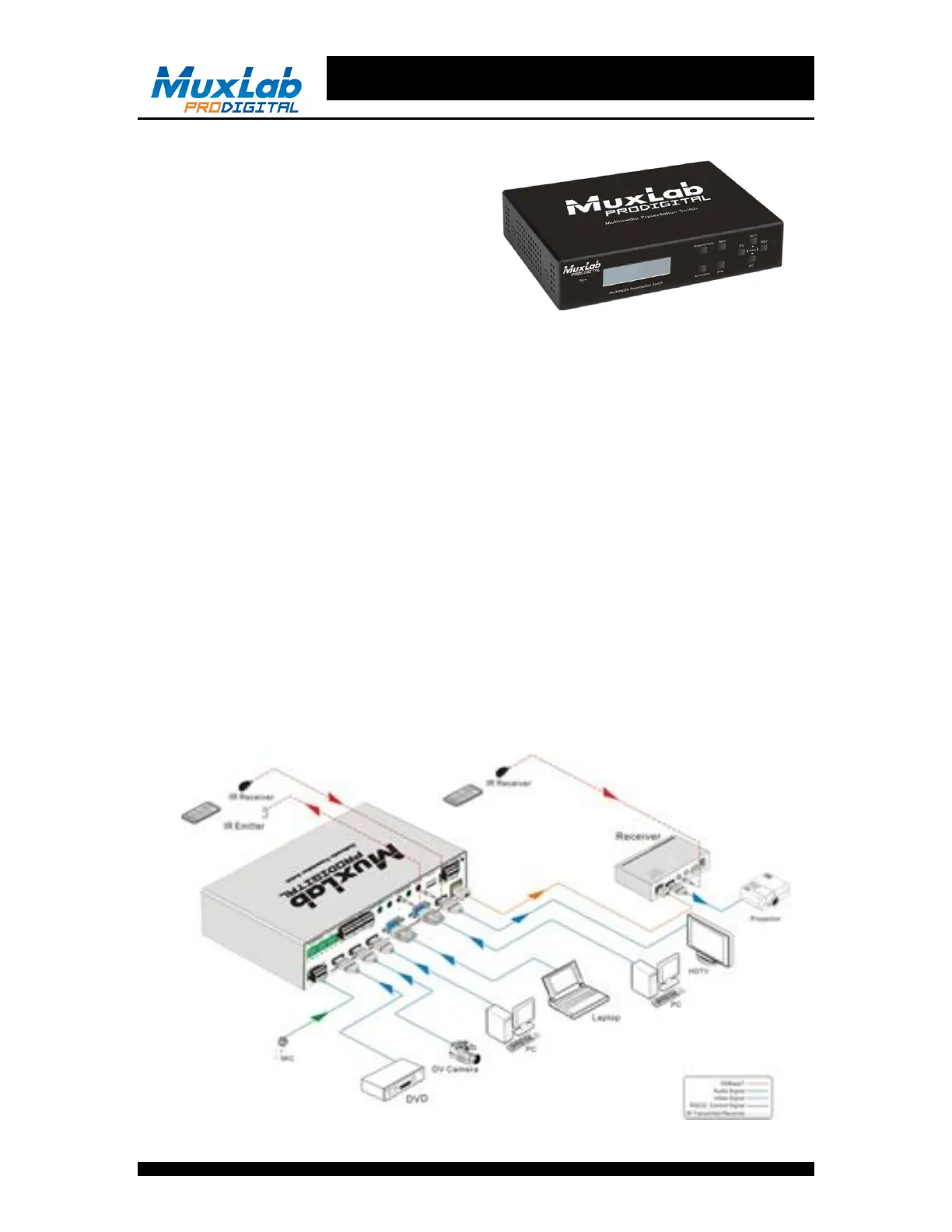

Typical Application:
Specification chart on next page
5x1 HDMI / HDBT Multimedia Presentation Switch
500435
© MuxLab Inc. 2015 500435
MuxLab Inc. | 8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 | Fax: (514) 905 0589 | Toll Free:1 877 689-5228
E-mail: videoease@muxlab.com | www.muxlab.com

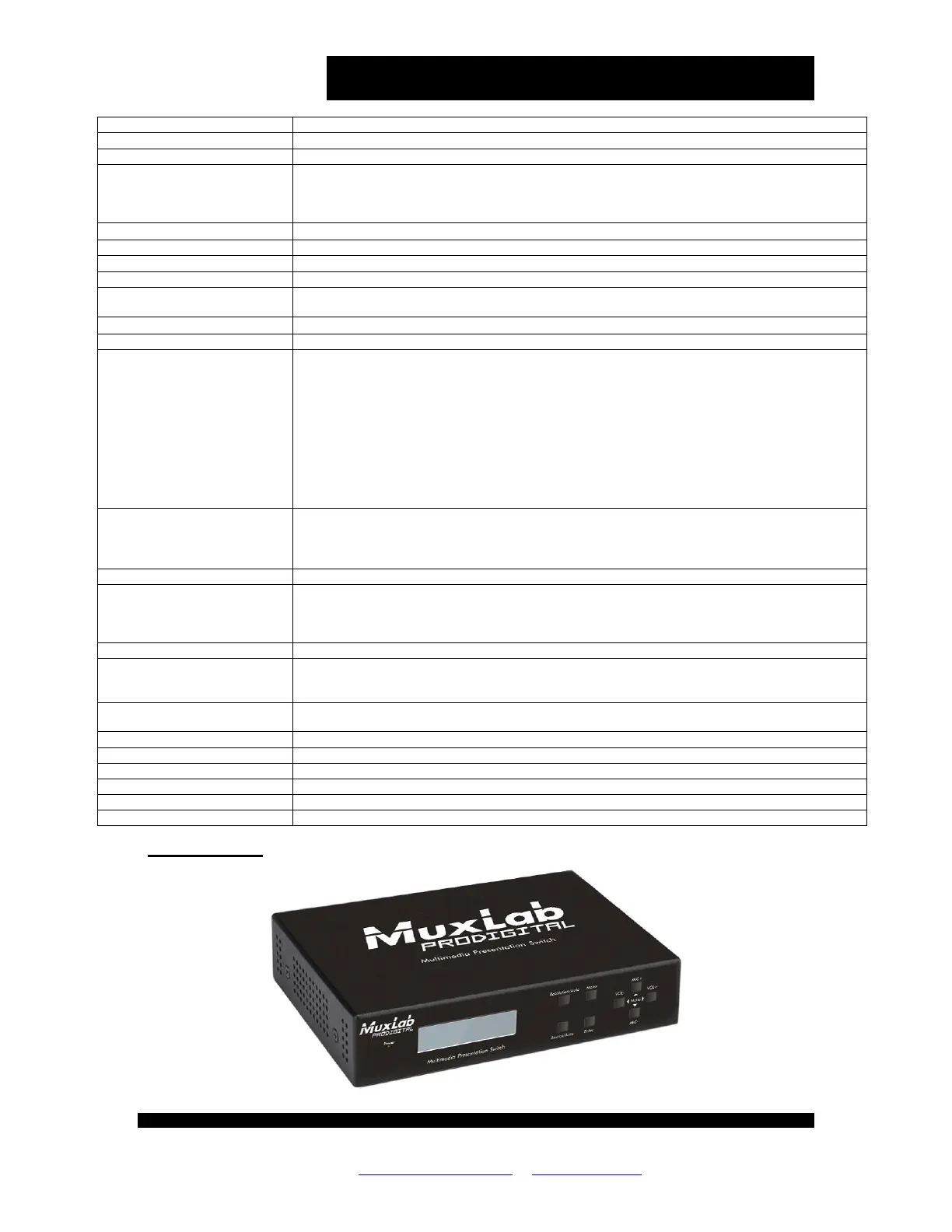

Product Photos:
Environment
HDMI 1.3
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
Transmission
Transparent to the user
Video Bandwidth
HDMI: 4.96 Gbps
Composite Video:150 MHz
Component Video (YPbPr): 170 MHz
VGA: 375 MHz
Maximum Pixel Clock
165 MHz
Video Impedance
75 Ω
Video Resolution
1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768
Audio Bandwidth
20Hz to 20KHz
Audio Impedance
Input: >10kΩ
Output: 70Ω
Stereo Channel Separation
>80dB @1KHz
Signals
HDMI 1.3a protocol and HDCP
Connectors
Four (4) HDMI receptacles; Three (3) Inputs& One (1) Output.
Two (2) VGA HD-15 receptacles (Inputs).
One (1) RJ45Sfor HDBT (output).
Six (6) 3-pin terminal block (3.81 mm) for Audio; Five (5) Inputs& one (1) Output.
One (1)3-pin terminal block (3.81 mm) for the microphone.
Five (5) IR Emitter 3.5mm Mono jacks.
One (1) IR Sensor 3.5mm Stereo jack.
One (1) 3-pin terminal block (3.81 mm) for RS232.
One (1) 2.1mm barrel jack for Power.
One (1) USB Type A.
Note: HDMI cables not included.
Maximum Distance
Based on a maximum length
of 6.6 ft. (2 m) of HDMI cable
per end.
Cat 5e/6:230 ft (70 m) up to 1080p
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-
connection reduces the effective distance depending on the grade of twisted cable used.
Cable
One (1) Cat 5e/6 or better twisted pair cable required
Compatible Receiver
500451-RX (No Serial Port, No PoE)
500451-PoE-RX (No Serial Port, with PoE)
500454-RX(With Serial Port, No PoE)
500454-POE-RX(With Serial Port and PoE)
Power Supply
One (1) 110-240V/12VDC power supply with interchangeable blades (locking PSU connector)
Power Consumption
8Watts for the 5x1 HDMI / HDBT Presentation switch alone.
16 Watts when the 5x1 HDMI / HDBT Presentation provides PoE power to the HDMI Extender
Receiver.
Temperature
Operating: 0° to 40°CStorage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
Dimensions
8.66” x 1.73” x 5.83” (220x 44x 148mm)
Weight
3.28lb (1.49kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
5004355x1 HDMI / HDBT Multimedia Presentation Switch (UPC: 627699004357)
