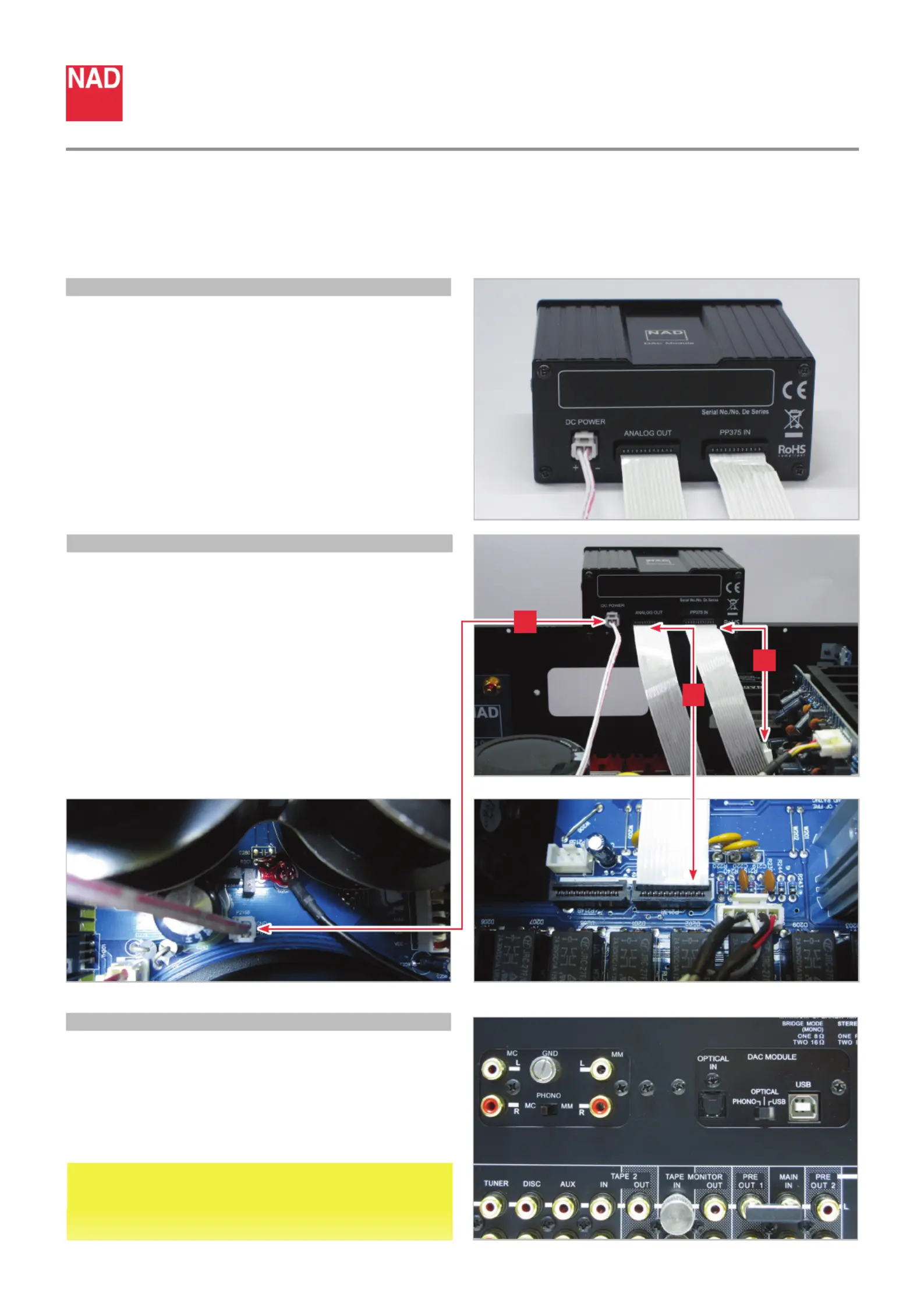

ASYNCHRONOUS USB DAC MODULE
Mounting Instructions
MOUNTING INSTRUCTIONS FOR THE C375BEE
The DAC Module is compatible with C375BEE. Using the supplied exible at
cable (FFC), DC power connector and screws, the DAC Module can be installed
in a C375BEE by undertaking the following procedure.
Note that if the C375BEE has a PP375 Phono Preamplier Module already
installed, the DAC module and the PP375 can be linked together using the other
supplied FFC.
STEP 1
Pre-install the requisite cables to their respective connector points on the DAC
Module as shown. Connect the FFC to the DAC Module’s PP375 IN only if the
C375BEE has a PP375 already installed.
STEP 2
Make the following connections:
1 DC POWER connector from DAC Module to corresponding P216B in
C375BEE’s main board.
2 FFC from DAC Module’s ANALOG OUT to P213B on C375BEE’s main board.
3 If the optional PP375 module is installed: FFC from DAC Module’s PP375 IN
to the corresponding FPC (exible printed circuit) connector of the PP375
module.
Ensure good harnessing by exing and safely contorting the FFC and
DCPOWER connectors.
STEP 3
Remove the dummy cover at the back of the C375BEE and install in its place the
DAC Module. Use the supplied screws to x into place the DAC Module.
3
2
1
IMPORTANT!
The DAC module is only compatible with C 375BEE units that have the
0.5Wstandby logo on their rear panels.
©2015 NAD ELECTRONICS INTERNATIONAL, A DIVISION OF LENBROOK INDUSTRIES LIMITED
All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited.
No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
MDCDAC_QS_V06 04/15
1
2

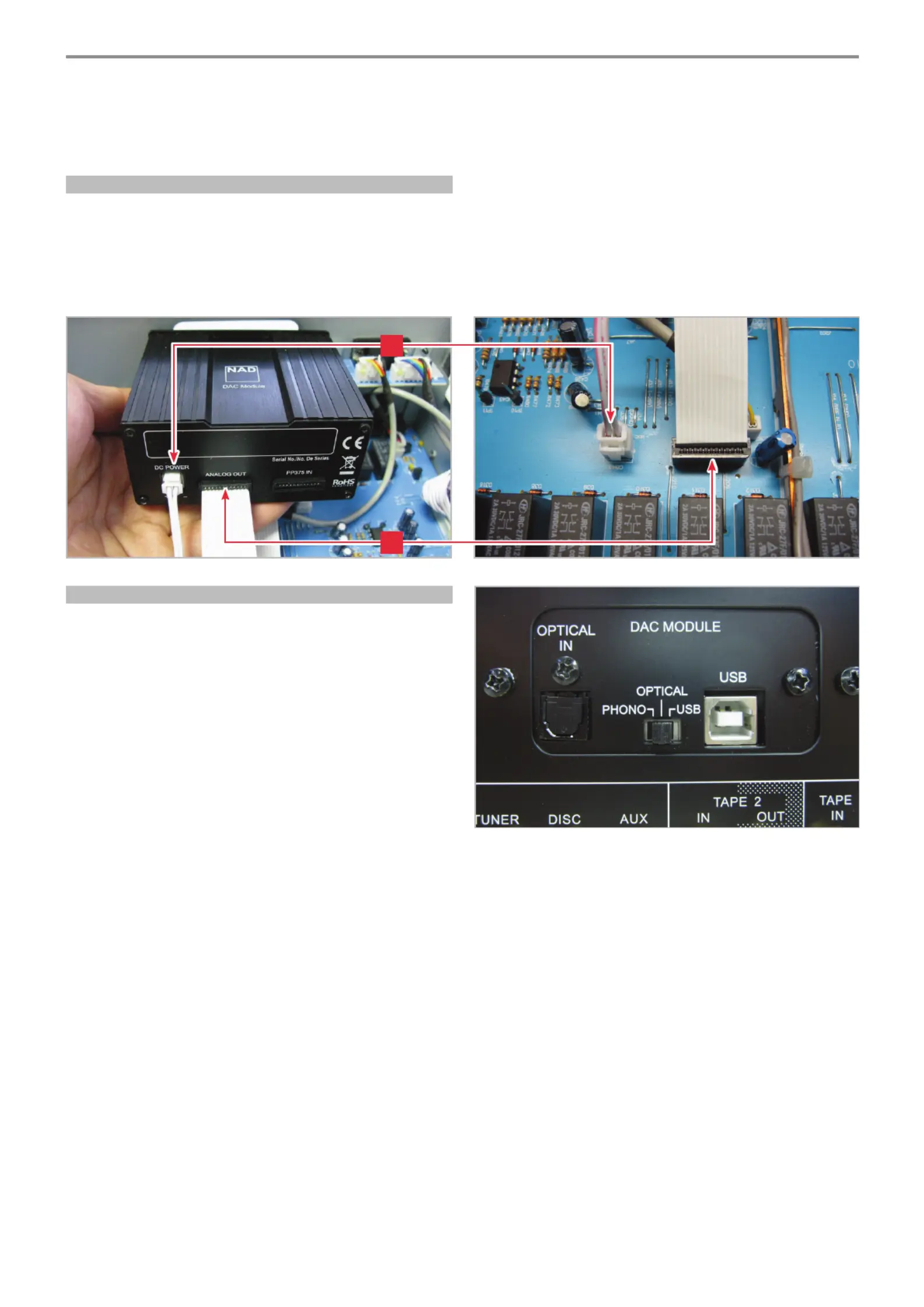

MOUNTING INSTRUCTION FOR THE C356BEE
The DAC Module is compatible with C356BEE. Using the supplied exible at
cable (FFC), DC power connector and screws, the DAC Module can be installed
in a C356BEE by undertaking the following procedure.
STEP 1
Pre-install the requisite cables to their respective connector points.
Connect the following
1 DC POWER connector from DAC Module to corresponding CB48 on
C356BEE’s main board.
2 FFC from DAC Module’s ANALOG OUT to CB36 on C356BEE’s main board.
Ensure good harnessing by exing and safely contorting the FFC and DC POWER
connectors.
STEP 2
Remove the dummy cover at the back of the C356BEE and install in its place the
DAC Module. Use the supplied screws to x into place the DAC Module.
