MDC2 BluOS-D

Mounting Instructions

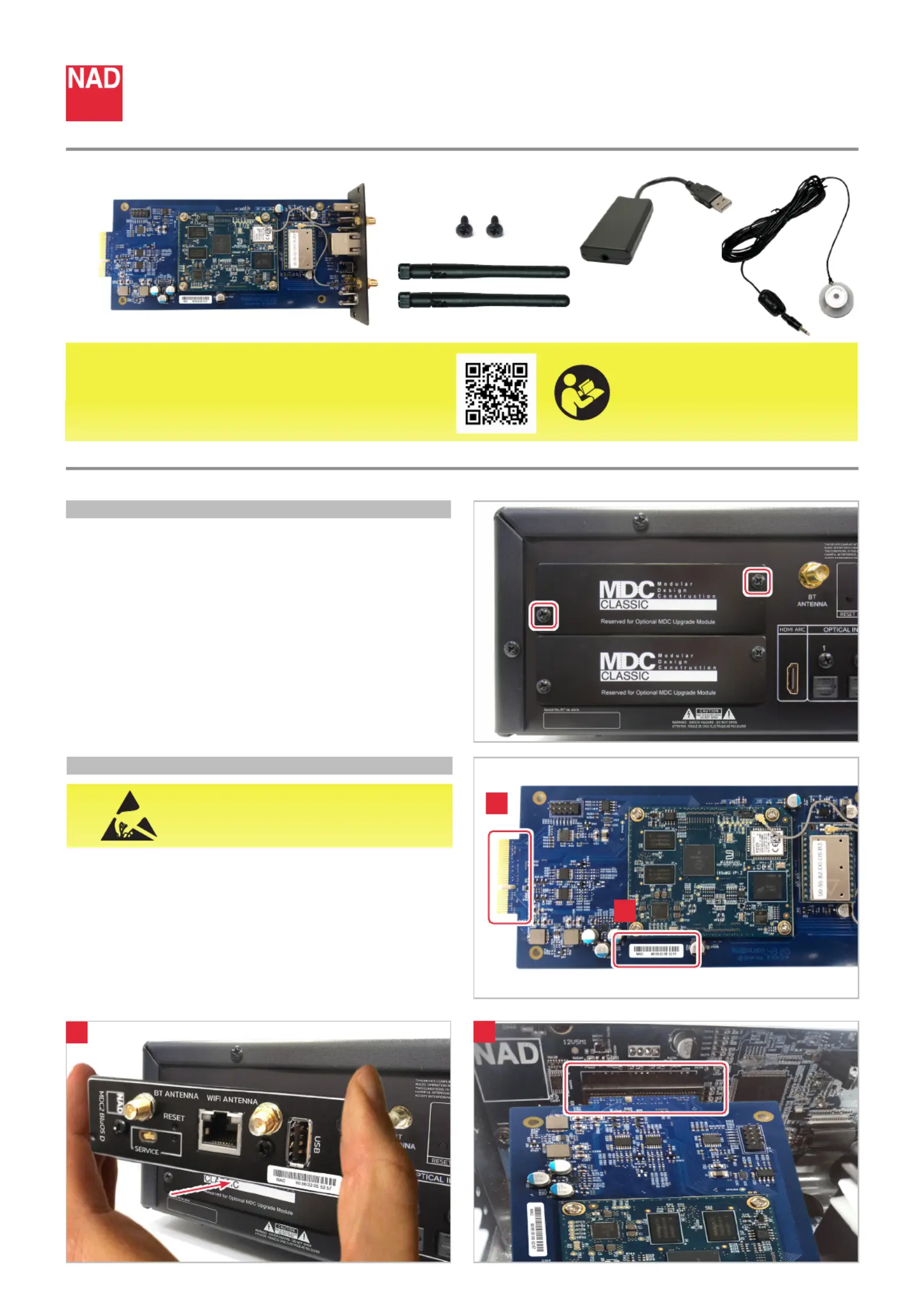

WHAT’S IN THE BOX

INSTALL MDC2 BLUOS-D

STEP A

Remove the MDC Classic cover and top cover by loosening and taking out the

screws holding them in place.

STEP B

1 Take note of the unique Wi-Fi MAC address (the same can be found on the MDC2

BluOS-D metal back plate). This is needed when conguring the MDC2 BluOS-D.

2 Remove the protective tape from the contact terminals.

3 Slide MDC2 BluOS-D module through the rail pushing all the way to the

corresponding connectors.

4 Make sure MDC2 BluOS-D module is locked in.

Use corresponding screws to x back into place MDC2 BluOS-D module and top

cover.

IMPORTANT NOTES

• MDC2 BluOS-D can be integrated with the following compatible NAD

products – C369, C389 and C399.

• The reference model used in this mounting instruction is C 399.

This PCB assembly includes static sensitive

components, take appropriate precautions.

nadelectronics.com/product/mdc2-bluos-d

support.nadelectronics.com

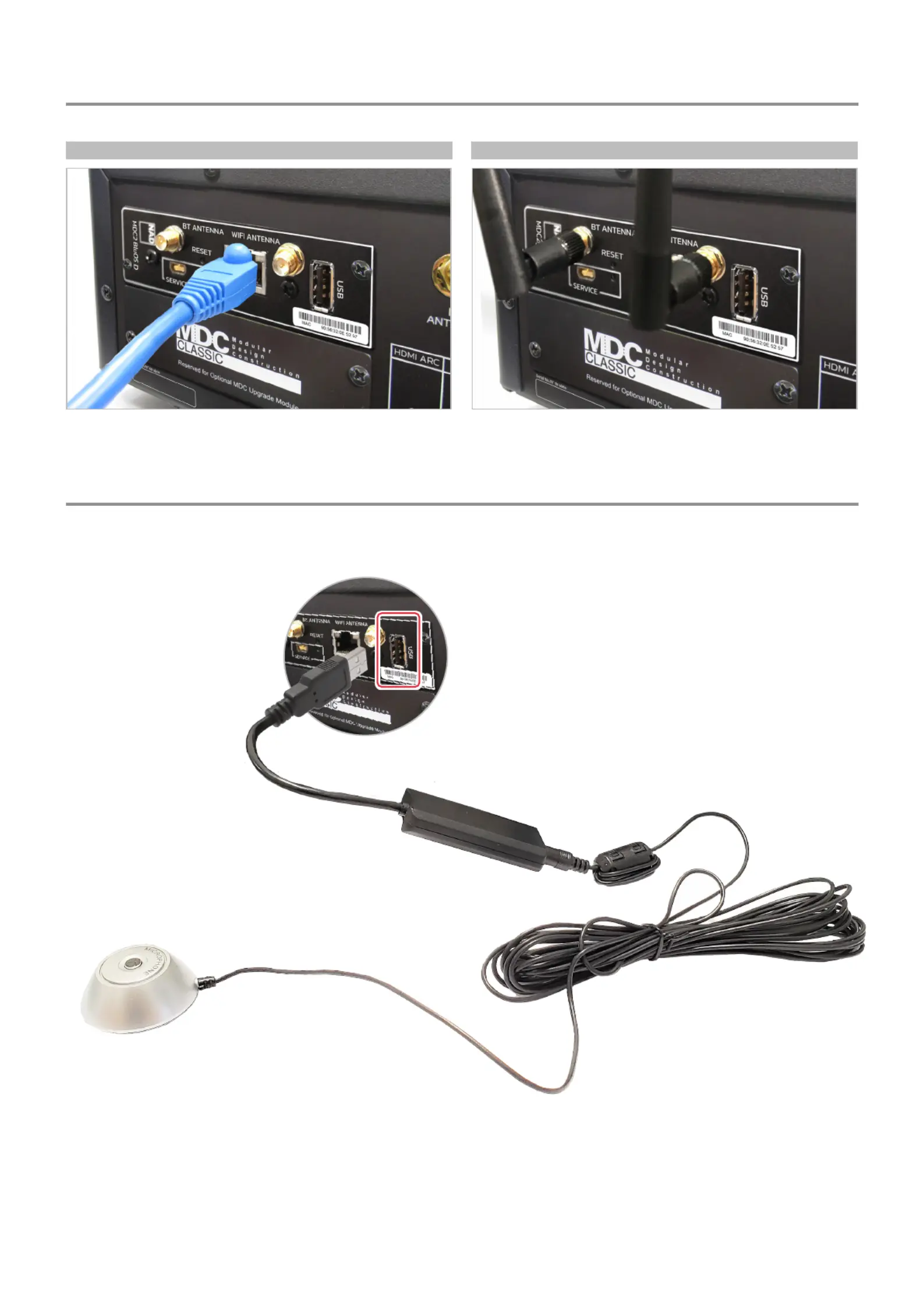

WIRED CONNECTION*

Connect Ethernet cable (not supplied)

*Requires broadband router that supports Ethernet and/or WiFi standards

BLUETOOTH AND WI-FI ANTENNA CONNECTIONS

Connect supplied Bluetooth antenna and Wi-Fi antenna*

CONNECT!

No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.

While every effort has been made to ensure the contents are accurate at the time of publication, features and specifications may be subject to change without prior notice.

MDC2 BLUOS D V04  APR 2021

DIRAC SETUP CONNECTION

Assemble together supplied MIC assembly and USB MIC Sound Adaptor and

then connect to USB port of MDC2 BluOS-D.
