Sida 1/5

• Low noise, wide band MC/MM phono stage

• Connect your turntable to most ampliers and receivers

• External 23.5V DC power supply

• Gold plated input sockets

• LED power indicator

• High quality components

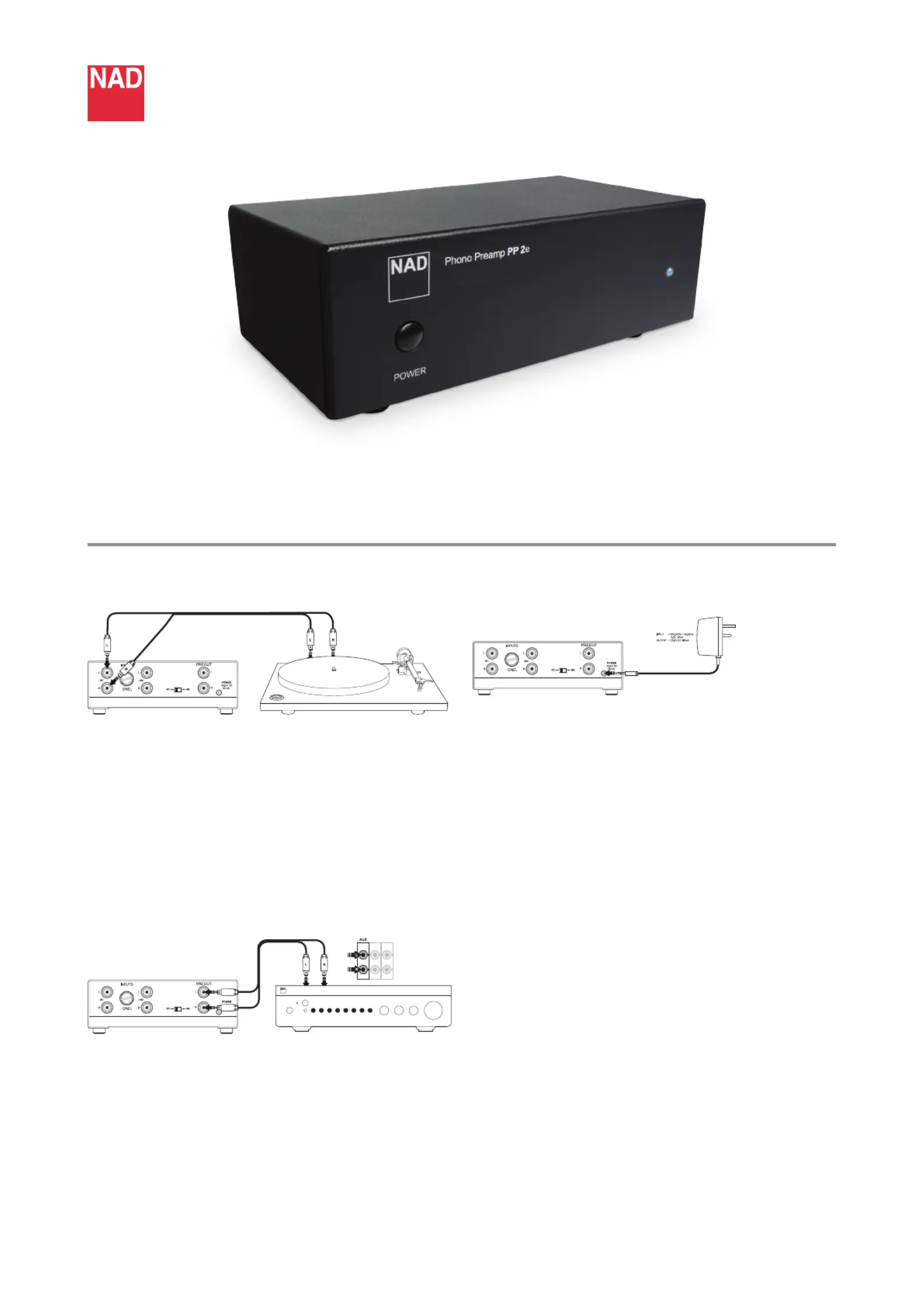

SETUP

A CONNECT TURNTABLE TO PP 2e

1 Ensure all ancillary equipment is turned o and the NAD PP 2e not yet

connected to its dedicated power Supply.

2 Connect the leads from the turntable to the appropriate input sockets

on the back of the NAD PP 2e - MC for moving coil, MM for moving

magnet cartridge. Make sure you connect the Right channel to the

Right input; the Left channel to the Left input. Normally, red connector

denotes the Right Channel; white denotes the Left channel.

3 Once the turntable leads are connected, set the MC/MM switch on the

back of the NAD PP 2e to the correct input setting.

B CONNECT PP 2e TO AN AMPLIFIER OR RECEIVER

1 Connect suitable RCA leads from the NAD PP 2e to the amplier or

receiver. Always use a so-called “Line-Level” input such as CD, AUX or

DISC. Never connect the lead from the NAD PP 2e to an input marked

PHONO or turntable.

2 Again, make sure to connect the red plug to the Right channel, and the

white plug to the Left channel of the amplier or receiver.

3 If the lead from your turntable is equipped with a separate earth (GND)

lead, connect this directly to a ground connection on the NAD PP 2e.

Use the thumb screw terminal “GND” which provides the grounding.

C CONNECT THE POWER SUPPLY TO THE PP 2e

1 Connect the dedicated Plug-in Power Supply to the NAD PP 2e

(marked23.5V).

2 Insert the Plug-in Power Supply to a live mains socket; the blue LED on

the NAD PP 2e’s front panel will light up. Installation is now complete.

As the power consumption of the NAD PP 2e is negligible, it can always be

left switched on. It is recommended however that you disconnect the Plug-

in Power Supply from the mains if you are not going to use the NAD PP 2e

for a prolonged period of time (such as a holiday).

D OPERATION

1 With setup completed and the NAD PP 2e plugged in to a live mains

socket, power up the turntable and the amplier or receiver the NAD

PP2e was connected.

2 Ensure that the amplier or receiver is set to the source or input where

the NAD PP 2e is connected and start playback of a vinyl record in the

turntable.

3 Adjust the volume level of the amplier or receiver accordingly.

PHONO PREAMPLIFIER PP 2e

User Guide

Produktspecifikationer

Varumärke:	NAD
Kategori:	hi-fi system
Modell:	PP 4
Inbyggd display:	Nej
Bredd:	135 mm
Djup:	72 mm
Höjd:	49 mm
LED-indikatorer:	Ja
Ljudutgångskanaler:	2.0 kanaler
Total harmonisk distorsion (THD):	0.03 %
Ingångskänslighet:	5 mV
Toppeffekt per kanal:	- W
Utgångsimpedans:	100 Ω
Produktens färg:	Svart
Anslutningsteknologi:	Kabel
Likströmsingång:	Ja
Högtalare anslutning typ:	RCA
På / av-knapp:	Ja
Antal USB 2.0 anslutningar:	1
Ändamål:	Hem
Signal/brusförhållande (SNR):	78 dB
Synkroniserad ingångsimpedans:	100 Ω
