FONT
Quick guide

Thank you for choosing the FONT Filter
for your Eurorack System.
Powering up
Turn off the power of your modular synthesizer.
Double check the power cord polarity. If you plug the module backwards you might
damage its electronic circuits.

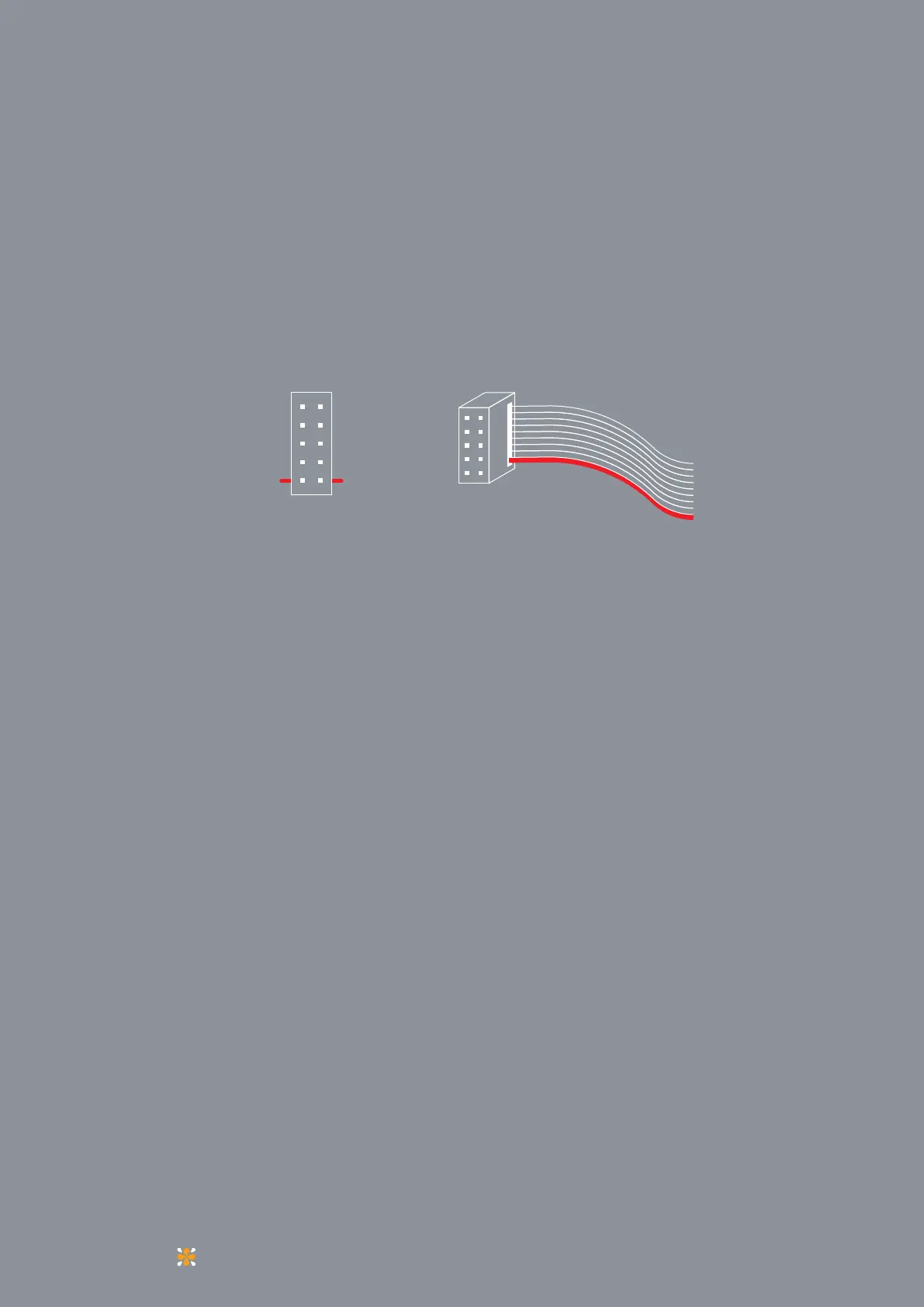

If you flip over your FONT filter, you will find the “RED” mark at the PCB power
connector, which must match the colored line on the ribbon cable.
Once you have checked all the connections, you can turn on your modular system.
If you notice any anomalies, turn your system off right away and check again your
connections.
1.
2.
3.
4.
NANO Modules - València 2019 ©
Description
FONT is a voltage-controlled filter.
The filtering is achieved by a high-quality V2164 IC. An OTA in the filter feedback
path brings the resonance under voltage control, and also serves as a soft-limiter to
ensure a clean self oscillation.
It features two outputs: simultaneous
• 2-pole Low Pass
• 2-pole Band Pass
This filter tracks 1 V/octave pitch input over a wide range and can be used as a
low-distortion sine VCO when self-resonating. It responds very well to frequency
modulation and the small size makes it an ideal choice for a smaller system.
REDRED
FONT

CVF CVR
FREQ
RES
+-+-
CVF
LP2 BP2
CVROCT
IN
FONT
Frequency
Cutoff Control
Resonance
Q Control
CV Frequency
Attenuverter
CVF Input Control
CV Frequency
Input
1V/Octave Input
Un-attenuated Frequency CV,
calibrated for 1V/Oct
Audio
Input
CV Resonance
Attenuverter
CVR Input Control
CV Resonance
Input
2-Pole Band Pass
Output
2-Pole Low Pass
Output
NANO Modules - València 2019 ©
Layout

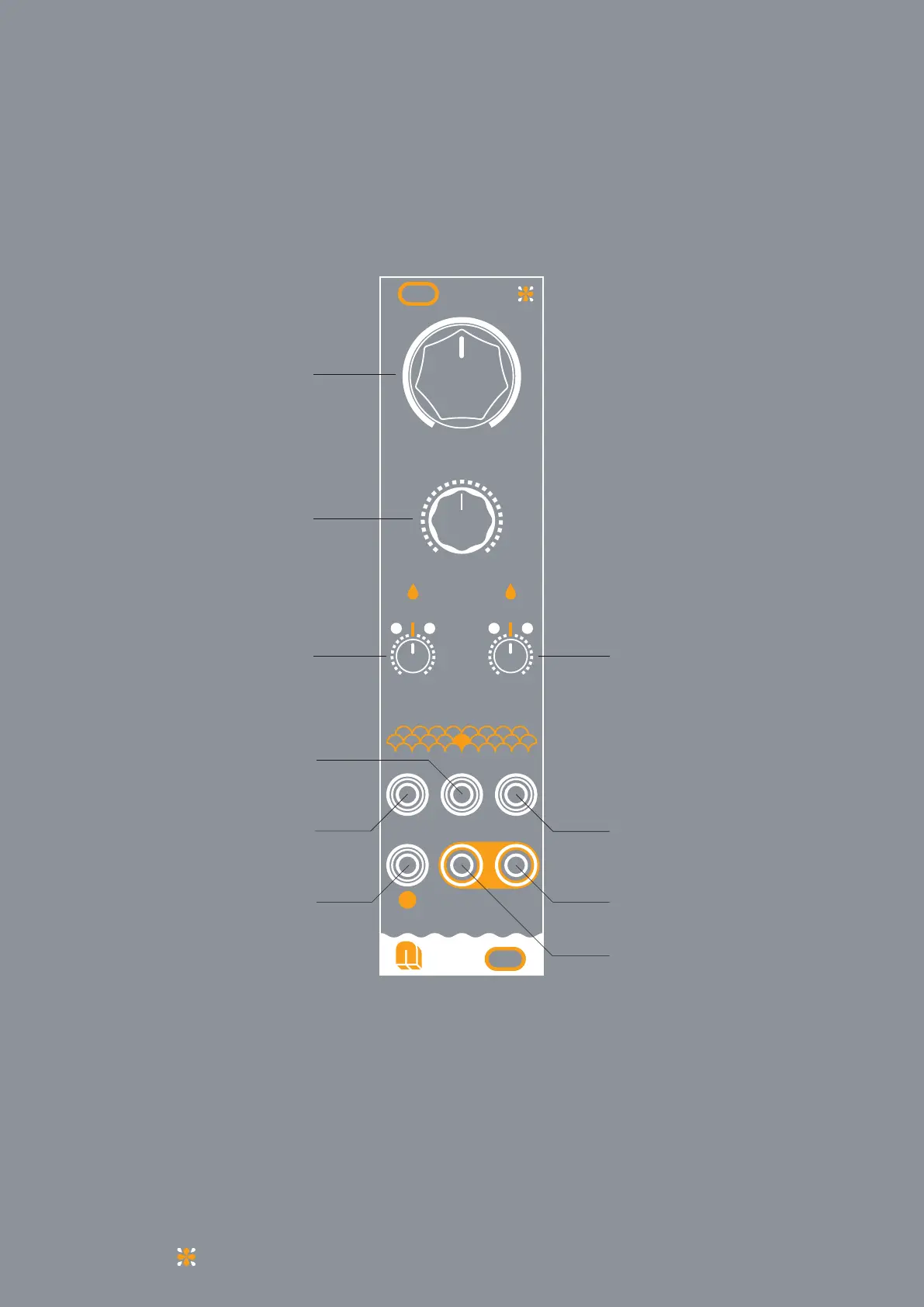

This image will clarify the function of each of the elements of the module.
FONT
