ANALOG MULTIFUNCTION OSCILLATOR8HP

A flexible and warm Analog Multifunction

Oscillator, rich in harmonics. Excellent for

performance use!

ONA can work as an Audio Oscillator or as a

Low Frequency Modulator and it provides

control over all its parameters, making it a

versatile, deep and easy-to-use oscillator.

Thanks to its triangle-core oscillator and

wave-shapers you can choose between a big

palette of output waveforms to give shape to

your ideas.

Classic Waveforms. Sine, Triangle, Saw

and Square.

2 Complex Waveforms with Pulse Width

Modulation.

2 Sub-Waveforms to add some bass

sounds easily.

Blend them to give unlimited depth

to your sound!

FMOCTSYNCPW

12

OCT

FINE

14

PW

M

O

D

E

VCO

LFO

LIN

EXP

F

M

FM

ONA

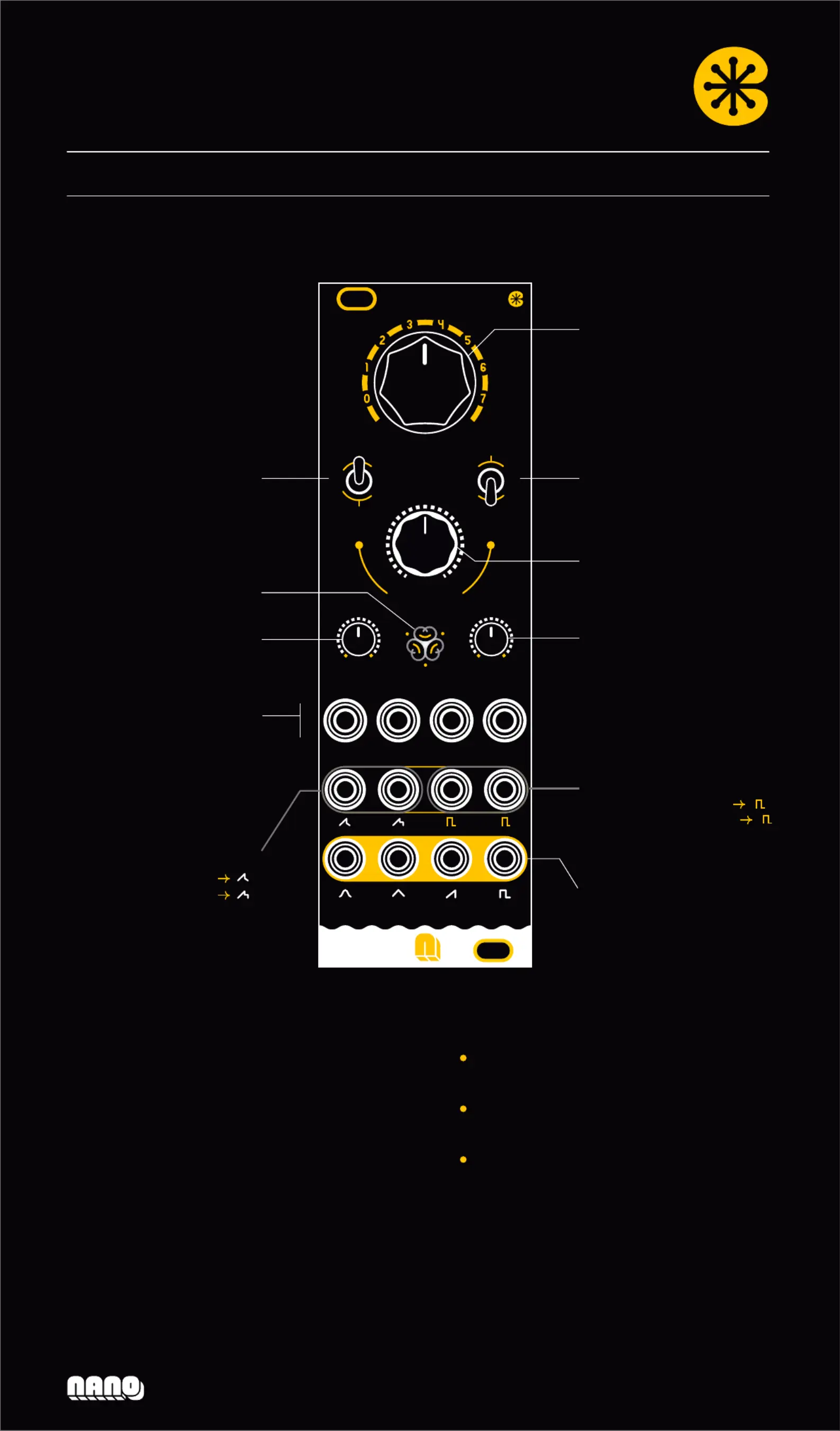

Inputs

Octave Adjust

Sweep through 8 octaves.

Fine Adjust

± 7 semitones

Mode Selector

VCO Audio Oscillator

LFO Low Frequency Oscillator

Pulse Width Attenuator

Classic Waveforms

If PW Input is not connected,

it behaves as a PWM adjust

between 1% - 100%

If PW Input is connected, it

behaves as an Attenuator.

From left to right:

Sine, Triangle, Saw and Square.

FM Mode Selector

Selects the mode of the FM input:

LINEAR / ONENTIAL ResponseEXP

FM Attenuator

LED Level Indicator

Adjusts the amount of FM input.

FM Modulates the Oscillator’s Frequency

OCT Primary pitch input (1V/OCT Tracking)

SYNC Resets oscillator phase when triggered

PW Modulates the Pulse Width

OUTPUTS

Sub Waveforms

-1 Octave Square Waveform

-2 Octaves Square Waveform

Both 50% duty cycle

OUTPUTS

12

14

Complex Waveforms

Complex Wave 1 with PWM

Complex Wave 2 with PWM

OUTPUTS
