Sida 1/9
BHM
09/02/15
NTV-DOC242
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 | P a g e
Optional video expansion board,
cable & harness
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com info@nav-tv.com
AUDI DYNAMIC-INT
NTV-KIT700

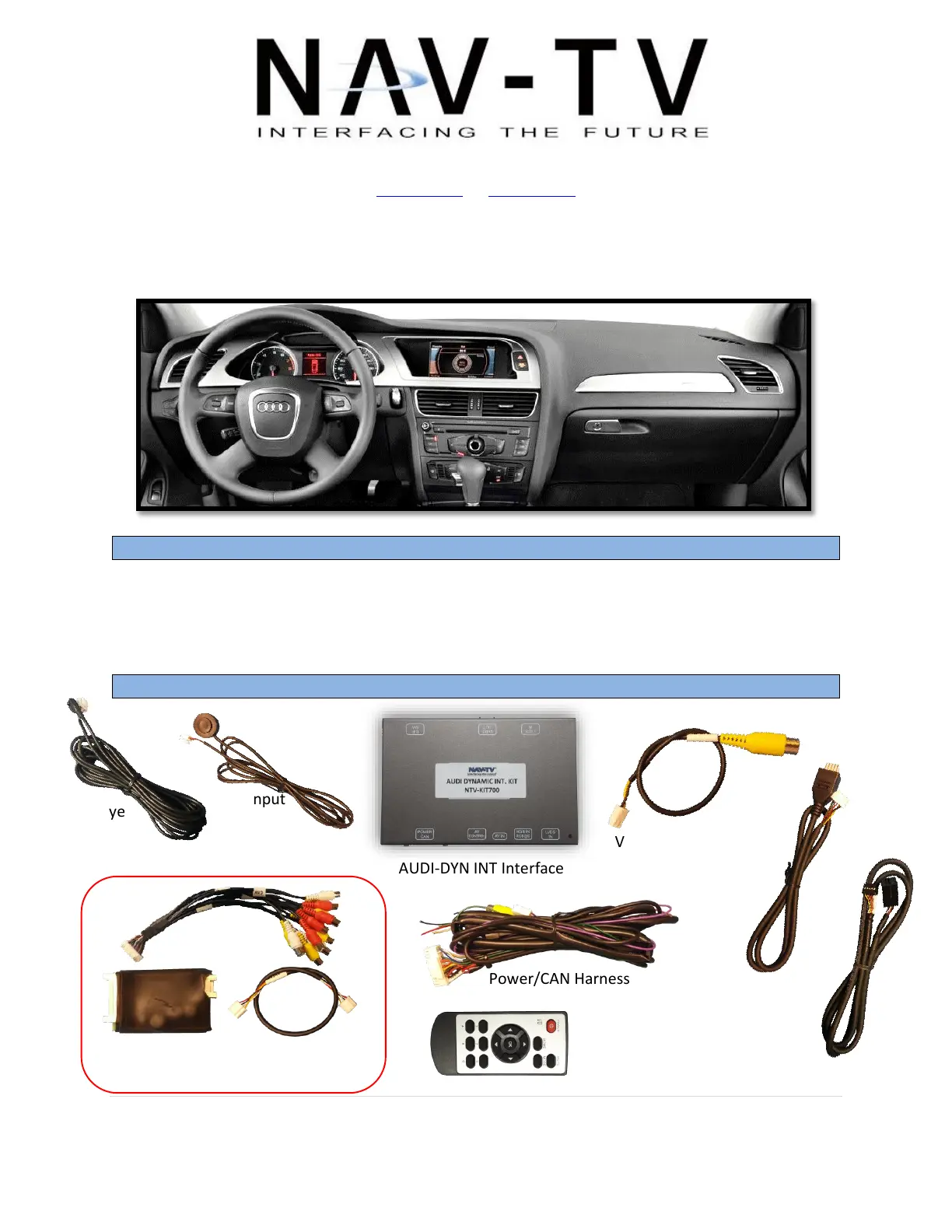

Overview
The AUDI-DYN INT Kit interfaces a backup camera (with dynamic guidelines) and one additional
video input (front cam, etc) to the factory media screen in select Audi vehicles with the Concert
media system (MMi controls on vertical radio face, not console).
Kit Contents
VIDEO Input RCA
Power/CAN Harness
LVDS-IN Cable
AUDI-DYN INT Interface
OSD Menu
Remote
LVDS-OUT Cable
IR-Eye
Cable
Input
Toggle
Switch
BHM
09/02/15
NTV-DOC242
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
2 | P a g e
Upon button presses

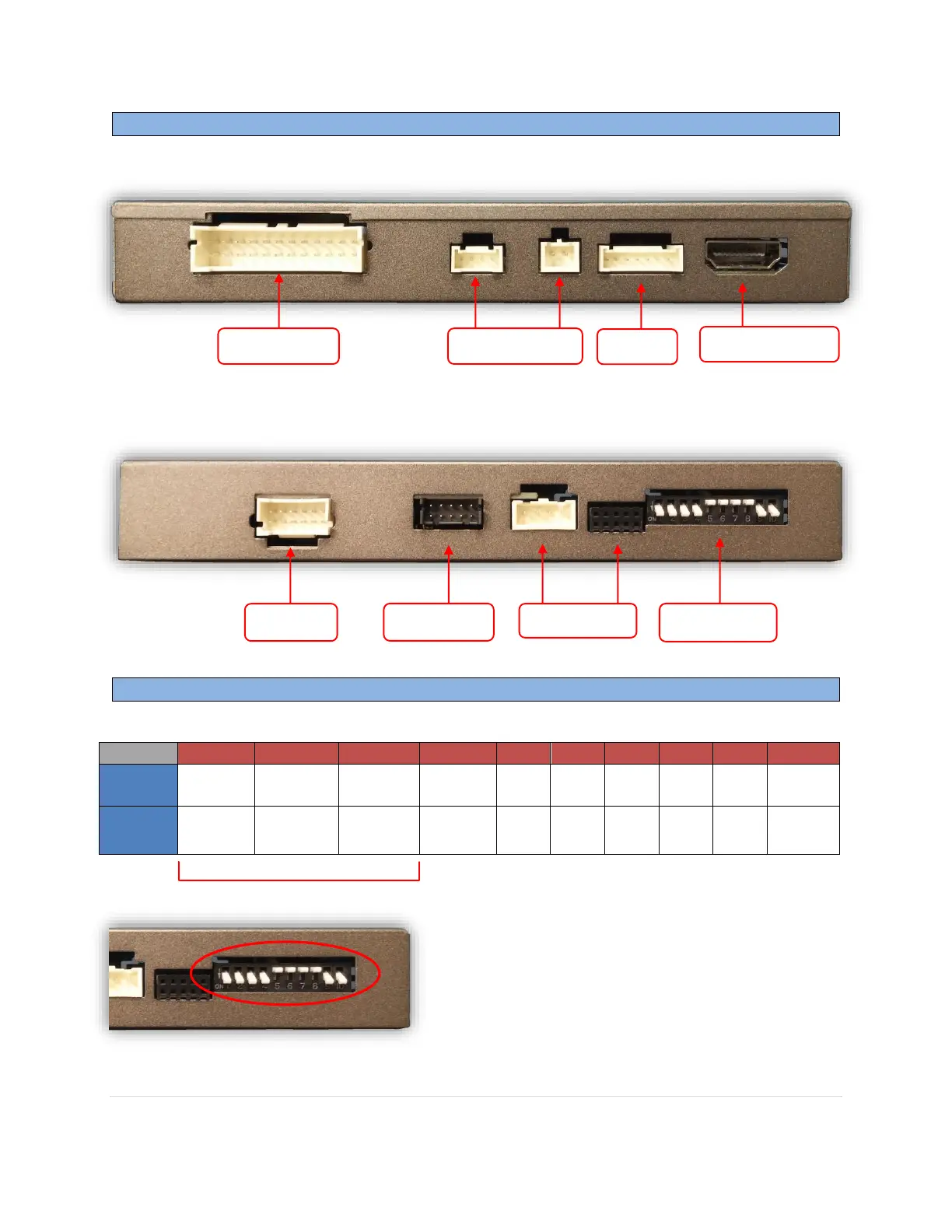

Interface Connectors
Dip Switch Settings
Dip SW:
1
2
3
4
5
6
7
8
9
10
UP
Skips
RGB
Skips
V1
Skips
V2
RVC OFF
N.C.
N.C.
N.C.
N.C.
HIGH
RES
Keep
Down
DOWN
Enables
RGB
Enables
V1
Enables
V2
RVC ON
N.C.
N.C.
N.C
N.C.
LOW
RES
Keep
Down
Power/CAN
OUOUT
Dip Switches
Note: If the dip switches are not configured prior to
installation you must remove power to the unit prior to
making adjustments to the dip switches.
LVDS-IN
LVDS-OUT
RGB IN
Not Used
OUOUT
LVDS (not used)
Not Used
BHM
09/02/15
NTV-DOC242
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
3 | P a g e

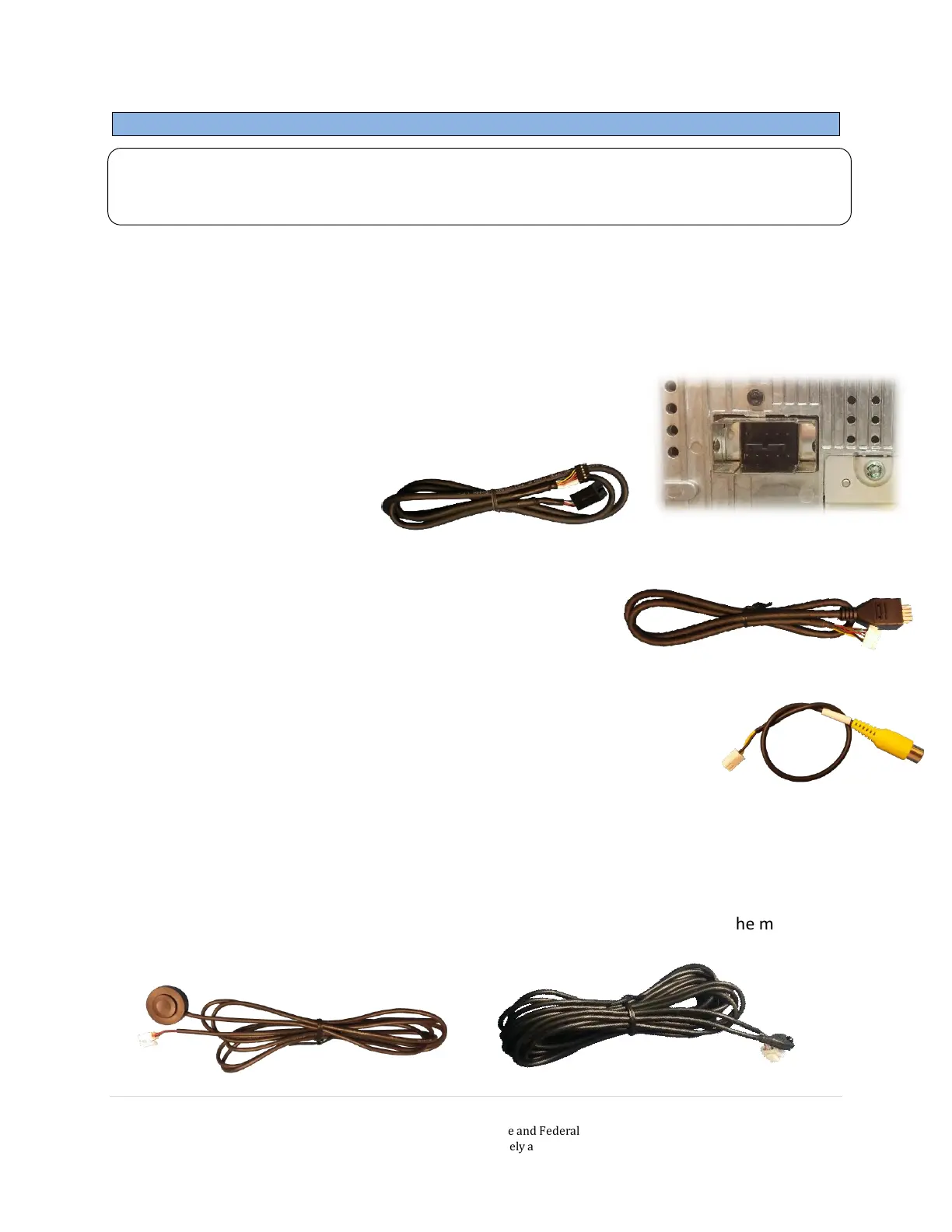

AUDI-DYN-INT Installation
1. Remove the factory screen. This requires removing the plastic screen bezel and then
(4x) Torx T20 screws. Disconnect the 10-pin harness from the screen and set the screen
aside.
2. Remove the factory radio (CD player). Disconnect all harnesses and set the radio aside.
3. Connect the provided LVDS-OUT Cable to the OEM screen.
This connector is keyed and will only fit in one direction. The
other end of this cable connects to the interface at the port
labeled ‘LVDS OUT’.
4. Connect the provided LVDS-IN Cable to OEM 10-pin square connector previously
connected to the screen (removed in step 1). The other
end of this cable connects to the interface at the port
labeled ‘LVDS IN’.
5. Optional: If adding an additional video input (front camera etc.), connect the
provided Video Input RCA to the port on the AUDI interface labeled ‘AV
IN’. Connect the video signal to this RCA, be certain the video source
is powered with an ACC source.
6. Optional: If this car is not equipped with OEM rear parking sensors, you may turn the
visual overlay off in the OSD menu system (see page 5 for menu information).
Note: If adjusting any OSD menu settings, temporarily connecting the provided AV
toggle switch and IR-Eye is required. Both harness connectors are located among the main
power harness (2-pin & 3-pin).
ATTENTION INSTALLER: All connections (including CAN) must be made BEFORE
connecting the power harness to this unit for proper startup operation.
