AUDI / VW / Porsche / Bentley M.O.S.T. 150 to 12-channel Analog & Digital
sound processor with OBD Programmer
NTV-KIT997
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
TY
12/28/21
NTV-DOC314C
2 | P a g e
ZEN-V Compatibility
The NAV-TV ZEN-V processor seamlessly converts late model AUDI, VW, Porsche & Bentley factory MOST-150
audio bus to 12-channel analog RCA and TOSLink output. Adding aftermarket amplifiers to the OE MIB, MIB2,
MIB2.5, MIB3 or PCM4, PCM4.1, PCM5.0 and PCM6 system has never been so simple. This kit integrates with
the OEM M.O.S.T.® bus to retain volume control, full fade (analog only) and balance, treble, mid-range, bass
control & Bluetooth voice calls with no external speaker (true OEM integration). NOTE: OEM radio systems not
equipped with an amplifier or fiber must be flashed with the VAG-COMM or NAV-TV’s ZEN-V-PRG (NTV-KIT861,
sold separately) prior to installation. Vehicles equipped with an OEM amplifier do not need to be flashed.
Cars with the MIB3 system require our OBD programmer, regardless of whether they have an Amp or not.
ZEN-V overview
(MIB, MIB2, MIB2.5
MIB3 or PCM4, 4.1,
5.0 or 6 radio only)

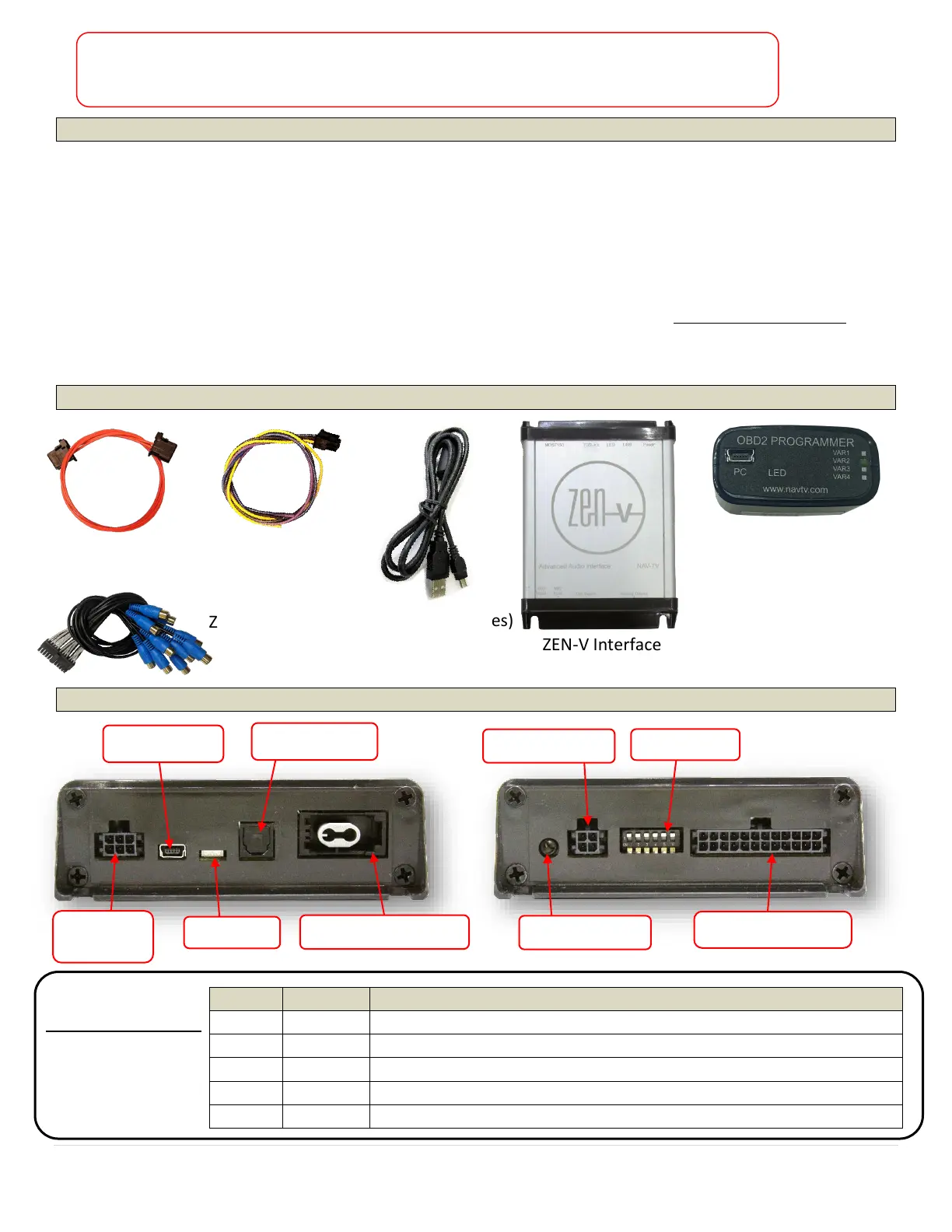

Kit Content
Year(s)
Make
Model
2015+
AUDI
Any model with confirmed MIB, MIB2, MIB3 or MIB HS (A3, TT, etc.)
2017+
AUDI
A3, A4, A5, A6, A7, A8, Q5, Q7, S3, S4, S5, S6, S7, S8, SQ5, TT , e-tron
2017+
Porsche
911, Boxster, Cayenne, Cayman, Macan, Panamera
2017+
Bentley
Bentayga
2016+
VW
ANY model with MIB, MIB2, MIB3 or MIB-HS
Power
connector
USB (updates)
TOSLink output
MOST 150 fiber input
--FUTURE USE--
Analog RCA outputs
WARNING: Do not connect any RCA cables to the ZEN-V interface or
additional processors prior to properly grounding aftermarket amplifier(s)!
DIP switches
Status LED
--FUTURE USE--
Overview
ZEN MOST Fiber
NTV-CAB134
USB Cable (updates)
NTV-CAB009
ZEN Power Harness
NTV-HAR316
ZEN RCA Harness
NTV-HAR315
ZEN-V Interface
NTV-ASY272
ZEN MIB3
Programmer
NTV-KIT996
TY
12/28/21
NTV-DOC314C
3 | P a g e
Wire Side
AUDI
Bentley
Bentayga
Porsche or
Audi MIB3
See Below
VW

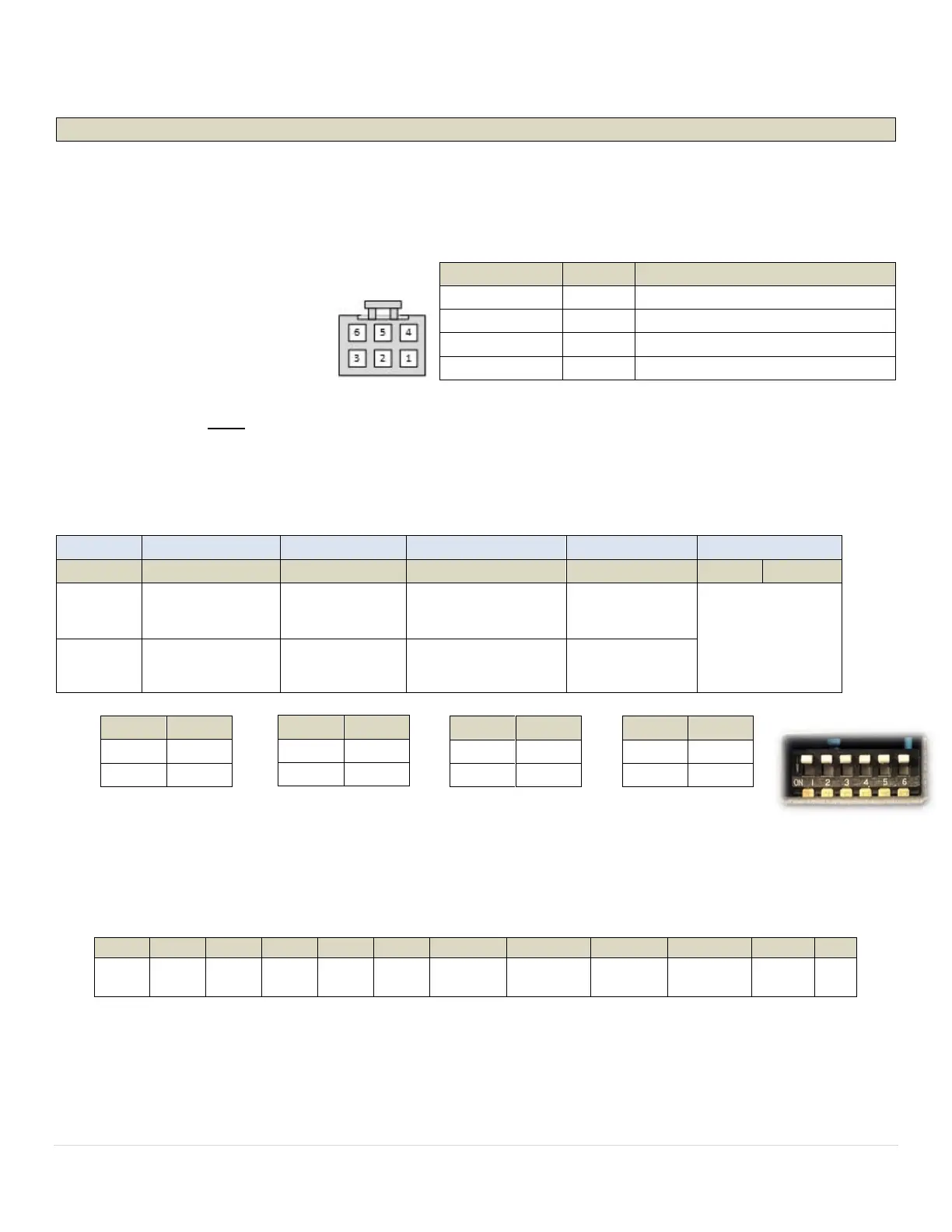

ZEN-V Installation
1. If this vehicle has a factory amplifier, it must be removed and the ZEN-V can be installed into its place. If
this is an MIB3 system, then the Zen is installed at the MMI module and the amp remains connected.
If this vehicle is not amplified from factory, install the ZEN-V behind the radio.
2. Connect the following wires from the
provided power harness:
*This remote wire must be used for aftermarket amplifier remote for proper functionality. A relay should be used
for reliable turn-on (500mA max).
3. Before connecting power to the ZEN-V, adjust dip-switch settings for the desired options:
4. If using analog RCAs for signal to the amplifier, connect according to the reference chart below.
WARNING: Do not connect RCA cables to this interface until all amplifiers/external processors are
properly grounded. Failure to do this may cause damage to the interface and VOID the warranty!
1
2
3
4
5
6
7
8
9
10
11
12
Left
Front
Right
Front
Left
Front
Right
Front
Left
Front
Right
Front
Left Rear
Door
Right Rear
Door
Left Rear
Center
Right Rear
Center
Center
Sub
5. If using TOSLink for signal to the amplifier, connect the cable to the TOSLink port shown on page 2.
NOTE: both Analog and Digital output sound simultaneously, regardless of which type is used.
6. Connect the provided MOST Fiber Cable from the (previously removed) amplifier, or from the radio/
MMI’s fiber port to the MOST port on the ZEN-V.
ZEN-V pin
Color
To vehicle:
1
Yellow
12v (+) Constant
3
Violet
--Reserved, NOT USED--
4
Black
Ground (-)
6
Blue
12v (+) remote output*
Time Alignment
Attenuation
TOSLink DownMix
Loudness
Vehicle Settings
Position
DIP 1
DIP 2
DIP 3
DIP 4*
DIP 5
DIP 6
UP
(off)
Front Row
Full Scale
output (0 dB)
DownMix ON
Loudness OFF
DOWN
(on)
Driver Focused
-12 dB output
DownMix OFF
Loudness ON
DIP 5
DIP 6
X
X
DIP 5
DIP 6
X
X
DIP 5
DIP 6
X
X
DIP 5
DIP 6
X
X
