Installation instructions and

how to use and look after your

built-in cooker hoods

NEFF (UK) Ltd

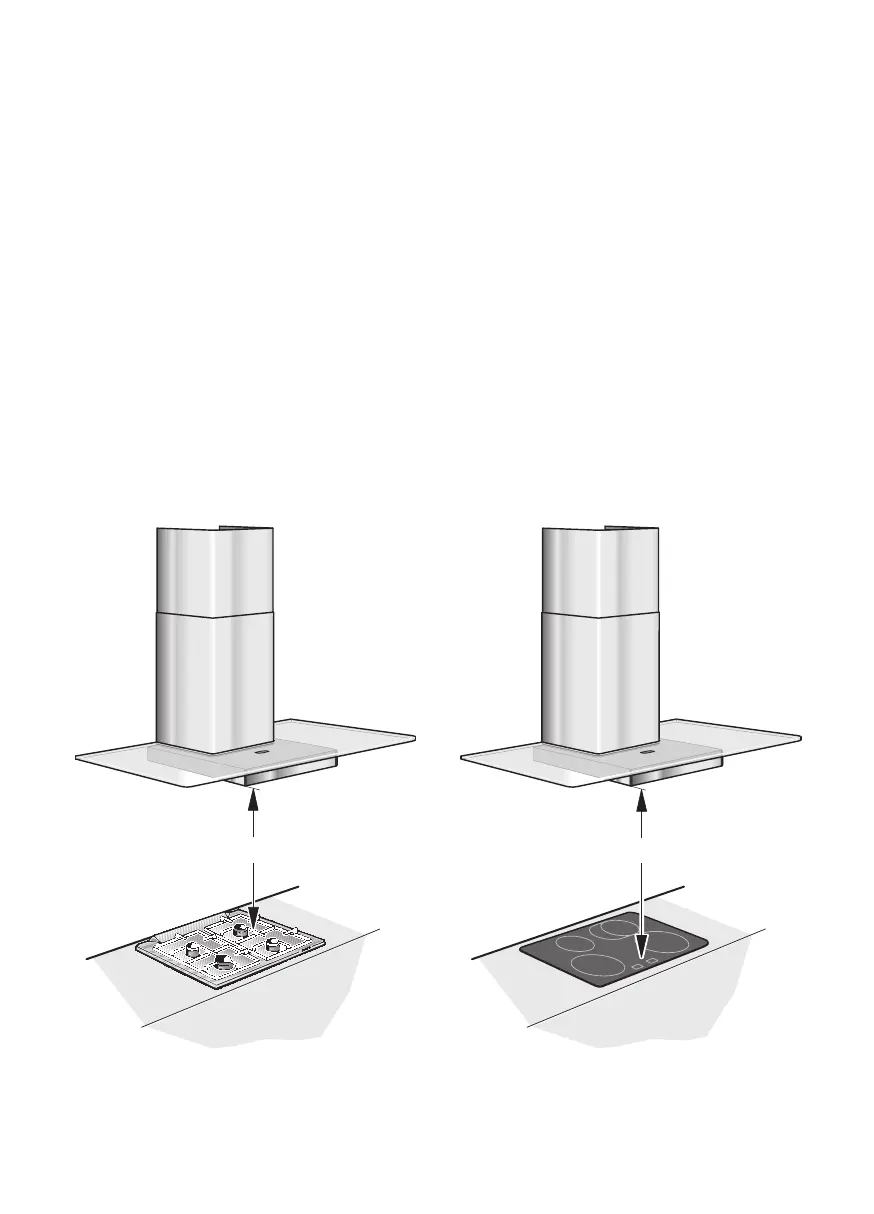

Abb. 1

ELECTRO

Fig. 1

GAZ

min. 650

min. 550

Operating modes

Exhaust-air mode:

❑ The extractor-hood fan extracts the

kitchen vapours and conveys them

through the grease ﬁlter into the

atmosphere.

❑ The grease ﬁlter absorbs the solid

particles in the kitchen vapours.

❑ The kitchen is kept almost free of grease

and odours.

When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-ﬁred heaters, continuous-ﬂow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

(0.04 mbar).

This can be achieved if combustion air can

ﬂow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

interlocking, etc.

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

be exceeded.

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating mode

– with activated carbon ﬁlter.

Instructions for use:

Circulating-air mode:

❑ An activated carbon ﬁlter must be ﬁtted

for this operating mode (see Filters and

maintenance).

The complete installation set and

replacement ﬁlters can be obtained from

specialist outlets.

The corresponding accessory numbers

can be found at the end of these

operating instructions.

❑ The extractor-hood fan extracts the

kitchen vapours which are puriﬁed in the

grease ﬁlter and activated carbon ﬁlter

and then conveyed back into the

kitchen.

❑ The grease ﬁlter absorbs the grease

particles in the kitchen vapours.

❑ The activated carbon ﬁlter binds the

odorous substances.

 If no activated carbon ﬁlter is installed,

it is not possible to bind the odorous

substances in the cooking vapours.
