Sida 1/45
www.newgy.com
Robo-Pong 2055 and Robo-Pong 1055
OWNER'S MANUAL
•2055 Quick Start ......... 2
•1055 Quick Start ............. 4
•Operation .......................6
•Robot Positions ......... 18
•Misc. Adjustments ..... 19
•Drill Diagrams ..............21
•Speed Calib. Target . . 27
•RP.2.PC ......................... 28
•Important Notices .... 34
•Take-Down, 2055 ......35
•Maintenance ................37
•Chip Replacement ... 38
•Exploded Views ........ 39
•Parts List ...................... 44
•Warranty & Repair ... 46
2

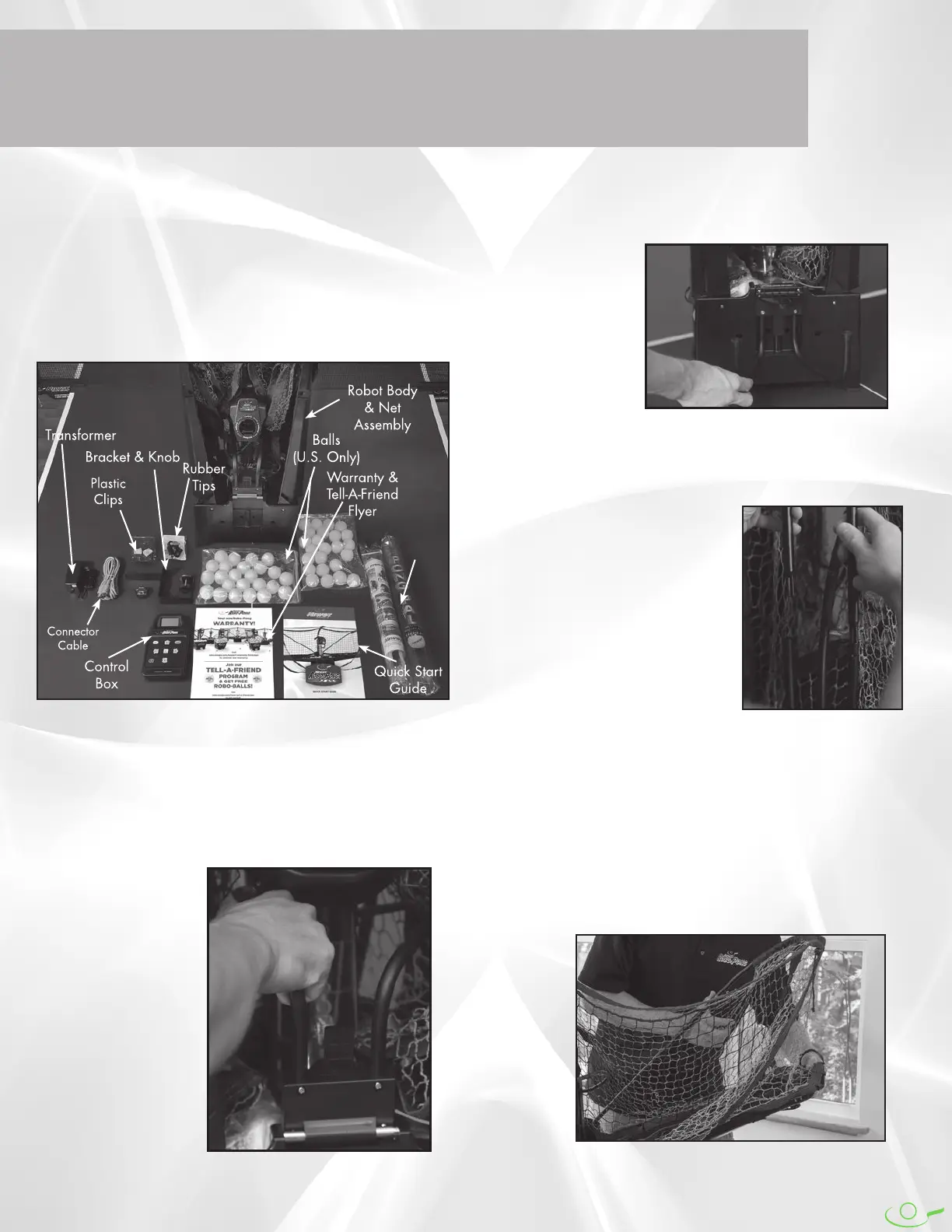

2055 QUICK START
Pull down support legs
Place the robot on the table with the
open front side facing you. Pull the curved
black metal support legs toward you.
Spread Support Legs Apart
Spread out the sup port legs to their
fully open position.
Join Net Support Tubes
Turn the robot around 180° so the Net
Support Tubes are now facing you.
Grasp the second
tube from your
right and pull up,
removing it from its
storage hole. Place
the bottom of this
tube into the top
of the first tube
on your right as
shown. Repeat on
the left side.
Gently Lower Ball Trays
Grasp one of the Ball Return Trays,
lift straight up to unlock it, grasp the
adjacent Net Support Tube, and slowly
lower them into position. Be careful
not to let the tray or support tube slam
down. Repeat on the other side.
Verify All Parts
Unpack all the parts and check that all
are present. If unable to identify a part,
look for a small silver label with the part
name. If a part is missing, please contact
Newgy. You may want to keep your box
and styrofoam pieces in case you need to
ship your robot.
1
5
2
3
4
Pong Pal
(U.S. Only)
