Sida 1/3

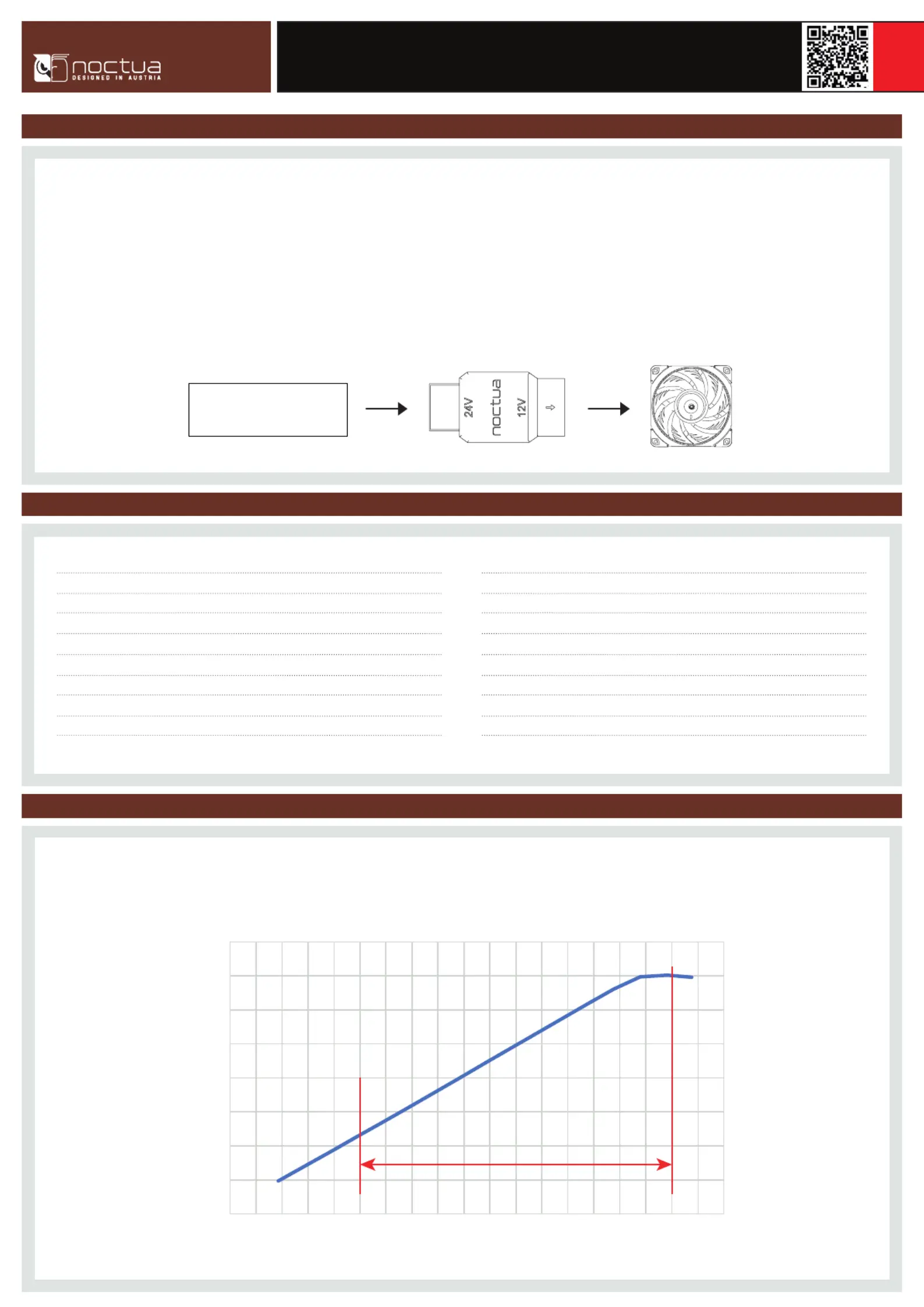

The NA-VC1 is a sophisticated, premium grade 24V DC to 12V DC step-down voltage converter that allows running standard 12V fans in 24V environments such as 3D printers or industrial

and automotive applications. Its neat, ultra-compact and lightweight design makes it easy to integrate in to virtually any environment. Compatible with both 4-pin PWM and 3-pin fans,

the NA-VC1 passes through RPM and PWM signals for speed monitoring and PWM-based speed control (4-pin fans only). At the same time, it adjusts output with input voltage for voltage-

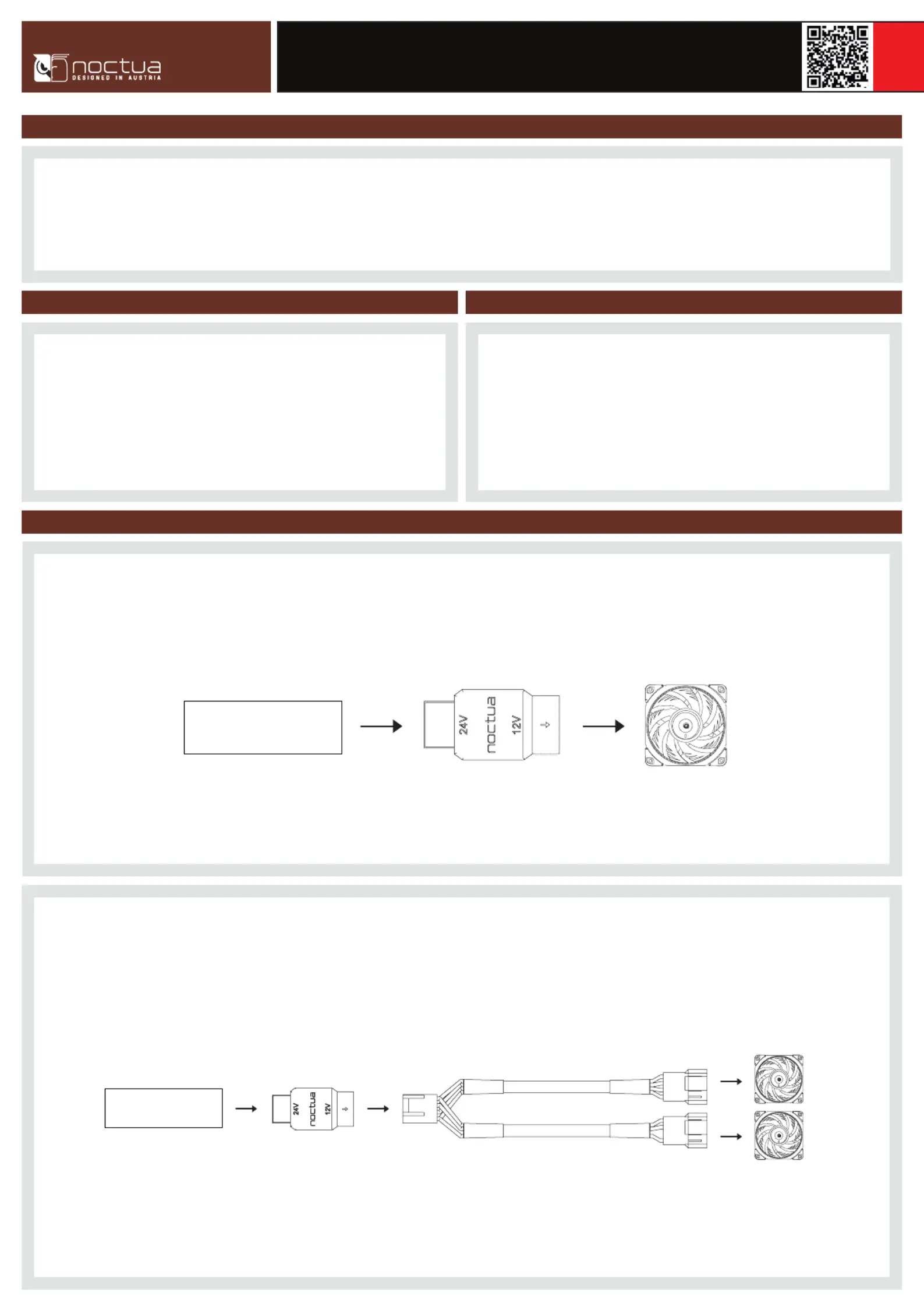

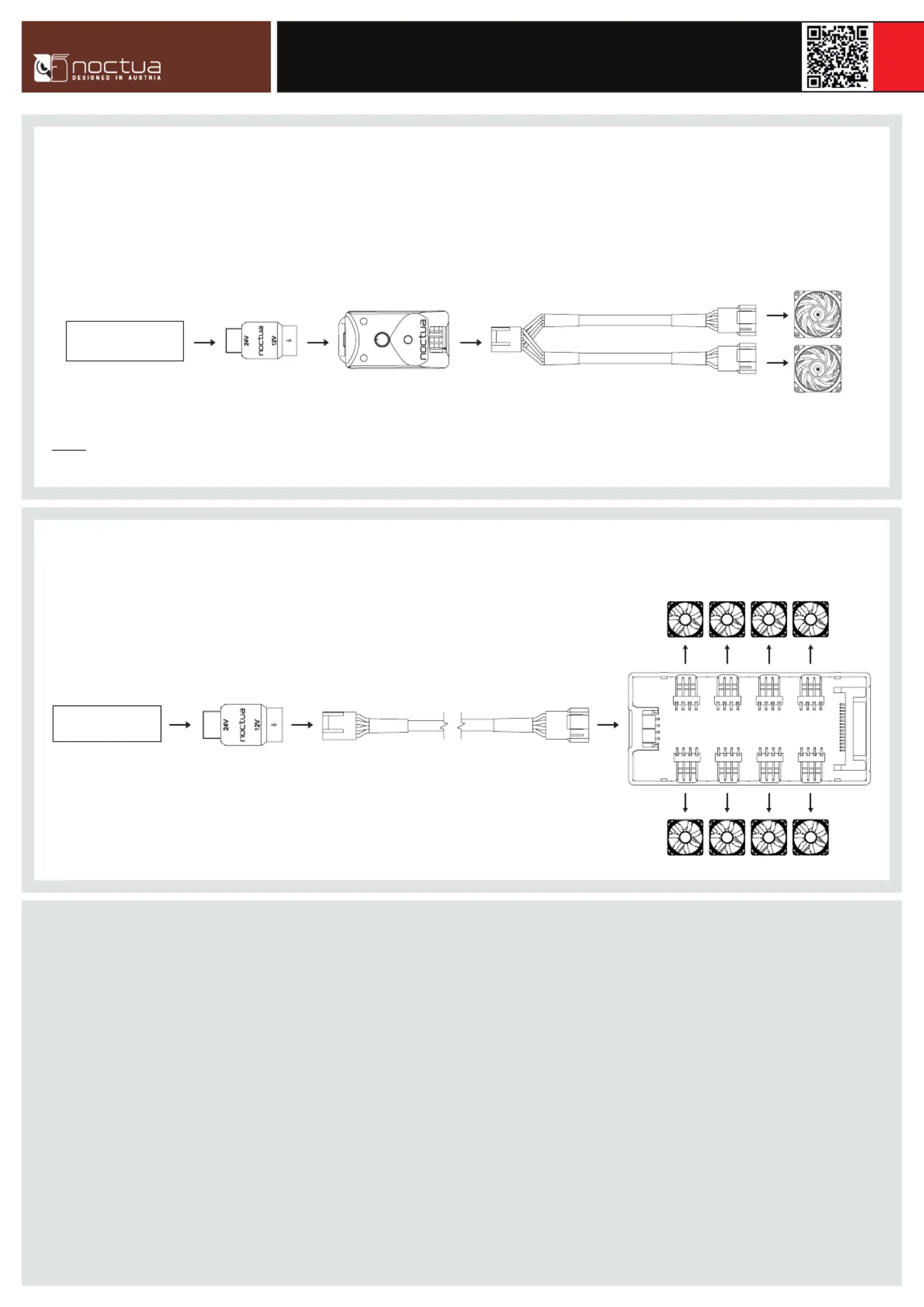

based speed control. Supporting a total output power of 9W, the NA-VC1 can run multiple fans using the optional NA-SYC1 splitter cables or NA-FH1 fan hub. For speed controlling PWM

fans, it can be nicely combined with the optional NA-FC1 fan controller. With a maximum operating temperature of up to 60°C, integrated protection against short-circuits, reverse polarity,

overcurrent and overheating (automatic shutdown) as well as a safety fuse that protects other components in case the unit is mechanically compromised, the NA-VC1 is as bulletproof as a

voltage converter can be. Topped off with CE, UKCA and UL certifications, full compliance with all applicable safety standards as well as Noctua’s 6-year manufacturer’s warranty, it is the

first choice for quality-conscious customers who seek a safe, dependable solution for powering 12V fans in 24V applications.

Output connectors: 1x 4-pin PWM

Input connectors: 1x 4-pin PWM

Max. power: 9W

Input voltage: 12-24V

Max. input current: 0.375A

Output voltage: 7-12V

Max. output current: 0.75A

Fan compatibility: all Noctua 12V fans, many third party fans

Operating temperature: -20°C to +60°C

Safety standards: EN 62368-1, EN 55035, EN 55032

Introduction

Specifications

PWM and voltage-based speed control

Certifications: CE, UKCA, UL

Protection features: • Short-circuit protection

• Reverse polarity protection

• Overcurrent protection

• Overheating protection (automatic shutdown)

Scope of delivery: NA-VC1

Size: 31x16x8.5mm

Weight: 6g

Warranty: 6 years

The NA-VC1 supports both PWM- and voltage-based speed control. PWM signals are passed through and the output voltage scales with the input voltage, e.g. if the input is 12V, the output

will be ~7.5V, allowing a 12V fan to run at a reduced speed:

12V fan (9W max.)

24V power source

Input voltage (V)

Output voltage (V)

Input vs. output voltage

7 9 10 11 12 13 14 15 16 17 18 2419 20 21 22 23 25 268

Specified operational interval

Noctua NA-VC1 | User manual

Scan this code to display

multilingual manuals on

your mobile phone.
