Sida 1/4

Fix the bolts using the NM-ICS1 clip-on spacers. Note that

2 extra clip-on spacers are supplied in case any are lost or

damaged when removing the bolts at a later point.

For LGA1200/115x (LGA1150, LGA1151, LGA1155,

LGA1156) apply a single 4-5mm dot in the centre:

Required mounting parts:

If you would like to use the cooler on an assembled

system and your case does not have a cut-out at the

rear side of the motherboard tray, you must first

remove the motherboard from the case in order to be

able to install the supplied backplate.

Removing the motherboard

Setting up the backplate2

First, identify the side of the backplate that should face the

motherboard (marked with caution signs). Then choose

the appropriate hole spacing for your socket and insert

the four bolts into the backplate from the opposite side

(marked with model name, SecuFirm2™ branding and

numbers for hole spacing) at the appropriate position.

Use hole position 1 for LGA1200/115x (LGA1150,

LGA1151, LGA1155, LGA1156) and hole position 2 for

LGA1700 (LGA17xx family):

4x NM-IPS1

black plastic spacers for

LGA1200/115x

4x NM-IPS3

blue plastic spacers for

LGA1700

Attaching the backplate3

Caution: The supplied backplate will install over the

motherboard’s stock backplate, so the motherboard’s

stock backplate must not be taken off.

Place the backplate on the rear side of the motherboard so

that the bolts protrude through the mounting holes.

Please first choose the correct set of plastic spacers and

the correct set of holes on the mounting bars according

to whether you are using an LGA1200/LGA115x (LGA1150,

LGA1151, LGA1155, LGA1156) or an LGA1700 (LGA17xx

family) socket motherboard.

Use the black NM-IPS1 plastic spacers for LGA1200/

LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and

the blue NM-IPS3 plastic spacers for LGA1700 (LGA17xx

family).

Installing the mounting bars4

NM-IPS3 (blue)

LGA1700

NM-IPS1 (black)

LGA1200/115x

Caution: Make sure to use the correct hole position on both

ends of the NM-IMB3 mounting bars so that they will not

be misaligned.

Put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Caution: Choose the alignment of the mounting bars

according to the desired final orientation of the cooler:

Caution: Make sure that the curved sides of the mounting

bars are pointing outwards.

Fix the mounting bars using the four NM-ITS1 thumb

screws.

Caution: Gently tighten the screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).

Applying the thermal paste5

If there are residual traces of thermal paste or thermal

pads on your CPU, please clean them off first. Then apply

the supplied NT-H1 thermal paste onto the CPU as shown

in the following images.

For LGA1700 (LGA17xx family), apply 5 small dots; 4 dots

with ~2mm diameter near the corners plus 1 dot with

3-4mm diameter in the centre:

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Fastening the heatsink to the CPU6

Caution: Please first take off the fan as well as the protec-

tion cover at the bottom side of the heatsink.

Then put the heatsink onto the CPU and screw it to the

screw threads of the mounting bars. Perform 2-3 turns on

each screw, then repeat until both are fully tightened.

Caution: Gently tighten the screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).

Use hole position 1 for LGA1200/115x (LGA1150,

LGA1151, LGA1155, LGA1156) and hole position 2 for

LGA1700 (LGA17xx family):

4x NM-IBT5

bolts

4x NM-ICS1

clip-on spacers

4x NM-ITS1

thumb screws

2x NM-IMB3

mounting bars

1x NM-IBP4

backplate

Position 1:

LGA1200/115x

Position 2:

LGA1700

Position 1:

LGA1200/115x

Position 2:

LGA1700

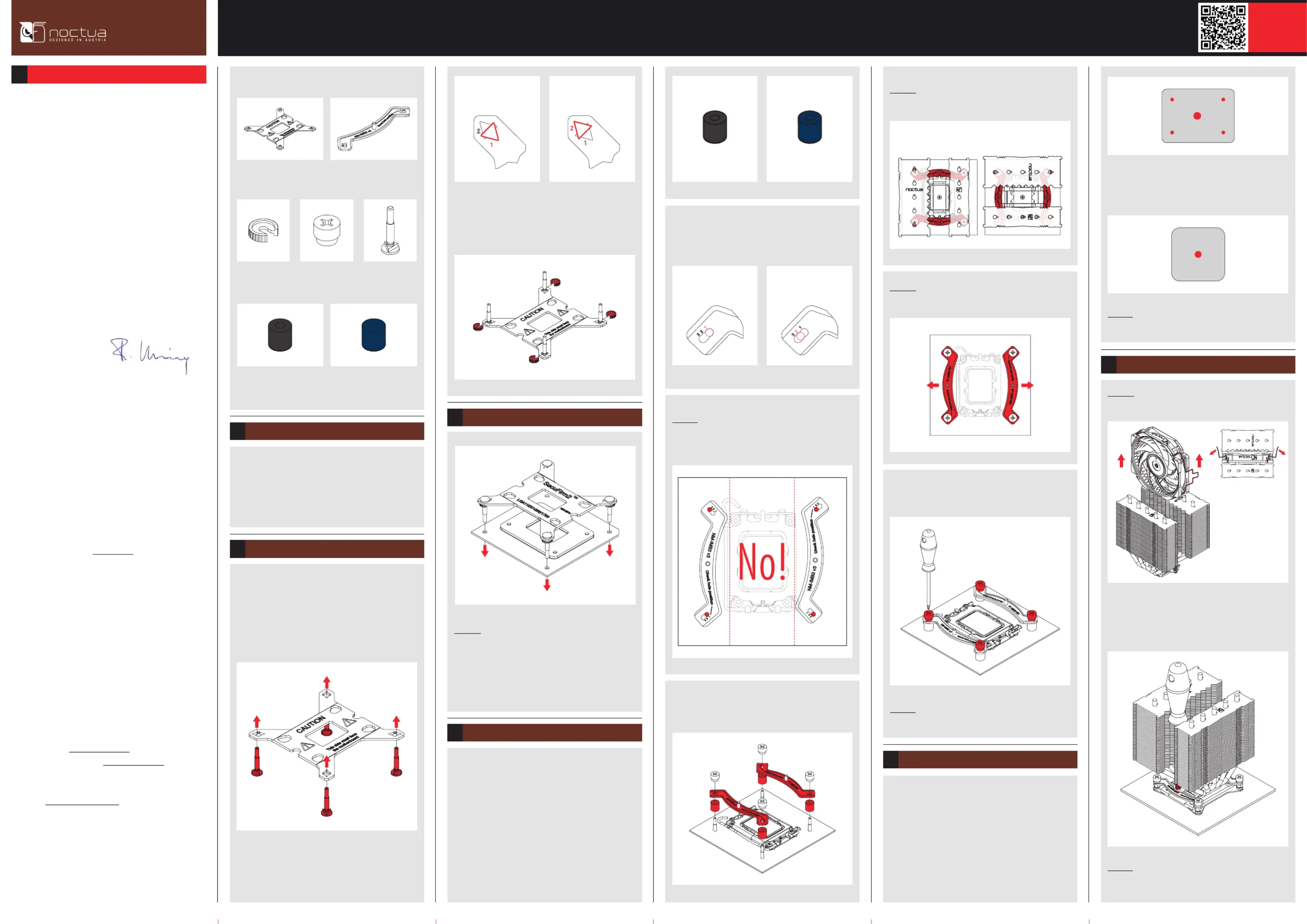

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website ( ) and verify that the ncc.noctua.at

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Dear customer,

Thank you very much for choosing the Noctua NH-D12L.

The NH-D12L is a low-height 120mm class CPU cooler that

has been conceived to combine outstanding quiet cooling

performance with superior case compatibility.

It is the perfect choice for applications that require serious

cooling efficiency but cannot fit the larger U12A!

Enjoy your NH-D12L!

Yours sincerely,

Roland Mossig, Noctua CEO

INSTALLATION MANUAL

LGA1700, LGA1200 & LGA115x!

Scan this code to

display multilingual

manuals on your

phone.

NOCTUA NH-D12L

INSTALLATION MANUAL

Orientation A Orientation B

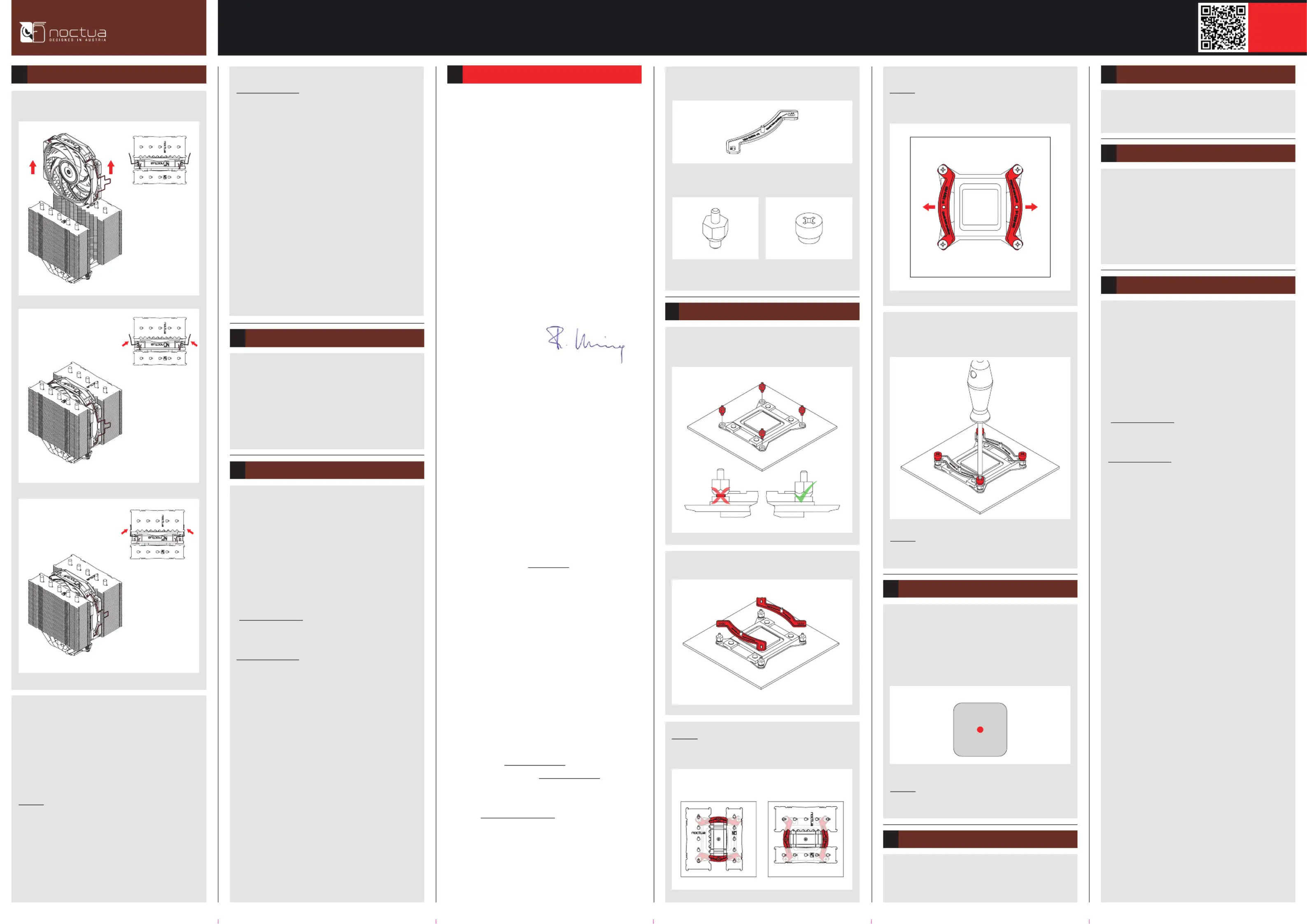

Fan setup7

Reattach the fan using the supplied steel clips:

Connect the fan to the motherboard’s CPU fan header.

Depending on your CPU and the temperature inside the

case, you may interconnect the supplied NA-RC14 Low-

Noise Adaptor (L.N.A.) in order to further reduce the fan’s

operating noise.

Caution: When using the L.N.A., check the temperature of

your CPU using appropriate software (e.g. the respective

applications of your motherboard manufacturer), in order to

evade automatic throttling of the CPU due to the increased

temperature. If the cooling performance is insufficient,

please increase case ventilation or remove the L.N.A.

Adding a second fan

The NH-D12L includes an extra set of fan clips for installing

a second NF-A12x25r PWM fan either on the front or

on the rear fin stack in order to further improve cooling

performance. Please note that the supplied fan clips only

support the round-frame NF-A12x25r fan and cannot be

used to install standard square-frame 120mm fans.

Please also note that the second NF-A12x25r fan will

usually sit on top of either the RAM or I/O panel shroud and

thereby increase the total height of the cooler beyond

145mm. Therefore, verify that you have sufficient room

inside your case before adding a second fan. For example,

if the fan sits above the RAM and your RAM modules are

50mm high, you will need 170mm clearance (50mm RAM

+ 120mm fan).

Transporting your system!

As it is not possible to reliably calculate or control the

forces that act upon a system during transport (e.g. in

shipping), we generally recommend, for safety reasons,

taking the cooler off. Noctua cannot be held responsible for

any damage that may arise due to excessive stress during

transport if you keep the heatsink installed.

Warranty, support and FAQs!

Even with high-grade products and strict quality control,

the possibility of defects cannot be eliminated entirely.

Therefore, we aim at providing the highest possible level

of reliability and convenience by offering a warranty period

of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-D12L,

please don’t hesitate to contact our support team

( ). support@noctua.at

Please also consult the FAQ section on our website:

www.noctua.at/faqs

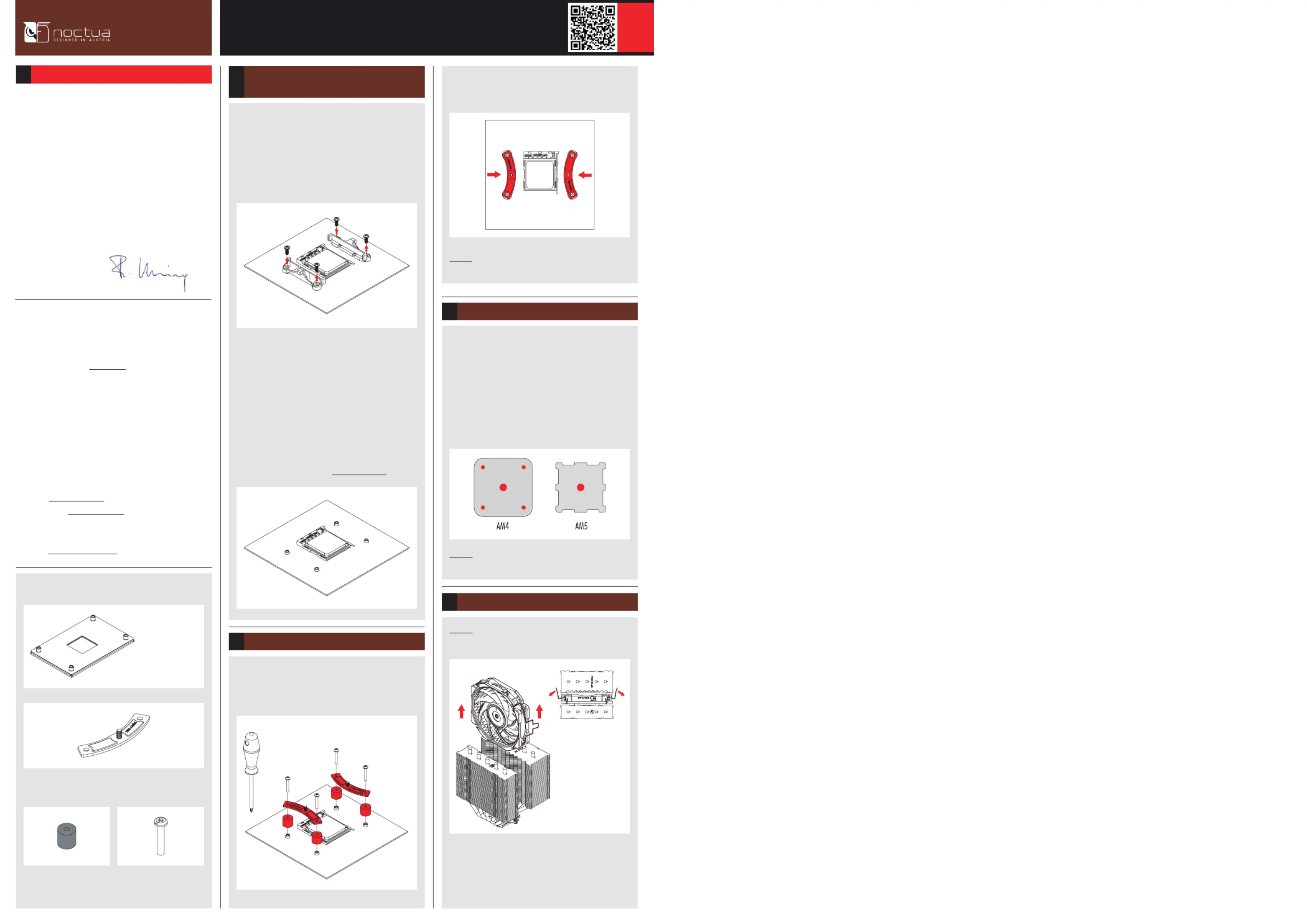

Required mounting parts:

2x NM-IMB3

mounting bars

4x NM-ITS1

thumb screws

4x NM-IBT2

bolts

Installing the mounting bars

First screw the NM-IBT2 bolts into the screw threads of the

LGA20xx socket frame.

Then put the NM-IMB3 mounting bars onto the bolts.

Caution: Choose the alignment of the mounting bars

according to the desired final orientation of the cooler:

Fix the mounting bars using the four NM-ITS1 thumb

screws.

Caution: Gently tighten the screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).

Caution: Make sure that the curved sides of the mounting

bars are pointing outwards.

Applying the thermal paste2

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off first.

Then press a small drop with 4-5mm diameter of NT-H1

thermal paste onto the centre of the heat-spreader.

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website ( ) and verify that the ncc.noctua.at

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card, other PCIe cards, motherboard

heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

INSTALLATION MANUAL

LGA20xx!

Fastening the heatsink to the CPU3

Please refer to step 6 of the LGA1700, LGA1200 & LGA115x

installation manual.

Fan setup

Please refer to step 7 of the LGA1700, LGA1200 & LGA115x

installation manual.

Transporting your system!

As it is not possible to reliably calculate or control the

forces that act upon a system during transport (e.g. in

shipping), we generally recommend, for safety reasons,

taking the cooler off. Noctua cannot be held responsible for

any damage that may arise due to excessive stress during

transport if you keep the heatsink installed.

Warranty, support and FAQs!

Even with high-grade products and strict quality control,

the possibility of defects cannot be eliminated entirely.

Therefore, we aim at providing the highest possible level

of reliability and convenience by offering a warranty period

of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-D12L,

please don’t hesitate to contact our support team

( ). support@noctua.at

Please also consult the FAQ section on our website:

www.noctua.at/faqs

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Scan this code to

display multilingual

manuals on your

phone.

NOCTUA NH-D12L

INSTALLATION MANUAL

Orientation A Orientation B

Dear customer,

Thank you very much for choosing the Noctua NH-D12L.

The NH-D12L is a low-height 120mm class CPU cooler that

has been conceived to combine outstanding quiet cooling

performance with superior case compatibility.

It is the perfect choice for applications that require serious

cooling efficiency but cannot fit the larger NH-U12A!

Enjoy your NH-D12L!

Yours sincerely,

Roland Mossig, Noctua CEO

If your motherboard comes with a pre-installed CPU cooler

retention module, please first remove it by unscrewing it from the

backplate.

The SecuFirm2™ mounting system will install directly to the stock

backplate, so please keep it in place.

Removing the stock retention module −

putting the backplate in place

Dear customer,

Thank you very much for choosing the Noctua NH-D12L.

The NH-D12L is a low-height 120mm class CPU cooler that

has been conceived to combine outstanding quiet cooling

performance with superior case compatibility. It is the

perfect choice for applications that require serious cooling

efficiency but cannot fit the larger NH-U12A!

Enjoy your NH-D12L!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

centre on our website ( ) and verify that the coolerncc.noctua.at

is fully compatible with your motherboard. Please also make

sure that your PC case offers sufficient clearance for the cooler

and that there are no compatibility issues with any other

components (e.g. tall RAM modules). Double check that the

heatsink and fan clips do not make contact with the VGA

card, other PCIe cards, motherboard heatsinks or any other

components. Noctua cannot be held responsible for any

damage or losses caused by compatibility issues. Should

you encounter any difficulties, please check the FAQs on our

website ( ) and don’t hesitate to contact our www.noctua.at/faqs

support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

First put the plastic spacers onto the screw threads of the backplate,

then fix the NM-AMB6 mounting bars using the four NM-ALS1

long screws.

Make sure that the curved sides of the mounting bars are pointing

inwards.

If your motherboard does not come with a pre-installed CPU cooler

retention module, the AMD stock backplate should be included with

the motherboard accessories.

Please put the backplate on the rear side of the motherboard so that

the screw threads of the backplate stick through the mounting holes

of the motherboard as shown below.

If your motherboard does not include a stock backplate, please

contact Noctua customer support at support@noctua.at.

Attaching the mounting bars2

Applying the thermal paste3

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

AMD (AM4 & AM5)!

Required mounting parts:

AMD stock backplate

(included with the motherboard)

4x NM-APS4

grey plastic spacers

2x NM-AMB6

mounting bars

4x NM-ALS1

long screws

Caution: Gently tighten the screws until they stop, but do not use

excessive force (max. torque 0.6 Nm).

Scan this code to display

multilingual manuals on

your phone.

NOCTUA NH-D12L

INSTALLATION MANUAL

Caution: Please first take off the fan as well as the protection

cover at the bottom side of the heatsink.

Fastening the heatsink to the CPU

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars. Perform 2-3 turns on each screw,

then repeat until both are fully tightened.

If there are residual traces of thermal paste or thermal pads on your

CPU, please clean them off first.

For AM4, apply 4 small dots with ~2mm diameter near the corners

plus 1 dot with 3-4mm diameter in the centre of the heat-spreader.

For AM5, apply 1 dot with 3-4mm diameter in the centre of the

heat-spreader.

Produktspecifikationer

Varumärke:	Noctua
Kategori:	Hårdvarakylning
Modell:	NH-D12L
Vikt:	700 g
Bredd:	125 mm
Djup:	113 mm
Ljudnivå (låg hastighet):	18.8 dB
Material:	Aluminium, Copper, Nickel
Modell:	Luftkylare
Maximalt luftflöde:	84.5 cfm
Rotationshastighet (max):	2000 RPM
Medeltid mellan fel (MTBF):	150000 h
Rotationshastighet (min):	450 RPM
Spänning:	12 V
Lagertyp:	Self-Stabilising Oil-pressure Bearing (SSO)
Produktens färg:	Aluminium, Beige, Brown
Ljudnivå (hög hastighet):	22.6 dB
Lämplig placering:	Processor
Stödd processor uttag:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066
Kylarmaterial:	Aluminium
