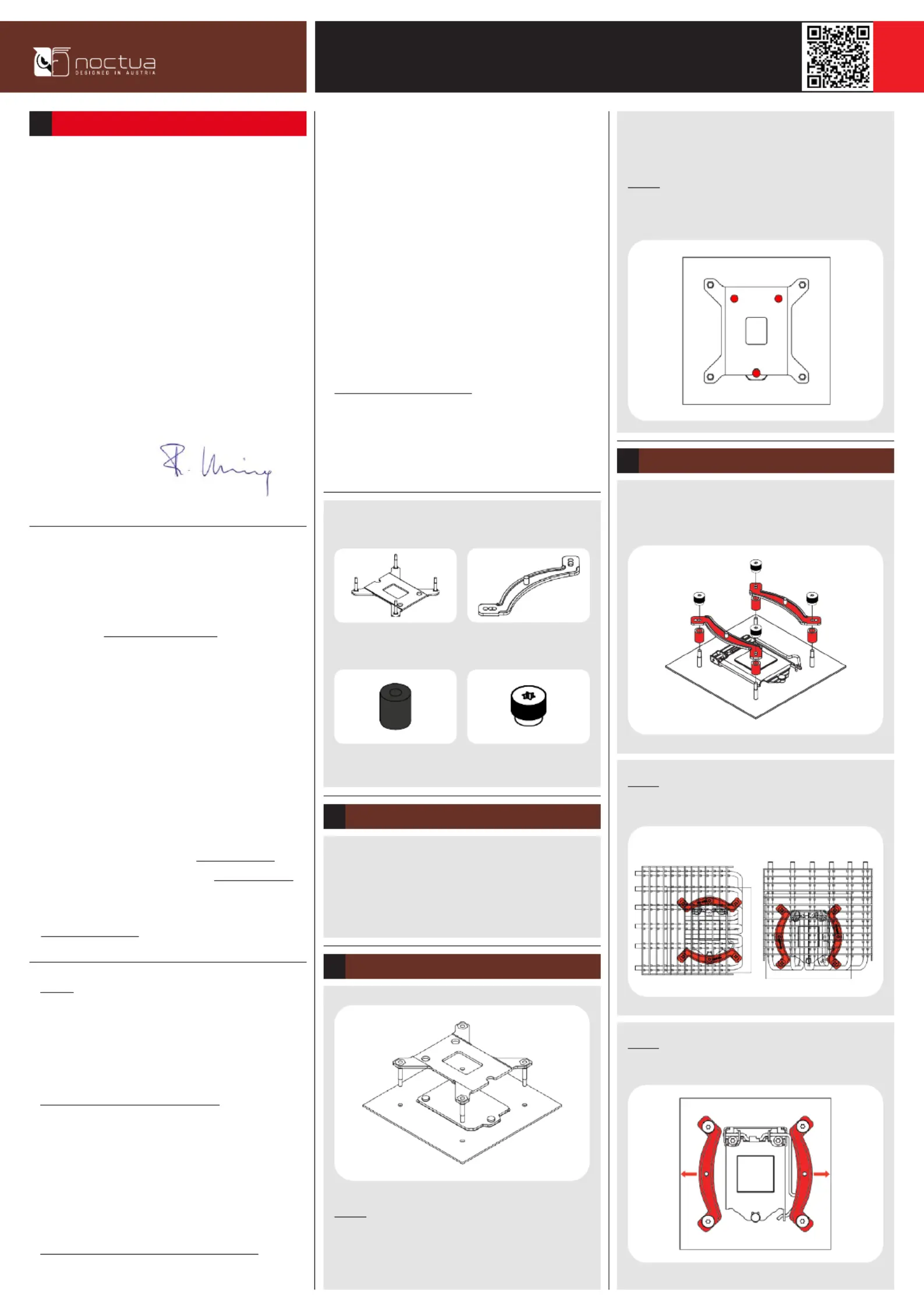

Place the backplate on the rear side of the motherboard so that the

bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the motherboard’s

stock backplate.

First put the plastic spacers onto the bolts of the backplate, then

add the NM-IMB2 mounting bars.

Installing the mounting bars3

Noctua NH-P1|

Installation manual

Scan this code to display

multilingual manuals on

you mobile phone.

While the NH-P1 provides first-rate performance for a passive

cooler, it is not suitable for overclocking or CPUs that create high

heat-loads. Please note that the TDP (Thermal Design Power)

rating or amount of heat dissipation that the cooler can handle

not only depends on the chassis and various other factors such as

ambient temperature or other components inside the system, but

also generally varies from CPU model to CPU model.

For this reason, we specify cooling performance using the

Noctua Standardised Performance Rating (NSPR) instead of

giving a general TDP specification. In addition, we refer to our

CPU compatibility list where we indicate how well the cooler can

be expected to work on a particular CPU in a fully optimised

setup (see our setup guidelines):

https://ncc.noctua.at/s/nh-p1-cpus

If necessary, Noctua recommends adding a near-inaudible

120mm fan like the NF-A12x25 LS-PWM to the heatsink for

improved performance headroom.

Dear customer,

Congratulations on choosing the Noctua NH-P1.

The NH-P1 is Noctua’s first passive CPU cooler and has been

custom-designed for fanless operation from ground up: In

enclosures with good natural convection, its six heatpipes and

thick, widely spaced heatsink fins enable it to cool modern

high-end CPUs with low to moderate heat dissipation

completely passively. Please take a look at our setup guidelines

in order to make sure that you will get optimal results.

Enjoy your NH-P1!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2+™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient clearance

for the cooler and that there are no compatibility issues with any

other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses caused

by compatibility issues. Should you encounter any difficulties,

please check the FAQs on our website ( ) and www.noctua.at/faqs

don’t hesitate to contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

LGA115x & LGA1200

Caution: In order to get optimal results when building passively

cooled systems using the NH-P1, it is important to follow some

general guidelines.

Please refer to the following page for detailed guidelines and

recommendations on how to set up your system for best results:

https://noctua.at/en/nh-p1-setup-guidelines

The NH-P1 strictly requires either a fanless PC case with good

natural convection, an open benchtable type setup or a PC case

with fans in order to achieve its full performance.

We offer a list of recommended cases for completely fanless

systems using the NH-P1:

https://ncc.noctua.at/s/nh-p1-case-recommendations

Required mounting parts:

4x NM-ITS1-TX

thumb screws

4x NM-IPS1

plastic spacers

1x NM-IBP2

backplate

2x NM-IMB2

mounting bars

In case you want to use the cooler on an assembled system and

your case doesn’t have a cut-out at the rear side of the mother-

board tray, you first have to remove the motherboard from the

case in order to be able to install the supplied backplate.

Removing the motherboard1

Caution: - The supplied backplate will install over the mother

board’s stock backplate, so the motherboard’s stock backplate

must not be taken off.

Attaching the backplate2

Caution: Choose the alignment of the mounting bars according to the

desired final orientation of the cooler:

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Orientation A Orientation B

Noctua NH-P1|

Installation manual

Scan this code to display

multilingual manuals on

you mobile phone.

While the NH-P1 has been designed for passive operation, its

cooling performance can be significantly improved by adding a

near-silent low-speed fan such as the NF-A12x25 LS-PWM. In

order to install the fan using the supplied fan mounting clips,

please first decide on which side of the cooler you would like to

install the fan and identify the correct hole set (1/2/3):

Fan setup

Warranty, support and FAQs!

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-P1, please

don’t hesitate to contact our support team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the thumb screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).

Applying the thermal paste4

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first using the supplied NA-CW1

cleaning wipe. Then press a drop (3-4mm diameter) of NT-H2

onto the centre of the heat-spreader.

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Caution: Please first take off the protection cover at the bottom

side of the heatsink.

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.

Perform 2-3 turns on each screw, then repeat until both are fully

tightened.

Fastening the heatsink to the CPU5

Caution: Gently tighten the screws until they stop, but do not use

excessive force (max. torque 0.6 Nm).

Then insert the tips of the fan clips into the correct hole set.

Place the fan on the heatsink and pull the clips over the fan to

hold it in place.

Connect the fan to one of the fan headers of your motherboard.

Hole set 1

Hole set 2

Hole set 3

Noctua NH-P1|

Installation manual

Scan this code to display

multilingual manuals on

you mobile phone.

Required mounting parts:

4x NM-IBT2

bolts

2x NM-IMB2

mounting bars

4x NM-ITS1-TX

thumb screws

Installing the mounting bars1

First screw the NM-IBT2 bolts into the screw threads of the

LGA20xx socket frame.

Caution: Choose the alignment of the mounting bars according to

the desired final orientation of the cooler:

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Then put the NM-IMB2 mounting bars onto the bolts.

Orientation A Orientation B

Dear customer,

Congratulations on choosing the Noctua NH-P1.

The NH-P1 is Noctua’s first passive CPU cooler and has been

custom-designed for fanless operation from ground up: In

enclosures with good natural convection, its six heatpipes and

thick, widely spaced heatsink fins enable it to cool modern

high-end CPUs with low to moderate heat dissipation

completely passively. Please take a look at our setup guidelines

in order to make sure that you will get optimal results.

Enjoy your NH-P1!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2+™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient clearance

for the cooler and that there are no compatibility issues with any

other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses caused

by compatibility issues. Should you encounter any difficulties,

please check the FAQs on our website (www.noctua.at/faqs) and

don’t hesitate to contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

LGA20xx

Caution: In order to get optimal results when building passively

cooled systems using the NH-P1, it is important to follow some

general guidelines.

Please refer to the following page for detailed guidelines and

recommendations on how to set up your system for best results:

https://noctua.at/en/nh-p1-setup-guidelines

The NH-P1 strictly requires either a fanless PC case with good

natural convection, an open benchtable type setup or a PC case

with fans in order to achieve its full performance.

We offer a list of recommended cases for completely fanless

systems using the NH-P1:

https://ncc.noctua.at/s/nh-p1-case-recommendations

While the NH-P1 provides first-rate performance for a passive

cooler, it is not suitable for overclocking or CPUs that create high

heat-loads.

Please note that the TDP (Thermal Design Power) rating or amount

of heat dissipation that the cooler can handle not only depends on

the chassis and various other factors such as ambient temperature

or other components inside the system, but also generally varies

from CPU model to CPU model.

For this reason, we specify cooling performance using the

Noctua Standardised Performance Rating (NSPR) instead of

giving a general TDP specification. In addition, we refer to our

CPU compatibility list where we indicate how well the cooler can

be expected to work on a particular CPU in a fully optimised

setup (see our setup guidelines):

https://ncc.noctua.at/s/nh-p1-cpus

If necessary, Noctua recommends adding a near-inaudible

120mm fan like the NF-A12x25 LS-PWM to the heatsink for

improved performance headroom.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the thumb screws until they stop, but do

not use excessive force (max. torque 0.6 Nm).
